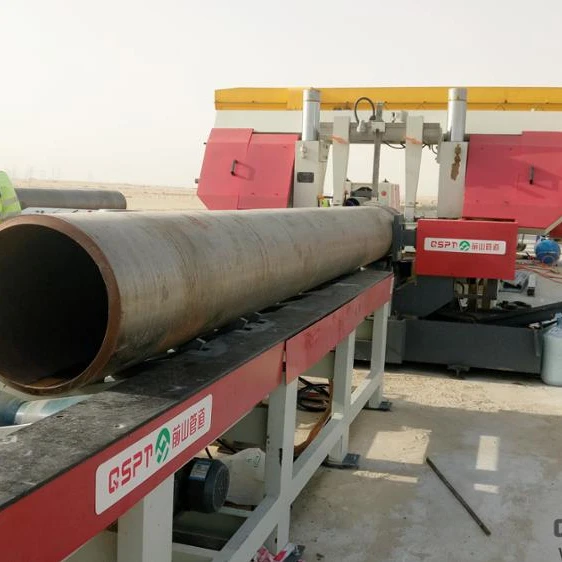

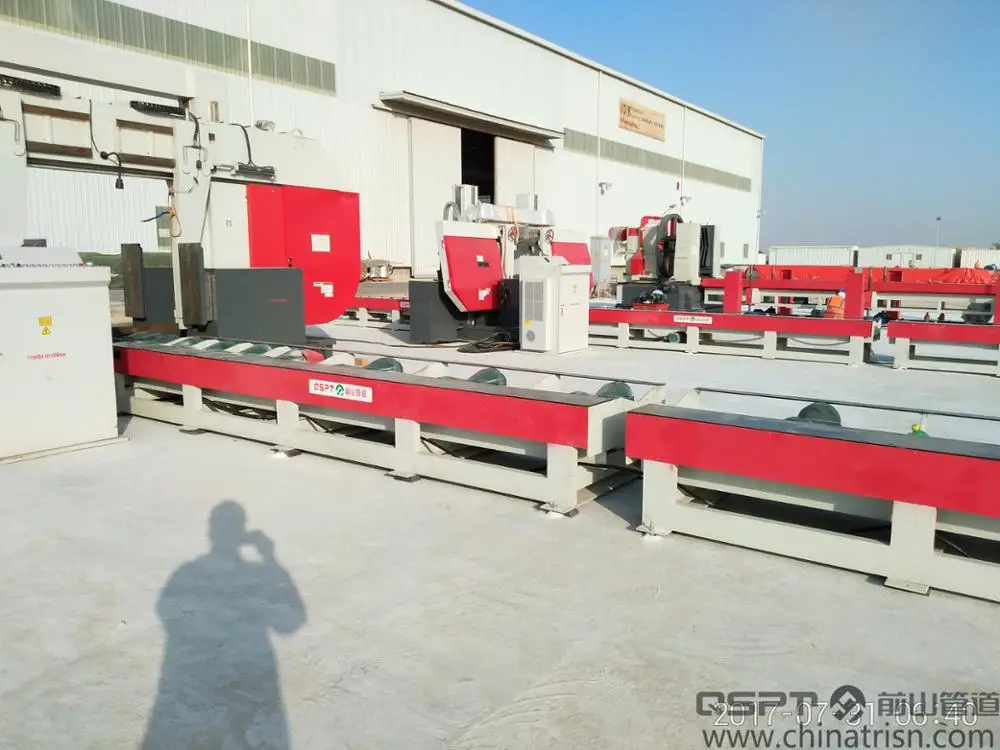

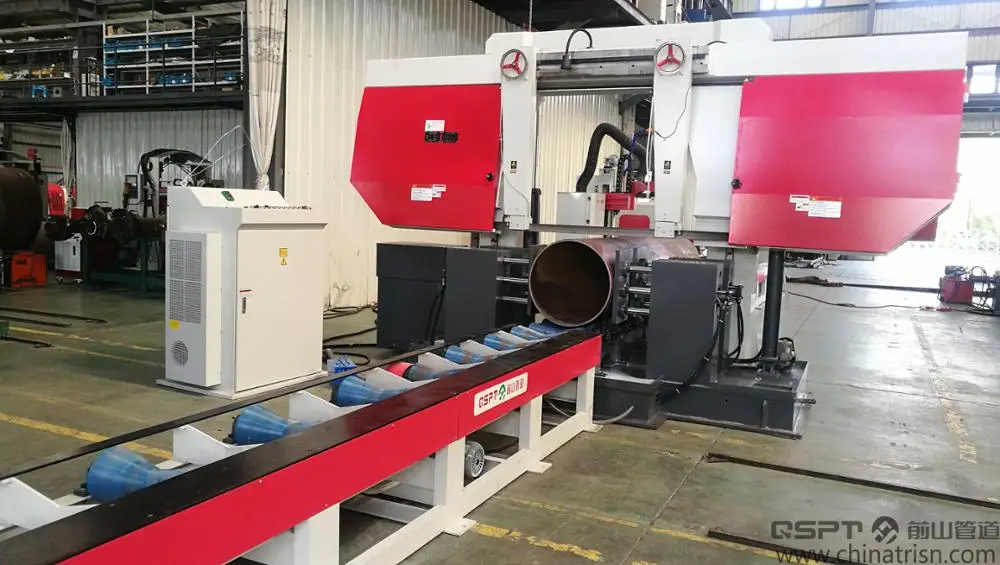

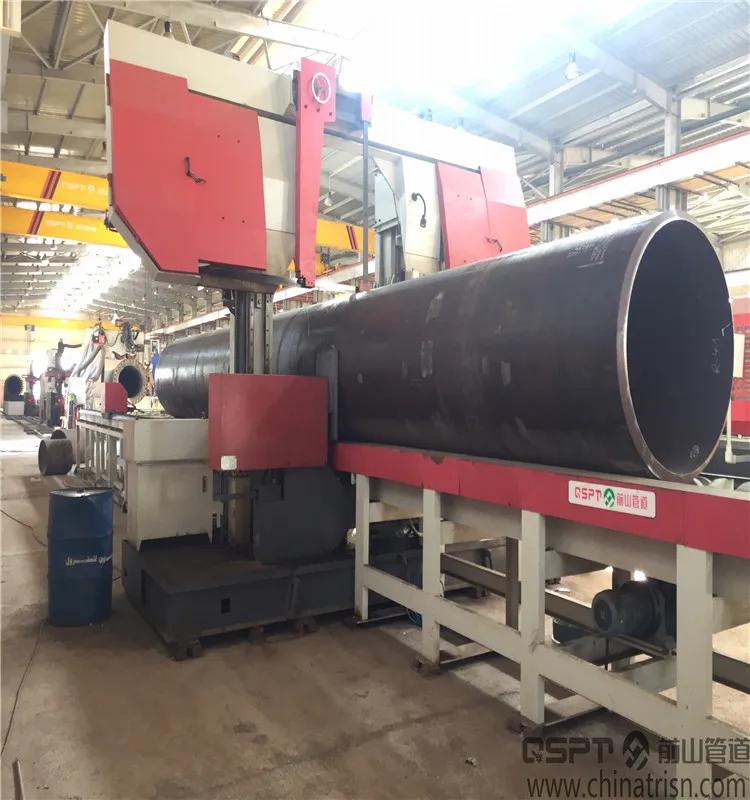

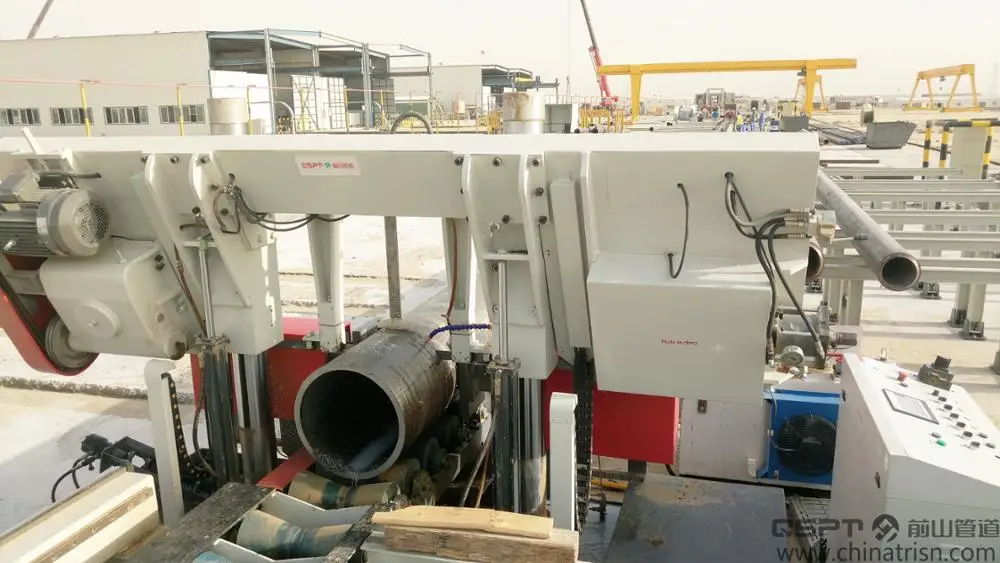

n        Digital Pipe Cutting Band Saw Machine

u          Model: PCBSM-24Ba

u          Performance features

l         On-line Performance: good (designed as per the one line equipment of the production line)

l         Cutting efficiency: ≤2Min /pipeline bevel (DN200 SCH80);

l         Opening quality: good

l         Application Range: Used in projects with a majority of thick pipelines and few common ones

u          Technical parameters

l         Structure: horizontal, with one main post+ one  auxiliary post

l         Pipe diameter applicable: DN50-600(φ60-610);

l         Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

l         Feeding speed: stepless speed adjustment

l         Speed of the band saw: 17-85m/min, VF

l         Size of the band saw: 7400*54*1.6

l         Length-measuring system: a mechanical Length-measuring system could be provided so as to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system.

l         Measuring Length:1m /once

l         Control System:PLC

l         Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.
