HPB-100

Описание и отзывы

Трекер стоимости

Характеристики

Model	Capacity(KN)	Pressure(Mpa)	Travel(mm)	Table size(mm)	Dimension(mm)	Hydralic station(mm)	N.W/G.W(kg)
HPB30	300	25	300+270	300x400	1160 x 550 1600		650/850
HPB50	500	25	220+405	400 x 800	1500 x 650 x 1950		1100/1300
HPB63	630	30	220+405	400 x 800	1500 x 650 x 1950		1200/1600
HPB1010	1000	30	250+405	460 x 980	1730 x 730 x 2250	730 x 630 x 960	1420/1820
HPB150	1500	30	250+405	460 x 980	1730 x 730 x 2250	730 x 630 960	1750/2150
HPB200	2000	30	300+405	500 x 1000	1940 x 950 x 2350	900 x 800 x 1060	2400/2800
HPB300	3000	30	300+405	700 x 1200	2100 x 950 x 2700	1100 x 1200 x 1350	4200/4500
HPB100 double cylinder	1000	30	300+405	420 x 1300	2100 x 750 x 2250	630 x 730 x 960	2100/2500
HPB150 double cylinder	1500	30	300+405	420 x 130	2100 x 750 x 2250	630 x 730 x 960	2400/2800



FEATURES

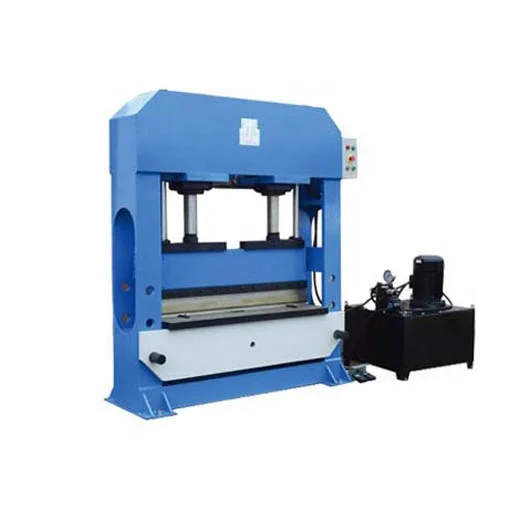

HPB series bending machine can assemble, disassemble, straighten, calender, mold, stretch, bend, punch, etc.
Multi-use for one machine is being realized.
This series uses Italian CNK and CBZ oil pump dual pump combined oil supply, which can save more than 60% energy compared with traditional hydraulic machines;
The efficiency is increased by 2-3 times; and it has small size, high pressure, simple structure and light weight. The table can be moved up and down, which greatly expands the machine's opening
Closed height, more convenient to use.
