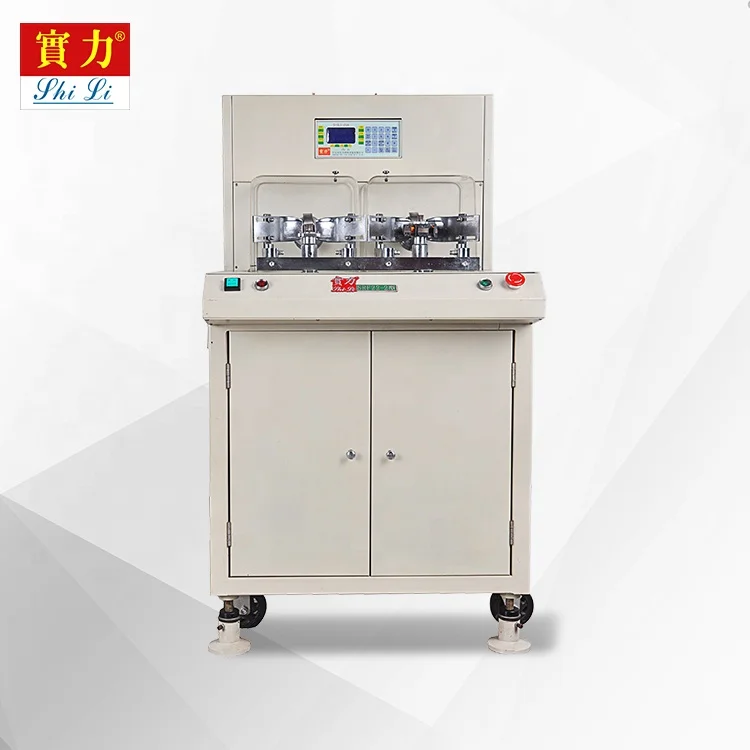

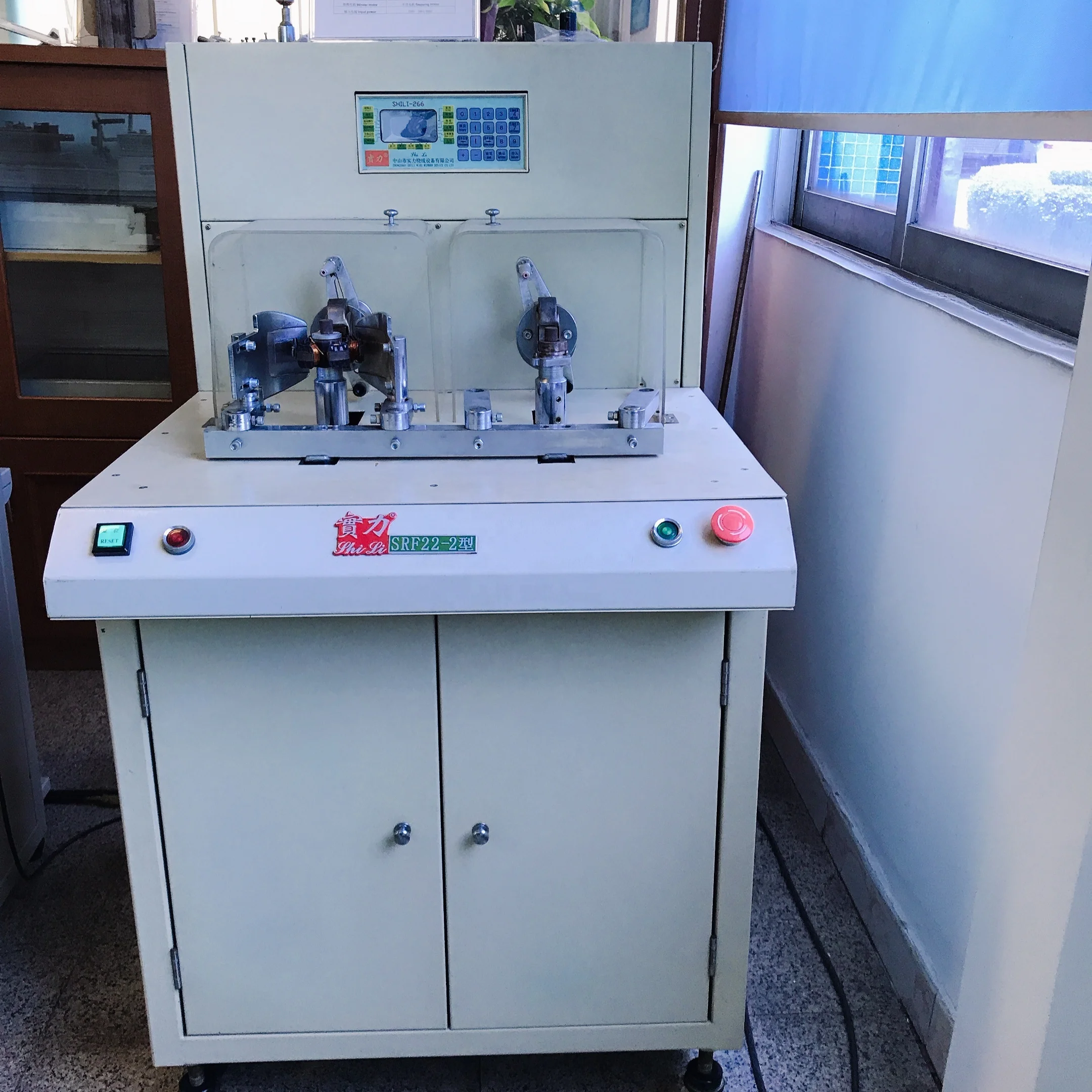

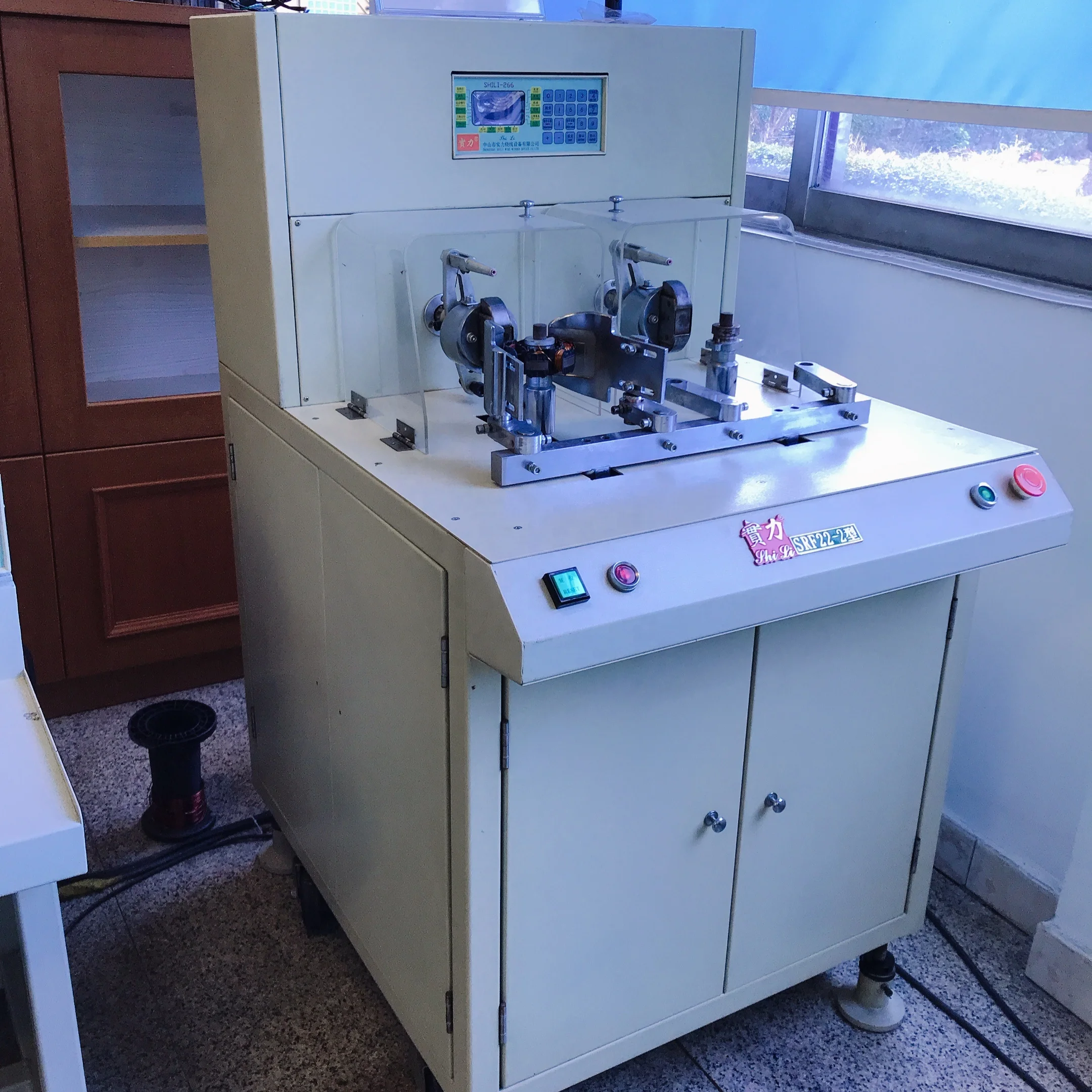

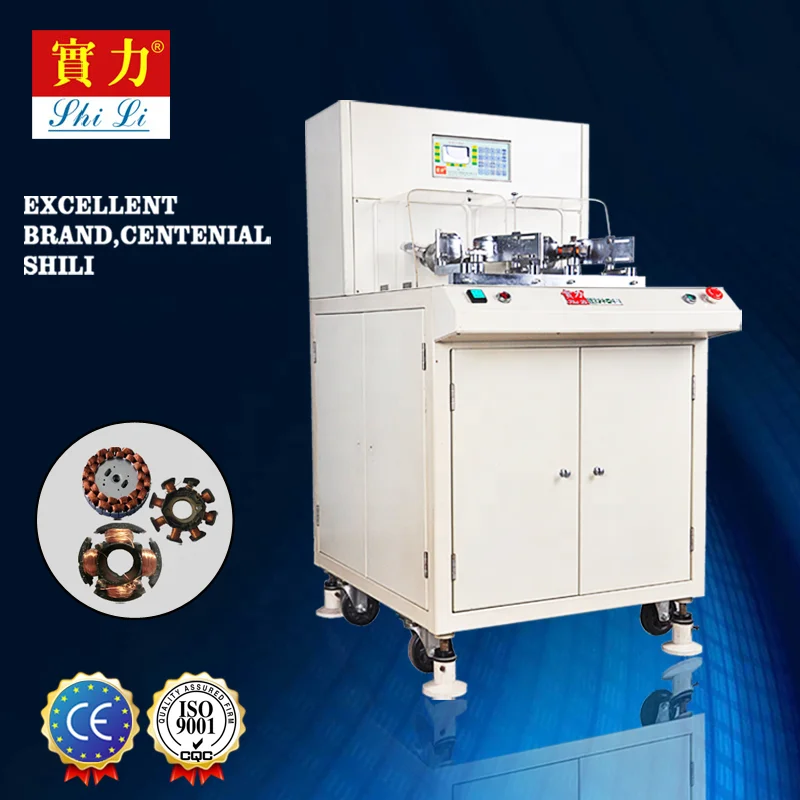

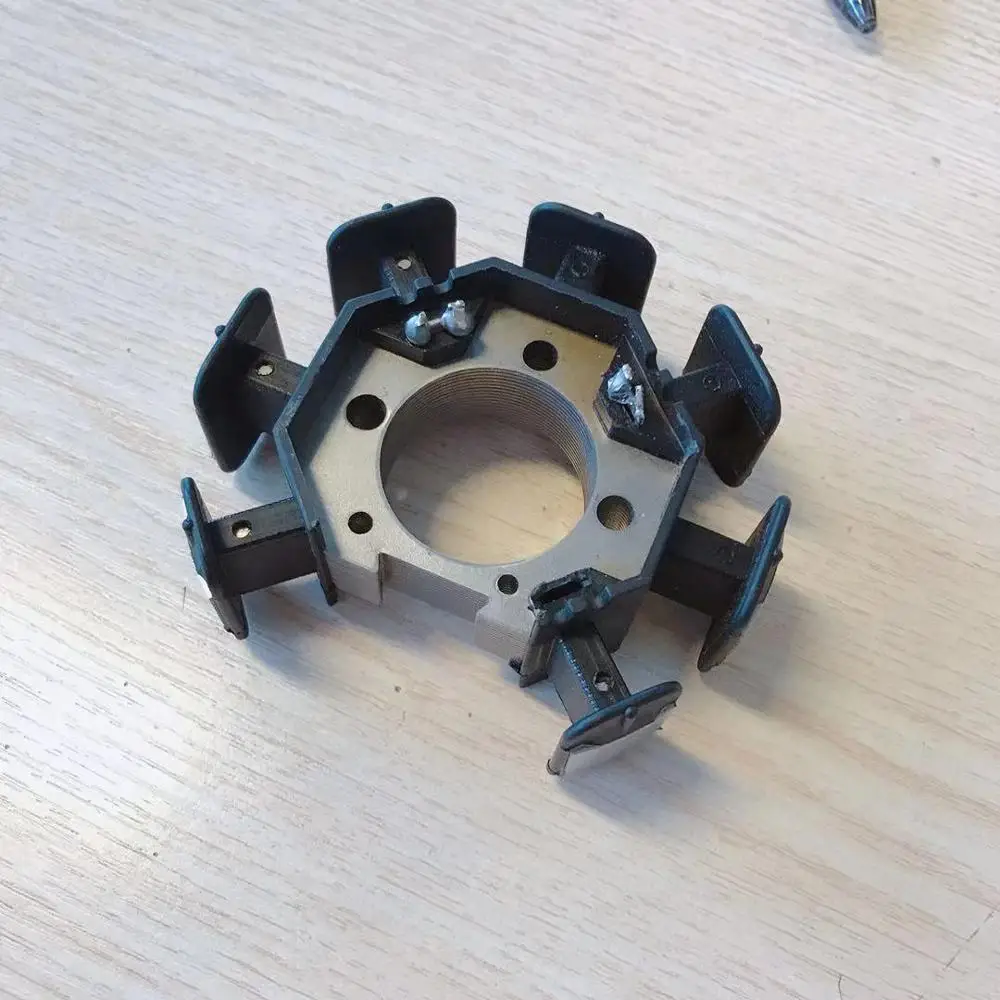

SRF22-2 два шпинделя 8 полюсов мотоцикла статор медной катушки обмотки
- Категория: Оборудование для изготовления трансформаторов >>>
- Поставщик: Zhongshan,Shili,Wire,Winder,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5950.56 $* | 6248.76 $* |
| Aug-17-2025 | 5900.53 $* | 6195.71 $* |
| Jul-17-2025 | 4950.34 $* | 5198.14 $* |
| Jun-17-2025 | 5800.38 $* | 6090.10 $* |
| May-17-2025 | 5050.13 $* | 5303.55 $* |
| Apr-17-2025 | 5700.55 $* | 5985.70 $* |
| Mar-17-2025 | 5650.72 $* | 5933.26 $* |
| Feb-17-2025 | 5600.22 $* | 5880.28 $* |
| Jan-17-2025 | 5550.91 $* | 5828.30 $* |
Характеристики
Products Description
Machine Feature
This machine design of 32 bit controller chip, It’ll be faster and higher reliability.In Chinese and English display,easy to
operation,winding data retention after power failure, not to discarded products.All the parts for this machine are imported
prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
Machine Function

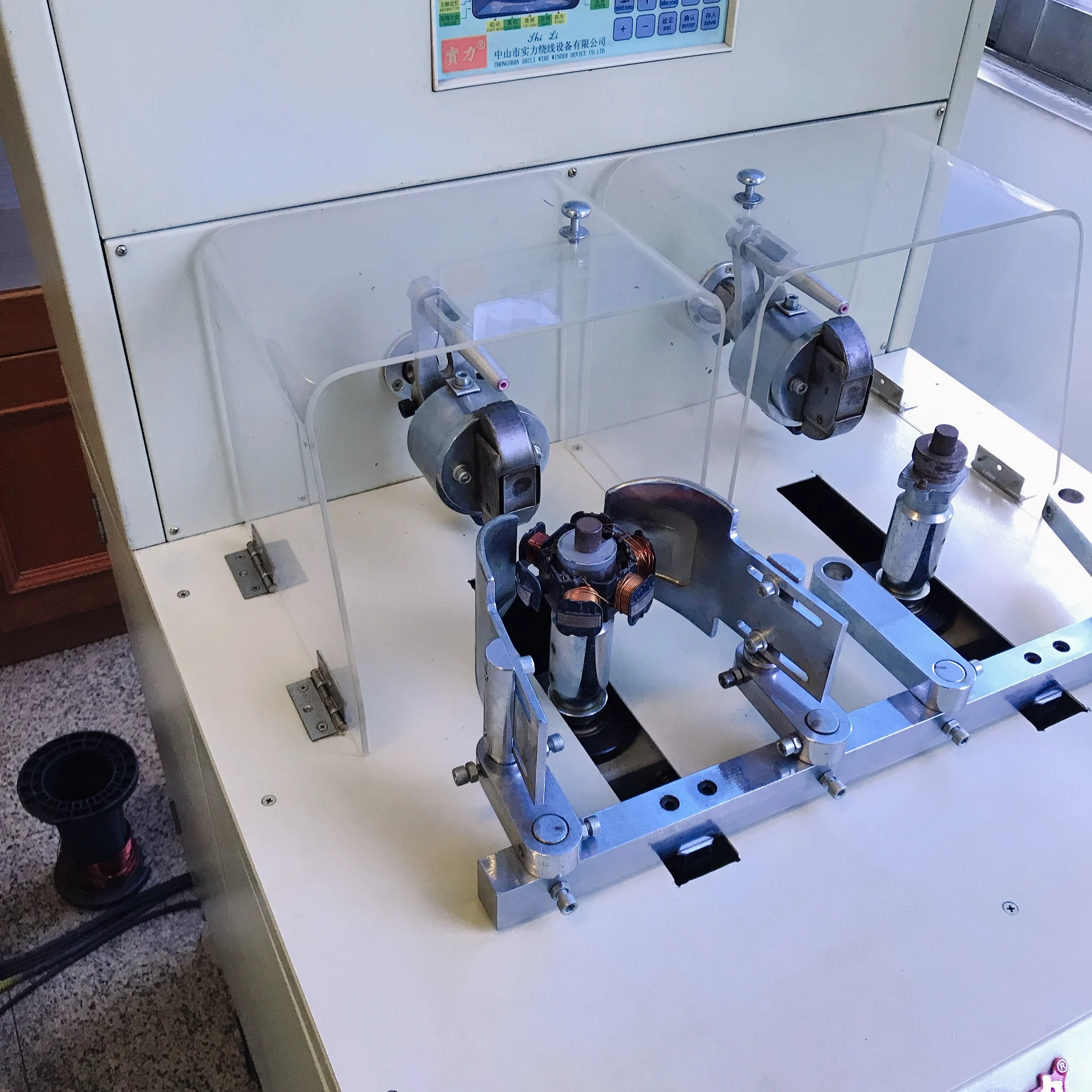

The machine use two spindle synchronous design, selection of high-power phase motor, making a thick wire around the low-speed
torque when larger and more stable. Coupled with high-power stepper motor ,when it rotates will get higher accuracy, so that
customers to feel save time,save worker,high production.
This machine design of 32 bit controller chip, It’ll be faster and higher reliability.In Chinese and English display,easy to
operation,winding data retention after power failure, not to discarded products.All the parts for this machine are imported
prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
Machine Function
The machine use two spindle synchronous design, selection of high-power phase motor, making a thick wire around the low-speed
torque when larger and more stable. Coupled with high-power stepper motor ,when it rotates will get higher accuracy, so that
customers to feel save time,save worker,high production.
Product Paramenters
Spindle number | 2 |
Wire size range | 0.1-1.2mm |
Loop diameter | 200mm |
The max wire spacing | 9.99mm |
Winder width | 100mm |
Max speed | 2200 turn/min |
Spindle motor | Phase motor+AC Driver |
Winder motor | Stepping motor |
Input power | 220V 50HZ/60HZ |
Machine size | 720×950×1300mm |
Package size | 1040×840×1440mm |
Net weight | 180kg |
Gross weight | 260kg |
Company Profile
Product packaging
FAQ
Our Advantages
1. Free consultation service before, during, and after sales.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
