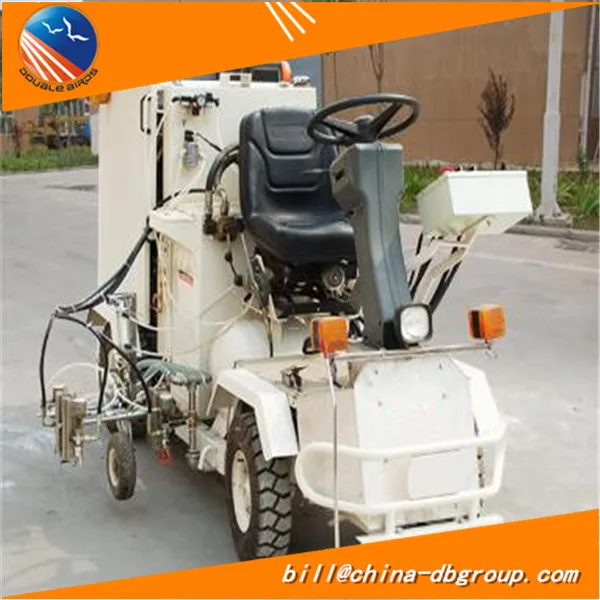

DB-CCJ125 Driving Cold Plastic (Two Component) Road Marking Machine







Main Advantages Of TheDriving Cold Plastic (Two Component) Road Marking Machine :

1. Engine: Imported Honda 20HP air-cooled electrical starting gasoline engine.
2. Driving system: Imported oil pressurized continuously variable speed transmission system (HTS) with automatic brake device that can freely go ahead, back off and stop. The left and right back wheels are equipped with a differential speed gearing to ensure it to drive freely around the curve and change directions timely. The hand brake system makes the driving more secure.
3. Driving speed: 0-22km/m.
4. Maximum climbing capacity: 15°.
5. Micro-electronic control system: This system sets four marking modes (also can make personalized design according to the customer ’s standard). Spray gun controller can freely change the guns between the single and double spray guns.

6. Chassis: A firm welded frame; its surface has been chrome-plated or sprayed with corrosion resistance coating; equipped with imported high speed bearing which ensures the whole machine lighter and more convenient.
7. Rubber wheel: The left, right, front and back wheels are gas-filled pressure resistance vacuum ones whose diameters are 400mm.
8. Guide rod: Can be freely adjusted to up, down, left right.
9. Lighting and warning function: Equipped with highlight lights which makes the night working convenient. The warning lights whose flicker frequency can be freely adjusted greatly improve the safety of the marking work.
10. Paint pump: Equipped with single (type I) 20L/min or double (type II) 12.5L/min plunger type high pressure airless pumps with big flow and stable pressure. Maximum pressure is 20mpa(Working pressure 10-15mpa).
11. Paint tank: The capacity is 215 with a filter device in it.
12. Spray gun: Equipped with three new-type pneumatic spray guns and one hand spray gun with an lengthening pipe for spraying special signs like arrows and letters. The hard side columnar reverse washed nozzle (30/20) makes the on-spot discharging easy and convenient. The non-arc nozzle can enable the marking line straight and exact.
13. Available paint: Applying to spray cold solvent, water-based and two-component road marking paint.
14. Spraying width: 100-450mm.
15. Glass beads dispenser: Equipped with single pressurized 60L glass beads bin with a window. Single glass beads spraying gun can be equipped on the left or right that can freely adjust its pressure, flow rate and spray width to ensure the spraying glass beads firmer, evener and more economical.
16. Glass beads bin: The glass beads bin with a window to check the quantity of glass beads timely; the capacity is 100kg.
17. Pre-marking working synchronous with the marking operation, greatly improving the construction efficiency.
18. Size &Weight: 2900mm (L)× 1600mm (W)× 2400mm (H) .682kg











Main technical parameters of Cold Plastic (Two Component) Road Marking Machine :



		DB-CCJ125-IP	DB-CCJ125-IIP
Engine		Kohler 18HP or Honda 20HP gasoline engine	Kohler 18HP or Honda 20HP gasoline engine
Air compressor		0.6m3/min	0.6m3/min
Paint tank capacity		170L	170L×2
Glass beads system		52L	52L
Paint Pump	Equipped quantity	1 set	2 sets
	Maximum pressure	25Mpa	25Mpa
	Maximum flow	20L/min	12.5L/m
Spray gun		Double pneumatic spray gun, one manual spray gun	Double pneumatic spray gun, one manual spray gun
Control system		Digital intelligent control system	Digital intelligent control system
Applied paint		Cold-solvent paint and water-based paint	Cold-solvent paint, cold water-based paint and two-component paint
Marking width		50-500mm(adjustable)	50-500mm(adjustable)
Dimensions (L*W*H), Weight		2900×1600×2400mm, 682kg	2900*1600*2400,682kg
