 pet  granule extruder machine:

1.pet bottle granulating line
2.CE certification
3.Capacity:100/200/300/500kg/h
4.Total power:120/150/200kw





waste plastic granule making machine

This production line is ideal equipment for recycled plastic pelletizing, e.g. pet recycle bottle or any other plastic recycled material; industrial flakes. This line is of new design, reasonable configuration, steady operation, low noise, low consumption and high output.



Feature:



1. High-efficient force-feeder ensures high capacity feeding, low energy consumption



2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity..

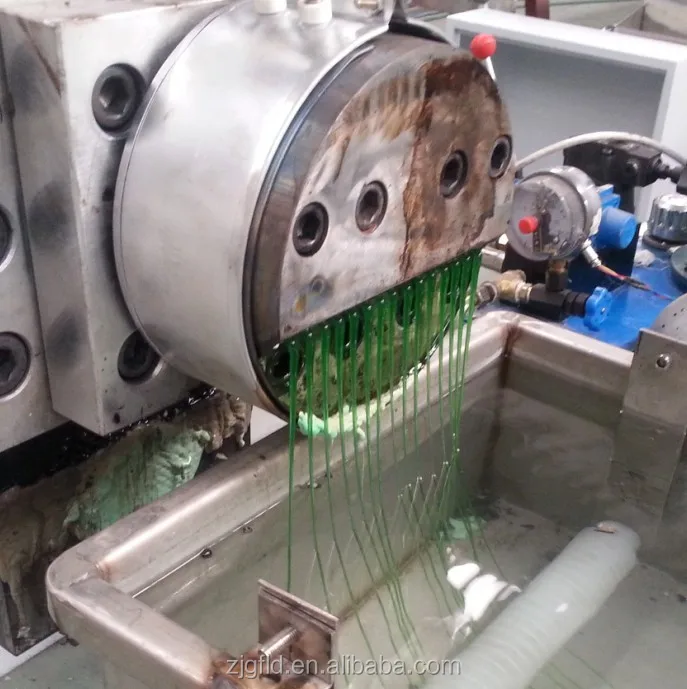

3. Pelletizing style: water-ring cutting with extrusion mould, even cutting ensures good shape.( strand cutting type is also available)



4. Auxiliary machine: pellets cooling & classifying





Process flow:



Conveying feeding → Metal detector →Film agglomerating → Degassing single screw  extruder → Hydraulic screen exchanger → Rub surface granulating machine → Slip trough → Dewatering machine → Librating screener→ Blowing system → Storage hopper → Finished product packing

We design and produce all the machine by ourself.you are welcomed to my factory.‘’



 Technical parameters:

Model type	SJ-90	SJ-100	SJ-110	SJ-120
Screw Diameter	¢90	¢100	¢110	¢120
Screw Ratio	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	22Kw	30Kw	37Kw	45Kw
Output	100kg/h	150kg/h	200kg/h	250kg/h
Weight of overall(kg)	2t	2.1t	2.2t	2.5t
cover dimensions(LxWxH)(mm)	8000x1200x1800	8200x1600x1800	8500x1600x1800	8800x1600x1800
