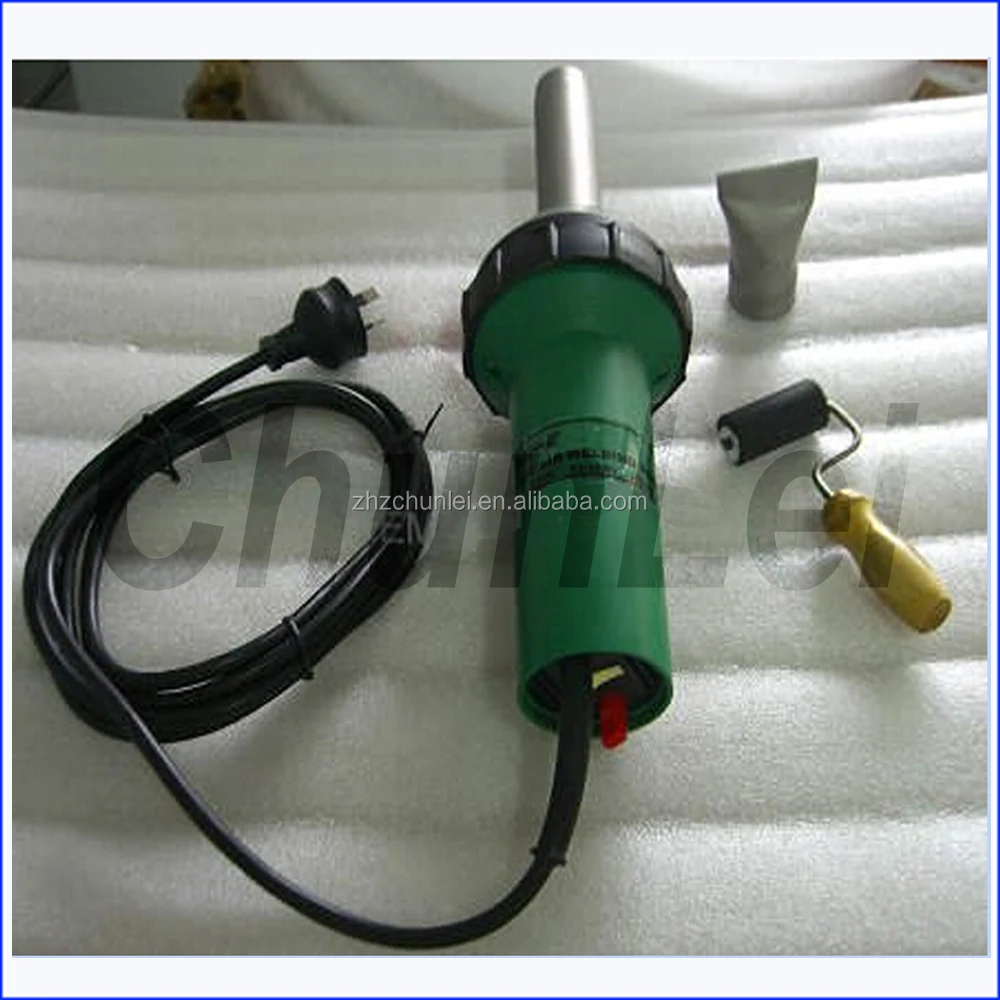

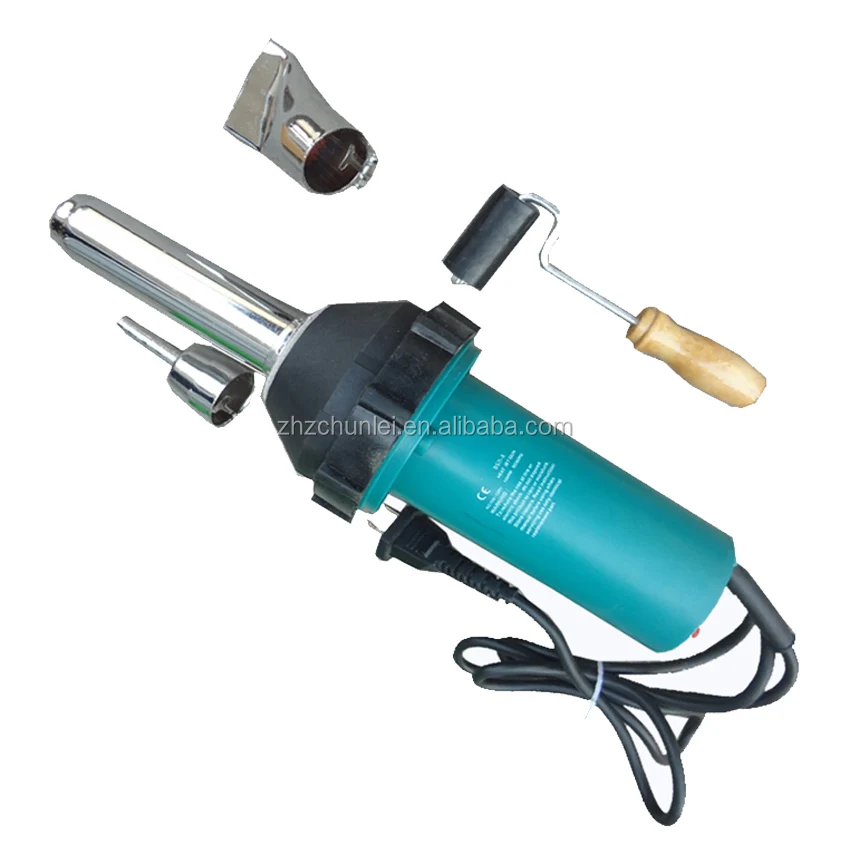

1000W hot air welding gun heat gun

The machine can be extensively used in advertisement industry. It apply to joint heat melted material such as PVC, PP, PE, etc

Technical data

Model	H-A
Voltage	110V/220V
Power	1000W
Frequency	50/60Hz
Max temperature	30-580 degree centigrade
Air flow	180L/min
Pressure stat	2500Pa(25mbar)
Gross weight	2KG

Maintenance

1. Clean dirty air filter network or changed the filter screen with little brushes
2. brushes and cleans and weld the spray nozzle with the steel.
3. When the carbon brush is consumed to the minimum length, electrical machinery switches will be closed automatically. This machines must be checked by your service centre. The service life of the carbon brush welded on the electrical machinery of the tool is 1600 job hours probably

Structure chart



1. Power thread        4. The outer cover           7. Generating heat machine

2. The switch           5. Filter the network         8. Protect and cover

3. Temperature control   6. The rubber is enclosed     9. Jet-propelled mouth

10. Regular screw



Regarding our machine , if you need more information , please contact us , we will do our best for customer .
