BHD 1600W Plastic Welder/Welding Roofing PVC TPO Membrane Hot Air Gun Welder HDPE Geomembrane Kits Carry Case

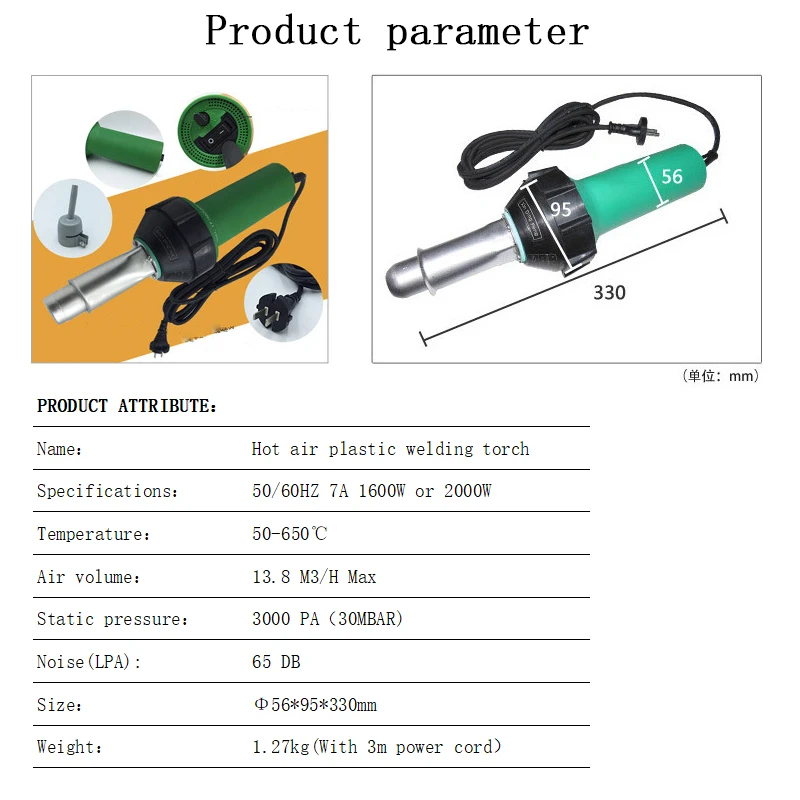

Welding Gun Technical Specifications:
voltage:120V
Power:1600w
HZ: 50 / 60Hz
Adjustable temperature: 50-650 degree continuously adjustable
Adjustment temperature from Gear 0 to 9
Air flow: Max 260L/Min Air
Static pressure:3000PA(30 MBAR)
Sound level:65DB
Weight : About 1.3KG (Including 3M power line)

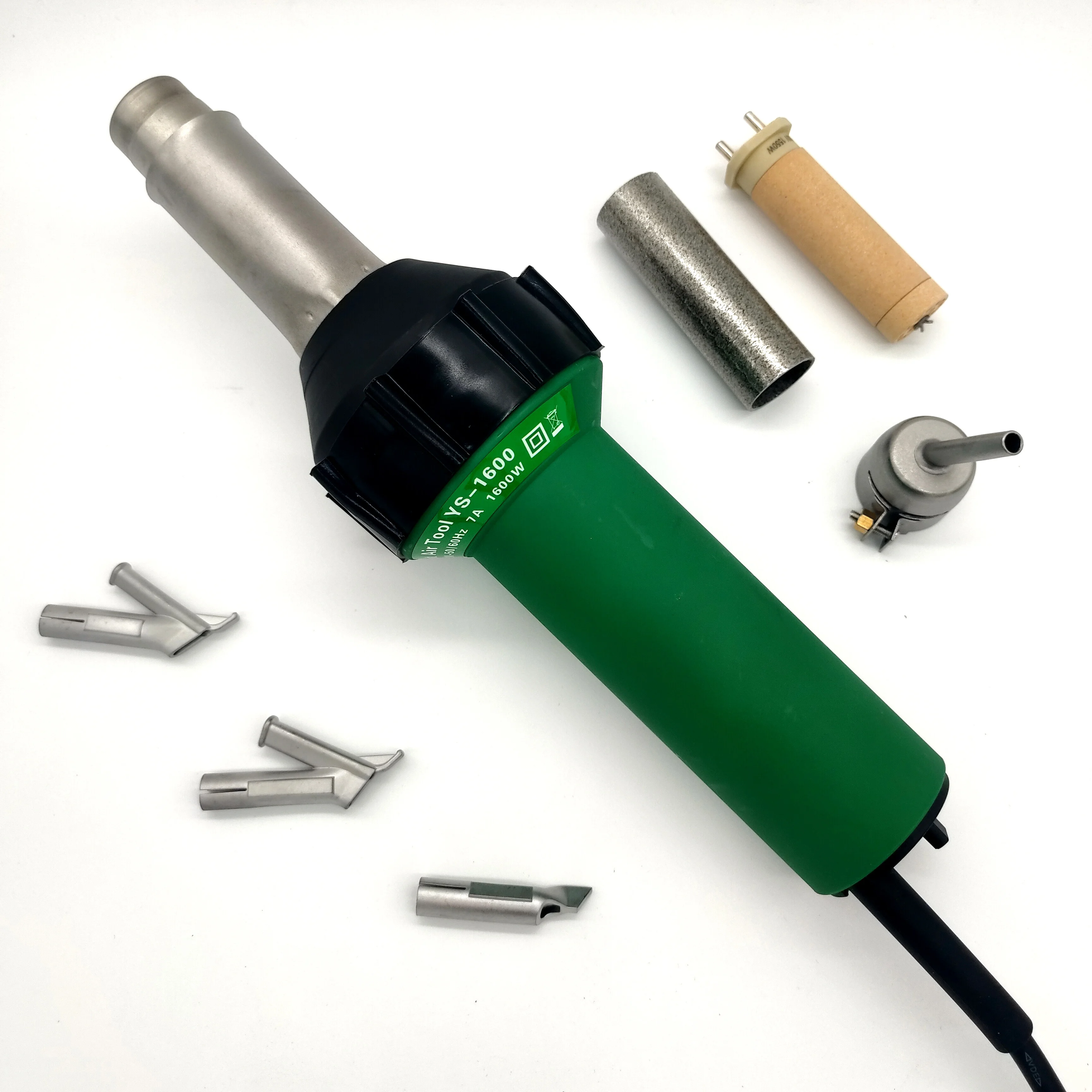

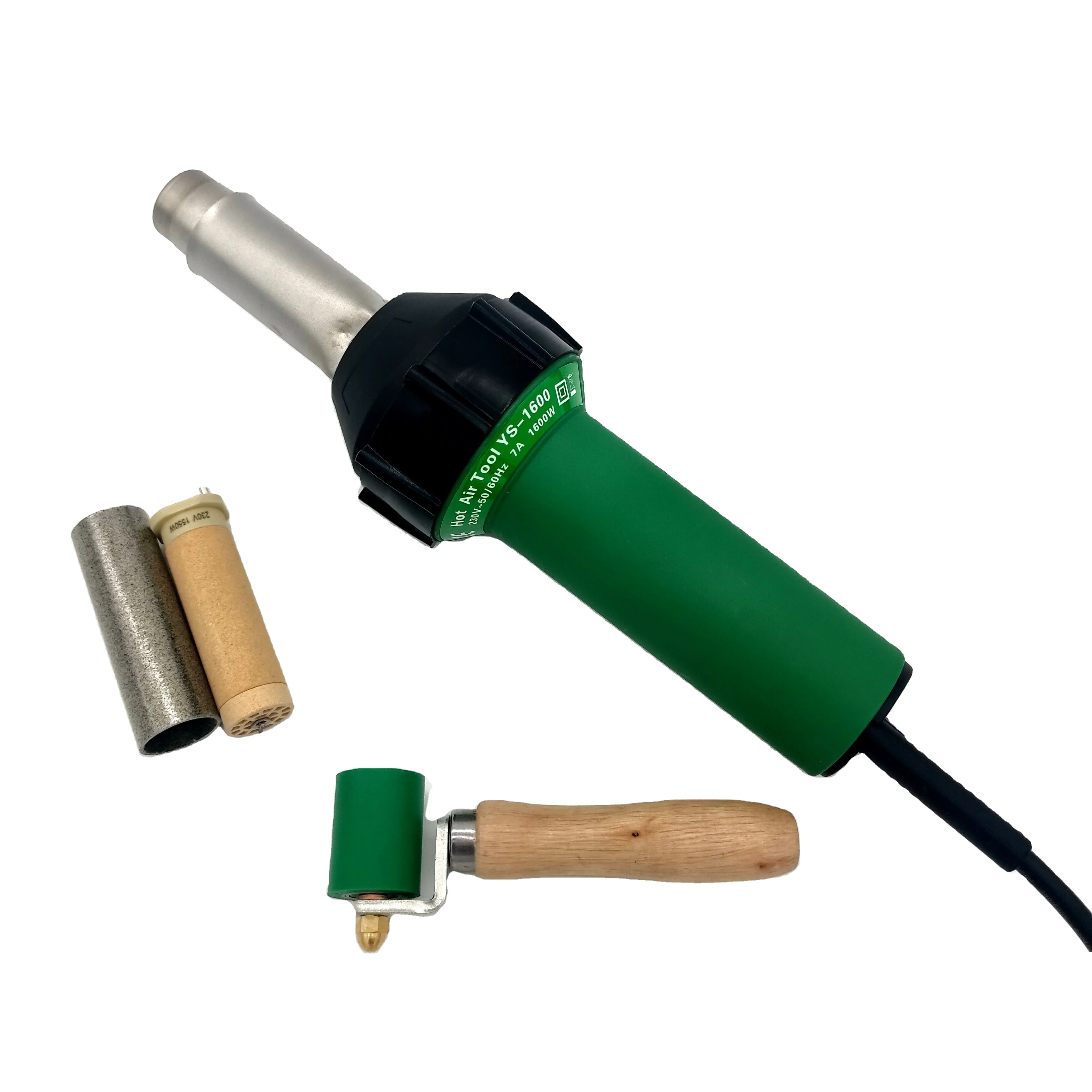

Accessories accompanied with Kit
1)Hot air plastic welding gun 120V 1600W*1
2)Dusty blue toolkit *1
3)Heating Core 120v 1600W*1
4)Green Pressure silicon roller 40mm*1
5)Red Pressure silicon roller 28mm*1
6)White Teflon roller 28mm*1
* Brass penny roller*1
8)Sus304 Flat weld nozzle 20mm*1
9)Sus304 Flat weld nozzle 40mm*1
10)90°angle Flat weld nozzle 20mm*1
11)120°angle Flat weld nozzle 20mm*1
Product information
Item weight: 4kg
ASIN:YS1600-2
Color: Green
Material:Heat Gun body:Plastic+ stainless steel
Item package quantity: 1
Batteries included? No
Batteries required? No
Warranty period: 6 months(not include part)
Hot air gun introduction
* One key power off of delay cooling automatically: Turn the power off directly after use. No need to Knob the temperature to
zero point before turn the power off, It can be done in 5 minutes using function of One key power off of delay cooling
automatically.This can prolong life of heating element.
Tips:Hot air gun will sound for 5 minutes after turning power off.The fan inside cools down Heating core then the power closes in
5 minutes automatically.Nothing to do with other things.
2)9 Gears potentiometer adjustable temperature: Not only more accurate but also adjustable continuously in order to increase
efficiency by using stabilized circuit board.Advanced Temperature control program with double Protection of Electronic overheating
and photosensitivity can lead to longer service life.
* Heating core used Sweden brand “KANTHAL”resistance wire, high temperature resistance and heating evenly,longer service time.
* Motor uses High quality bearing bearing,Motor speed up to 12500 RPM,The air volume reach 260L/Min,Less qnet, not hot.
* Brand new Dynamic balancing blade,shake lighter,slim hand shank ,better hand feeling,less tired of hand
* Bottom Wind Net:Dust prevention protects service life of Heating Core.
* BHD HOT ARI Welding GUN is widely used for welding a variety of plastic materials such as PVC,PE,PP,PA,EPDM,PS,TPO,EVA,etc
according with choosing different accessories .Fitting of repairing roofing, tarpaulins, Waterproof membrane material and so
on.
