Электрический испытательный карандаш Пилотная лампа типа плавкого предохранителя

Описание и отзывы

Трекер стоимости

Характеристики

  --Lighting Source Series



 We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.







LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:



♦ dimensions



♦ luminous intensity



♦ viewing angle



♦ colour emitted light



♦ lens colour







 Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.







2. PRODUCT PARAMETER



TYPE	BREAKDOWN V(Max)	CURRENT	LIFE	APPLIED VOLTAGE	SERIES RESISTANCE	LAMP SIZE		LEAD WIRE
						D	L
	VAC	mA	h	VAC	KΩ	mm	mm
ND1	135	2	25000	220 380	150	13.5±0.5	38.5±1.5	E14/20 BA15d/19
ND2	135	2	25000	220 380	150	11±0.5	33.5±1.5	E10/13x11
ND3	135	2	52000	220 380	150	8.5±0.5	28.5±1.5	E10/13 BA9S/14

tND1 :Plastic shell neon lamp BA9S/14







E10/13



ND2:Led  indicator light







ND3:Fust type neon lamp series





Plastic shell neon lamp is assembled by neon lamp ,fluorescent lamp ,lamp holder ,series resistor and plastic bracket.

It can be used directly in the lampstand of the circuit without out -connected resistance ,safe and convenient .

It has two kinds:red one and green one,which also can be divided into two:screw socket (BA9S/14).T

he service voltage is 100-380V.This also can be realized on LED verson.

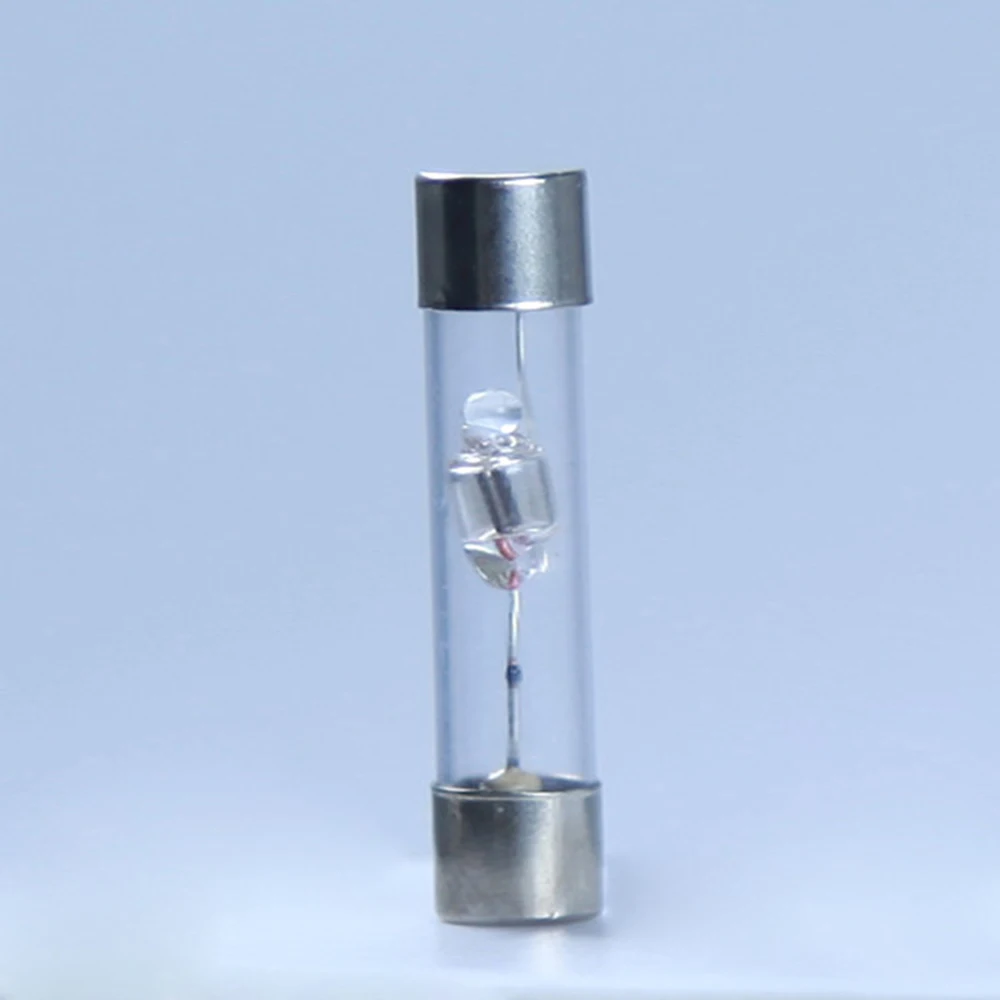

Fuse type neon lmap is consist of nickel-plating copper caps,transparent tube ,neon lamp and resistor,with transparency,safety character.

It is the best indicator for the electric test pencil.



5.Our Working Place





6.CE





7.Payment



 T/T is the best ,we also supply L/c
