360 градусов 3D rgb Пиксельная трубка dmx Светодиодная для клубных

Категория: Neon Bulbs & Tubes >>>
Поставщик: Shenzhen,Colordreamer,Lighting,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.55 $*	0.17 $*
Aug-15-2025	0.45 $*	0.64 $*
Jul-15-2025	0.57 $*	0.46 $*
Jun-15-2025	0.55 $*	0.0 $*
May-15-2025	0.95 $*	0.38 $*
Apr-15-2025	0.66 $*	0.87 $*
Mar-15-2025	0.76 $*	0.88 $*
Feb-15-2025	0.71 $*	0.36 $*
Jan-15-2025	0.69 $*	0.0 $*

Характеристики

Product Description

Product Presentation

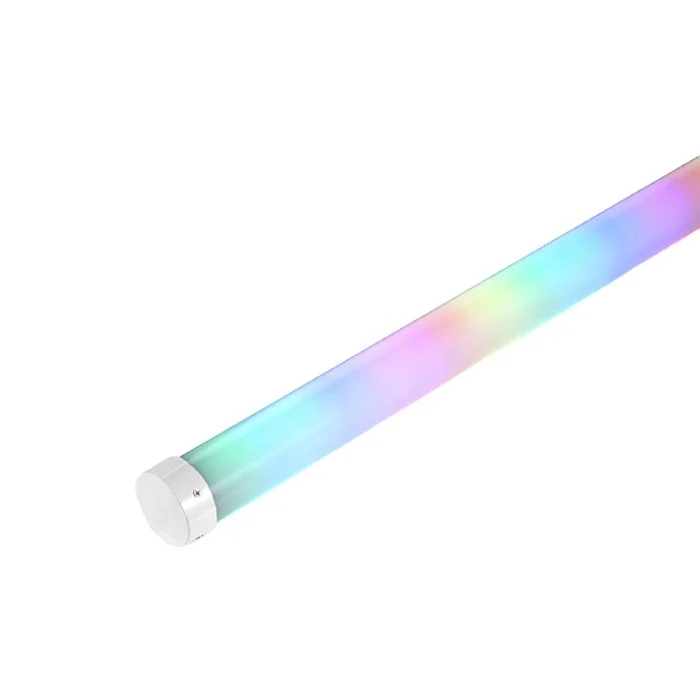

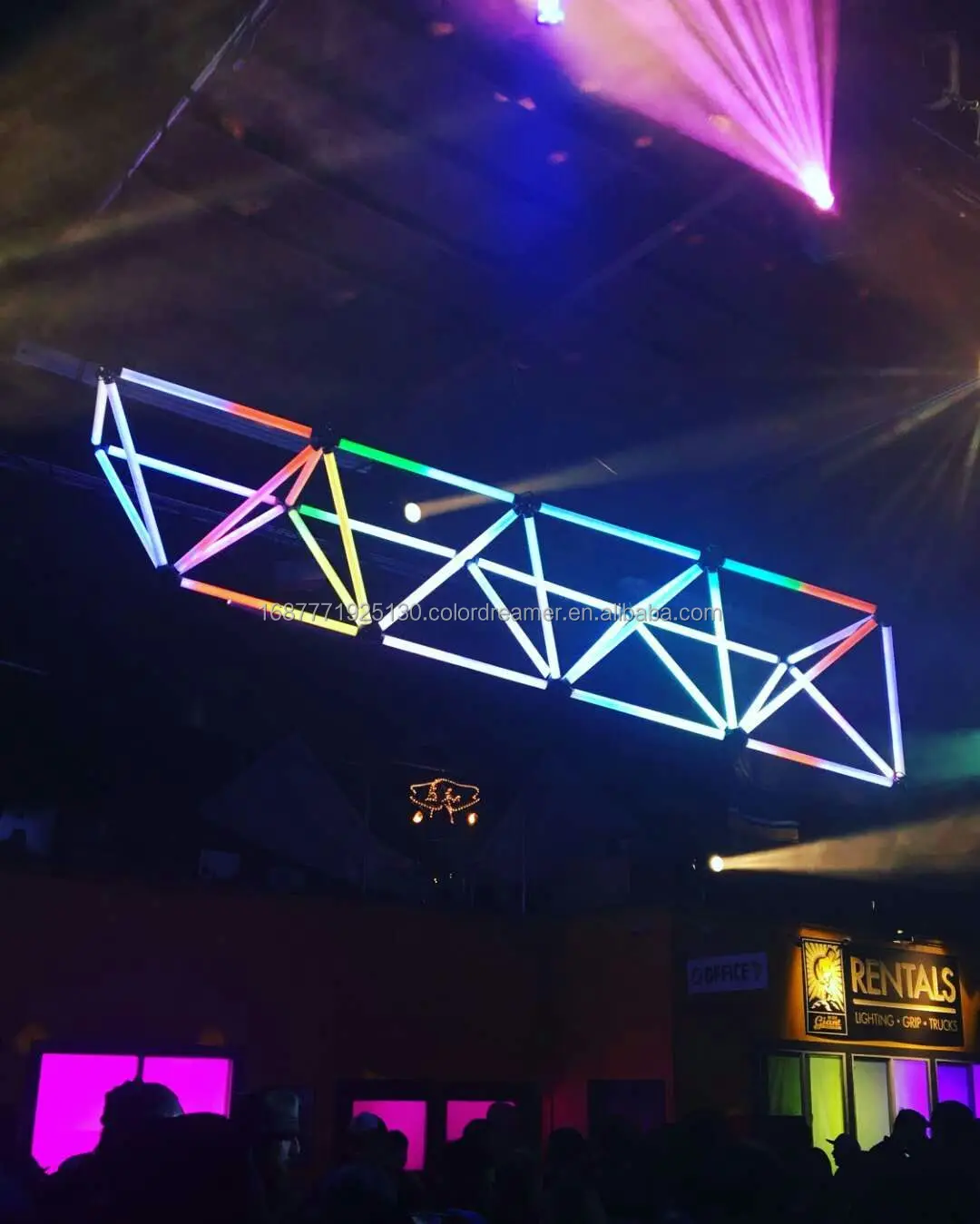

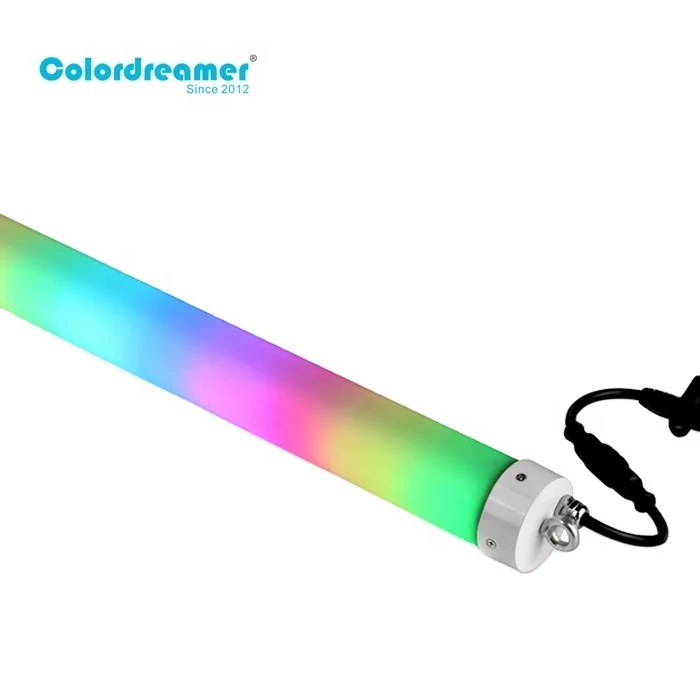

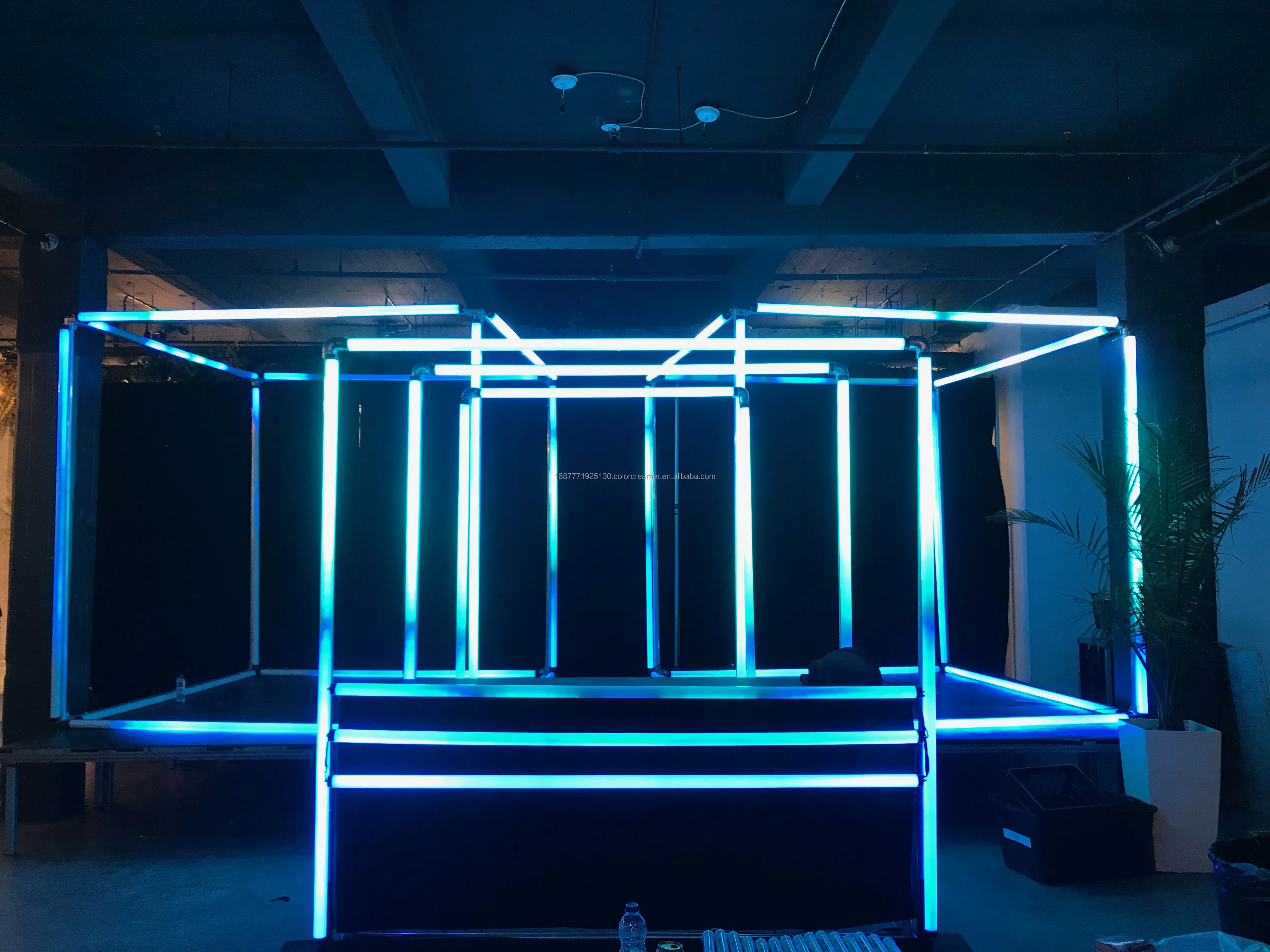

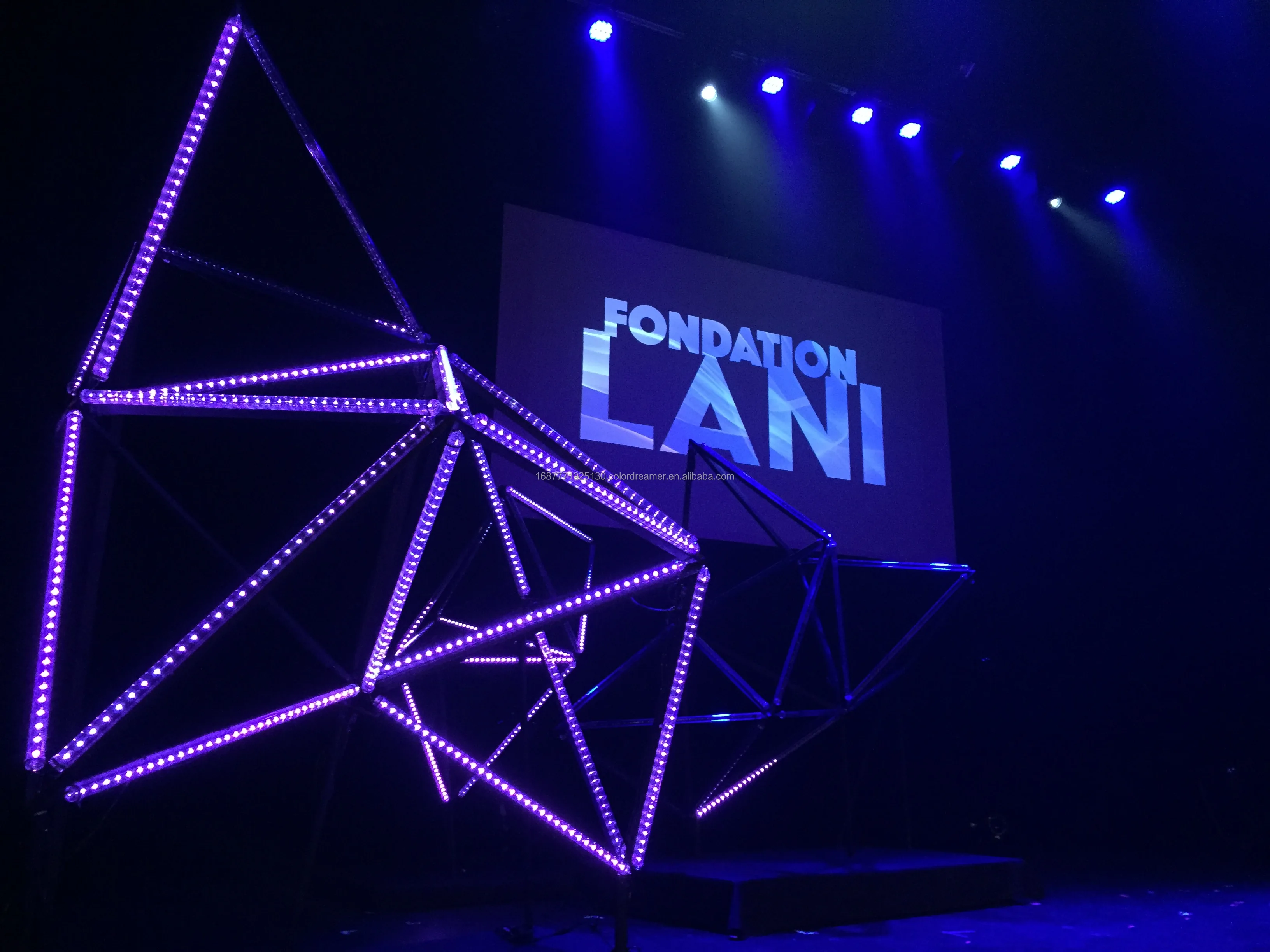

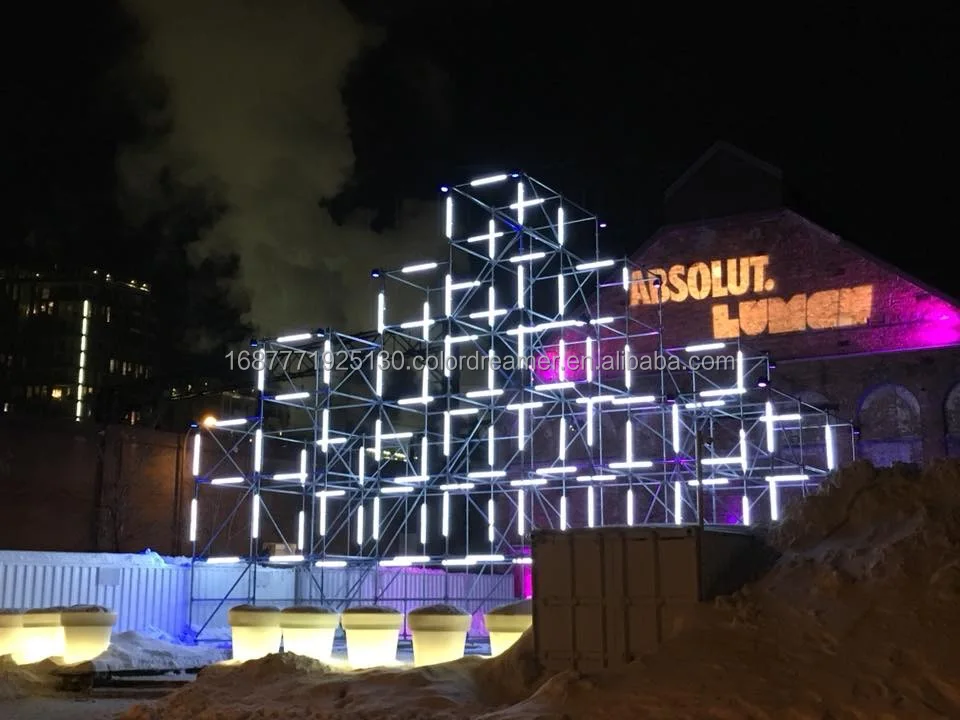

This DMX 3D opal tube can be suspended from the ceiling horizontally and vertically in club, stage, events and so on.
Double side lighting effects can be seen from 360degree.
2D pixel mapping can be transformed to be 3D with the help of software programming.
Apply solid capacitor and other good brand components on PCB for long life time.
Save 40% power with more efficient power management design.
With wide voltage range design, LED color always keep same brightness after long distance power supply.
Standard DMX512 control protocol(Max 44frames/second).
The communication between tubes are synchronized perfectly under support of Colordreamer Artnet Controller.
Lightning and ESD Protection
Electrical Protections: short circuit, over current, over voltage and over temperature.

Models	TM050	TM100	TM150	TM200
LED
Color	RGB	RGB	RGB	RGB
Light Source	Epistar SMD 5050 LED	Epistar SMD 5050 LED	Epistar SMD 5050 LED	Epistar SMD 5050 LED
LED Source Color	R:620-630nm G:520-530nm B:460-470nm	R:620-630nm G:520-530nm B:460-470nm	R:620-630nm G:520-530nm B:460-470nm	R:620-630nm G:520-530nm B:460-470nm
LED QTY	60LEDs	120LEDs	180LEDs	240LEDs
Performance
Lumen Output	Update soon	Update soon	Update soon	Update soon
Efficacy	Update soon	Update soon	Update soon	Update soon
Beam Angle	360° opal Cover
Electrical
Input Voltage	15-24VDC	15-24VDC	15-24VDC	15-24VDC
Power Consumption	7.5W	15W	22.5W	30W
Control
Protocols	DMX512	DMX512	DMX512	DMX512
PWM Frequency	256KHz@8-Bit Grayscale
Addressing	Manual Addressing with Colordreamer addressing tool
Pixels	10Pixels	20Pixels	30Pixels	40Pixels
Physical
Material	PC
Cover	Opal
Diameter	50mm
Length	500mm/1000mm/1500mm/2000mm
Cable Entry	Top Entry
Mounting	Suspended
Mounting Orientation	Horizontally or vertically
Packing	/
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP54
Certification and Safety
Certification	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty

Certificate

Company Introduction

Packing&Shipping

FAQ

Q1. Do you have any MOQ limit for led light order?
Answer: Low MOQ. 1 PC for sample checking is available.

Q2. How do you ship the goods and how long does it take to arrive?
Answer ：We usually ship by DHL and FedEx. It usually takes 3–5 days to arrive.
Airline and sea shipping are also optional.

Q3. Which international certification will you provide?
Answer: We provide international certifications authorized by CE, RoHS for EU and ETL for North America.

Q4. Are you a factory, Is possible to visit your factory?
Answer: Yes. Professional stage equipment manufacturer in China. Our sales network is worldwide for wholesale and custom orders
lf you want to bulk buy in China. Welcome to inquiry and visit our factory.

Q5. What are your terms of payment?
Answer: TT or PayPal

Q6. Do you offer free samples?
Answer: Not. we don't. We can offer you samples but you should pay the samples fee. lf you place an order with us. we can return
the samples fee to you .

Q7. Do you offer guarantee for the products?
Answer: Yes. All our products have a 3–5-year warranty.
