Automatic PET Bottle Machine

Machine Features:

1.Stable performance with advanced PLC.

2.Conveying preforms automatically with conveyor.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

5.High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

7.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8.Strong clamping force with high pressure and double crank links to lock the mold.

9.Two ways of operating: automatic and manual.

10.Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

11.Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

12.Contamination is avoided for the bottle body.

13.Ideal effect of the chilling with the chilling system.

14.Easy installation and starting

15.Low rejection rate: less than 0.2 percent.

Machine Specification:



TYPE	ITEM	SB2L/2
CONTAINER	Number of cavity	2
	Theoretical output	1400-2200 pcs/hr
	Max.container volume	1.0L
	Max .neck diameter	38mm
	Max.container diameter	70mm
	Max.container height	280mm
ELECTRICAL SYSTEM	Number of lamp	14 pcs(1500w/pcs)
	Max.heating power	21kw
	Installation power	21.5kw
	Actual power consumption	8-14kw
AIR SYSTEM	Operatating pressure	0.7Mpa
	Low pressure consuming	1000-1200 Ltr/min
	Blowing pressure	<3.5Mpa
	High pressure consuming	1200-1500Ltr/min
WATER CHILLER	Operating pressure	0.5-0.6Mpa
	Temperatuer	10-12°C
	Consuming	3600kcal/hr
	Flow rater	20Ltr/min
MACHINE	Machine dimension	2.85×1.75×1.9(m)
	Machine weight	2.4T

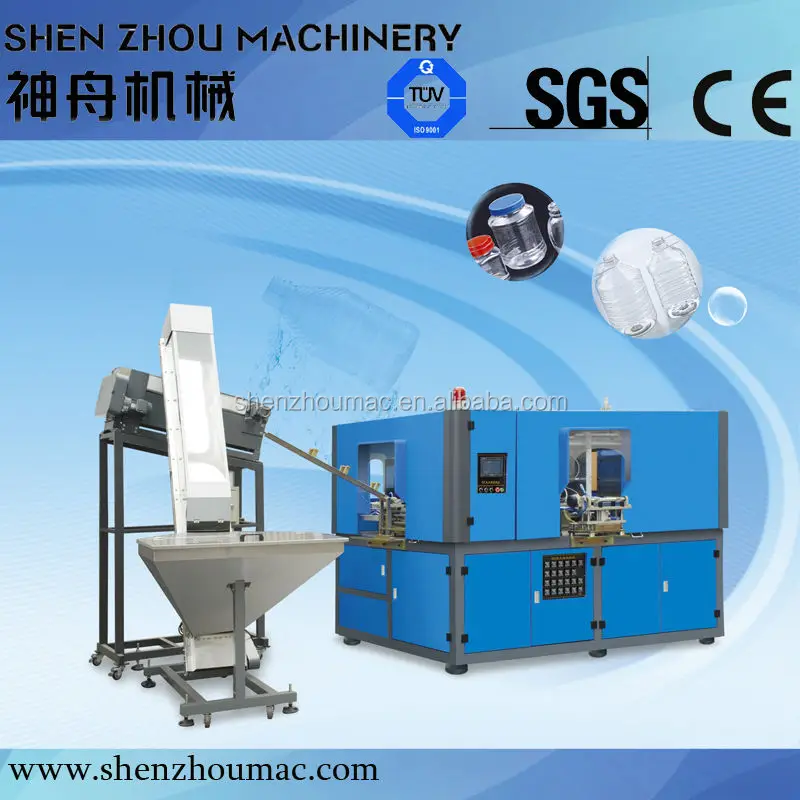

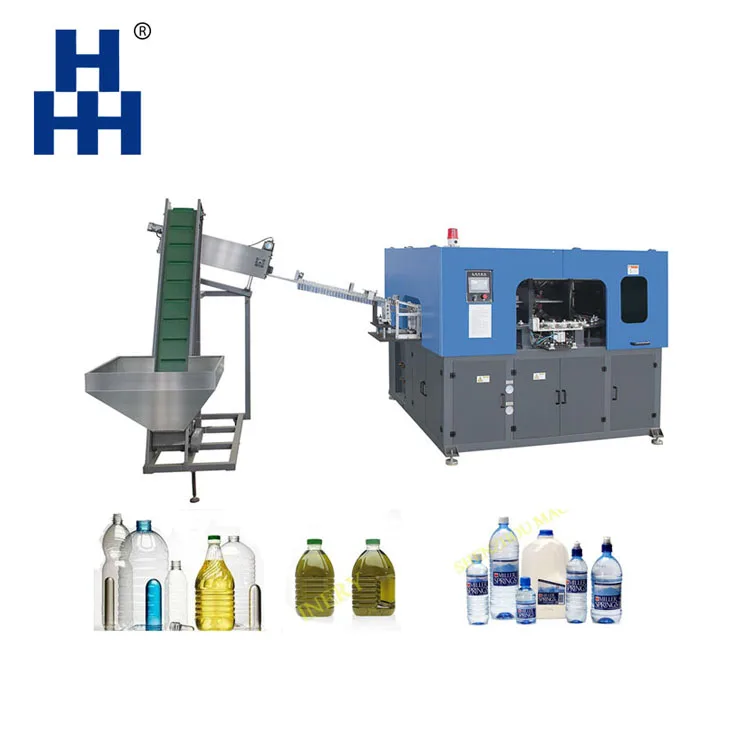

 Machine Photos
