Характеристики

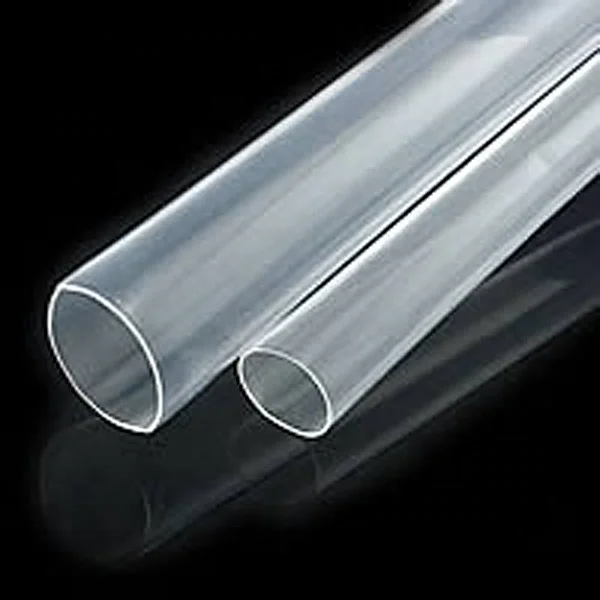

clear tube / raychem heat shrink sleeves
Feature
Shrink temperature :100-120 °C,
Full recovery temperature: 130 °C.
Temperature control: -55 °C --125 °C.
Radial shrinkage: 2:1
longitudinal shrinkage rate: ± 5%.
Colors: red, yellow, green, black, clear and other colors.
Type and Specification
| Item No | Inner Dia | Thickness | Package (m/roll) |
| VDRS-Φ1/0.5 | 1.3±0.3 | 0.185±0.05 | 400 |
| VDRS-Φ1.5/0.75 | 1.8±0.3 | 0.19±0.05 | 400 |
| VDRS-Φ2/1 | 2.3±0.3 | 0.2±0.05 | 400 |
| VDRS-Φ2.5/1.25 | 2.8±0.3 | 0.2±0.05 | 400 |
| VDRS-Φ3/1.5 | 3.3±0.3 | 0.2±0.05 | 400 |
| VDRS-Φ3.5/1.75 | 3.8±0.3 | 0.2±0.05 | 400 |
| VDRS-Φ4/2 | 4.3±0.3 | 0.21±0.05 | 400 |
| VDRS-Φ4.5/2.25 | 4.8±0.3 | 0.21±0.05 | 200 |
| VDRS-Φ6/3 | 5.3±0.3 | 0.21±0.05 | 200 |
| VDRS-Φ7/3.5 | 6.4±0.3 | 0.21±0.05 | 200 |
| VDRS-Φ8/4 | 7.4±0.4 | 0.21±0.05 | 200 |
| VDRS-Φ9/4.5 | 8.4±0.4 | 0.24±0.05 | 200 |
Tech Data
| Property | Test Method | Standard |
| Tensile Strength | ASTMD638 | ≥10Mpa |
| Elongation | ASTMD638 | ≥330% |
| Tensile Strength After Aging | ASTMD638 | ≥8Mpa |
| Elogation After Aging | ASTMD638 | ≥250% |
| Longitudinal Shrink Ratio | ASTMD2671 | ±5% |
| Dielectric Constant | ASTMD2671 | ≥18Ω.cm |
| Dielectric Strength | ASTMD149 | ≥25KV/mm |
| Volume Resistivity | ASTMD257 | >1014Ω.cm |
| Water Absorption | ASTMD570 | ≤0.2% |
