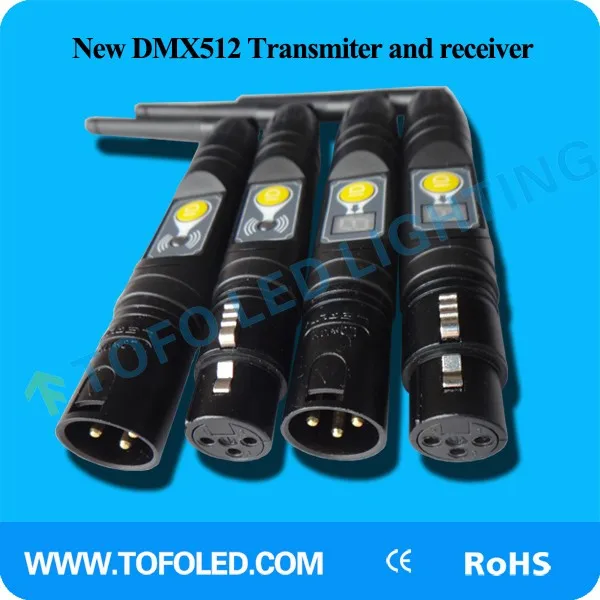

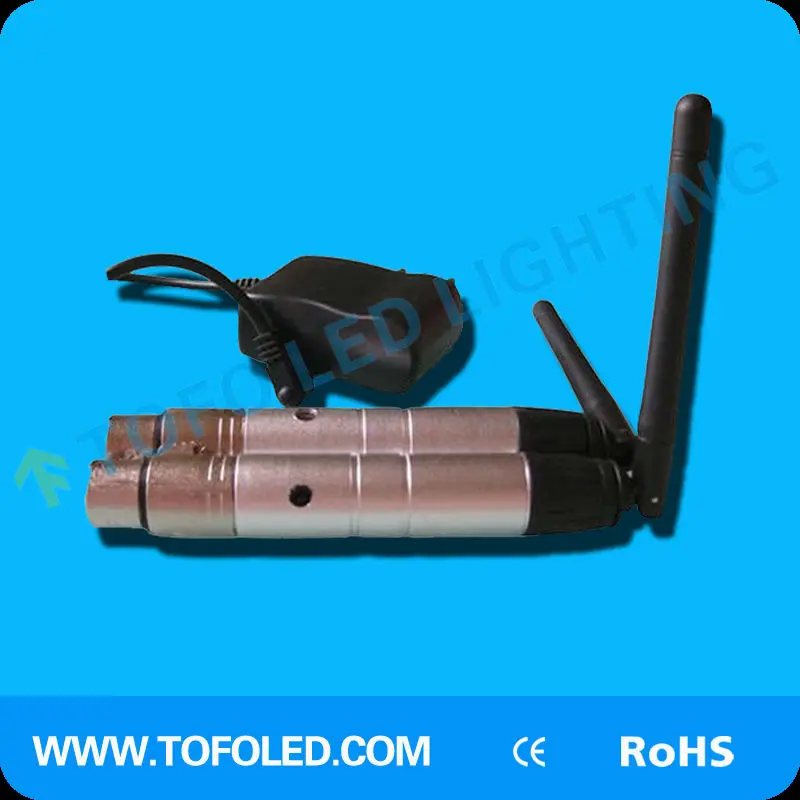

New wireless dmx512 xlr 3pins transmitter and Receiver



Introduction:



   DMX512 wireless receiver/transmitter transmit standard DMX512 protocol data (generated by console) by wireless way, which solves lighting control issues of wireless transmitting completely between console and lighting, lighting and lighting and so on, It get rid of connecting cable limited completely. And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliably.
This product adopt 2.4G ISM frequency section (global opening section) without permission limited, High effective GFSK modulate communication design. 126 frequencies band, FH design, and
frequency-hopping synchronization automatically.



Technical parameters:

1. Compatible with mainstream wireless DMX512 communication protocol


2. ID code can be set to enable the user to use more than one groups of wireless DMX network in the same place without mutual interference.


3. Intelligently recognize number of channels (maximally 512) of DMX512 console.


4. Intelligently recognize master-slave on-line data of lamp


5. Input voltage:5VDC 500mA MIN (inner core of output plug is negative, while external metal rod is positive)


6. Communication distance: 2 km (changes depending on the environment in clearing)


7. 126 frequencies for 2.400-2.525G ISM frequency range, designed with dual-mode frequency hopping


8. Maximal transmission power:19.5 dB


9. Receiving sensitivity:- 102 dB

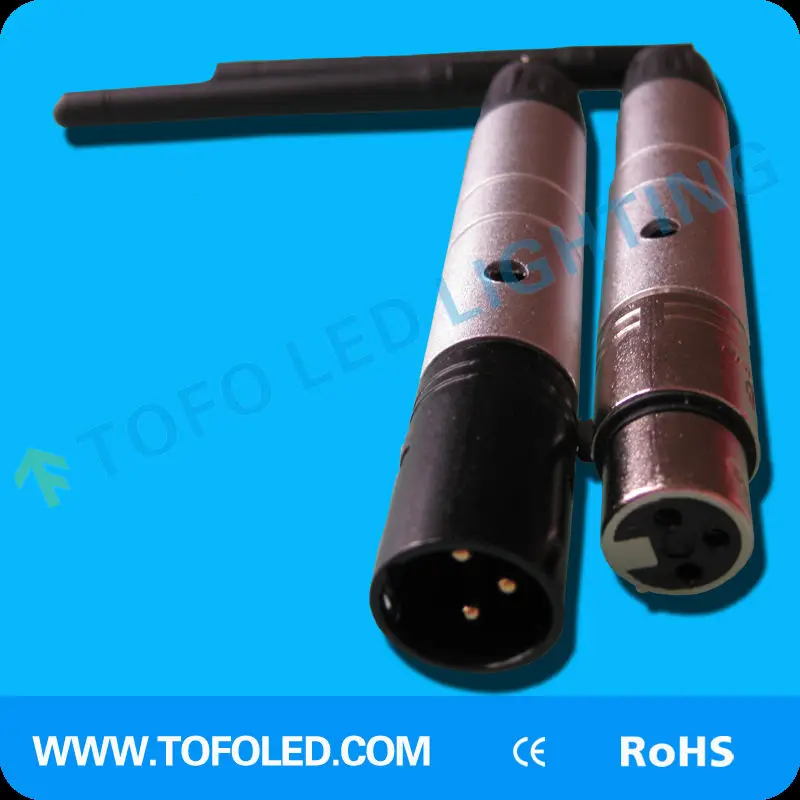

10. DMX signal interface:3PIN or 5PIN, male or female



Establishing Communication:



1. Power on DMX512 wireless received board and transmitted board.

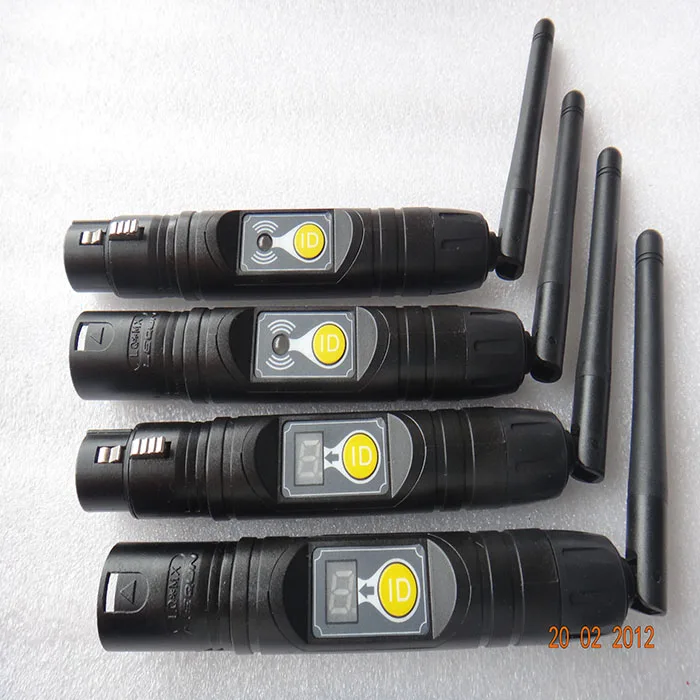

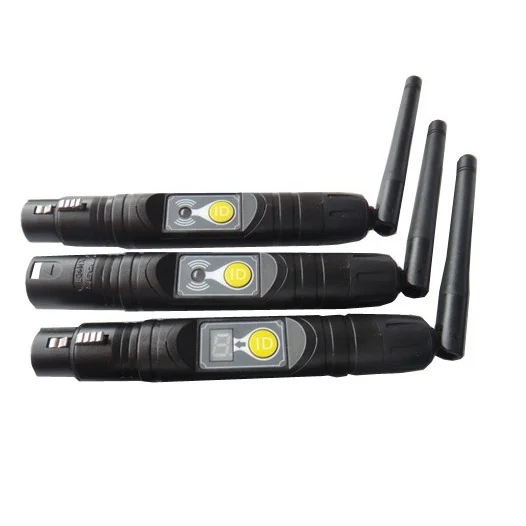

2. Press “Key” button to set same ID value of transmitted board and received board.  To set up different ID value if you need use more than 1 group wireless net at the same time at the same place, the group wireless net is working for the same ID code.



a) ID Code- - - -“1-7” groups ID code, press “KEY” for setting, press again to set ID, then ID value adding 1 each time by press.



ID code and LED color corresponding relationship:



ID Code	Tricolor LED
1	red
2	green
3	red+green
4	blue
5	red+blue
6	green+blue
7	red+green+blue





Application:



 Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage performance ,City lighting system ,TV station ,Conference center , professional showplace,Topic park ,Bar lighting and so on.



Caution:



² Indoor use only.



² 1 year warranty, repair, free replacement except damaged artificially.



The working condition should be under temperature -20°C~+45°C,10%~90%RH,no cover.
