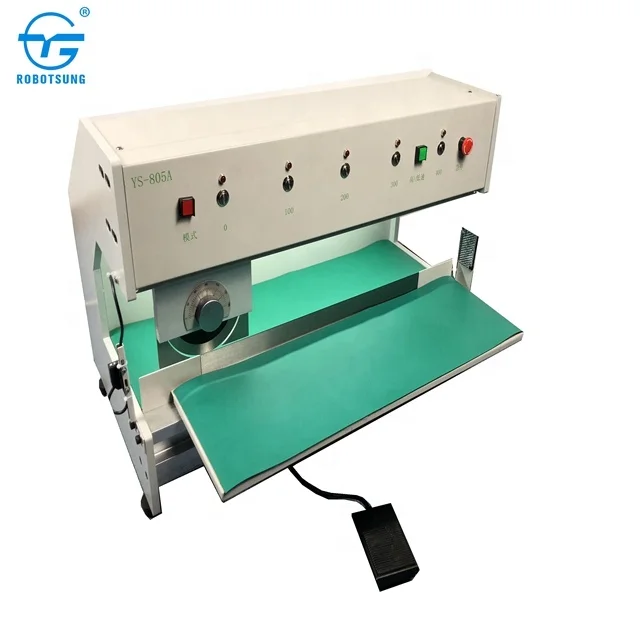

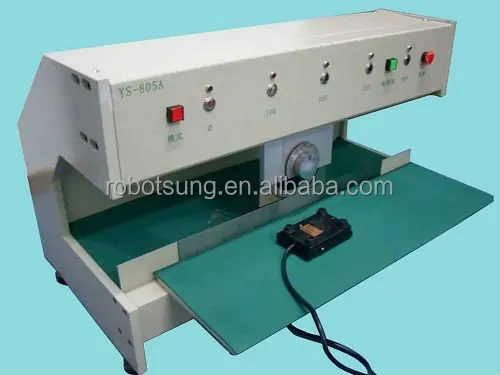

Led Panel PCB Separator YS-805A, Automatic PCB Cutting Machine



It is suitable to cut V CUT Aluminum board, PCB and Fiberglass panel.  It can separate boards fast and  precisely without burrs and damage to electronic components.

 It is a good tool for industries that use PCB, such as LED industry, SMT industry,  cellphone / mp3 industry and electronic toy industry, and etc...



Suitable pcb spec: max cutting length 1300mm

                                  cutting thickness 0.2-3.2mm,

                                   v-groove thickness 0.2-2.0mm



Specification:



Model	YS-805A
Voltage	220 V / 110V
Power	250W
Max cutting length	430mm
Board thickness	from 0.2 to 3.2mm
V-cut thickness	from 0.2 to 2mm
Weight	90KG
Size	L940xW550xH460mm
Speed	300mm/s or 500mm/s
Warranty	3 years





Features:

1. Adjustable separating speed: 500mm/s or 300mm/s

2. Minimum Cutting length:430mm(YS805A), Maximun cutting length:1300mm(YS-805D)

3. Upper circular blade can be adjustable 0-2mm.

4. Operation platform is adjustable 0-50mm.

5. Cutting thickness: 1.0-3.2mm, V-cut thickness: 0.2-2.0mm

6. The machine cut PCB boards without damaging electronic components. And it can improve efficiency.

7. With blade moving, it can reduce pressure on board to avoid solder joint crack and parts fracture.

8. Upper circular blade cuts against lower linear blade to separate PCB board, smooth and clear cuts.

9. Set fixed start and end point for blade moving according to the length of PCB.

10. According to the width of PCB, the back baffle can be adjustable from 0 to 150mm.

11. The blades are sharp and indurable. And they can be sharpened between 7 and 10 times.





Compatitive Advantages:

1.We specialize in automatic cutting machine for more than 10 years

2.3 years warranty

3.Manufacturer price

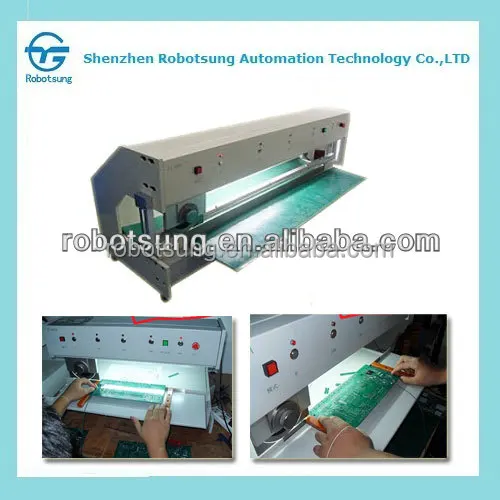

 Other models pcb lead cutter:



How to choose these pcb cutters according to the v cut pcb length.Please see above information.For example, MODEL YS-805A is suitable for v cut pcb length below 430mm.
