electric grain grinder,grain grinder machine,disk mill for grain/corn/maize/cereals





company introduction :





Contact: Ms Mandy



Tel : 0086-371-86660712



Fax:0086-371-86660713



Skype : taizy2023



Corn Grinder Description



TZ series tooth claw type crusher can crush all kinds of raw materials, corn, wheat, soy, grains, straw, vines, dry fresh potato; Leaf hulls food and feed and crushing gesso, lead powder, slippery powder, rare earth industry, chemical industry, clay, coal and other minerals low hardness etc, also can crush a variety of Chinese traditional medicine. Machine structure is rational, durable, safe and reliable, easy to install, convenient operation, small anti-vibration effect. This machine can be used with motor and diesel engine



Tooth claw type pulverizer mainly has the body, the cover, the machine rotor assembly, screen, feed device, frame and so on six parts, body and rotor assembly together form the crushing chamber, rotor assembly room main working parts, materials of shattered in the crushing chamber complete.When the material entered into the crushing chamber, in the round and flat part of the tooth gear fault strike and knead into effect, broken into a fine powder quickly and plasma shape, and air flow in the centrifugal force function, through the sieve hole discharge from the mouth.





Corn Grinder Parameter





Model	TZ-160	TZ-200	TZ-250	TZ-280	TZ-300	TZ-320	TZ-360
Voltage	220V/380V/50HZ	220V/380V/50HZ	220V/380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Motor(kw)	1.5	2.2	3	3	3	4	7.5
Capacity(kg/h)(sieve size 1mm)	75	120	160	300	450	600	1000
Diameter of Rotator(mm)	160	200	250	280	300	320	360
Dimension(cm)	44×36×40	48×38×42	50×40×43	53×42×44	56×43×44	59×45×45	64×50×50
Weight(kg)	160	170	180	190	210	230	250

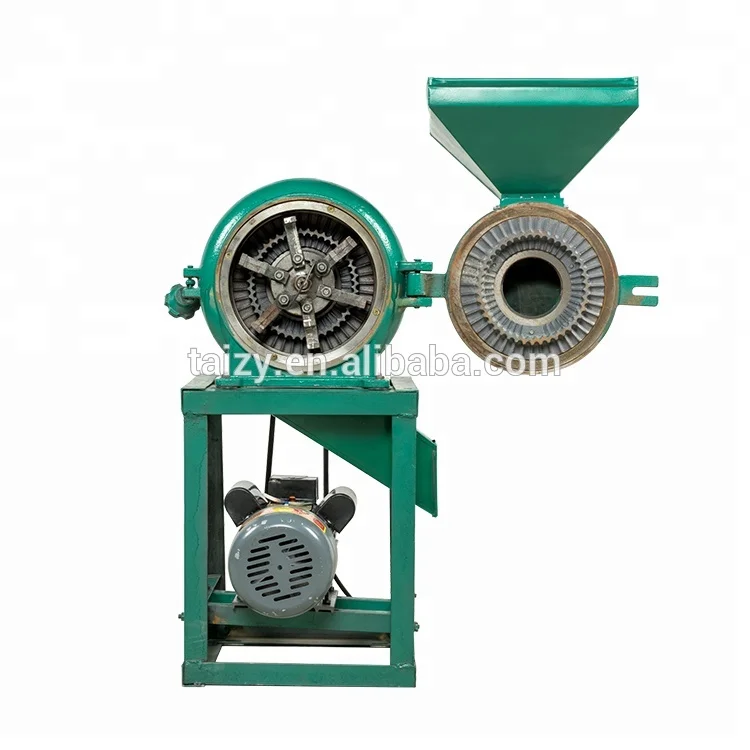

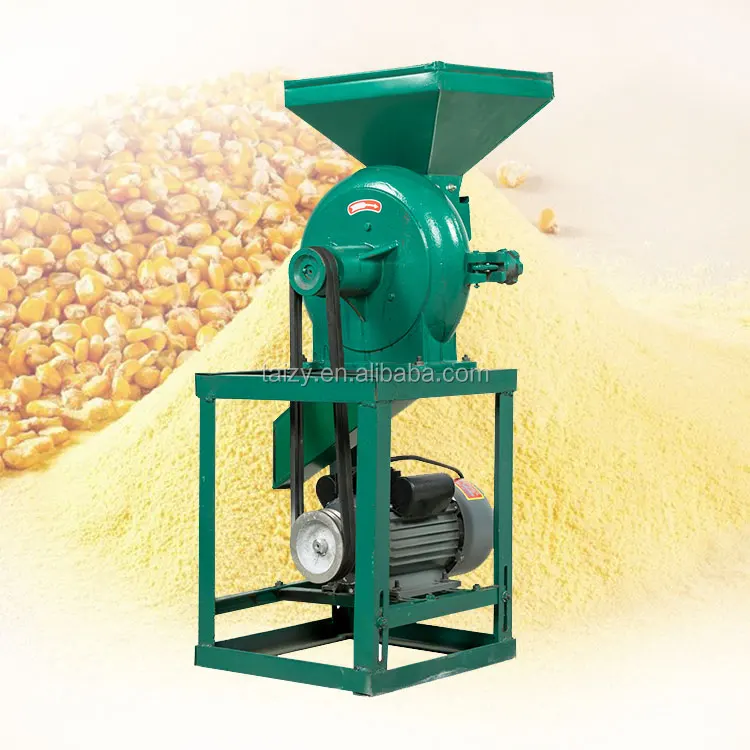

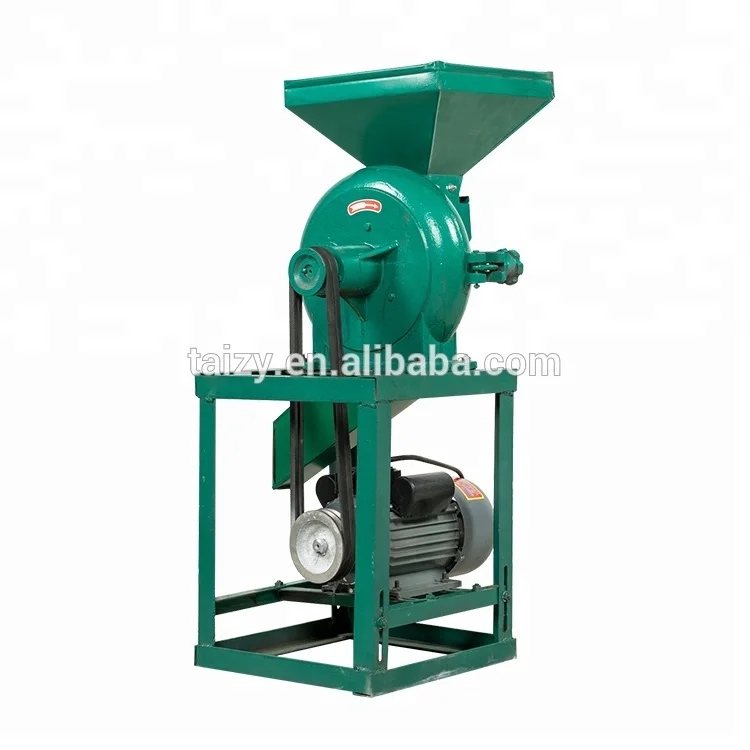

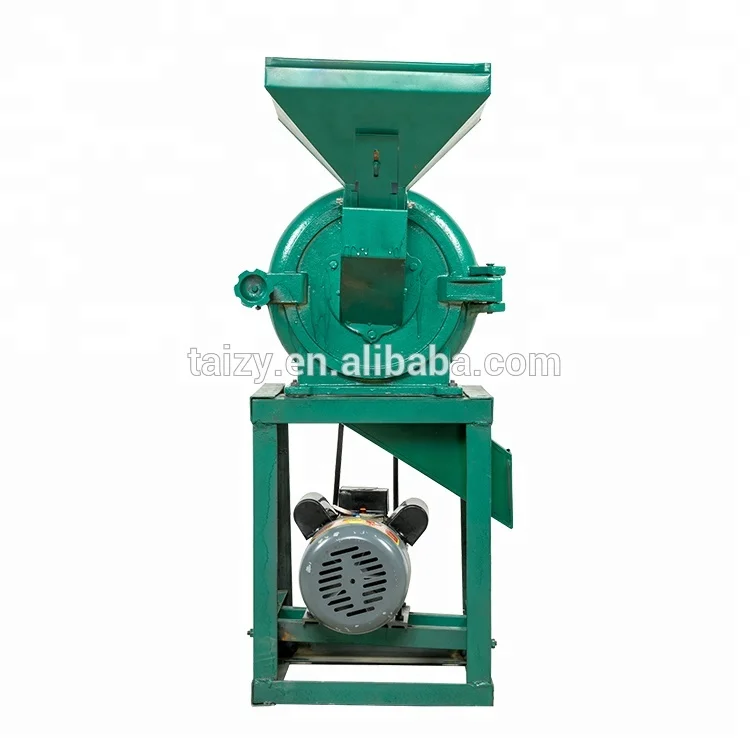

Corn Grinder Pictures
