Горячий стиль источник воздуха двойная система интеллектуальный контроллер для бассейна регулятор чиллера 300

Описание и отзывы

Трекер стоимости

Характеристики



1. Key Feature



1.complete function.
2..auto defrost
3.electric heating
4.Auto cooling and heating Mode for select
5 power-fail memory

6. auto anti-freezing

7.current detecting

8. phase sequence detecting

9. coolant anti-freezing, etc.

10.5 years warranty.





2.Specification



Item No.	CCYCKB002 ( 1 )
Style	Air-water double system swimming pool heat pump water heater controller
Summary	Double system pool heat pump controller, which is also named as CHILLER-300, is the controller with the most versatile function in heat pump industry at present. It can work in with system protection controller CCXT004(PROTECT 300), with powerful system protection function, A\\D,I\\O self-detected function, and for online units. With the big LCD display or dot-matrix display, it looks generous and is convenient for operation.
Size	PCB:90*146*73mm     Remote controller:86*86*16mm
Power supply	220V-240V AC .50-60Hz
Mode selection	Auto cooling and heating
Main function	auto defrost
	electric heating
	power-fail memory
	auto anti-freezing
	current detecting
	phase sequence detecting
	coolant anti-freezing, etc.
The port of temp. sensor detection	Water inlet temp., water outlet temp., system 1/2 coil temp, ambient temp., ON/OFF signal switch, model signal switch.
The input port of system protection temp. sensor detection	System 1/2 discharge temp., system 1 inlet/outlet coil temp(2), system 2 output coil temp.
The input port of switch signal detection	Compressor 1/2 high/low pressure switch, water flow switch, force defrost switch, phrase sequence,
Relay output	Outputs: compressor1/2, water pump, electric heating, fan, 4-way valve 1/2, sprinkle hydrovavle.
Product list	Controller PCBA: 1pcs
	System protection controller: 1 pcs
	LCD display: 1 pcs
	5m communication connect line: 1 PCS
	Temp. sensors: 11 PCS.

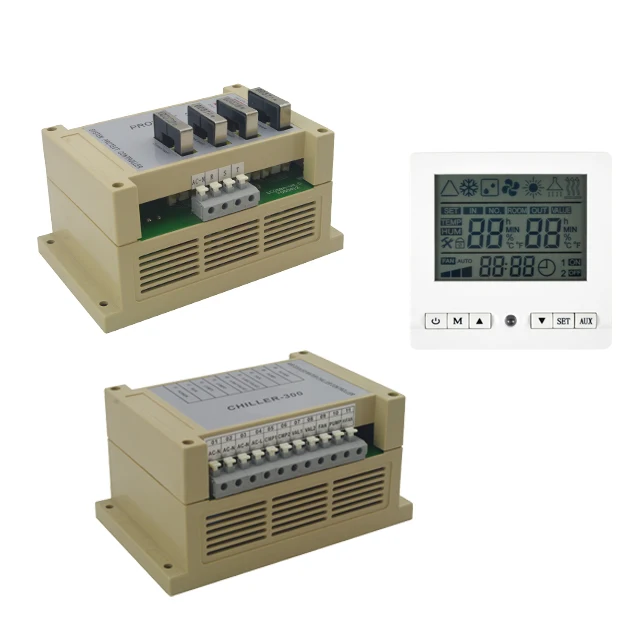

                                                  Our product Photo









                                 Intelligent Monitoring Flow Chart











                                                                     Working Flow Chart







 1.Protect product with polyfoam and multi layer paper board.

 2.Special protect carton for exporting product,

 3.Per customer requirement.



1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 13 years experience in intelligent controller R&D and manufacturing.

6. Strong R&D term supports perfect customized projects.

7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.

8. Fabulous after-sale service.



Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.



Q2: How could I pay them?

A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.



Q3: How to place the order?

A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.



Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.



Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.



Q6: Can you customize according to our designs and put our logo on the products?

A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
