Подшипниковый роликовый фрезерный станок 600 мм

Категория: Прокатный стан >>>
Поставщик: Liaoyang,Pharma,Machinery,Imp.,&,Exp.,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.72 $*	0.41 $*
Aug-15-2025	0.69 $*	0.82 $*
Jul-15-2025	0.12 $*	0.96 $*
Jun-15-2025	0.44 $*	0.4 $*
May-15-2025	0.56 $*	0.40 $*
Apr-15-2025	0.68 $*	0.22 $*
Mar-15-2025	0.4 $*	0.52 $*
Feb-15-2025	0.6 $*	0.44 $*
Jan-15-2025	0.15 $*	0.64 $*

Характеристики

Product Description

D51 ring1

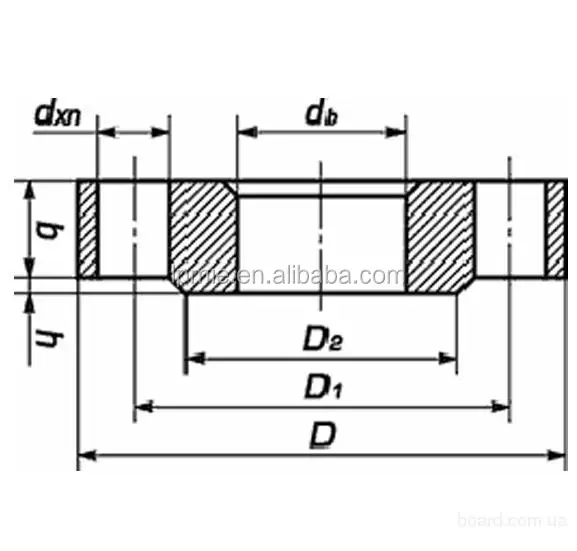

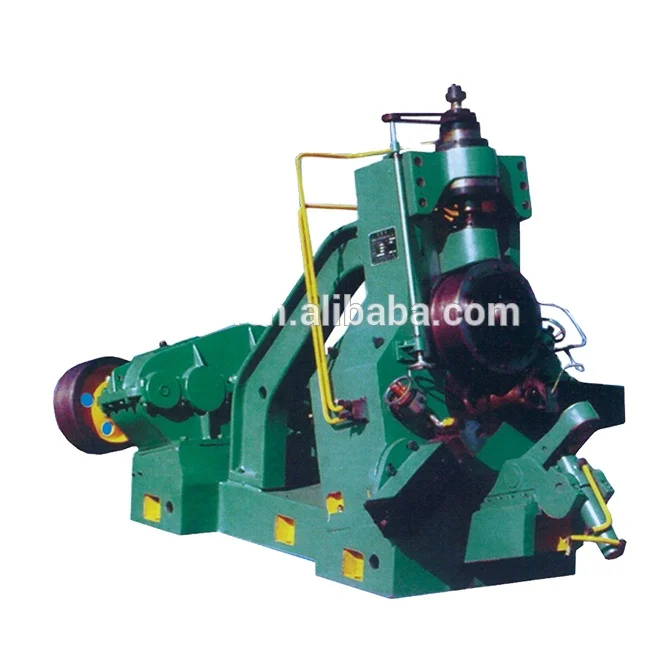

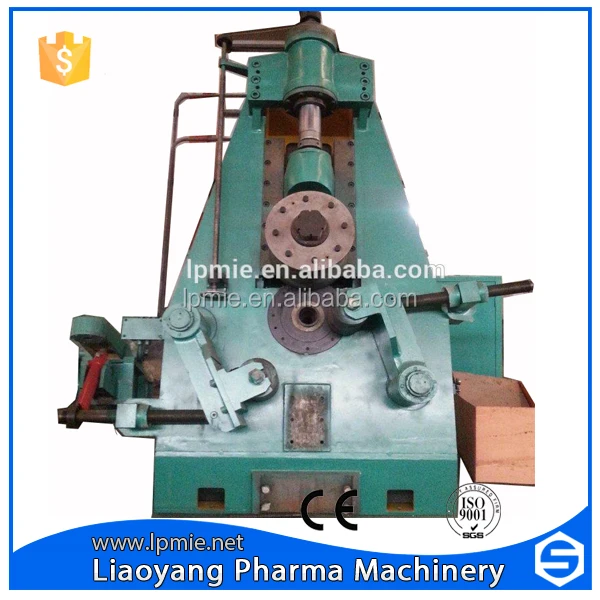

D51-600 special flange making machine

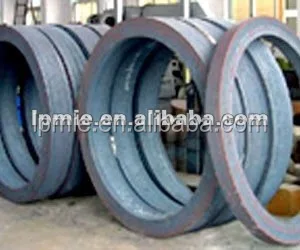

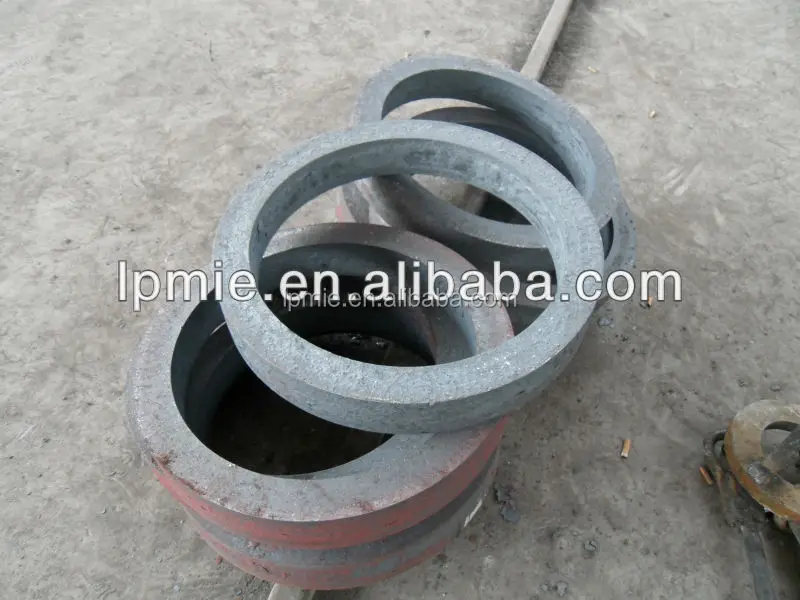

This machine is a vertical ring rolling machine for rolling ring blank, thermal expansion, mainly for the production of flange forging blank.
The ring blank is heated to 950 °C -1150 °C covers on the supporting roller, the use of rotary rolling wheel down and then rolling workpiece, workpiece thickness and circumferential stretch, so as to achieve the purpose of ring rolling
Objective. Thrust roller has a stable and circle role in ring rolling process, and the signal roller will send out the stop signal when rolling out to the end of rolling which to a predetermined size.

rolling dia range φ250-φ600mm
height 20-60mm
rolling roller dia: φ680mm
max rolling pressure 350KN
min center distance from rolling wheel to support reel: 400mm
max stroke 200mm
motor power 75KW
dimension(lxwxh) 2820x1650x2000mm

weight 9000kg

Company Information

Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.

cov

HTB1oqieQpXXXXcMapXXq6xXFXXXw

Packaging & Shipping

Packing:

Whole machine and every parts wrapped by plastic film for dusting-proof. Packed in export standard wooden case with pallet, conducive to forklift handling.

Shipping:

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.

Our Services

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

HTB1MVCIQpXXXXbfXFXXq6xXFXXXR

Technical support:

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
