Характеристики

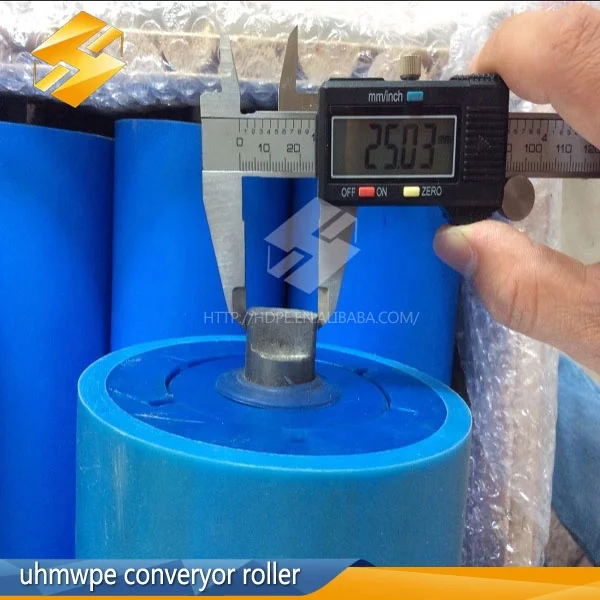

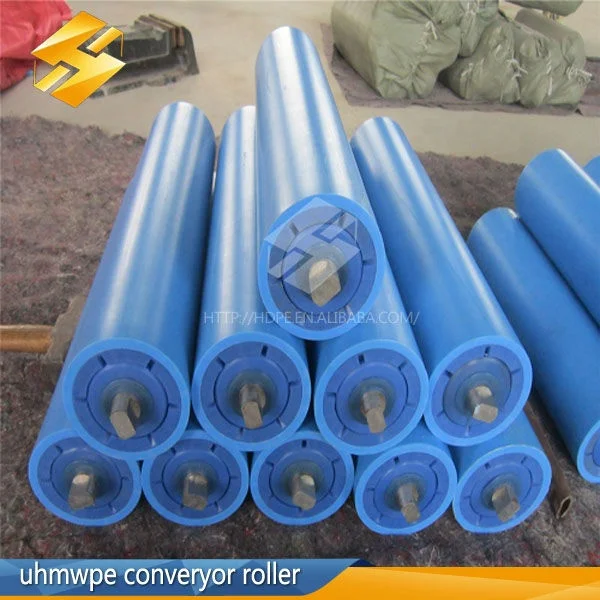

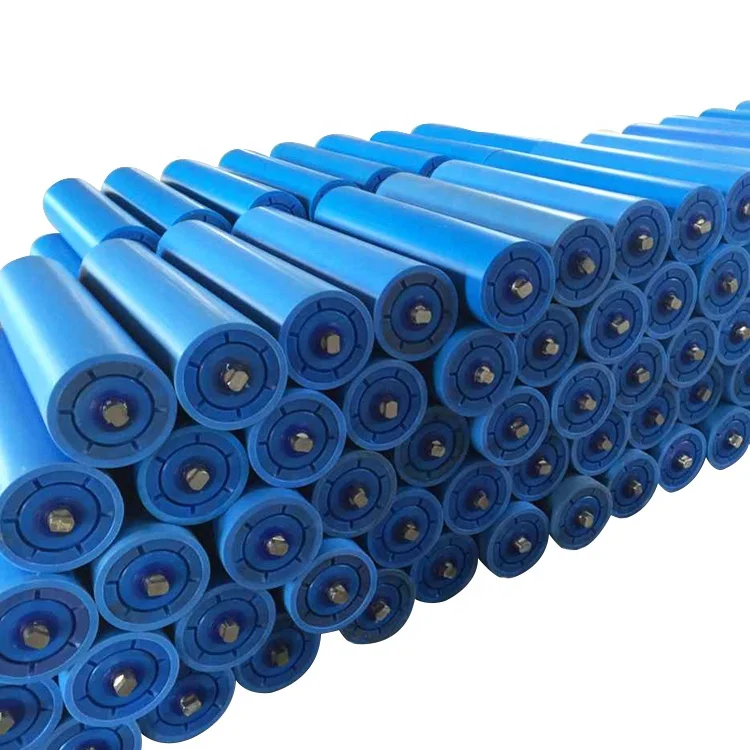

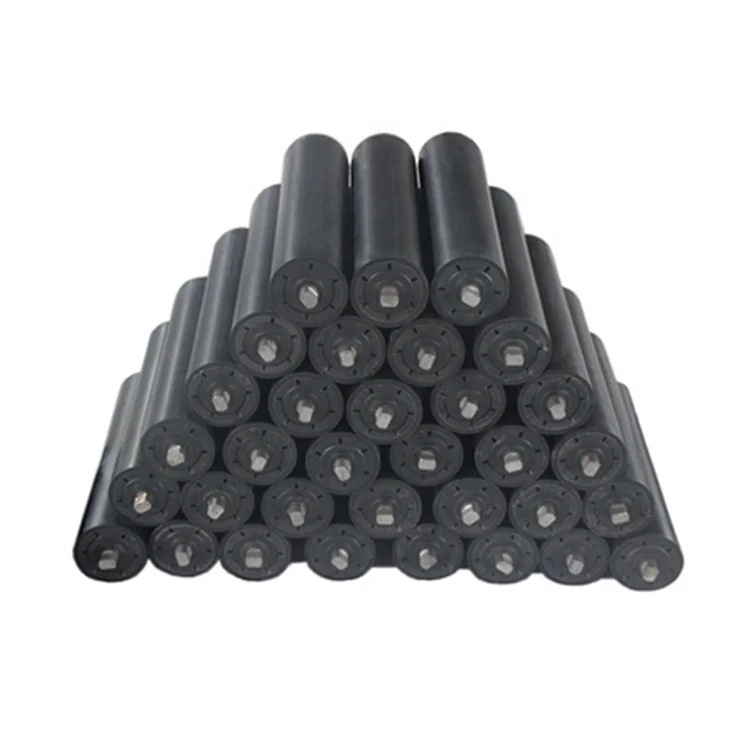

High quality were resistant belt conveyor UHMWPE plastic pipe idlers HDPE conveyor roller
1.Production Description
Ultra high molecular weight polyethylene roller has physical and chemical properties which are high wear resistance, low friction coefficient, not easy to wear leather strap. It also has the fine self lubrication and not easy to card to die in the bad conditions, antistatic, flame retardant, aging resistance, corrosion resistance. It can withstand repeated impact, vibration, mechanical performance is excellent, light weight, easy installation, no maintenance, low noise(3-7DB), smooth operation. The temperature of using keep in -40°C to 85°C.
This product is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive, such as mining, power, steel, Stone materials factory, cement and coking plant ,Coal washing factory, Salt plant, Alkali plant, Fertilizer factory, dock and so on.
2.Features
(1) UHMW-PE pipe with Reinforced Skeleton(2) Light Weight for Power Saving and Worker Safety(3) Smooth, Noiseless operation(4) Anti-Alkaline/Anti-Acidic/Anti-Static Formulation(5) Suitable for Corrosion Environment(6) Recyclable
3.Available in the following diameter
Shell Diameter | Shaft Diameter at the Bearing | Bearing Series |
89 | 17mm/20mm | 6203/6204 |
102 | 20mm/25mm | 6204/6205 |
108 | 20mm/25mm | 6204/6205 |
114 | 20mm/25mm | 6204/6205 |
127 | 20mm/25mm/30mm | 6204/6205/6305/6206 |
133 | 20mm/25mm/30mm | 6204/6205/6305/6206 |
140 | 25mm/30mm | 6205/6305/6206 |
152 | 25mm/30mm/35mm | 6305/6206/6306/6207 |
159 | 30mm/35mm/40mm | 6306/6207/6308 |
165 | 35mm/40mm/45mm | 6206/6306/6207/6309 |
RollerDiameters:
60mm,70mm, 89mm,102mm,108mm,114mm,127mm,133mm,140mm,152mm,159mm,165mm.
(other sizes available on request)
Shaft:(mild steel/stainless steel)
Seal:Triple Labyrinth Seal
Bearing Type: SKF,FAG,NTN.(other brands available on request.

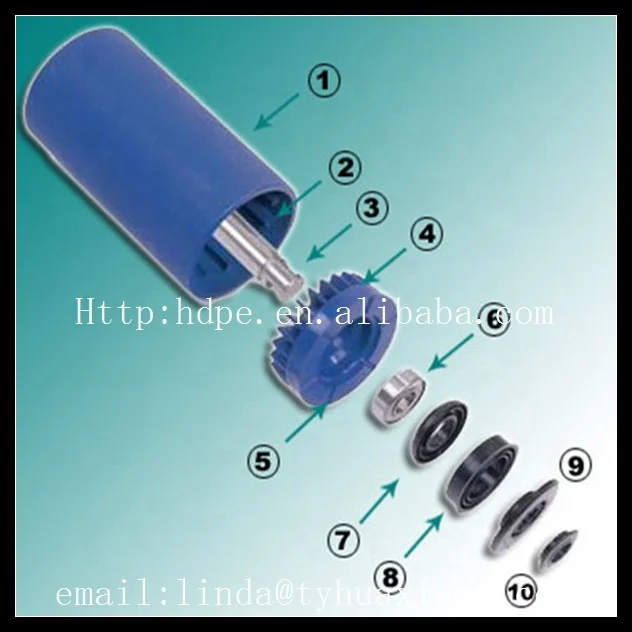

4.UHMW-PE Roller Components

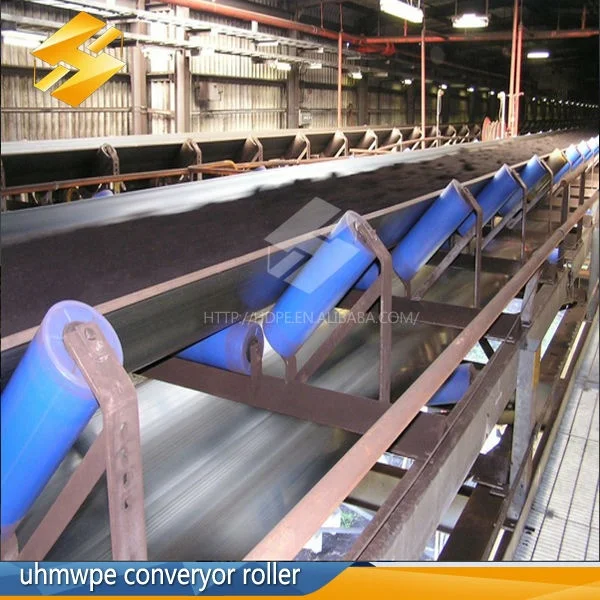

5.Application
(1) Chemical Industry Fertilizer, Salt, Sugar, Pulp Paper, Acid and Alkaline, etc.
(2) General Industry Coal Mining, Cement, Concrete, Limestone and Quarry, etc.
(3) Operating Condition
6.More products
7.packing details
Any more details,free to contact me.
