Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Машина для изготовления бутылок из полиэтилена высокой плотности 5-30
- Категория: Экструзионно-выдувные формовочные машины >>>
- Поставщик: Zhangjiagang,Apollo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.0 $* | 0.67 $* |
| Aug-15-2025 | 0.55 $* | 0.95 $* |
| Jul-15-2025 | 0.97 $* | 0.45 $* |
| Jun-15-2025 | 0.76 $* | 0.21 $* |
| May-15-2025 | 0.43 $* | 0.3 $* |
| Apr-15-2025 | 0.41 $* | 0.66 $* |
| Mar-15-2025 | 0.94 $* | 0.71 $* |
| Feb-15-2025 | 0.78 $* | 0.22 $* |
| Jan-15-2025 | 0.2 $* | 0.78 $* |
Характеристики

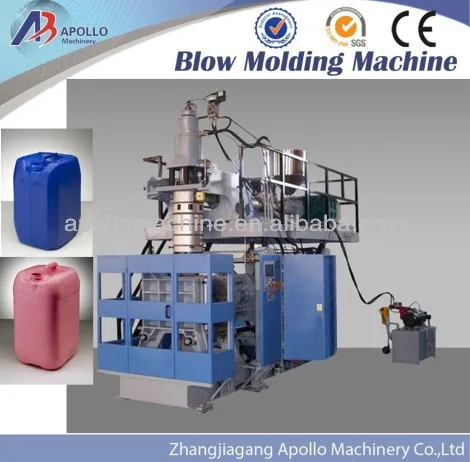

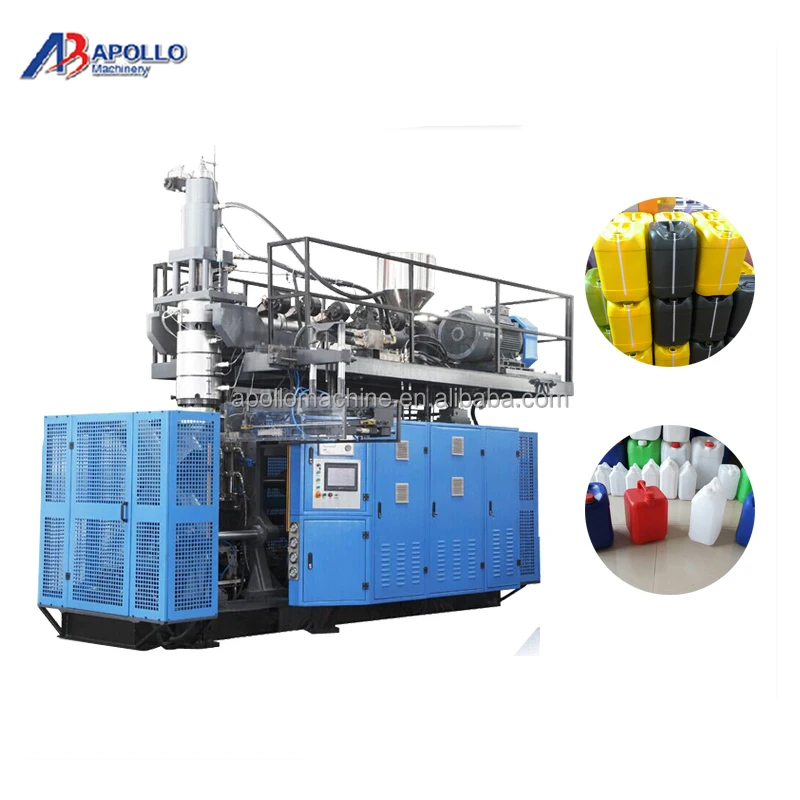

HDPE Jerry cans blow molding machine (5L~30L)
5L~30L HDPE jerry can bottles blow molding machine/ extrusion blow molding machine

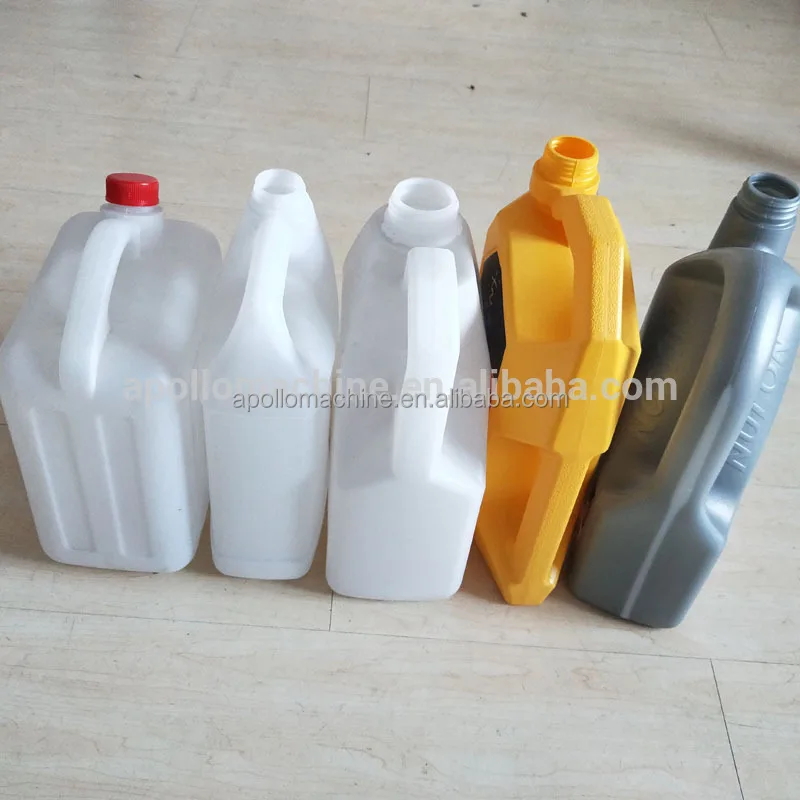

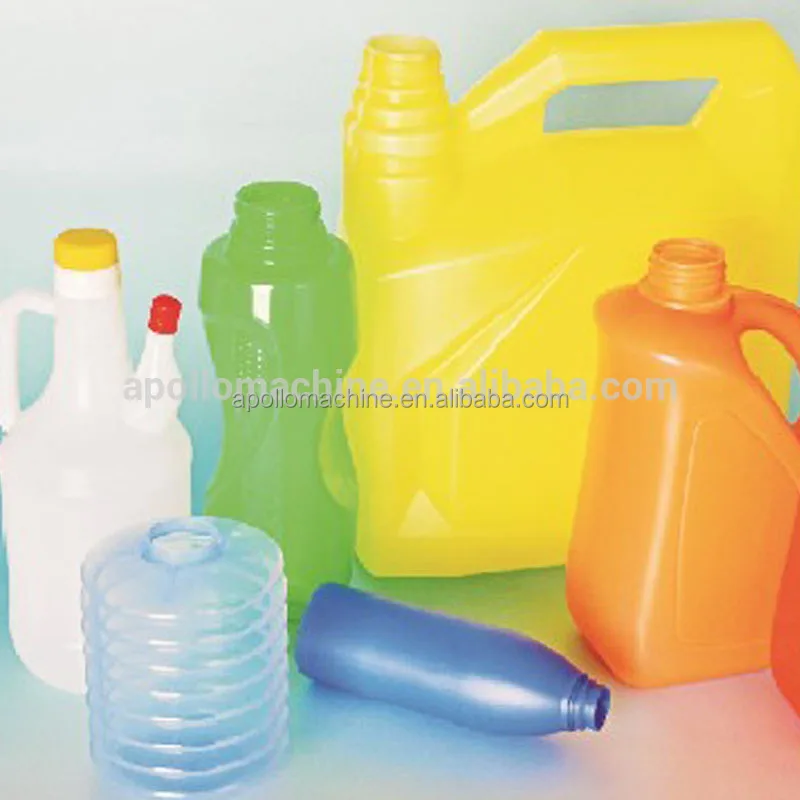

ABLD80 extrusion blow moulding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 30L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 60L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.

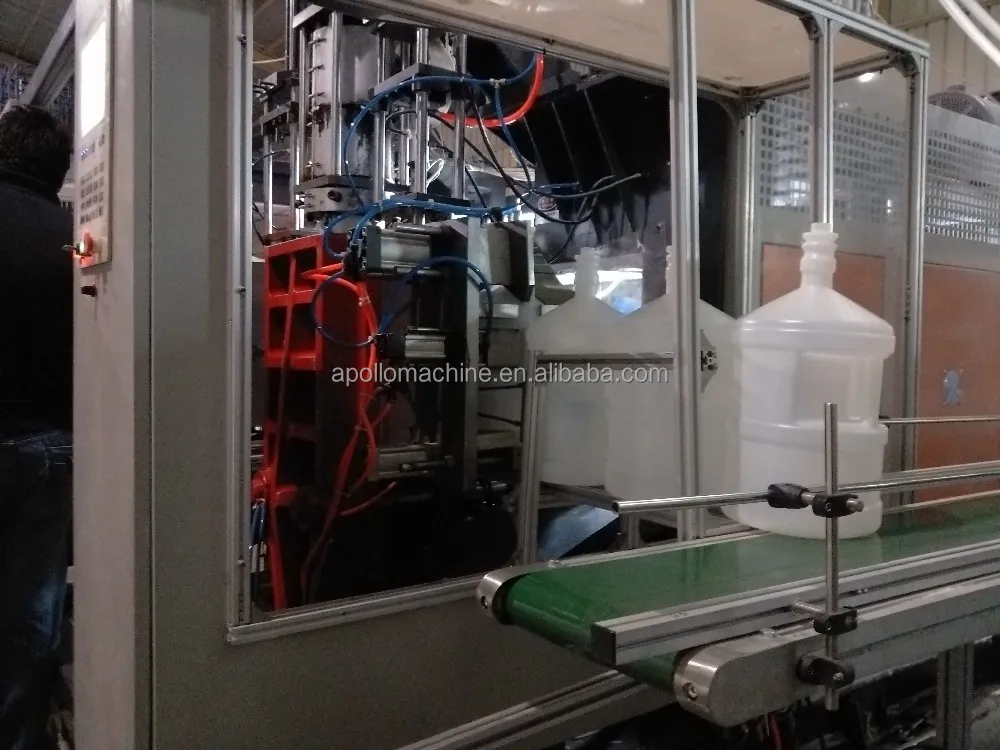

Machine Testing
The main components of the machine.( ABLD90 )
| Max. Product volume | 30 liters |
| Output capacity | 80~120pc/h |
| Screw diameter | 80 mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 30 KW |
| Screw heating capacity | 16 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100 KG/H |
| Oil pump drive power | 22 KW |
| Clamping force | 210 KN |
| Max.size of mold | 550X650mm |
| Mold stroke | 350-780mm |
| Max.die diameter | 280mm |
| Die heating power | 5.3 KW |
| Die heating segments | 4 zones |
| Blowing pressure | 0.8mpa |
| Air volume | 0.8 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 60 L/MIN |
Technical Parameters: ( ABLD80)
electronic parts | |
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWANMEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts | |
Name | Trader |
Oil pump | TAIWANHIGH-TECH |
Valve | JAPAN YUKEN |
Oil pump and connection | JAPAN YUKEN |
Sealed part | HALLITE |
air control system | |
Name | Trader |
Cylinder | AIRTAC |
