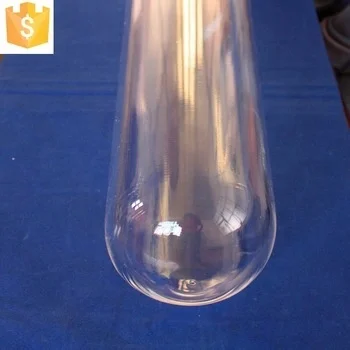

Высококачественная кварцевая стеклянная трубка высокого давления с

Описание и отзывы

Трекер стоимости

Характеристики

Advantage



Dimensional Tolerance

Range of OD	OD	WT	Siding	Out of Round	Bow\\1220mm
≤6mm	±2.0%	±10%	12%	2.0%	2.5mm
6.00-15.00mm	±1.25%	±8%	10%	1.5%	2.5mm
15.00-20.00mm	±1.25%	±10%	15%	1.5%	2.5mm
20.00-25.00mm	±1.25%	±10%	15%	1.5%	3.0mm
25.00-30.00mm	±1.35%	±12%	15%	1.5%	3.0mm
30.00-80.00mm	±1.5%	±14%	15%	2.0%	3.0mm
80.00-100.00mm	±1.0%	±0.5mm	15%	2.0%	3.0mm
100.00-120.00	±1.5%	±0.8mm	15%	2.0%	3.0mm
120.00-160.00	±1.8%	±1.0mm	20%	2.5%	3.0mm
160.00-180.00	±3.0%	±1.0mm	25%	2.5%	3.0mm
180.00-240.00	±4.0%	±1.5mm	25%	2.5%	3.0mm
240.00-280.00	±6.0%	±2.0mm	25%	2.5%	3.0mm
280.00 above	±8.0%	±3.0mm	25%	2.5%	3.0mm



Physical Property

(g/cc)Density20 °C kg.m-3	2.2
Degree of Hardness Moh’s Scale	5.5-5.6
Softening point(degree)	1670
Annealing point	1210
Defoamation Point	1120



Apply

Optical instrument, sight glass, observation window for furnace, semiconductor, lighting,

special light source, photoelectron, military industry, metallurgy,chemistry, optical communication, etc.





2 Experienced staffs answer all your questions in fluent English.

3 Customized design is available.

4 Exclusive and unique solution can be provided to you by our relevant staffs.

5 Special discount and production of sales area provided to the distributor.

 1.We are a manufacturer for all kinds of quartz products. Including quartz tube, quartz rod, quartz plate, quartz crucible, quartz boat, and other quartz products for solar and semiconductor, also we can produce heating lamp, UV lamp, and so on.

 2.We also can apply some further processing like trim cutting, fire polishing, bending, pinching, grinding and others according to customer´s requirements.
