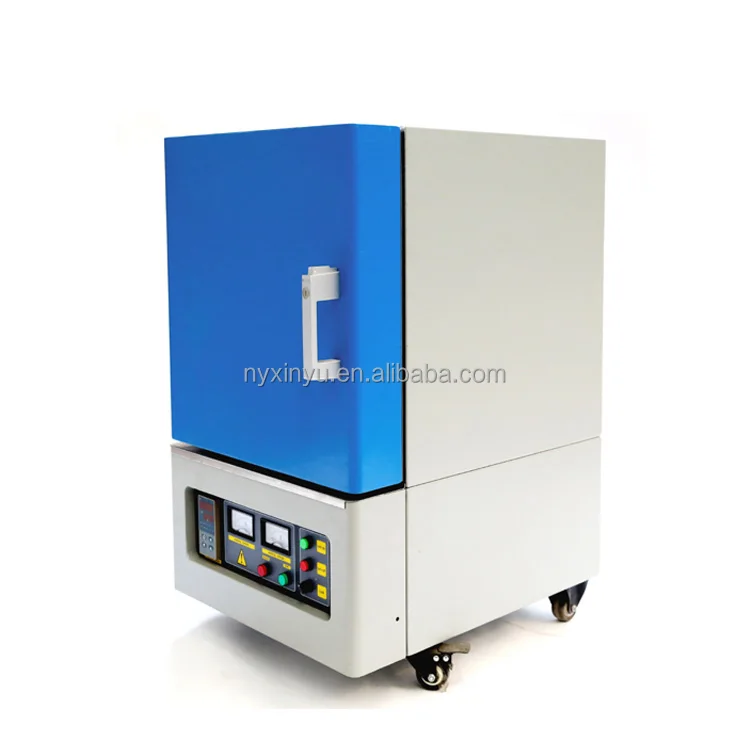

Nanyang XINYU SX2-9-12TP  iron melting chamber furnace

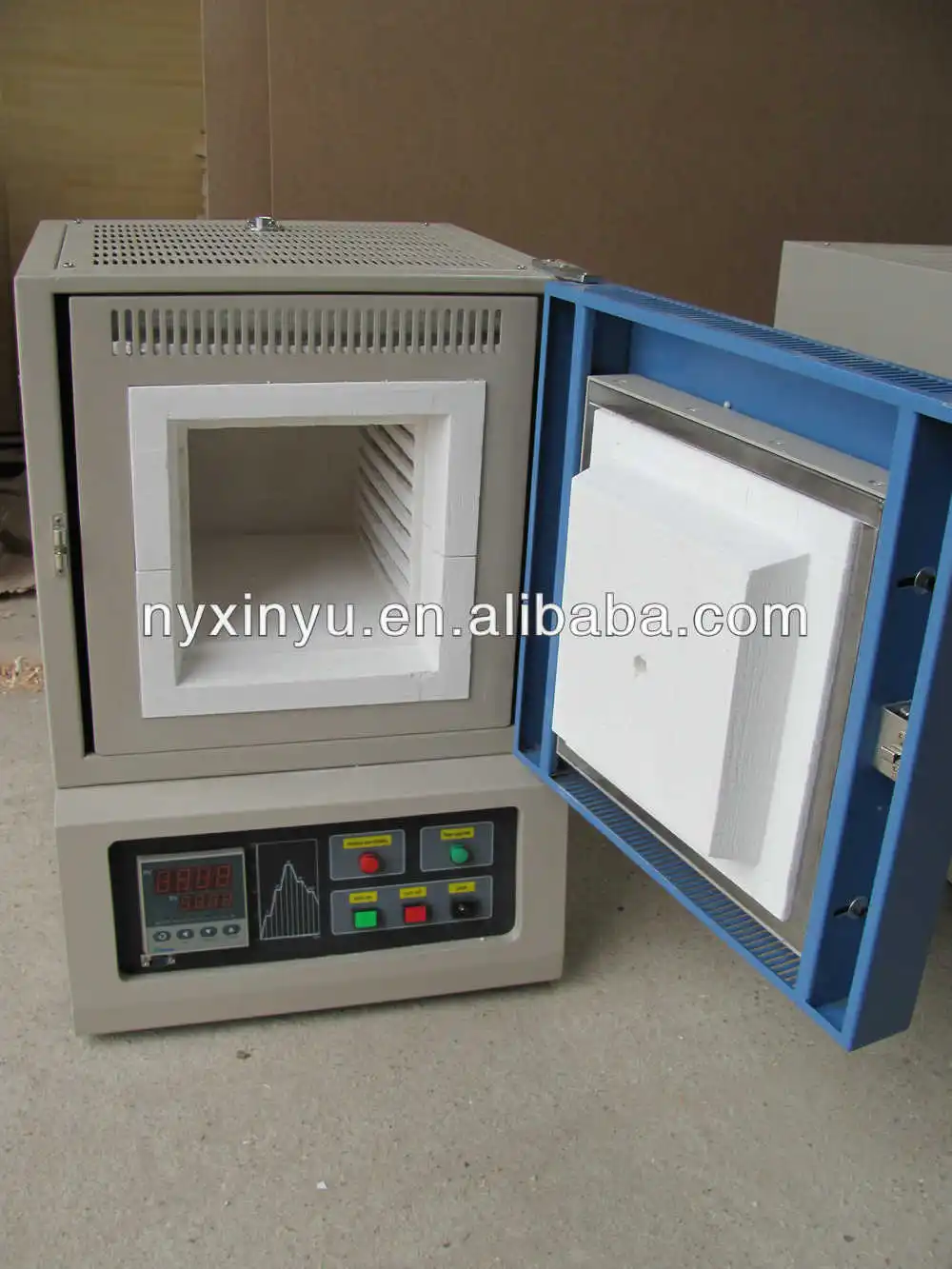

Muffle box furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and kanthal resistance heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller

with accuracy +/-1 deg ^oC and 51 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory. Also it can be used to be sintering and melting some metal,nonmetal compound.

Product model	SX2-9-12TP
Working voltage and frequency	AC220V 50/60HZ
Furnace chamber size (D X W X H)	400x300x300mm
Rated power	≤1kw
Outside dimensions	960x750x1260mm
Weight	180kg
Heating rate	30°C/min
Product features	Cool can rise quickly, furnace temperature field is balanced. Stable temperature control, simple operation, low energy consumption
Heating element	electric resistance wire
Commonly used temperature	≤1100°C
The highest temperature	1200°C
Temperature control type	30 period of intelligent process control
Constant temperature precision	±1°C
Temperature control table	708P intelligent temperature controller
The furnace shell	Double air cooling structure
Furnace chamber	Type 1700 imported polycrystalline alumina fiber furnace, reasonable design, durable, heat preservation performance is good, saving energy
Temperature measuring element	K Type double platinum rhodium thermocouple
Furnace door structure	side-open
Main assembly	Asbestos gloves, crucible tongs, thermocouple, brick block
More Regular furnace size	100x100x100mm  200x150x150mm 300x200x200mm 400x300x300mm



Packing: 1pc/plywood carton with Polyfoam filled .

Shipping: It depend on the transport terms. By Air,it is about one week; By sea, it will be about one month.



Warranty terms:

Warranty period is one year from the date of purchase. Within this period, we can replace any components that fail in normal use. Such replacement parts will be no charge, but you need to afford the shipping cost for the parts. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.Replacement will be shipped to you after photo or other evidence are provided and investigated.
