                                                New design cable repair heat shrink sleeve

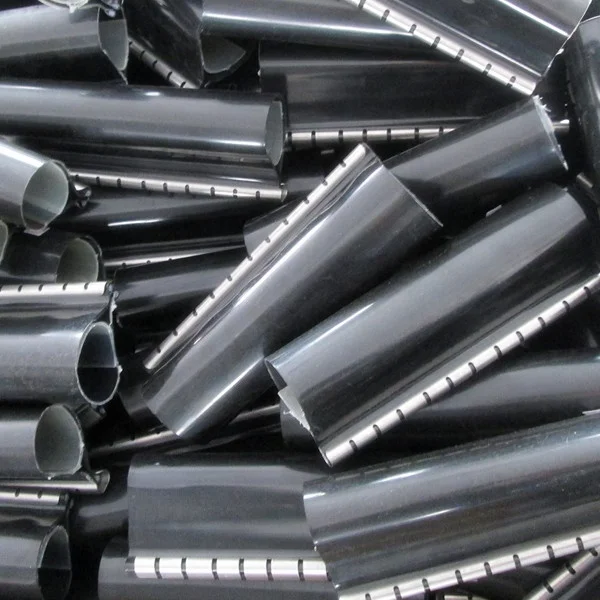

Cable Repair Heat Shrink Sleeve

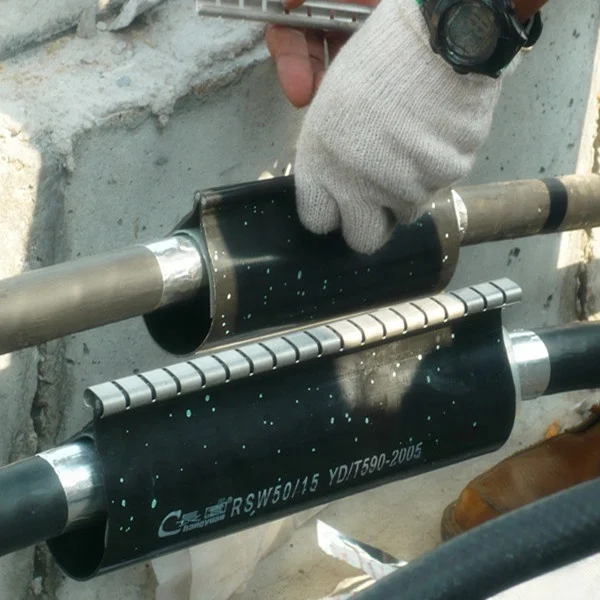

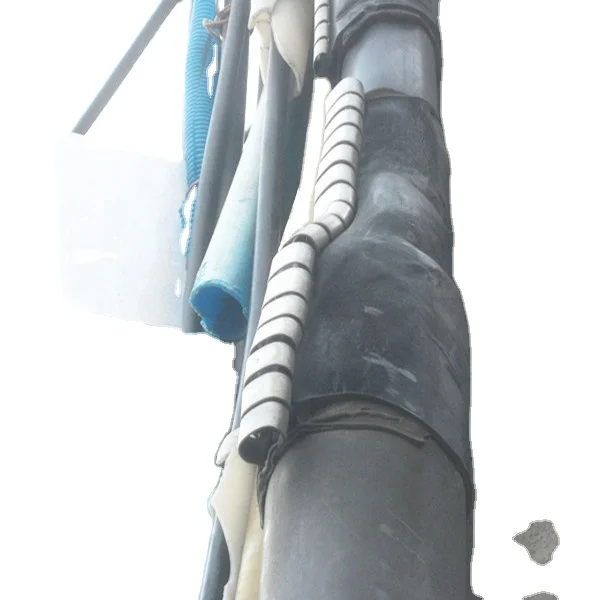

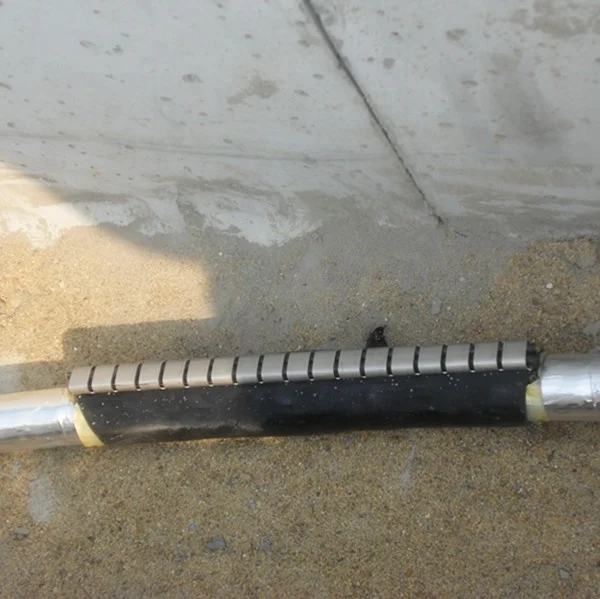

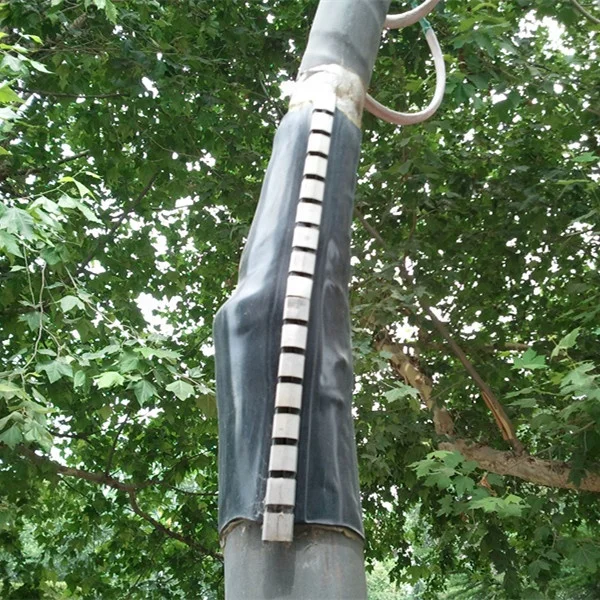

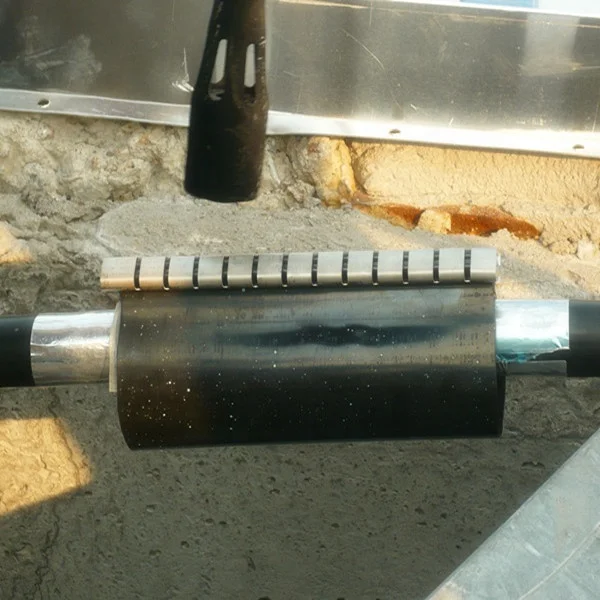

CYG Cable Rpair heat shrink sleeve  is mainly used for repairing outer/inner sheath/core damages on a HV cable and LV cable.





 Heat shrink cable repair sleeve  is made from cross-linked polyolefin which equals or exceeds the material properties of the original cable jacket.  CYG cable repair heat shrink sleeve is designed for protecting against corrosion on metallic parts of the cable that are exposed to the outside too.







CYG heat shrink cable sleeve is created to help customers to save the cost of cable maintain.



Specification of Cable repair heat shrink sleeve:

Selection	Supply Size	Diameter after Being Shrunk	Cable’s diameter (mm)
RSW 28/6	22	6	7~15
RSW 36/10	36	10	12~20
RSW 50/15	50	15	18~40
RSW 60/18	60	18	20~50
RSW 70/22	70	22	25~60
RSW 80/25	80	25	30~70
RSW 100/30	100	30	35~90
RSW 135/38	135	38	40~120
RSW 164/45	164	45	50~150
RSW 185/55	185	55	65~165
RSW 200/60	200	60	80~180
RSW 220/65	220	65	90~200
RSW 240/70	240	70	100~220
RSW 260/75	260	75	120~240
RSW 280/80	280	65	140~260
RSW 300/85	300	65	160~280

Length: 250mm,500mm,750mm,1000mm,1500mm,2000mm





Technical Data of heat shrink cable repair sleeve:



Item	Test Method	Typical Data
Tensile strength	ASTM D2671	≥ 17MPa
Tensile strength after aging	ASTM D2671	≥ 14MPa
Elongation at break	ASTM D2671	≥ 350%
Elongation at break after aging	ASTM D2671/150°, 168hrs	≥ 300%
Density	ASTM D792	0.94g/cm3
Longitudinal shrinkage	UL224	< 5%
Dielectric strength	IEC243	≥ 36kV/mm
Volume resistivity	IEC93	≥ 10 14 Ω · cm
Copper stability	ASTM D2671	Pass
Water absorptive	ISO 62/23°, 14days	< 0.15%
Low Temperature Flexibility	ASTM D2671	No cracking
Resistance to fungus and decay	ISO 846	Pass







flexible cable repair sleeve



Provide any length

Using carton packaging



Fast shipping by DHL , UPS, Fedex , Or shipping by sea and air.



We have very good shipping method for you to choose , and use your  shipping account is welcomed.





1. Fast lead time.



2. OEM order is available



3. Technical support offered.



4.  Can be printed according to customer requirements



5. Quality assurance : ISO9001:2008 quality management system and environment management system .





CYG Changtong New Material Co., Ltd., the sister company of CYG Group Co., Ltd.  is a National High-tech enterprise. It owns the biggest heat shrink material manufacturing base in China with high research and developing ability.





How to use this product?



The manual and video can be offered.



Can I make my own LOGO and cut it into the lenght I need?



OEM order is welcomed, we  can offer in  shorter or long size as your requirements .



Contact me for more  information of the cable repair heat shrink sleeve.
