Красный авиационный навигационный фонарь с препятствиями на солнечных батареях/мигающие Сигнальные огни для летательного аппарата/светодиодные защиты от
- Категория: Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.Hunan,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.74 $* | 0.89 $* |
| Aug-20-2025 | 0.40 $* | 0.59 $* |
| Jul-20-2025 | 0.99 $* | 0.32 $* |
| Jun-20-2025 | 0.43 $* | 0.77 $* |
| May-20-2025 | 0.55 $* | 0.65 $* |
| Apr-20-2025 | 0.44 $* | 0.63 $* |
| Mar-20-2025 | 0.5 $* | 0.39 $* |
| Feb-20-2025 | 0.36 $* | 0.27 $* |
| Jan-20-2025 | 0.30 $* | 0.29 $* |
Характеристики
Product Description

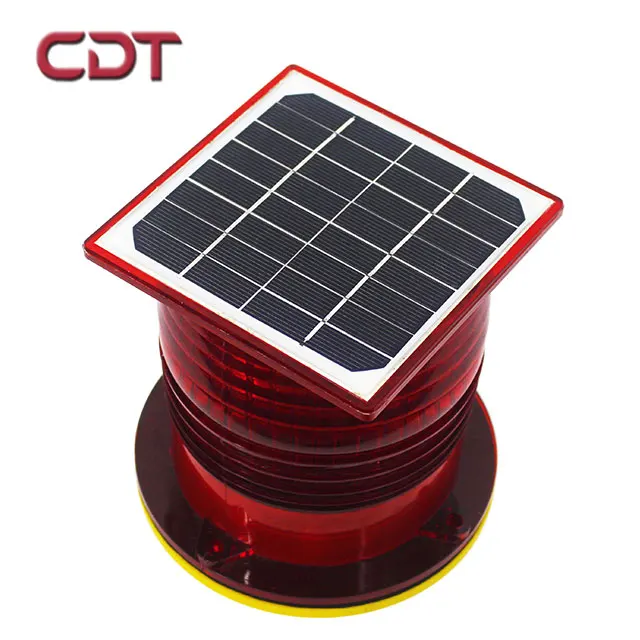

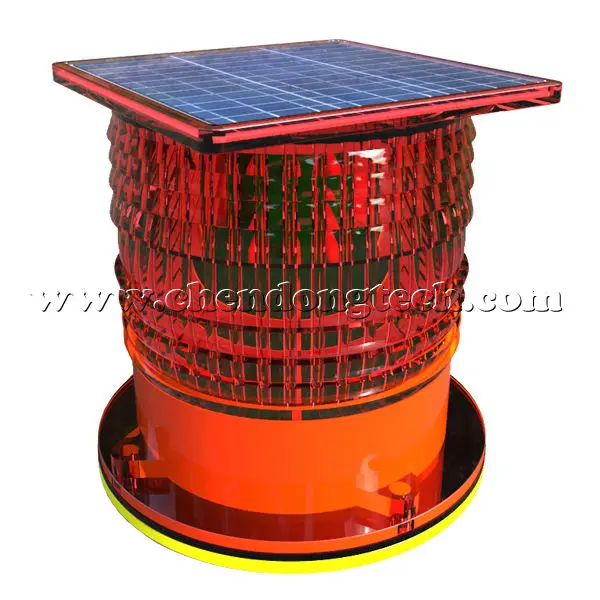

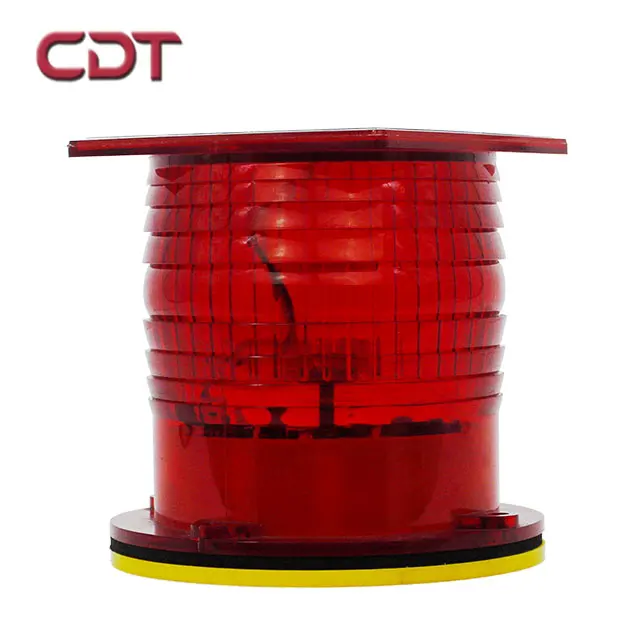

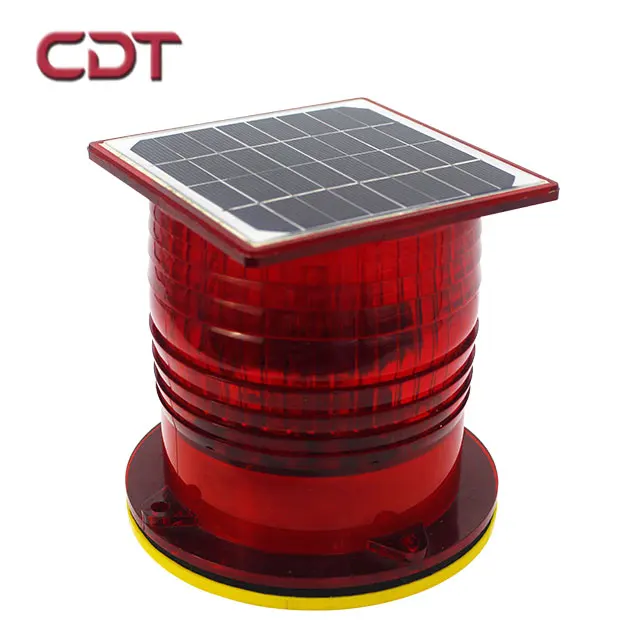

CK-11L-TZSolar-powered AVIATION OBSTRUCTION LIGHT
ITEM | Parameter |
Model | CK-11L-TZ |
Operating voltage | DC6.5V((solar power)) |
Power consumption | ≤3W |
Flashing frequency | 20~60times/min. |
Peak light intensity | 32.5cd(±25%) |
Light source | RED LED |
Lifespan | 100000 hours |
Emitting color | RED |
Beam angle | 360° horizontal beam angle ≥3° vertical beam spread |

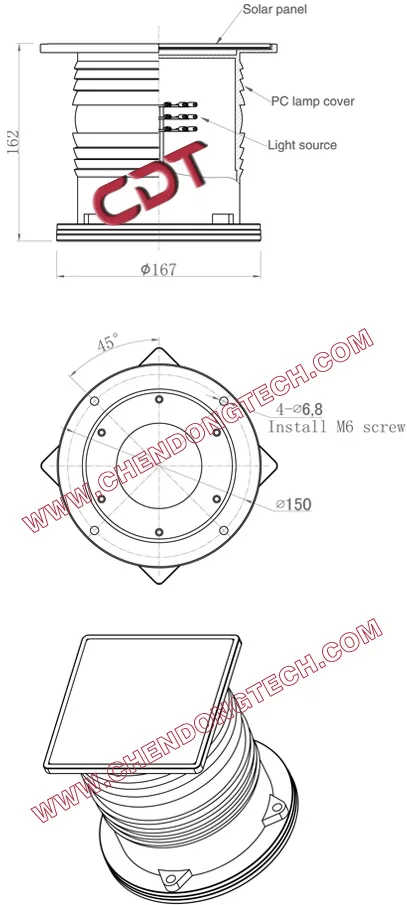

Overall size(mm) | 167*162 |
Installation size(mm) | 150*4-M6 |
Ingress protection | IP65 |
Lightning protection level | 5KA |
Light controlled sensitivity | 100lux |
Operating temperature | -30℃~60℃ |
Net weight | 1.2kg |
Wind load | 80m/sec. |
Production Show
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%,
quite high impact resistance and fit the bad environment very well.
2. ABS+PC alloy base with painting by spraying plastics, the structure is high strength, resistance to corrosion.
3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3 years.
4. Based on the single chip computer micro power control, could control the charge and discharge precisely.
5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%), lifetime more
than 20 years.
6. Using Fresnel lens optical design, range further.
7. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and highefficiency.
8. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control light intensity level.
9. The circuit of the light has surge protection so that the light is suitable to harsh environment.
10. Integral structure, protection lever of IP65.
Certifications
2014 new version ICAO Standard
Accessories
Install ways:
1. Upright mounting bracket
2. Horizontal steel angle mounting bracket
3. Anchor ear mounting bracket
4. Side elevation mounting bracket
5. Curtain wall mounting bracket
6. Vertical steel angle mountiong bracket
Packaging & Shipping
Our Services
Company Information
About US
Hunan Chendongtech is an integrated high-tech enterprise with solar and LED technology. We are specialized in
the research, development and manufacture of Led lights, solar lights and solar generating systems and so on.
Our products are widely applied to lighting, sea navigation, solar road stud , solar warning light , coal mine, gas
station and other professional industrial fields
