Неэлектрифицированный солнечный инвертор MUST PV1800 PRO 3 кВт 5 2 неэлектрическая солнечная энергетическая система китайский Инвертор солнечной
- Категория: Solar Energy Products >>>
- Поставщик: Must,Energy,(Guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.53 $* | 0.44 $* |
| Aug-15-2025 | 0.92 $* | 0.8 $* |
| Jul-15-2025 | 0.32 $* | 0.85 $* |
| Jun-15-2025 | 0.29 $* | 0.22 $* |
| May-15-2025 | 0.31 $* | 0.82 $* |
| Apr-15-2025 | 0.90 $* | 0.34 $* |
| Mar-15-2025 | 0.91 $* | 0.26 $* |
| Feb-15-2025 | 0.1 $* | 0.64 $* |
| Jan-15-2025 | 0.82 $* | 0.3 $* |
Характеристики

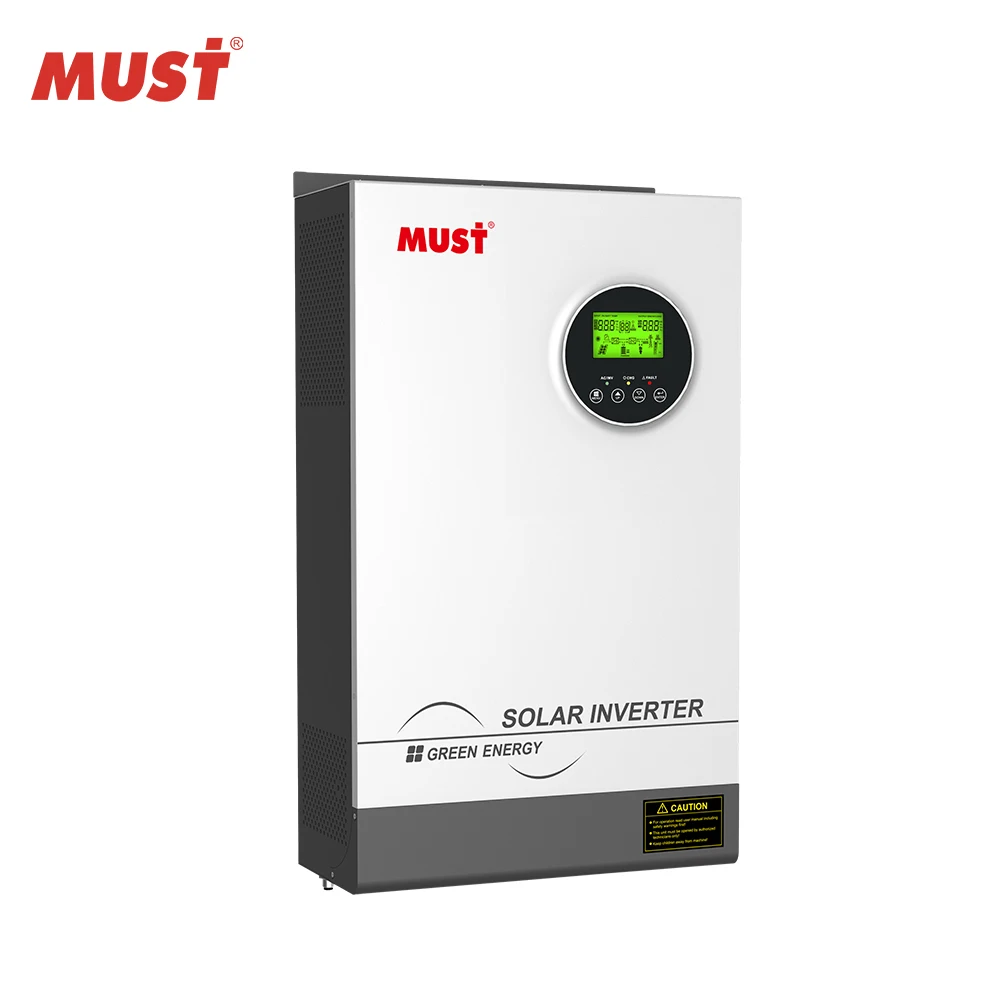

MUST PV1800 PRO hybrid off grid PV 500V solar inverter 3KW 3.2KW 5.2KW 5.5KW home solar system
PV1800PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPP voltage is 150~450V, which Can help customers make full use of solar energy.
Feature
1.Pure sine wave output
2.Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
3.Built-in MPPT 80A solar charge controller
4.MAX PV Array Open Circuit Voltage: 450V
5.Can provide the power to the load without battery

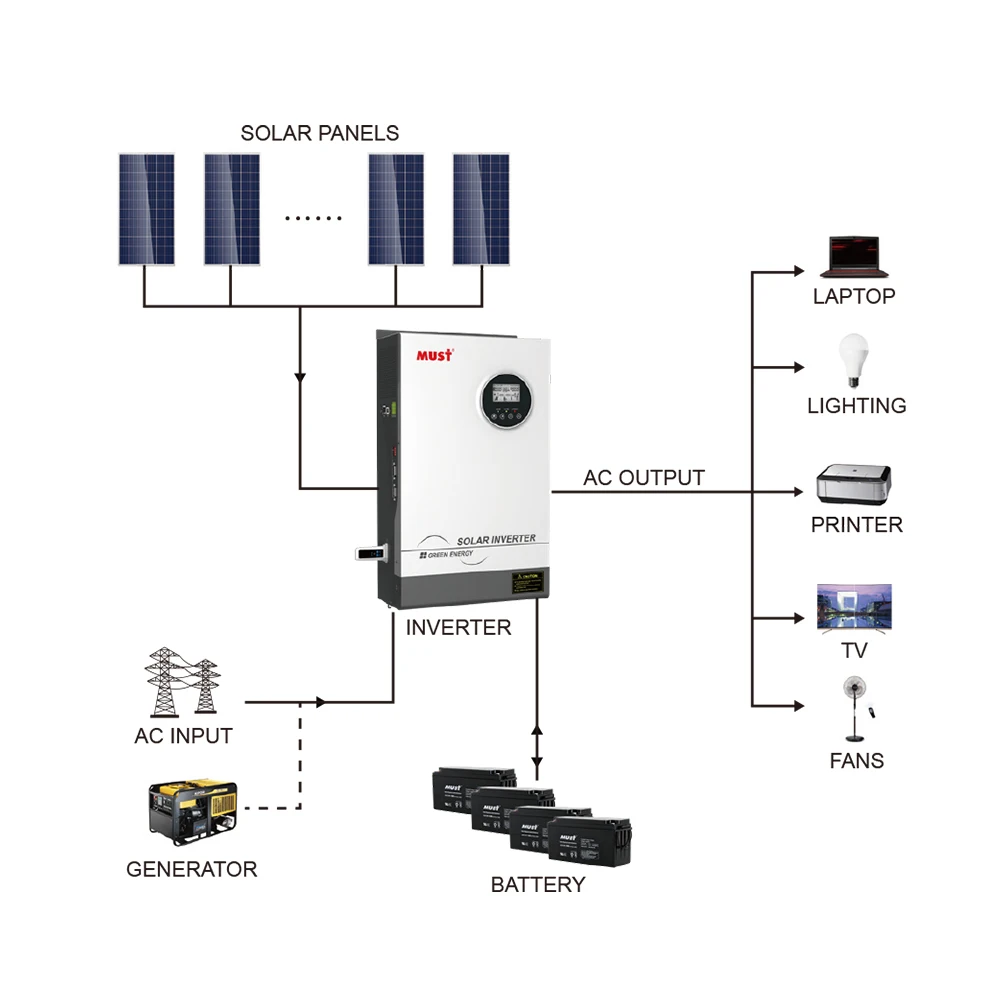

6.Combining solar system, AC utility, and battery power source to supply continuous power
7.Overload, short circuit and Deep discharge protection
8.Cold start function
9.Support USB, RS485 monitoring function with free CD
10.WIFI remote monitoring (optional)
11.Compatible to generator
12.Can Run Without Battery
Technical Spec:
| MODEL | PV18-3024 PRO | PV18-5248 PRO |
|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC |
| INVERTER OUTPUT | ||
| Rated Power | 3000VA / 3000W | 5200VA / 5200W |
| Surge Power | 6000W | 10400W |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |
| Inverter Efficiency(Peak) | 93% | |
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) | |
| AC INPUT | ||
| Voltage | 230VAC±5% | |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |
| Frequency Range | 50Hz / 60Hz(Auto sensing) | |
| BATTERY | ||
| Normal voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27.4VDC | 54.8VDC |
| Overcharge Protection | 30VDC | 60VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum PV current | 18A | |
| PV Array MPPT Voltage Range | 150~430 VDC | |
| Maximum Solar Charge Current | 80Amp | |
| Maximum AC Charge Current | 60Amp | |
| Maximum Charge Current | 80Amp | |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | 295*528*121 |
| Package Dimensions (W*H*D)(mm) | 540*395*241 | 628*425*251 |
| Net Weight(kg) | 11 | 14 |
| Gross Weight(kg) | 12 | 15 |
| OTHER | ||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | |
| Operating Temperature | 0°C~50°C | |
| Storage Temperature | -15℃ ~60℃ | |
Company Information
Our Services
MUST’s typical OEM/ODM/PLM Process (TOP) is strictly based on the ISO9001 quality assurance system. The TOP involves the effective teamwork of departments form Sales, R&D, Engineering, Purchasing, Production & QA and Logistics, assuring a high quality product and prompt delivery for customers.
FAQ
Q1: How to choose a right inverter or UPS?
A1:Contact our sales immediately ,who will professionally recommend the right item upon being clear of your application
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: 1 year for off grid solar inverter/UPS .5 years for IP65 on grid solar inverter.
Q5: How to solve the technical problem?
A5: 24 hours online after-service consultancy just for you and to make your problem to solve easily.
