Солнечный инвертор MUST PV1800 VPK 3000 Вт 5000 с ШИМ 50 А для домашнего
- Категория: Solar Energy Products >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.79 $* | 0.95 $* |
| Aug-15-2025 | 0.14 $* | 0.52 $* |
| Jul-15-2025 | 0.32 $* | 0.37 $* |
| Jun-15-2025 | 0.44 $* | 0.73 $* |
| May-15-2025 | 0.25 $* | 0.15 $* |
| Apr-15-2025 | 0.95 $* | 0.97 $* |
| Mar-15-2025 | 0.1 $* | 0.99 $* |
| Feb-15-2025 | 0.2 $* | 0.64 $* |
| Jan-15-2025 | 0.62 $* | 0.94 $* |
Характеристики

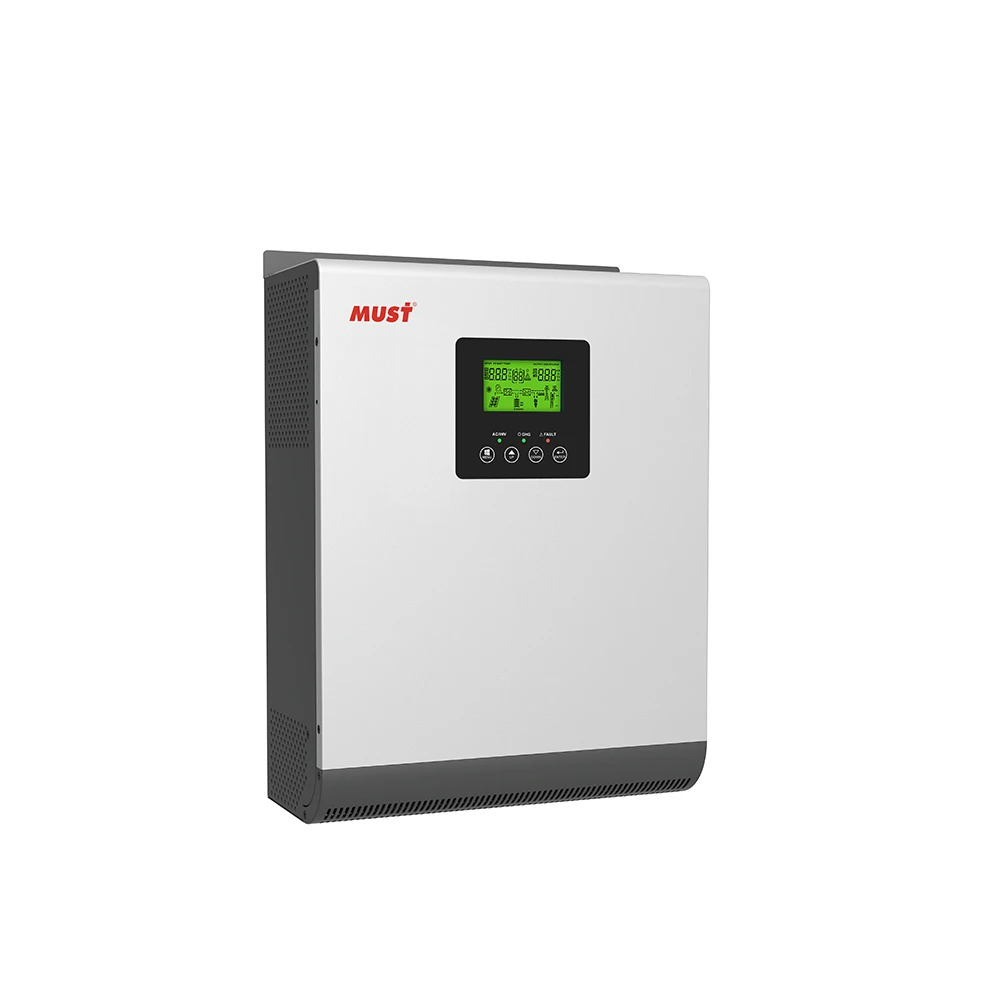

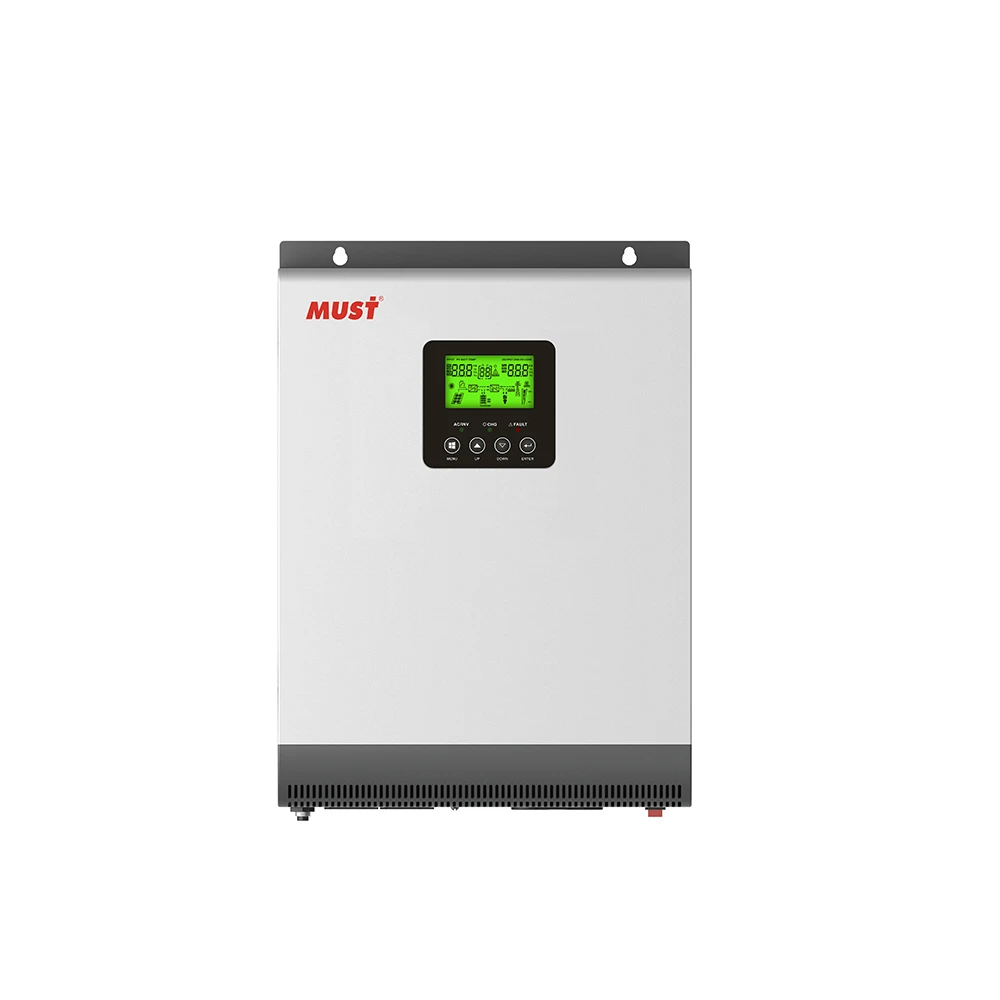

A MUST PV1800 VPK 3000w 5000W off grid solar inverter with PWM 50A for home power system use
PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user
configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and
acceptable input voltage based on different applications.
Feature
1.Pure sine wave output
2.Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
3.Built-in PWM 50A/60A solar charge controller
4.New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series

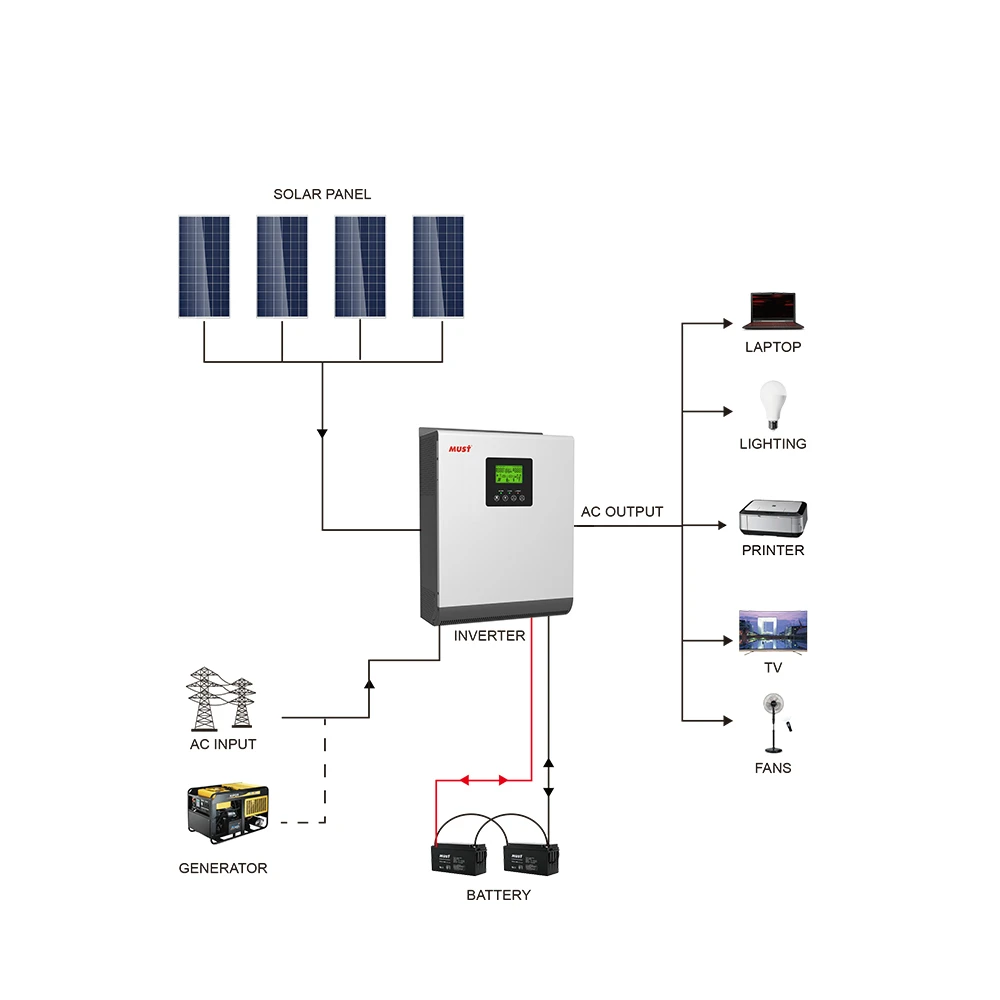

5.Combining solar system, AC utility, and battery power source to supply continuous power
6.Overload, short circuit and deep discharge protection
7.Parallel operation with up to 3 units (Available for 4KW/5KW only)
8.Cold start function
9.Support USB, RS485 monitoring function with free CD
10.WIFI remote monitoring (optional)
11.Compatible to generator
2.Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
3.Built-in PWM 50A/60A solar charge controller
4.New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series
5.Combining solar system, AC utility, and battery power source to supply continuous power
6.Overload, short circuit and deep discharge protection
7.Parallel operation with up to 3 units (Available for 4KW/5KW only)
8.Cold start function
9.Support USB, RS485 monitoring function with free CD
10.WIFI remote monitoring (optional)
11.Compatible to generator
Technical Specificat
| MODEL | PV18-1012 VPK | PV18-2024 VPK | PV18-3024 VPK | PV18-4048 VPK | PV18-5048 VPK |
| Nominal Battery System Voltage | 12VDC | 24VDC | 48VDC | ||
| INVERTER OUTPUT | |||||
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W |
| Surge Power | 2000W | 4000W | 6000W | 8000W | 10000W |
| Waveform | Pure sine wave | ||||
| AC Voltage Regulation (Batt.Mode) | (220VAC ~ 240VAC)±5% | ||||
| Inverter Efficiency (Peak) | 93% | ||||
| Transfer Time | 10ms(For Personal Computers)20ms(For Home Appliance) | ||||
| AC INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105) | ||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
| BATTERY | |||||
| Normal voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | ||
| Overcharge Protection | 15.5VDC | 31VDC | 60VDC | ||
| SOLAR CHARGER&AC CHARGER | |||||
| Maximum PV Array Open Circuit Voltage | 55VDC | 70VDC | 105VDC | ||
| Standby Power Consumption | 2W | 2W | 2W | ||
| (PWM) Maximum Solar Charge Current | 50A | 50A | 60A | ||
| Maximum AC Charge Current | 10A or 20A | 20A or 30A | 60A | ||
| Maximum Charge Current | 70A | 80A | 120A | ||
| MECHANICAL SPECIFICATION | |||||
| Machine Dimensions (W*H*D)(mm) | 225*355*92 | 272*355*100 | 297.5*468*125 | ||
| Package Dimensions (W*H*D)(mm) | 405*373*205 | 465*373*231 | 618*415*261 | ||
| Net Weight(kg) | 4 | 7.8 | 12 | ||
| Gross Weight(kg) | 6 | 10.3 | 13.5 | ||
| OTHER | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | 0°C -55°C | ||||
| Storage Temperature | -15°C -60°C | ||||
*Products specifications are subject to change without further notice
