Luoyang hongteng hong yang cnc индукционный нагреватель стержень упрочнение Подогрев Отопление ковка печь машина для

Luoyang hongteng hong yang cnc индукционный нагреватель стержень упрочнение Подогрев Отопление ковка печь машина для

Категория: Industrial Furnace >>>
Поставщик: Luo,Yang,Hongteng,Electrical,Equipment,Co.,Ltd.

Цена:5 100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	6069.17 $*	6372.55 $*
Aug-19-2025	6018.57 $*	6319.27 $*
Jul-19-2025	5049.24 $*	5301.90 $*
Jun-19-2025	5916.12 $*	6212.60 $*
May-19-2025	5151.51 $*	5409.37 $*
Apr-19-2025	5814.65 $*	6105.61 $*
Mar-19-2025	5763.17 $*	6051.18 $*
Feb-19-2025	5712.68 $*	5998.52 $*
Jan-19-2025	5661.82 $*	5944.53 $*

Характеристики

Luoyang hongteng hong yang cnc induction heater rod bar hardening reheating heating forging furnace machine for sale

Products Description

1, After the billet is pulled out from the continuous casting machine, surface temperature is 750 ~ 850℃, internal temperature 950 ~ 1000℃, 1/3 of the interior of the billet does not need to be reheating.
2, Select different oscillation frequencies according to different billet cross-section sizes, you can get the best heating efficiency.
3, No need to install, plug and play. No need to preheating, start heating when starting up.

Main Application

Product Features

1.The induction coil is insulated by two insulation treatment, high temperature insulating paint and fiberglass ribbon winding.
2.The top of the furnace body is designed with sliding cover, which is convenient for maintenance and inspection.

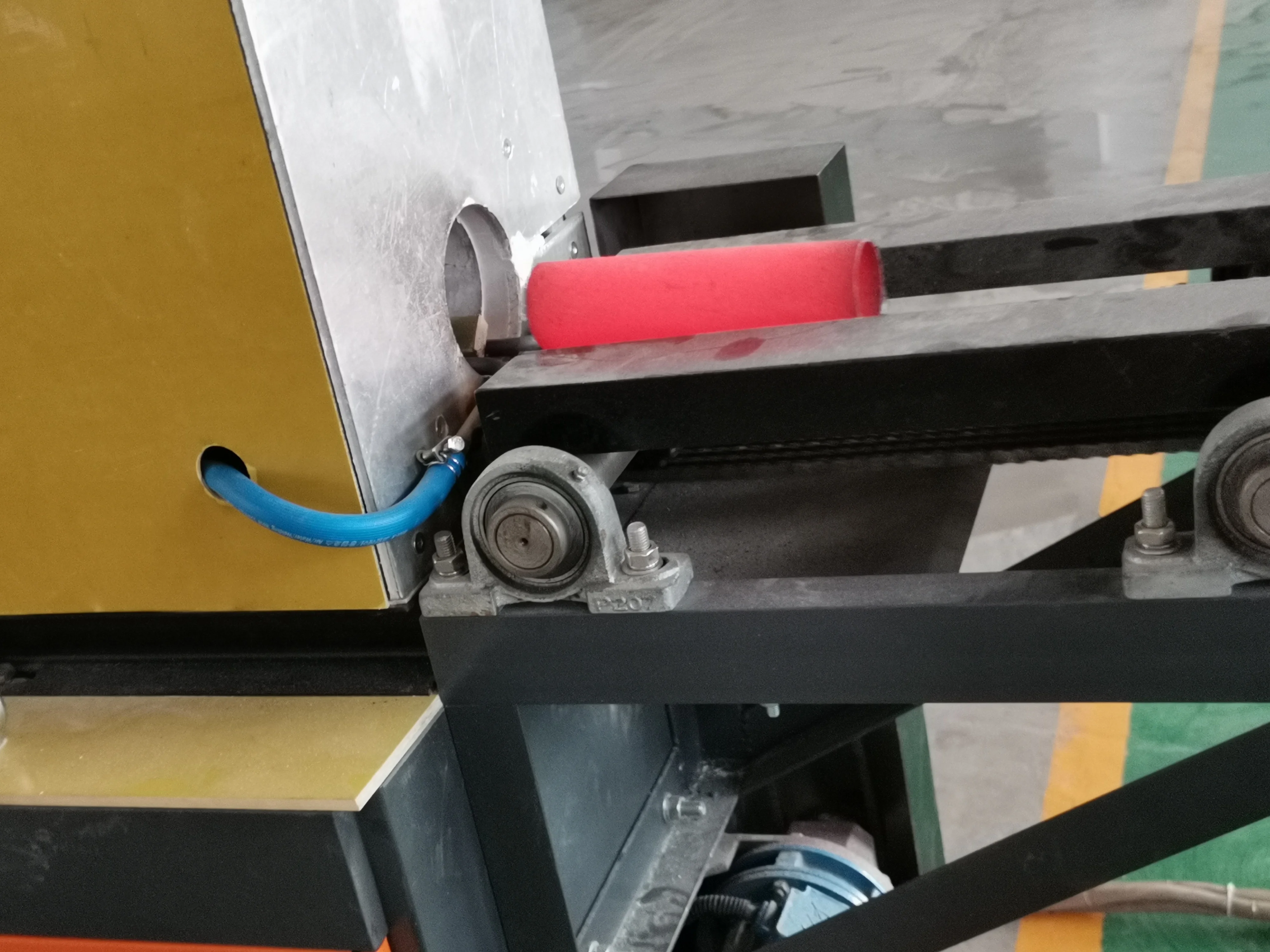

1.The feeding system adopts pinch roll feeding, which is suitable for bar diameter range of 40-120mm.
2.The feeding speed is controlled by variable frequency motor and the feeding speed is adjustable.
3.The pitch roller feeding motor and the reducer all adopt aluminum shell, which can effectively prevent the hot around the coil

1.This system can accurately control the outlet water temperature, the water inlet and outlet of furnace body adopt water-cooled copper plate.
2.The cooling water pipe of the furnace body adopts high temperature carbon-free hose, the service lifetime is more than three
years.

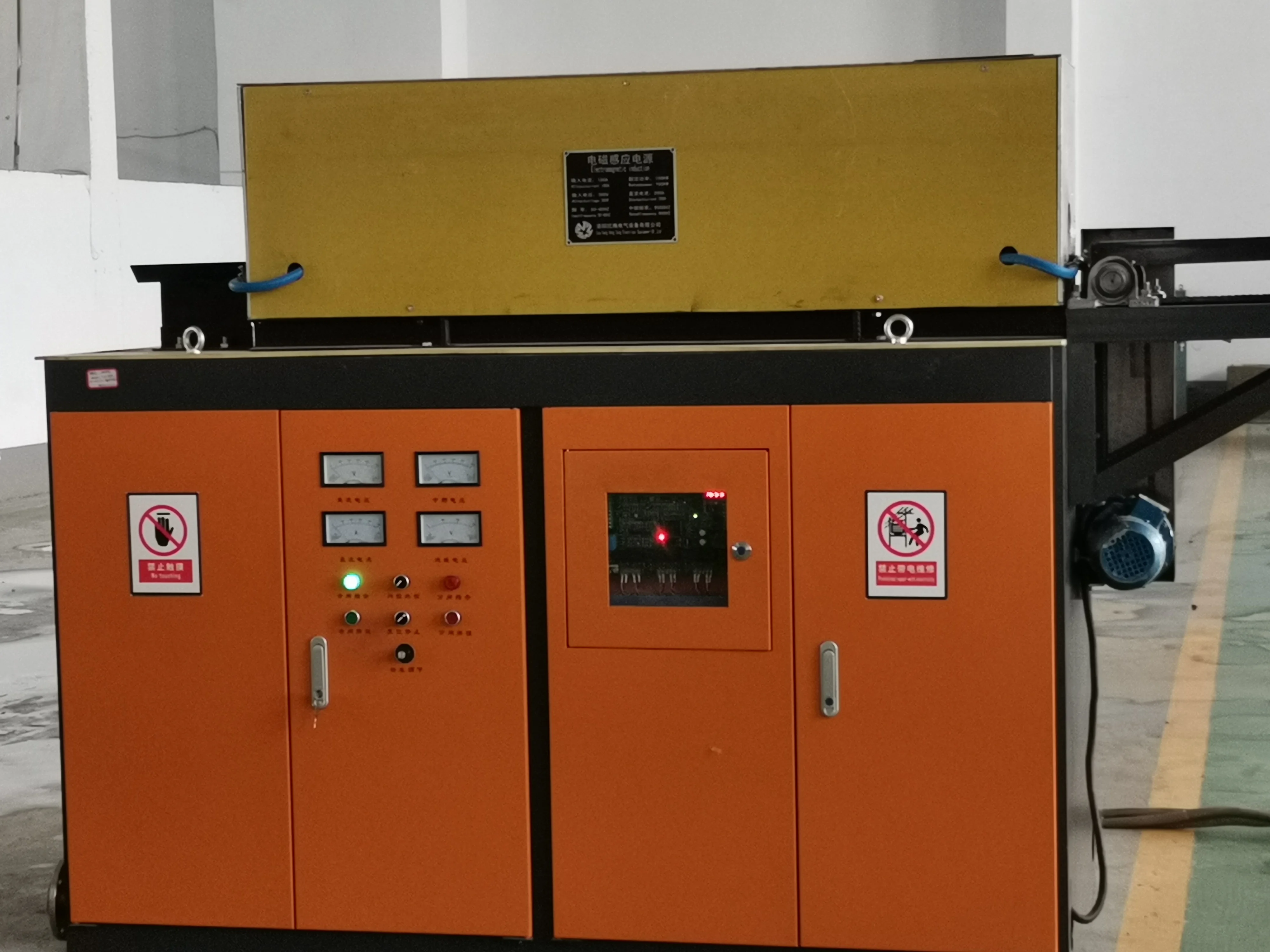

1. The main control board of the cabinet is micro computer control, one-key zero pressure start, plug and play.
2.The separate insolation design of water pressure meter of furnace body and control cabinet can make the user more convenient and intuitive to monitor the water pressure of control cabinet and furnace body.

Specification and Technical Parameter
Model	MF power	Input voltage	DC Current	MF frequency
KGPS-400	400kw	380V	800A	1KHZ
KGPS-500	500kw	380V	1000A	1KHZ
KGPS-750	750kw	380V,660V	1500A,850A	0.8KHZ
KGPS 1000	1000kw	380V,660V	2000A,1140A	0.8KHZ
KGPS-1500	1500kw	380V,660V	3000A,1700A	0.5KHZ
KGPS-2000	2000kw	660V,1250V	2273A,1212A	0.5KHZ
KGPS-2500	2500kw	660V,1250V	2840A,1515A	0.5KHZ
KGPS-3500	3000kw	660V,1250V	4000A,2100A	0.5KHZ
