Бобинорезательный станок
Китайский производитель оцинкованная стальная катушка машина для продольной

Китайский производитель оцинкованная стальная катушка машина для продольной

Категория: Бобинорезательный станок >>>
Поставщик: Hebei,Tubo,Machinery,Co.,Ltd.

Цена:100 000,00 $ - 130 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	119000.40 $*	124950.78 $*
Aug-19-2025	118000.64 $*	123900.10 $*
Jul-19-2025	99000.46 $*	103950.38 $*
Jun-19-2025	116000.32 $*	121800.34 $*
May-19-2025	101000.89 $*	106050.3 $*
Apr-19-2025	114000.35 $*	119700.5 $*
Mar-19-2025	113000.45 $*	118650.58 $*
Feb-19-2025	112000.62 $*	117600.37 $*
Jan-19-2025	111000.3 $*	116550.27 $*

Характеристики

Product Specifications

1.0mm~6.0mm×1600mm
Raw Material HRC, CRC, GI, ST37, ST52, S235, S355	Yield Strength : Max. 235Mpa Thickness :2.0~8.0 Slitting Motor :132KW DC Motor Cutter shaft：Ф260 x 1650mm	Line Speed:Max.100m/min Coil Weight：30,000kg Min. Slit Width：40mm Slitting Strip：Max.20 strips
Slitting Width:600~1800mm Total Power：300kW Recoiler Motor:160KW DC

Model List

Model	Thickness	Width	Coil weight	Finished slit width	Max slitting speed
ZJ-1×600	0.2~1mm	100~600mm	MAX 8MT	Min.20mm	Min.20mm
ZJ-2×1250	0.3~2mm	300~1250mm	MAX 15MT	Min.25mm	Min.25mm
ZJ-3×1300	0.3~3mm	300~1300mm	MAX 20MT	Min.25mm	Min.25mm
ZJ-3×1600	0.3~3mm	500~1600mm	MAX 20MT	Min.25mm	Min.25mm
ZJ-4×1600	0.4~4mm	500~1600mm	MAX 30MT	Min.30mm	Min.30mm
ZJ-5×1500	0.6~5mm	500~1500mm	MAX 30MT	Min.40mm	Min.40mm
ZJ-6×1600	1~6mm	600~1600mm	MAX 30MT	Min.50mm	Min.50mm
ZJ-8×1800	2~8mm	600~1800mm	MAX 35MT	Min.50mm	Min.50mm
ZJ-10×2000	3~10mm	800~2000mm	MAX 35MT	Min.60mm	Min.60mm
ZJ-12×1800	3~12mm	600~1800mm	MAX 35MT	Min.60mm	Min.60mm
ZJ-16×2000	4~16mm	800~2000mm	MAX 40MT	Min.100mm	Min.100mm
ZJ-20×2200	5~20mm	800~2200mm	MAX 40MT	Min.100mm	Min.100mm
Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirement, so each customer can buy his own well-content coil slitting machine from us.

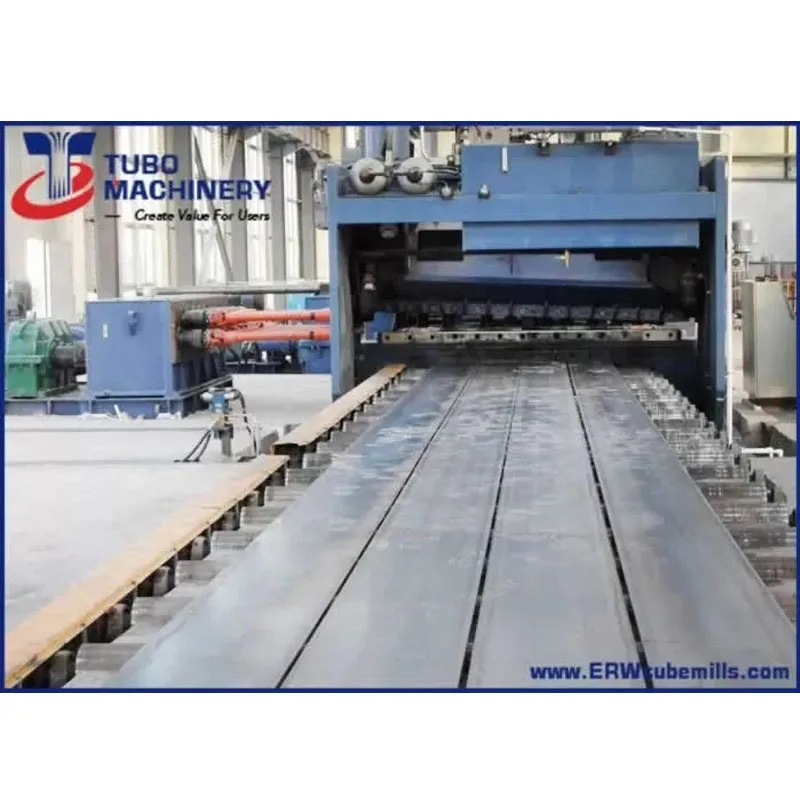

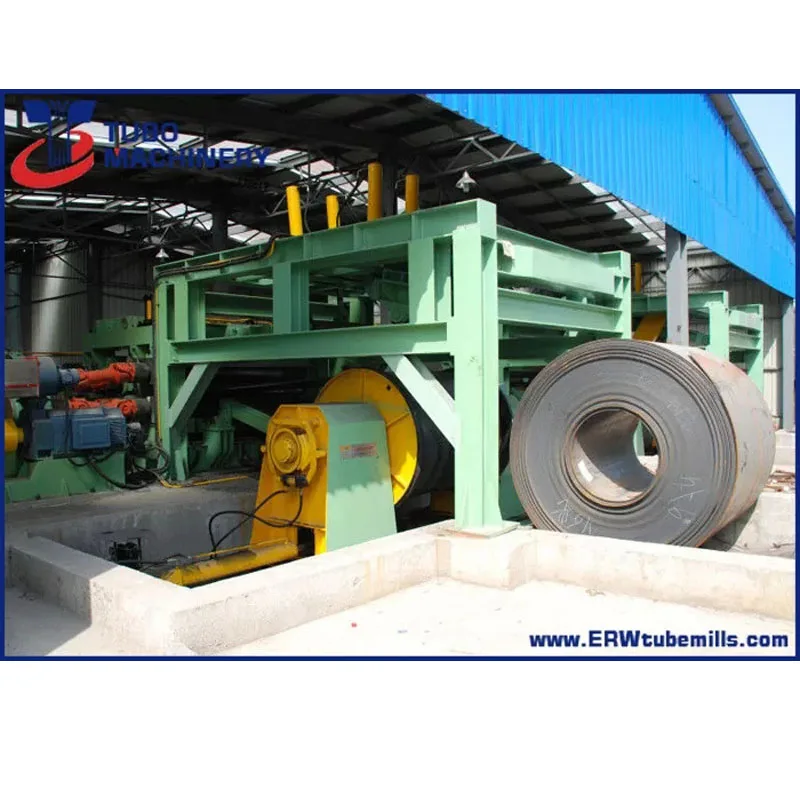

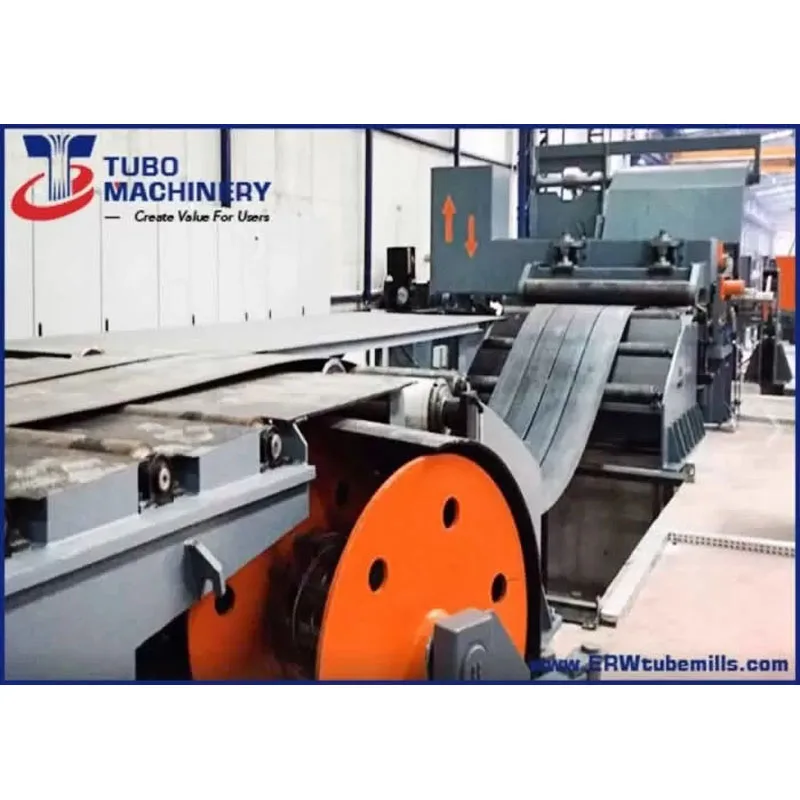

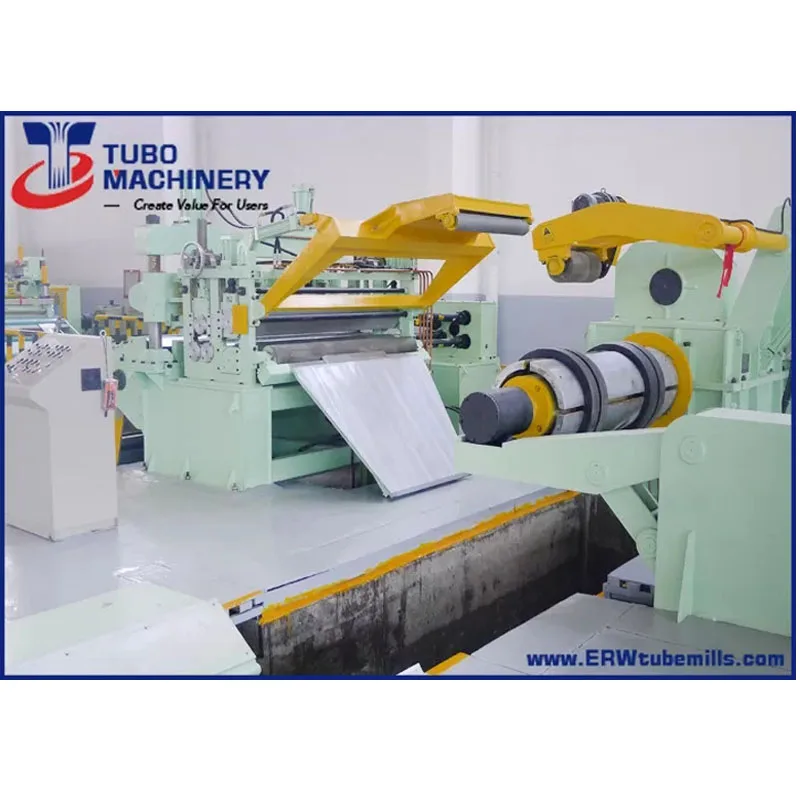

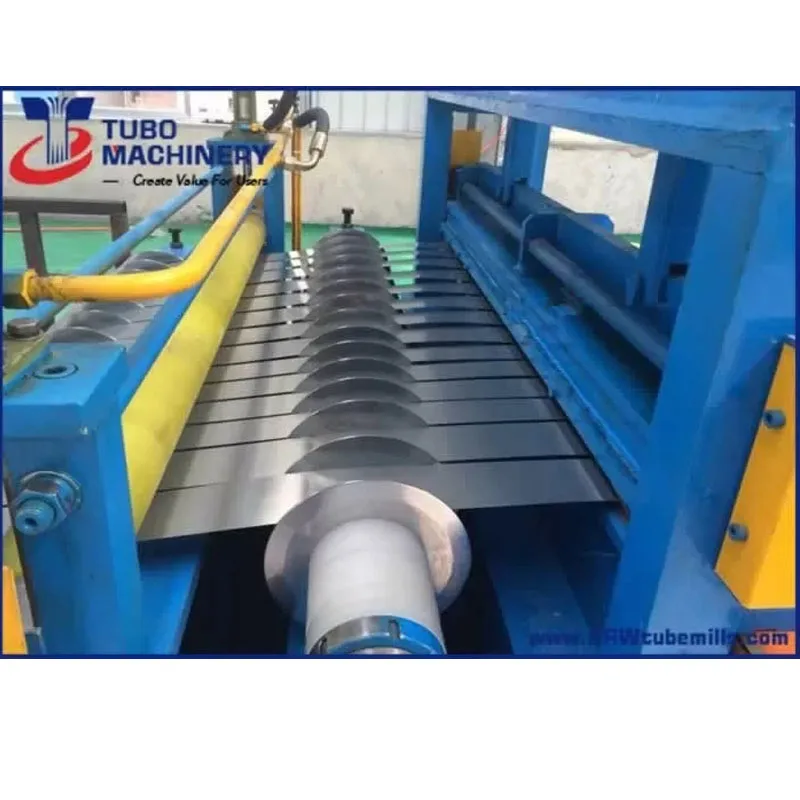

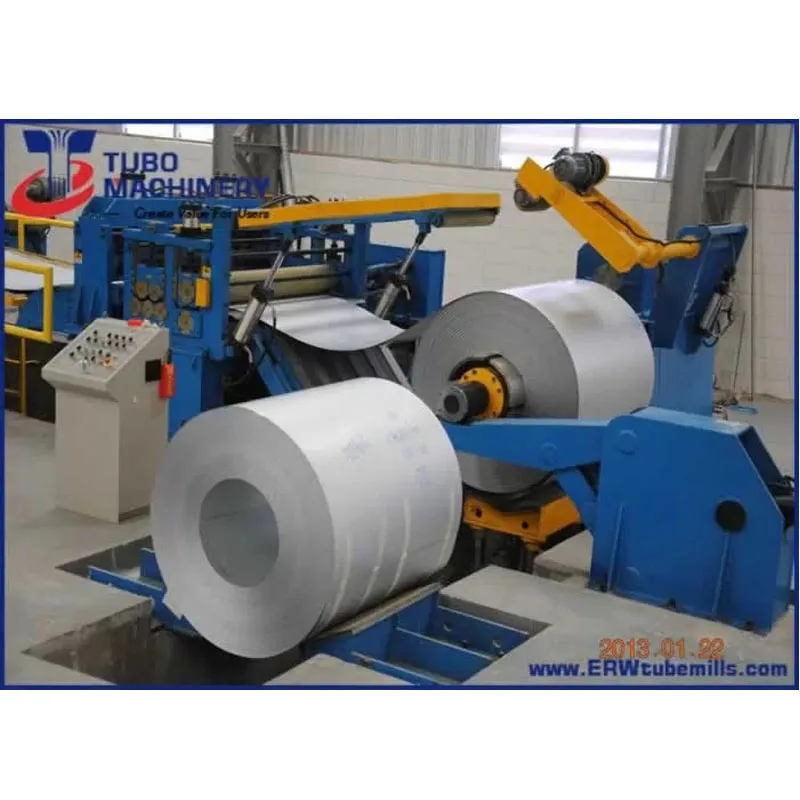

Product display

Product Advantages

1.High automation level to reduce non-productive times
2.High Quality of the final product
3.High production capacity and flow rates by rigorous mimimization of tooling time and high production speed .
4.High accuracy and precision by means of high precison kinfe shaft bearings .
5.we Can supply same quality coil slitting machine at cheaper prices becuse we are good at production cost management .
6.AC motor or DC motor drive , customer can freely choose. Usually we adopt DC motor and Eurotherm 590DC driver due to its advantages of stable running and big torque.
7.Safety operation is ensured by clear indications on thin sheet slitting line,safety devices such as emergency stop ,etc.

Product description

It is used for slitting the wide raw material coil into narrow strips in order to prepare material for subsequent processes as milling, pipe welding, cold forming, punch forming, etc. Moreover, this line can also slitting various non-ferrous metals.

Process Flow

Loading Coil→Uncoilling→Leveling→Cutting the Head and End→Circle Shear→Slitter Edge Recoilling→Accumulator→Steel Head and End Bending→Separating→Tensioner→Coilling Machine

Main Products

Company Profile

Packing&Shipping

FAQ

1. Q : Are you manufacturer ?

A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.

2. Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details.

3. Q:What information do you need to supply a quotation?

A: 1. Maximum Yield Strength of the material,

2.All pipe sizes needed (in mm),

3. Wall thickness (min-max)

4. Q: What is your advantages?

A: 1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.

2. Latest quick change technology to increase the output and reduce labor intensity.

4. 130 CNC machining equipments to guarantee our products perfect.

3. More than 15 years R&D and Manufacturing Experience.
5. Customized According to Customer Requirements.

5. Q: Do you have after sales support?

A: Yes,we have. We have a 10-person -professional and strong installation team.

6.Q: How about your service?

A:(1) One year’s warranty.

(2) Providing spare parts for life time at cost price.

(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.

(4) Provide technical service for facility reforming, refurbishment.
