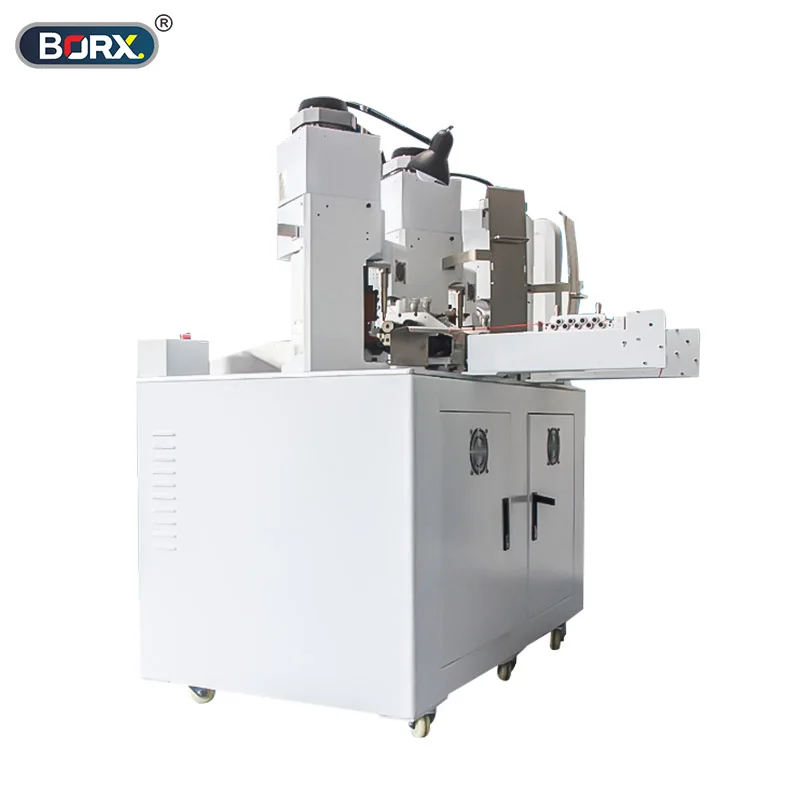

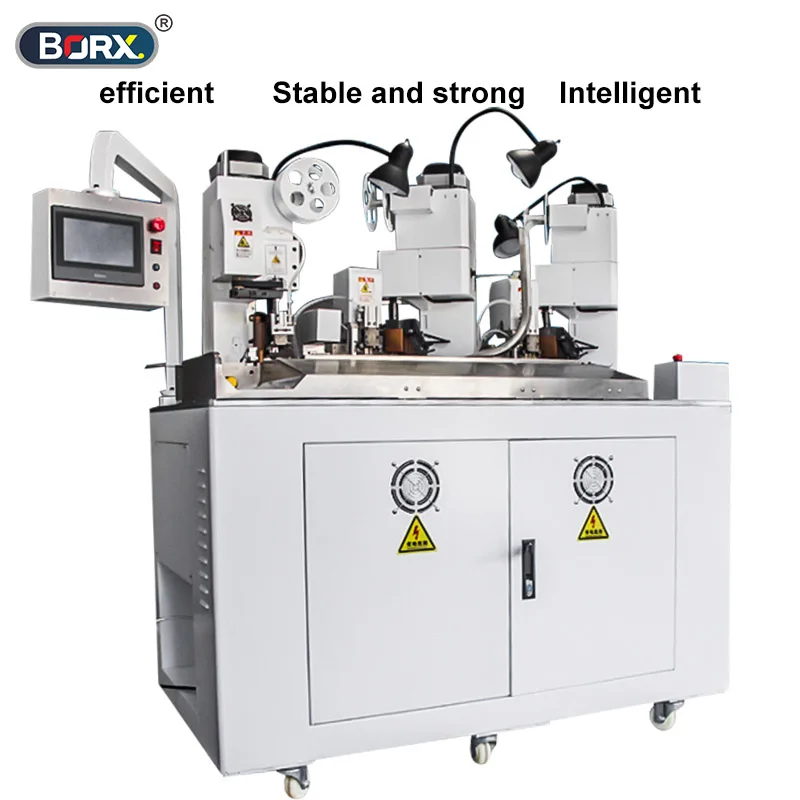

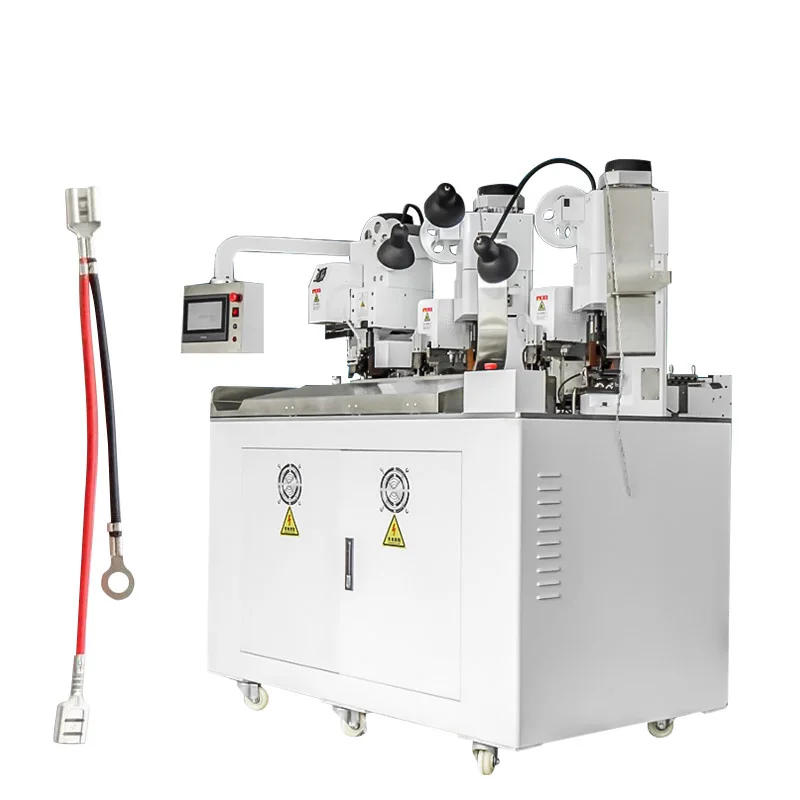

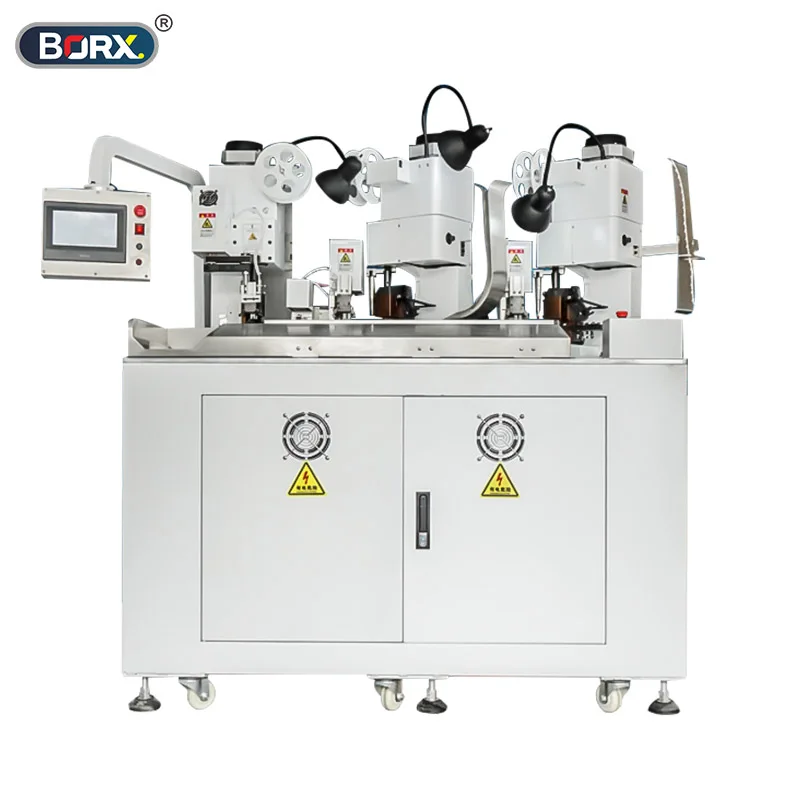

Automatic three-terminals crimping machine CNC Various terminals crimping machines

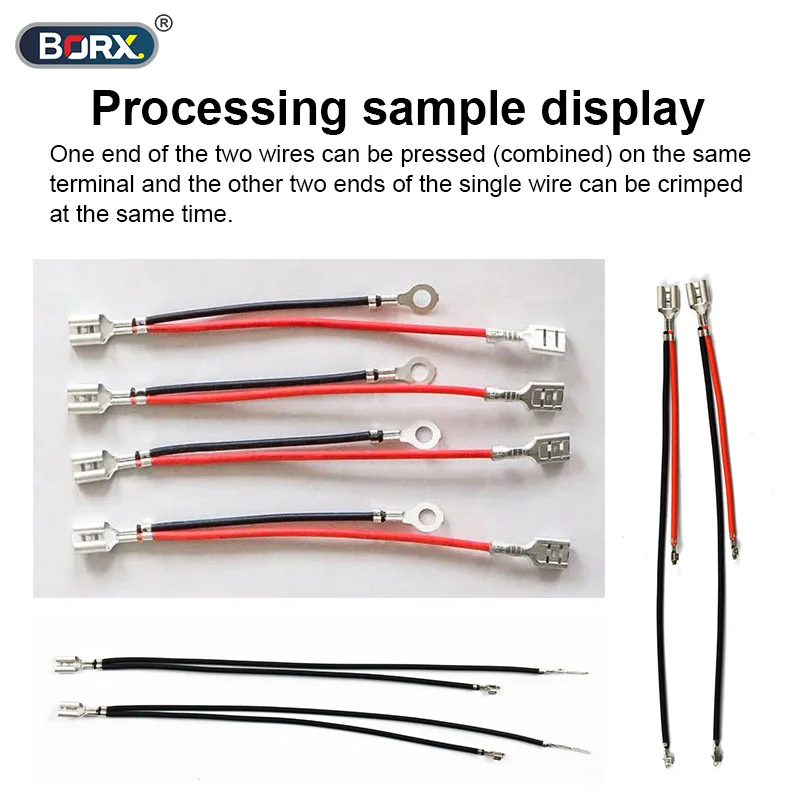

• One end of the two wires can be pressed(combined) on the same terminal and the other two ends of the single wire can be crimped at the same time.


• This machine has more than 10 workstation to work together at the same time, which is complex but not cumbersome. The compact design and powerful control processing system enable the machine to still achieve efficient processing efficiency.


• The brand new forth-generation four wheel wire feeding mechanism is equipped with an encoder and a servo power drive, Even if it is an extra long cable. The tolerance can be controlled within 0.2% of the total length.


• Cooperate with the precise peeling knife holder, the peeling is accurate, without damaging the cooper wire, and is clean and neat. The shortest line that can be processed is up to 60mm


• With multiple detection devices, such as missing wires, knots, terminals crimping abnormlities etc.


• It modular design fully considers the maintainability and also facilitates the repplacement of other parts, such as changing molds.

Product model	BORX-10112D
Product name	Automatic three terminal crimping terminal machine
Machine function	Wire cut to size, stripped at both ends, single ends half stripped, single wire single ended crimping, single wire, double ended crimping, double wire crimping, double wire single end crimping, and three end crimping terminal
Physical dimension	1000*750*1650mm
Machine weight	480kg

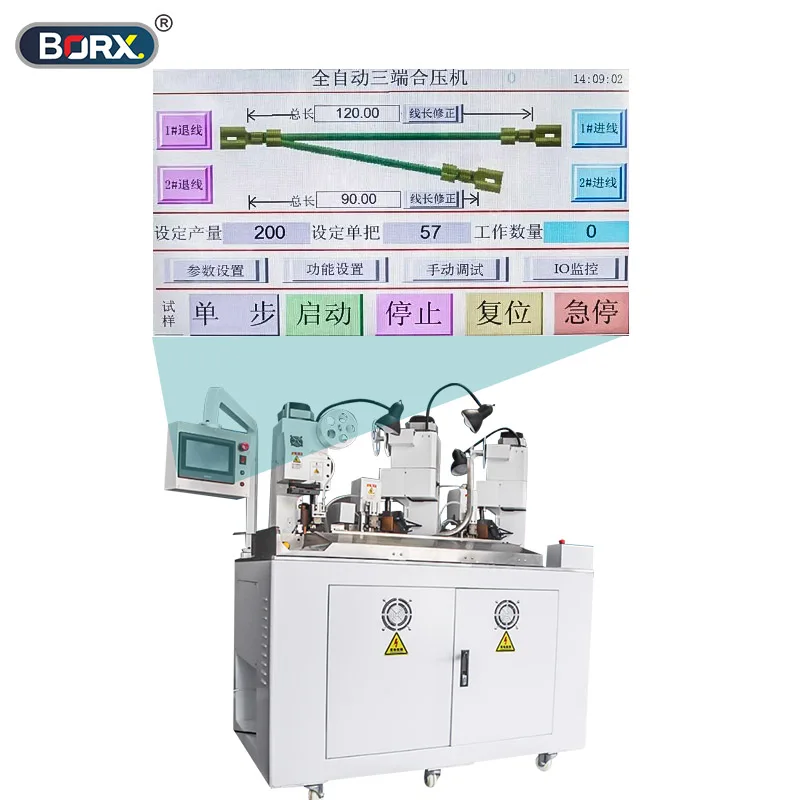

Display method	Color LCD touch screen
Operation mode	Automatic operation+manual operation
Knife adjustment method	electric knife adjustment
Tool material	High speed steel
Pneumatic accessories	Original airtac
Screw guide	Silver guide rail on the bend, TBI screw
Cutting length	50~9999 mm
Stripping length	Front end:1.0-8.0mm ; Rear end:1.0~8.0mm
Suitable terminal	Horizontal terminal, straight terminal, flag terminal
Suitable for wire	AWG#16-AWG#28
Processing capacity	2500 three end crimping terminals/hour(equivalent to #28-#16, when the cut length is 120mm; 3800line/hour(equivalent to #28-#26, cut length120mm
Single wire double ends crimping	4200pieces/hour
Single ended crimping	4500 pieces/hour
Air pressure	Above 5-6KG/cm square
Configure power	National standard/mains AC220V
Rated power	2.5KW
