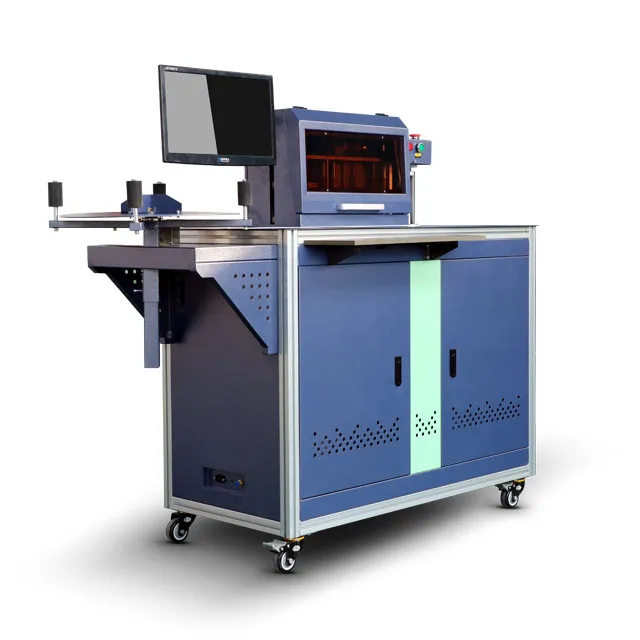

DH-5150 CNC Aluminum Channel Letter Bending Machine For 3D Letter Signage
Whatsapp:008618866779238
![]()
Machine Features
1. Automatic computer adjusting system, no need to adjust the slotting depth by hand.
2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
3. Material width is 30-150mm,thickness is 0.4-1.2mm.
4. Low power consumption,the using power less than 1500W.
5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
8. Special parameter requirement can be customized.
2. Fast bending speed, one time forming, big curve arc is flapped, small curve arc is squeezed.
3. Material width is 30-150mm,thickness is 0.4-1.2mm.
4. Low power consumption,the using power less than 1500W.
5. Can read various vector files in DXF, AI, PLT format, matching with engraving files.
6. Double side slotting,the bending angle of flat sheet is from -180° to 170°.
7. Adopt high quality encoder,high reliability, long lifetime and strong anti-interference performance.
8. Special parameter requirement can be customized.
Technical Parameter
Model | DH-5150 |
Applicable material | Flat aluminum,Aluminum profile,Aluminum coil |
Bending Radius | ≥10mm |
Material width | ≤150mm |
Material thickness | 0.3mm-1.5mm |
File format | DXF、AI、PLT |
Supporting software | Leetro software CBS4 |
Machine weight | 230kg |
Gas pressure | 0.6Mpa |
Voltage | 220V50HZ1P |

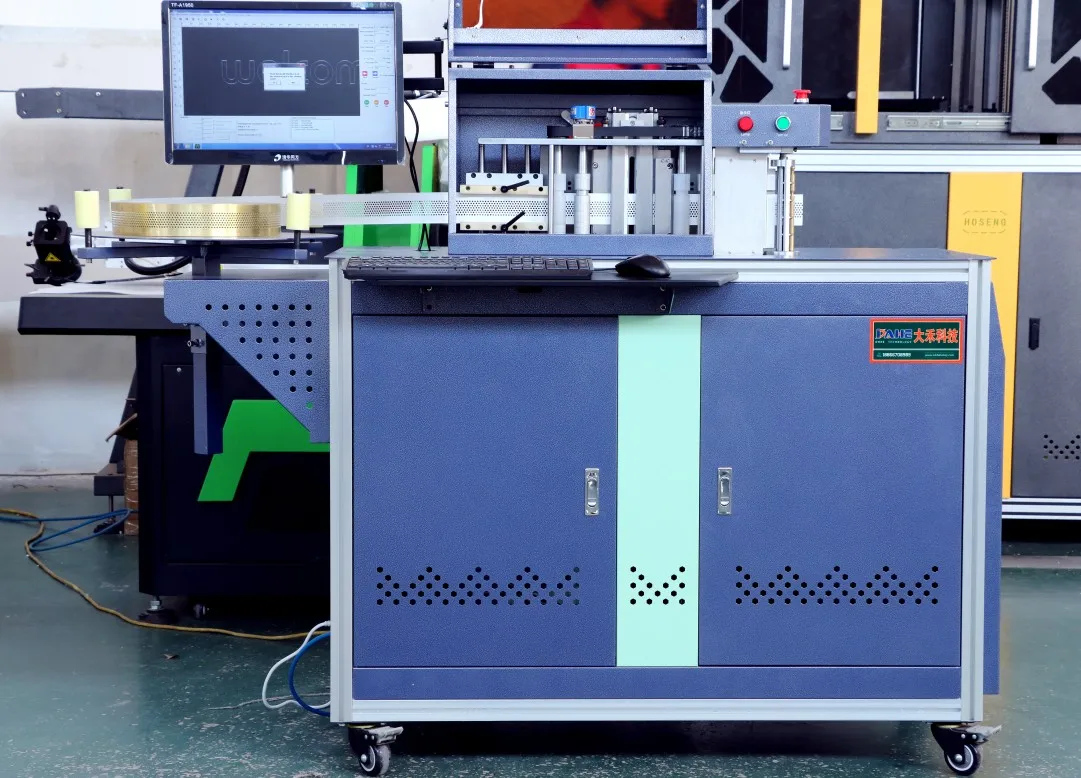

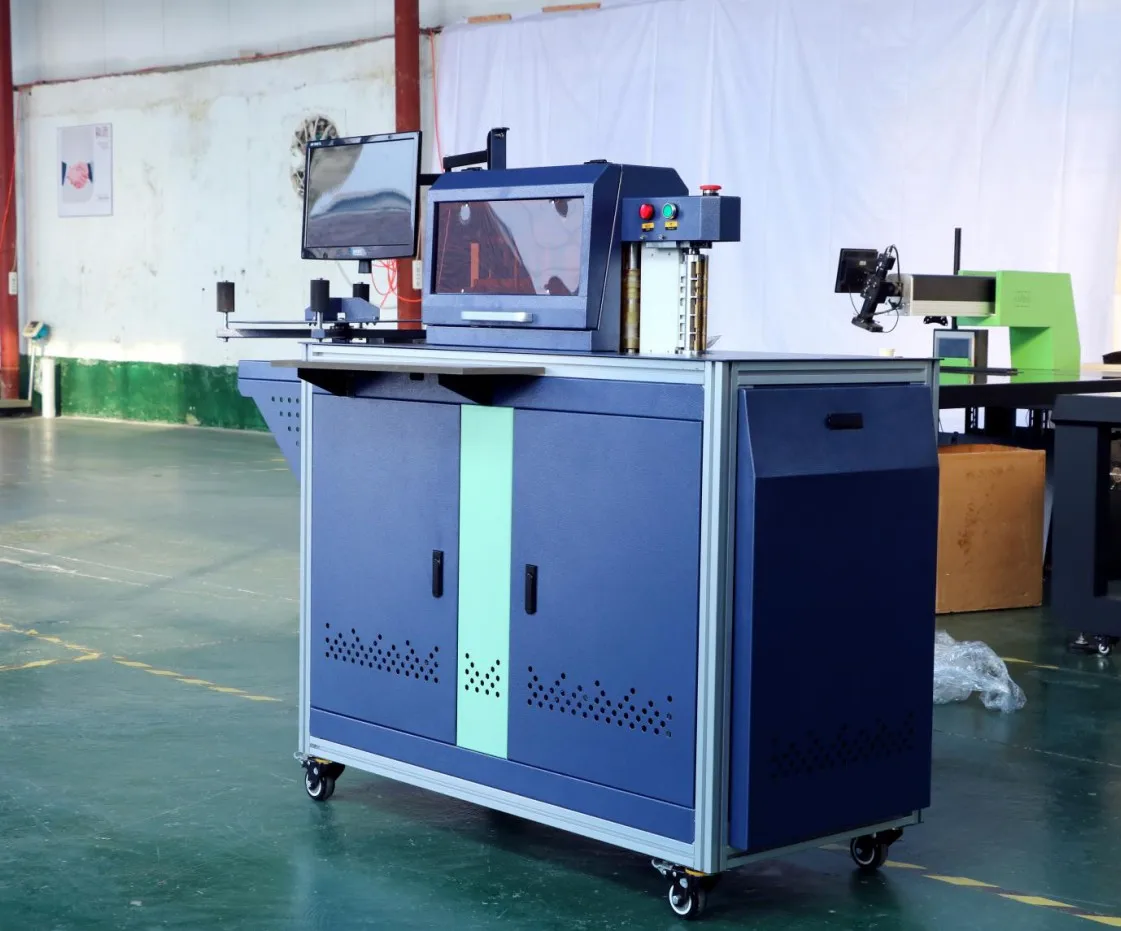

Details Images
![]()
Feeding System
Feeding System
The feeding part is clamped by rubber rollers and driven by gear belt.
Fast speed can realize the continuous feeding.It is suitable for flat aluminum,aluminum profile and other materials.
![]()
High Precision Encoder
The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, Its high-precision performance makes the feeding control more accurate.![]()
Imported Milling Cutter
The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.![]()
Bending Tool
The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.![]()
Auto Depth Adjusting System
The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.![]()
Control system
The control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.The control card running stable with strong anti-interference ability.![]()
High Precision Encoder
The high quality encoder used in this machine has high reliability, long life and strong anti-interference performance. With the high-speed precision motor, Its high-precision performance makes the feeding control more accurate.
Imported Milling Cutter
The milling cutter used germany imported alloy-coated tool bit, increase the using lifetime.The tip of the cutter is rounded,ensure the flat sheet bending angle is from -180°to 170°.
Bending Tool
The bending part adopts the working mode of two-axis linkage bending, which is equipped with servo motor and speed reducer. It has fast speed, high precision, no damage to the material surface and small bending interference.
Auto Depth Adjusting System
The unique depth adjusting system can automatically adjust the groove depth by modifying the software parameters, and can control the front and back adjustments separately. The motion part adopts screw rod, square rail and slider, which has high precision and good stability.
Control system
The control card and software is original leetro control system,easy to study and operate,ensure the machine calculating size with zero error.The control card running stable with strong anti-interference ability.
Available Material and Smaple Letter
![]()
Product packaging
![]()
After Sales Service
![]()
User manual will send to you together with machine .
![]()
After Sales team provide 12 hours online support everyday
![]()
Door to Door Training. more information need further negotiation
