Характеристики
1.Product Description
Features
1)Gear-driven type and round column
2) Milling, drilling, boring, reaming
3) Headstock swivels 360 horizontally
4) Micro feed precision
5) Adjustable gibs on table precision.
6)Strong rigidity, powerful cutting and precisely positioning.
Specification
| Model | ZAY7020G |
| Drilling capacity | 20mm |
| Face milling capacity | 63mm |
| End milling capacity | 20mm |
| Distance from spindle nose to table | 439mm |
| Min.distance from spindle axis to column | 197.5mm |
| Spindle travel | 85mm |
| Spindle taper | M.T.3 or R8 |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 95-1420 r.p.m |
| 60Hz | 115-1700 r.p.m |
| Swivel angle of headstock(horizontally/perpendicularly) | 360°/±90° |
| Table size | 520×160mm |
| Forward and backward travel of table | 140mm |
| Left and right travel of table | 290mm |
| Motor power | 0.37KW |
| Voltage/frequency | As customer’s requirement |
| Net weight/gross weight | 130kg/190kg |
| Packing size | 680×750×1000mm |
| Loading amount | 48pcs/20 ’container |

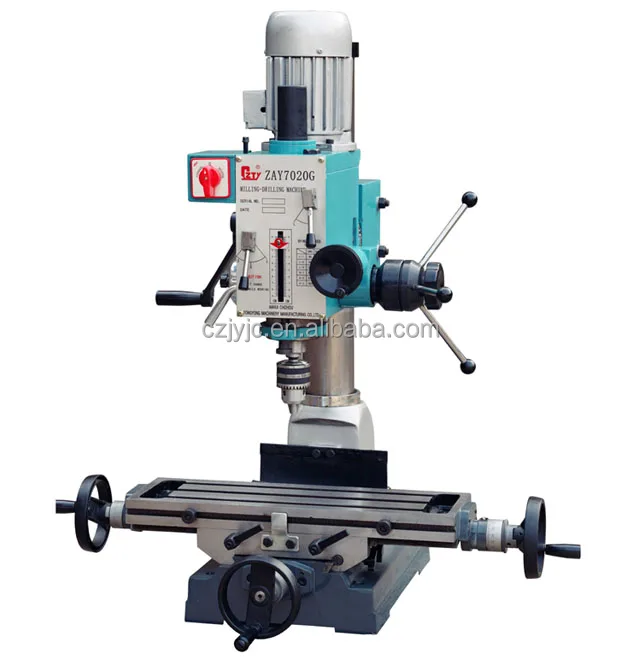

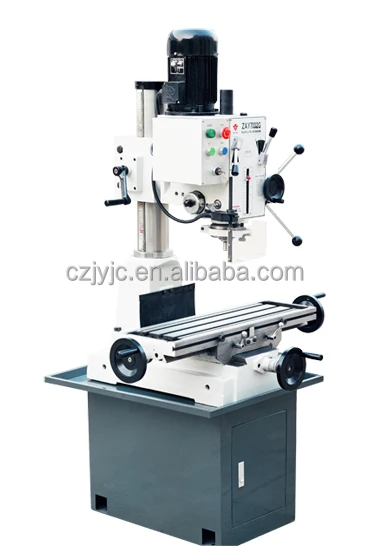

2.Machine Photo
3.Manufacturing Ability
