10-30 в светодиодный сенсорный диммер 60
- Категория: Dimmers >>>
- Поставщик: Ningbo,Homer,Electronics,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.82 $* | 2.7 $* |
| Aug-17-2025 | 2.0 $* | 2.44 $* |
| Jul-17-2025 | 2.32 $* | 2.93 $* |
| Jun-17-2025 | 2.49 $* | 2.70 $* |
| May-17-2025 | 2.65 $* | 2.70 $* |
| Apr-17-2025 | 2.35 $* | 2.33 $* |
| Mar-17-2025 | 2.22 $* | 2.74 $* |
| Feb-17-2025 | 2.6 $* | 2.99 $* |
| Jan-17-2025 | 2.26 $* | 2.7 $* |
Характеристики
Product Description

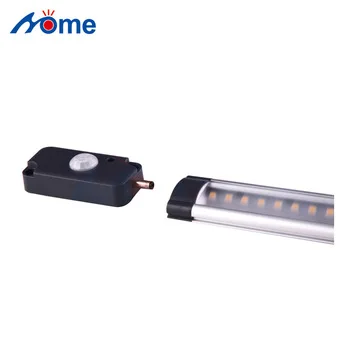

IR Sensor Switch (S01)
Project case
Elements:
Electric specification：Input:10-30VDC Output:10-30VDC
Output Max current：2A Output Max power: 60W(P=V*I) Operating
environment：Temperature：-10～45degrees，humidity80%~90% little oil & smoke
This product has blue LED signal function so that it’s convenient at night,Instruction: This product has rapid plug-in function
(input & output have 3.5DC binding post, input is DC female headline, output is male headline), input & output apply to out
connection way
Electric specification：Input:10-30VDC Output:10-30VDC
Output Max current：2A Output Max power: 60W(P=V*I) Operating
environment：Temperature：-10～45degrees，humidity80%~90% little oil & smoke
This product has blue LED signal function so that it’s convenient at night,Instruction: This product has rapid plug-in function
(input & output have 3.5DC binding post, input is DC female headline, output is male headline), input & output apply to out
connection way
Hand wave activation.
Complete with a sensitive sensor specifically designed to respond to hand waves, you’re able to turn these cabinet lights on and off with a simple wave – it’s as easy as that!
Better still, you can also adjust the brightness of these lights by holding your hand over the sensor, allowing you to create the perfect atmosphere in your kitchen with ease.
Specifications:

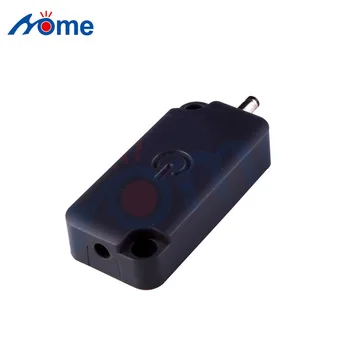

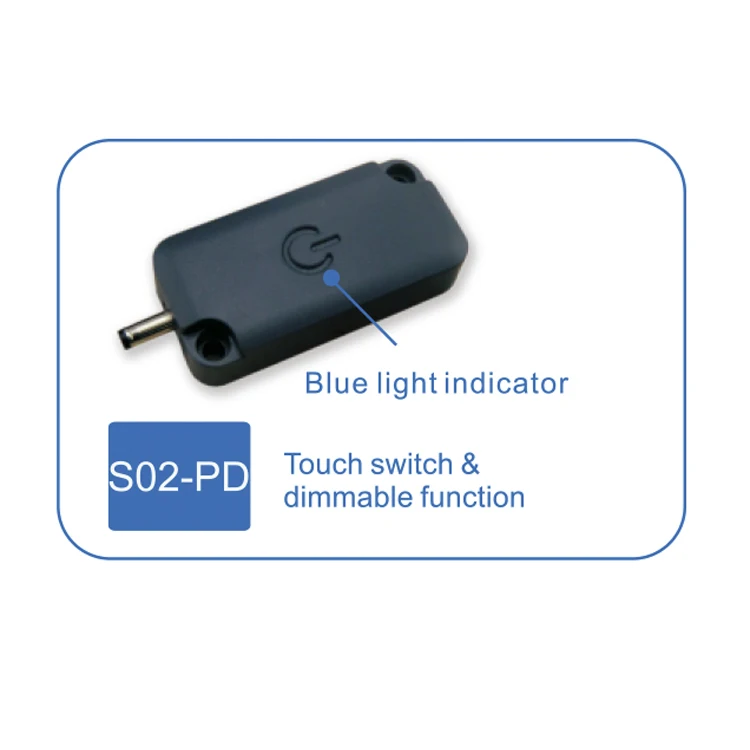

1.Touch Control Module:
a. Capacitance type touch sensor switchb. Brightness memory, brighten/dim, brightness adjusted stepless;
c. The light is“TURNED OFF” when electricity goes through;
d. Point touch(touch duration less than 550mS), light will turn on/off;
e. Long period point touch(touch duration more than 550mS), light brightness could be adjusted stepless;
f. For the first long period touch, it becomes brighter during touch period, it reaches the most brightness if touch period more than 3 seconds, it dims from the most brightness after another long-term touch, it reaches the least brightness if touch period more than 3 seconds, and so on;
g. It’s recovered to be 50% of the full brightness for the first touch after electricity turning off during lighting. H.Power
consumption during power off: 0.08W(12VDC),0.16(24VDC)

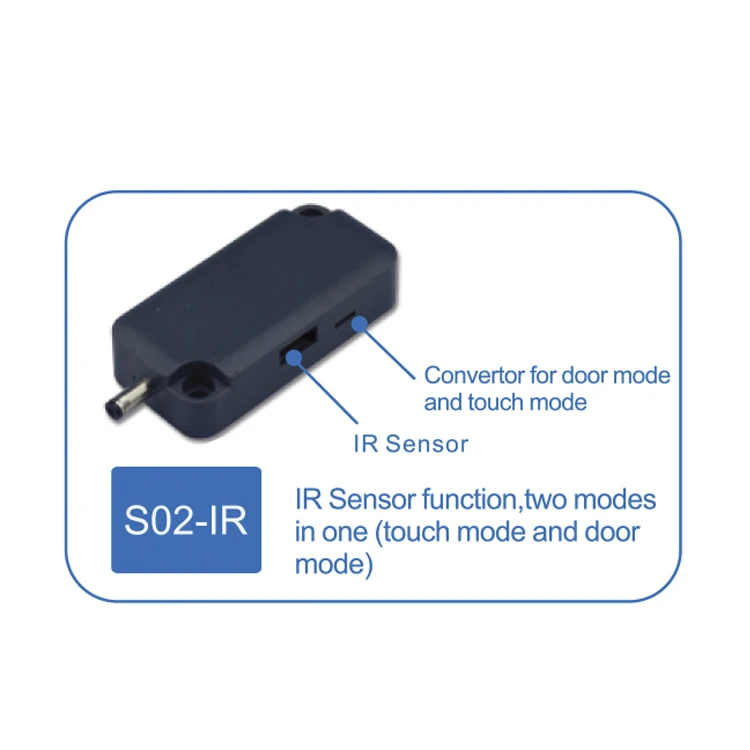

2. IR Control Module:
a. Theory: The sensor detects the infrared light by receiving the infrared ray diode emission & feedback;
b. This product has two modes: Door model & Touch model;
--DOOR MODEL: Lighting will turn on when you open the cabinet’s door, it will turn off when closing the door or stopping object
before the IR sensor(object refers to mobile door and drawer)
--TOUCH MODEL: Light is on the status of “TURN OFF” when electricity goes through, after object stops one time, it will turn on;
If object stops once again, it will turn off;
c. Distance of detection:7-12cm, actual distance depends on the type of shielding material and light absorptivity;
d. Stopped object couldn’t be detected if the period less than 1 second, light will not change;Stopped object could be detected
if the period more than 1 second, light will change;Light will keep the “changing” status unless stopped object removed;
e. In case electricity turns off during lighting, output will be 20ms when electricity turns on again, this is normal phenomenon because it’s resetting time of single chip micyoco;
f. Power consumption during power off: 0.08W(12VDC),0.16W(24VDC).
b. This product has two modes: Door model & Touch model;
--DOOR MODEL: Lighting will turn on when you open the cabinet’s door, it will turn off when closing the door or stopping object
before the IR sensor(object refers to mobile door and drawer)
--TOUCH MODEL: Light is on the status of “TURN OFF” when electricity goes through, after object stops one time, it will turn on;
If object stops once again, it will turn off;
c. Distance of detection:7-12cm, actual distance depends on the type of shielding material and light absorptivity;
d. Stopped object couldn’t be detected if the period less than 1 second, light will not change;Stopped object could be detected
if the period more than 1 second, light will change;Light will keep the “changing” status unless stopped object removed;
e. In case electricity turns off during lighting, output will be 20ms when electricity turns on again, this is normal phenomenon because it’s resetting time of single chip micyoco;
f. Power consumption during power off: 0.08W(12VDC),0.16W(24VDC).

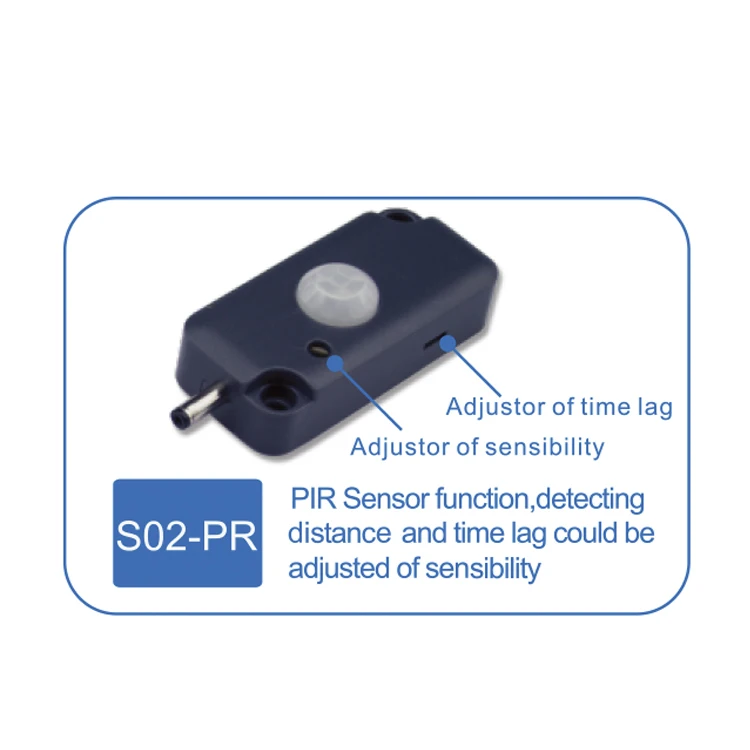

3.PIR Control Module:
a.Following the theory of PIR(Passive Infrared Sensor / Detection).
b. When objects get into the radiation angle(60 degree),the signal will be detected by Fresnel lens which will start the electric appliance, and set a time lag for appliance in sync. e.g the time lag is 30”,the appliance would be turned off automatically after 30”; while the Fresnel will reset another time lag(30”) if the object get into the radiation angle before the end of last time lag. The Fresnel will take 3”to work(detect object) again after the terminal of first 30”, we named this 3” as “unconscious status”.
c. The time lag could be adjusted, the time lag could be 1min. or 5min ( the orginal ex-factory setting is 1min),you could make your choice by time lag switch.
d. The detecting distance is 1-3meters.and the distance and sensitivity could be adjusted by rotary switch.
e. After sudden power fail interrupt, the light will take 10-15” to self-checking after restart, it’s normal process.
f. Standby power:0.1W(12V DC),0.2W(24VDC)
a.Following the theory of PIR(Passive Infrared Sensor / Detection).
b. When objects get into the radiation angle(60 degree),the signal will be detected by Fresnel lens which will start the electric appliance, and set a time lag for appliance in sync. e.g the time lag is 30”,the appliance would be turned off automatically after 30”; while the Fresnel will reset another time lag(30”) if the object get into the radiation angle before the end of last time lag. The Fresnel will take 3”to work(detect object) again after the terminal of first 30”, we named this 3” as “unconscious status”.
c. The time lag could be adjusted, the time lag could be 1min. or 5min ( the orginal ex-factory setting is 1min),you could make your choice by time lag switch.
d. The detecting distance is 1-3meters.and the distance and sensitivity could be adjusted by rotary switch.
e. After sudden power fail interrupt, the light will take 10-15” to self-checking after restart, it’s normal process.
f. Standby power:0.1W(12V DC),0.2W(24VDC)
Title goes here.
Note: Female and Male Plug are chosen base on the actual demand..
Related Products

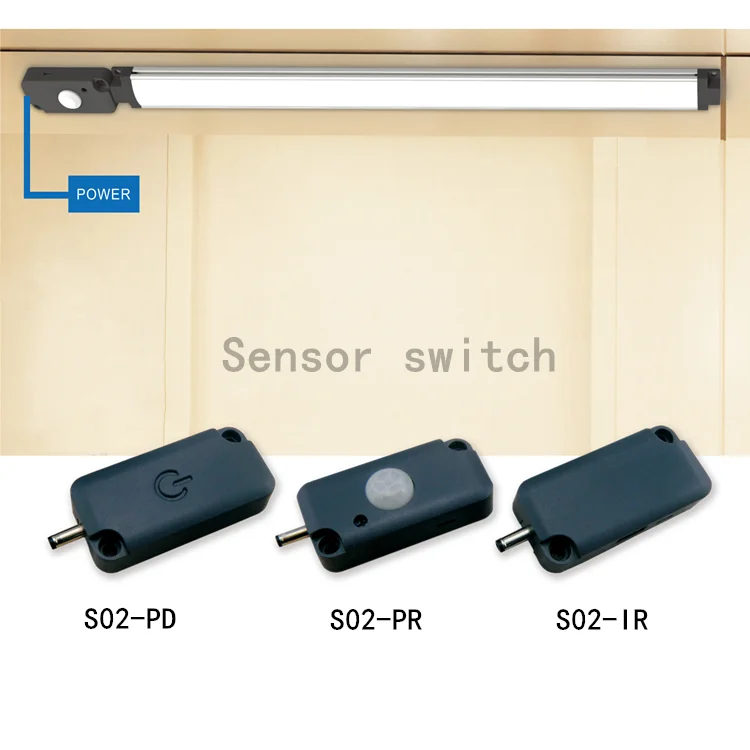

Product Presentation
Size introduction and size picture
Product Specifications |
l l l l l l l |
Certificate
Our factory is approved by BSCI,The light has CE,ROHS and GS certificate by TUV and SGS
Company Introduction
NINGBO HOMER ELECTRONICS LIGHTING CO.,LTD is located in Ningbo city and established in year of 2010,We specialized in manufacturing cabinet lights and LED IP44 bathroom mirror light and LED mirror ,our R&D can meet various customized requirements from different market like EU,North America and South-east Asia,etc.,and the products ae certified and in compliance with target market's regulation like UL,CE,ROHS,GS and ERP etc.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
Packing&Shipping
Exhibition
Guangzhou International Lighting Exhibition
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
HK lighting fair (Autumn);
Lignt+Building Frankfurt Exhibition;
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
30 days for order quantity lower than 200pc; For more quantity, usually 40 days.
4. Can I get a discount?
Yes, for the order quantity more than 500 pcs, please contact us to get the best price.
5. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
