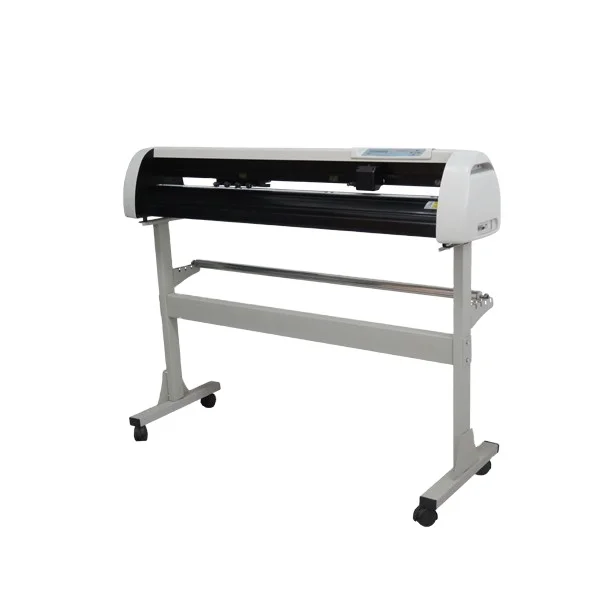

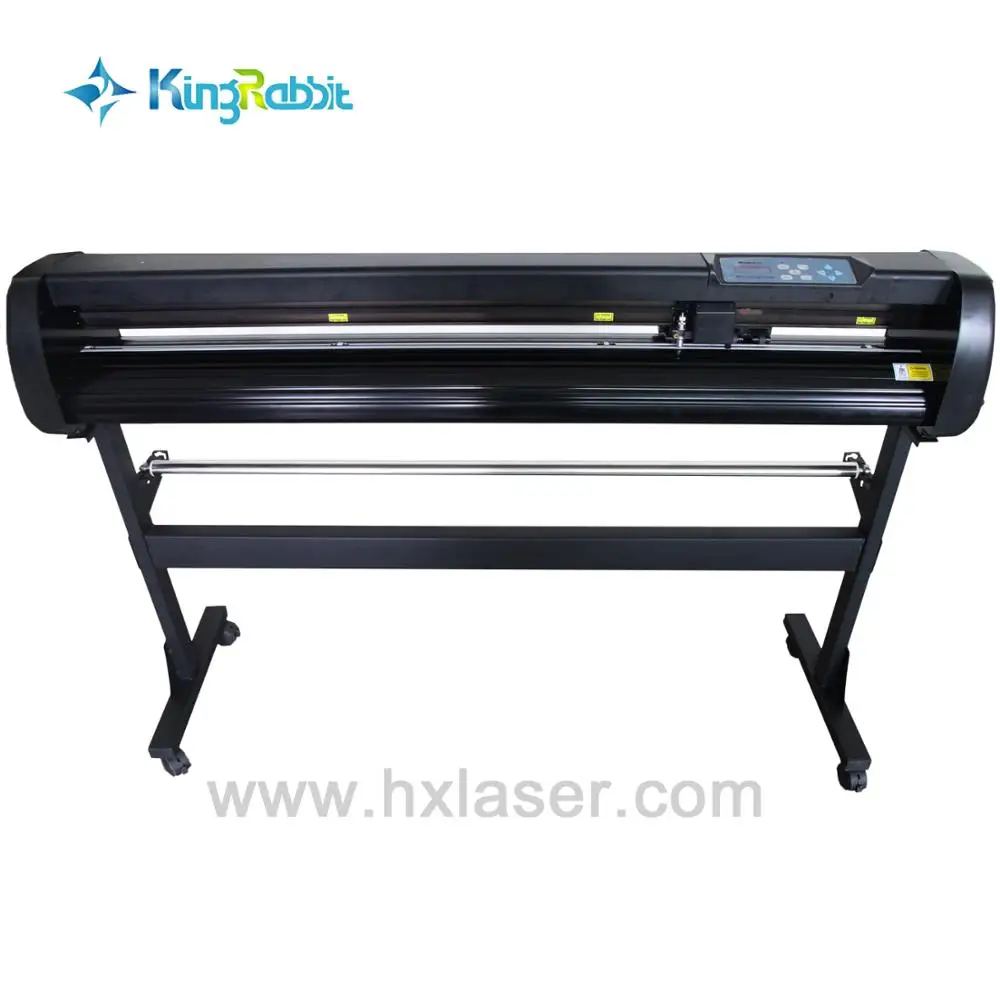

China hot sale King Rabbit HX-1360 48inch 1.2m vinyl cutting plotter





Features USB Driver King Rabbit cutting plotter 1360

1) USB2.0 driver for cutting plotter connecting with computer of Windows systems,

2) supports Windows 2000, XP, Vista 32bits / 64bits,

3) improved new version supports Windows 7 32bits / 64bits,

4) available to work togather with the Coreldraw print driver directly output.



More details:

1) Forward direction and reverse direction paper feed
2) Emergency stop and free setting original point
3) Maximum speed of 500mm/s
4) Cutting speed and cutting pressure with memorial storage
5) Double photoelectric reset and without any collision
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation won't be influenced by voltage change
9) Circuit uses low power consumption and doesn’t need fan for  heat radiation so as to ensure long and reliable operation



Main Parameters:



Type	HX-720N	HX-800N	HX-960N	HX-1120N	HX-1360N	HX-1780N
Maximum paper feed width	720mm (28.4")	800mm  (31.5")	960mm  (37.8")	1120mm   (44.1")	1360mm  (53.6")	1780mm  (70.1'')
Real cutting range	630mm(24.8") *limitless length	720mm(27.6") *limitless length	860m(33.9") *limitless length	1010m(39.8") *limitless length	1250m(49.2") *limitless length	1680m(70.1") *limitless length
Cutting speed	25mm/s-500mm/s(0.98"/s-19.7"/s)
Cutter pressure	25-500g Grade 16-32
English LCD	With
Mechanical Resolution	0.0254 mm/step(0.001"/step)
Blade  Type	Swivel Standard blade (Compatible with Roland blade)

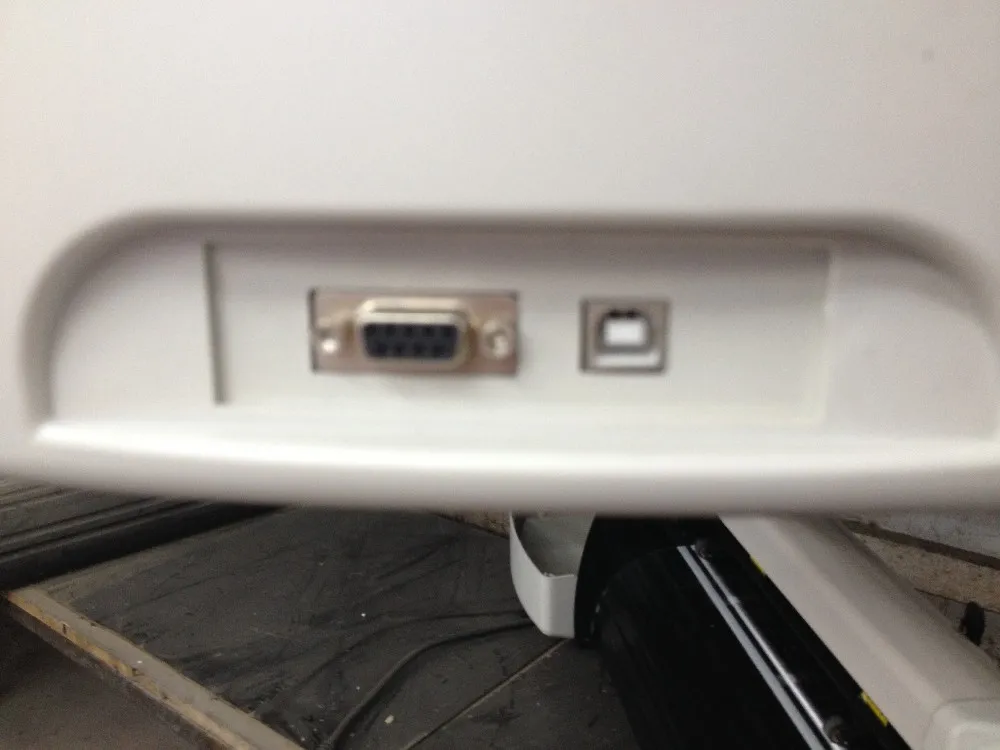

Interfaces	USB 2.0 and RS232 serial interface
Commands/ Language	HP-GL / DMPL compatible
Bracket	With















































Photo details:
