Виниловый режущий плоттер 28 дюймов резак принтер наклейка Графический
- Категория: Graph Plotter >>>
- Поставщик: Yiwu,Shangtu,Digital,Imaging,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 198.79 $* | 208.8 $* |
| Aug-15-2025 | 196.83 $* | 206.99 $* |
| Jul-15-2025 | 164.79 $* | 172.42 $* |
| Jun-15-2025 | 193.51 $* | 203.73 $* |
| May-15-2025 | 168.25 $* | 176.25 $* |
| Apr-15-2025 | 189.84 $* | 198.41 $* |
| Mar-15-2025 | 188.1 $* | 197.68 $* |
| Feb-15-2025 | 186.67 $* | 195.65 $* |
| Jan-15-2025 | 184.1 $* | 193.79 $* |
Характеристики
720mm Vinyl Cutter Sign Cutting Plotter W/Artcut Software Design/Cut 28"
Product Description

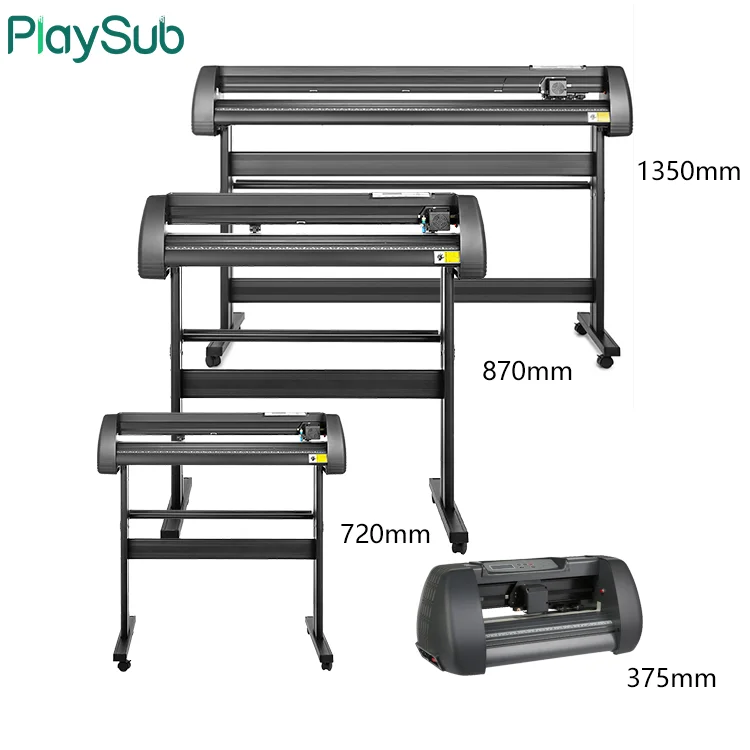

Type | SK-375 | SK-720 | SK-870 | SK-1350 | SINO-1351 | ||||
Media way | On desk | Floor stands | |||||||
Packing size | 60*35*36cm | 96*35*43cm | 111*35*43cm | 159*35*43cm | 159*35*43cm | ||||
Weight | 10kg | 20kg | 23kg | 31kg | 31kg | ||||
Max paper feed width | 375mm | 720mm | 870mm | 1350mm | 1350mm | ||||
Max cutting width | 275mm | 630mm | 780mm | 1260mm | 1260mm | ||||
Max cutting speed | 800mm/s | ||||||||
Max cutting length | 20000mm<=20 | ||||||||
Max cutting thickness | 1mm | ||||||||
Main board | 16-bit CPU, 1MB-4M High-speed CACHE memory | ||||||||
Control panel | over-head, 2*8LCD, 13-botton touch thin-film keyboard | ||||||||
Driver | High stepping motor, micro-step driver | ||||||||
Knife press | 0-500g( digital adjustment) | ||||||||
Mechanical resolution | 0.05mm | ||||||||
Repeatability | <+-0.1mm | ||||||||
Type of tool | carbide blade | ||||||||
Plotting pen type | all types diameter 11.4mm plotter pen | ||||||||
Plotting instruction | DMPL, HPGL automatic identification | ||||||||
Interface | COM, USB & LPT (optional) | ||||||||
Power supply | Switching power supply, AC110/220V±10% 50HZ | ||||||||
Power consumption | <100VA | <120VA | |||||||
Operating enviroment | Temperature:+5oC to +35oC, relative temperature 30%-70% | ||||||||
Operating language | English | ||||||||
Operatin system | Windows XP, Windows Vista, Windows7(32bit & 64bit), Windows8 | ||||||||
Applicable software | Flexistarter10.5 / Signmaster Cut / Coreldraw / Artcut | ||||||||
This 34" Professional Vinyl Cutting Plotter comes with easy-to-use Design and Artcut software, which
allows you to cut professional customized designs and signs with your cutting machines, giving you the
ability to use your fonts,import custom artwork,and draw your own shapes! It Works great for advertising
industry,car beauty industry,fashion design,etc.
NOTE: there is another software named Signmaster-not for free. If you need it, please contact our
customer sevice.
allows you to cut professional customized designs and signs with your cutting machines, giving you the
ability to use your fonts,import custom artwork,and draw your own shapes! It Works great for advertising
industry,car beauty industry,fashion design,etc.
NOTE: there is another software named Signmaster-not for free. If you need it, please contact our
customer sevice.
* In this version, if you have an image that has many colors in it, you can easily isolate each color
and cut them separately Print and cut capability (contour cutting) for this vinyl cutting plotter
*3D-shadow (drop-shadow feature)
* Vectorization capabilities
*Pro gives users the ability to import a variety of vector and raster images from external sources
*Works with your installed TrueType and OpenType fonts
*8Works with thousands of free TrueType Fonts including Dingbat/Wingding Fonts
*Import various file formats, including SVG and PDF
*Drawing tools to draw and edit shapes
*Weld overlapping letters and shapes together
*Select styles, including shadow and blackout, to change the look of your letters and shapes with
just a few clicks
*Auto-tracing feature to automatically convert images for cutting
*Cut & Simple Print
*Save and share your design layouts
*Free technical support and access to professionally made video training series
and cut them separately Print and cut capability (contour cutting) for this vinyl cutting plotter
*3D-shadow (drop-shadow feature)
* Vectorization capabilities
*Pro gives users the ability to import a variety of vector and raster images from external sources
*Works with your installed TrueType and OpenType fonts
*8Works with thousands of free TrueType Fonts including Dingbat/Wingding Fonts
*Import various file formats, including SVG and PDF
*Drawing tools to draw and edit shapes
*Weld overlapping letters and shapes together
*Select styles, including shadow and blackout, to change the look of your letters and shapes with
just a few clicks
*Auto-tracing feature to automatically convert images for cutting
*Cut & Simple Print
*Save and share your design layouts
*Free technical support and access to professionally made video training series
Features
* Two pinch-rollers can be adjustable on the guide rail according to different paper width
* Professional blade holder gives you access to the most economical blades available
* Adjustable digital force and speed to handle the cutting process
* Inertial rotating blade holder enables more accurate and high quality cutting
* Emergency stop/start feature allows you to stop cutting and restart
* Updated design allows adjustment of cutting force and speed while working
* Auto memory of blade force and speed adjustable at any time
* Backlight LCD display for easier handling the working process
* Comes with Artcut Software
* Compatible with Windows 10, VISTA, XP. USB interface
* Superior ball-bearing dual roller media system allows you to place material on top of rollers rather than putting roller
material each time
* USB connection is accomplished through serial conversation to support the long-distance data transmission
* Professional blade holder gives you access to the most economical blades available
* Adjustable digital force and speed to handle the cutting process
* Inertial rotating blade holder enables more accurate and high quality cutting
* Emergency stop/start feature allows you to stop cutting and restart
* Updated design allows adjustment of cutting force and speed while working
* Auto memory of blade force and speed adjustable at any time
* Backlight LCD display for easier handling the working process
* Comes with Artcut Software
* Compatible with Windows 10, VISTA, XP. USB interface
* Superior ball-bearing dual roller media system allows you to place material on top of rollers rather than putting roller
material each time
* USB connection is accomplished through serial conversation to support the long-distance data transmission

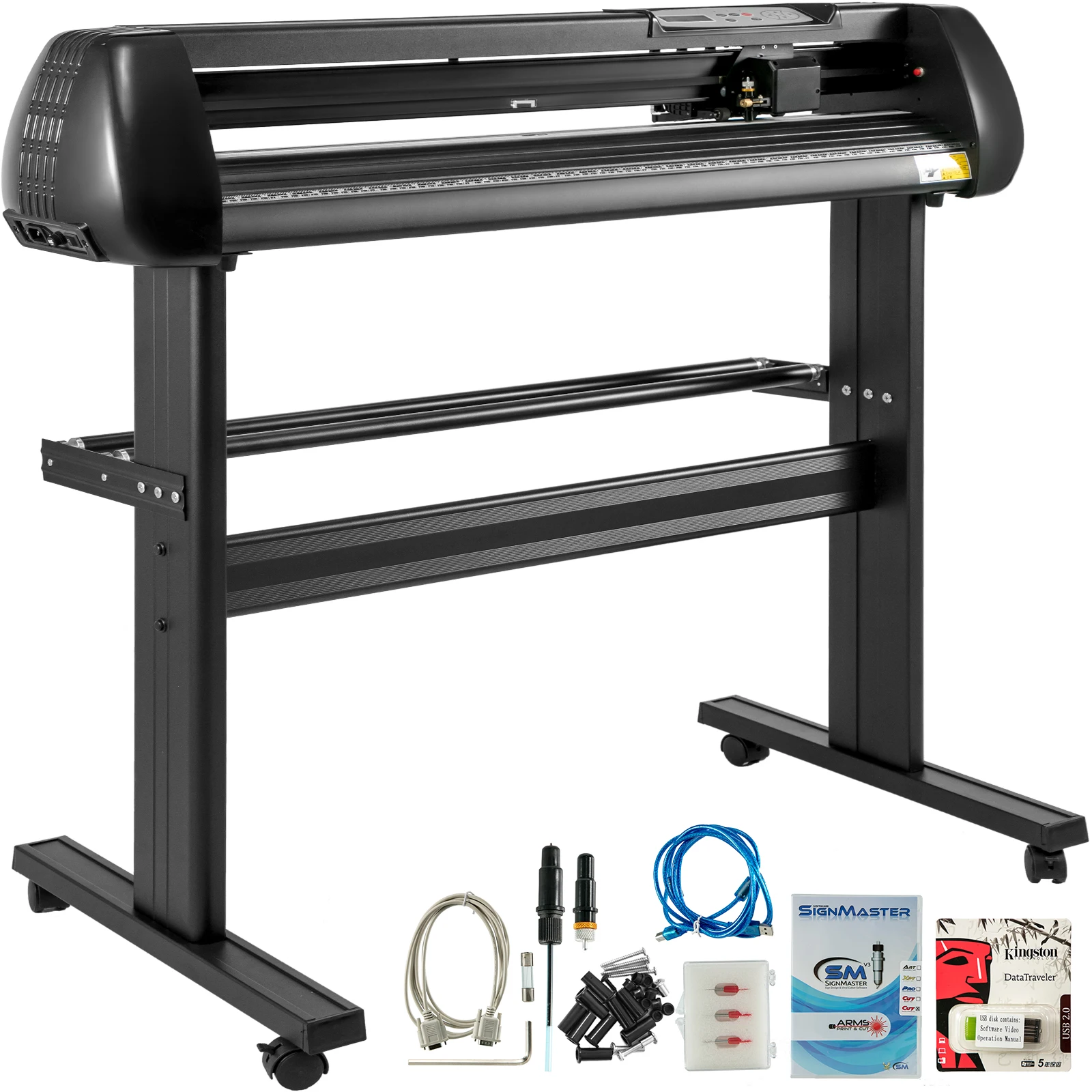

Package Content
* 1 x 28" Cutter Plotter
* 1 x User's Manual
* 1 x Artcut Software
* 1 x Power Cord
* 1 x Serial Cable
* 1 x Blades Holder
* 1 x Pen Holder
* 1 x 3" Driver CD
* 1 x Stand
* 3 x Blades
* 1 x User's Manual
* 1 x Artcut Software
* 1 x Power Cord
* 1 x Serial Cable
* 1 x Blades Holder
* 1 x Pen Holder
* 1 x 3" Driver CD
* 1 x Stand
* 3 x Blades
