Индивидуальные цветные огнестойкие RSIC-1 упругие звукоизоляционные зажимы отделяющие изолирующий зажим для звукоизоляции потолочных
- Категория: Soundproofing Materials >>>
- Поставщик: Qingdao,Hagoin,Rubber,And,Plastic,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.81 $* | 0.25 $* |
| Aug-15-2025 | 0.73 $* | 0.9 $* |
| Jul-15-2025 | 0.33 $* | 0.61 $* |
| Jun-15-2025 | 0.85 $* | 0.25 $* |
| May-15-2025 | 0.83 $* | 0.91 $* |
| Apr-15-2025 | 0.3 $* | 0.17 $* |
| Mar-15-2025 | 0.40 $* | 0.41 $* |
| Feb-15-2025 | 0.44 $* | 0.20 $* |
| Jan-15-2025 | 0.28 $* | 0.96 $* |
Характеристики
Product Description

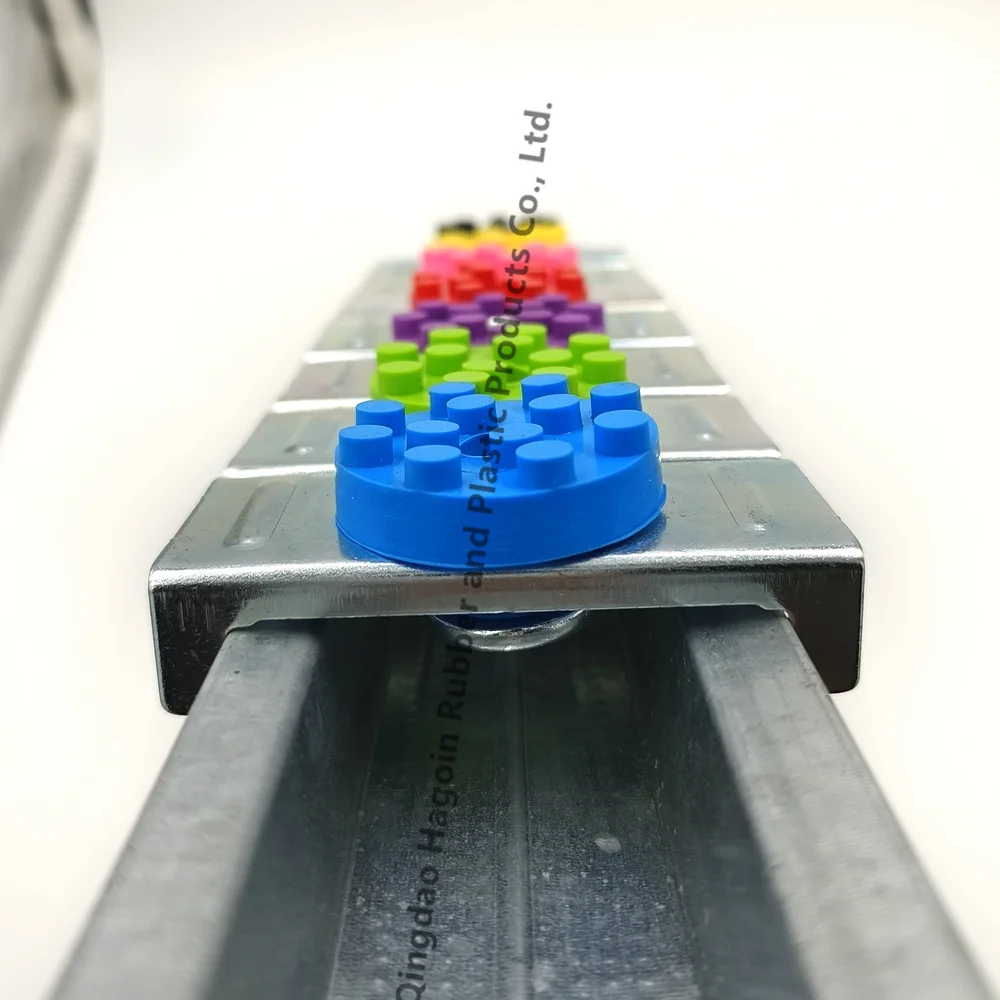

RSIC-1
Resilient sound clips are isolation mounts that install in rows directly to the ceiling or wall framing. The resilient clips then
have furring hat channel attached via pressure fit and layers of drywall or wood fasten to the channel. Decoupling is the most effective way to isolate sound over all other methods including damping, mass, and absorption products.
The RSIC-1 Sound Isolation Clip can be used to create floated walls and ceilings, in both commercial and residential projects. By breaking the vibration path from one side of a wall to the other, RSIC-1 Clips absorb the noise before it gets to the other side- particularly low frequency vibrations like sub woofers, and very loud voices.
Installation Instructions
RSIC Isolation Clips are simply screwed into your existing framing system. The rubber gasket helps to decouple the connection
point between the hat channel and your framing system. In turn, this helps to further “float” your final drywall layer off and away from the structure of your building, forcing the collapse of the transmitting sound wave. Just like snipping the string pulled tight between two coffee cans.
Packing & Delivery
Warranty | 3 years |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement |
Project Solution Capability | graphic design, 3D model design |
Application | soundproofing |
Design Style | Traditional |
Place of Origin | China |
Shandong | |
Brand Name | Hagoin |
Size | 75*35*29mm |
Product name | Resilient Sound Isolation Clip |
Material | rubber + steel |
Application | Celling, Floor, Wall, Drywall, Wood Keel, Steel Framed, Joist |
Color | Black, Red, Customized with 500 pcsc |
Certificate | UL, CE,ISO9001,LFGB, ROHS |
Feature | Flame Retardamt |
MOQ | 100 pcs |
Smaple | Free |
Delivery time | With 30 days |
Company Profie
Hagoin(Hæ Gu′i: N) group was originally found in the year 1998, has been devoted to produce high quality rubber parts, plastic parts and metal parts for both domestic and oversea customers. Our products are widely used in automotive, industrial, Agriculture, aerospace, building, electronic, mobile phone, daily life etc fields. Our products get CE, RoHS, REACH, UL, LFGB certified, meet great demand on both USA and European markets. We have 46 employees, including 2 master′s degrees, 7 bachelor degrees and 37 experienced workers. We have flat vulcanized machines, injection machines, material mixer, punching machines, bending machines, laser, CNC center etc 35 sets. We have advanced test equipment, including the UV aging tester, tensile strength tester, tear strength tester, hardness reader, high and low temperature tester, ensure the quality meet customers′ requirements.
We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.
