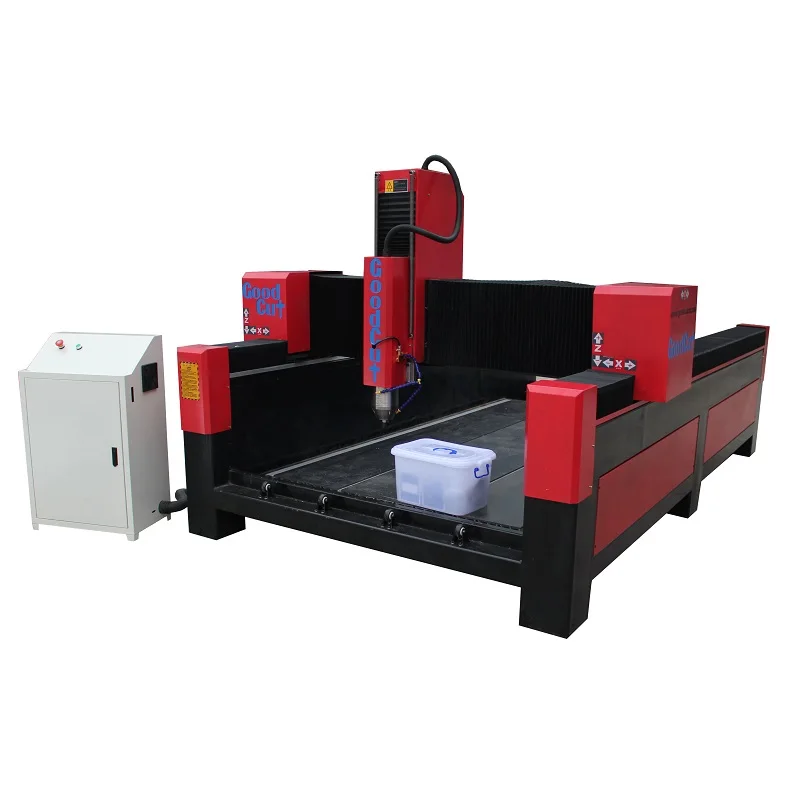

cnc router stone engraving machine is used for tombstone processing







 1.Feature of cnc router stone engraving machine is used for tombstone processing :

1. Lathe bed welded by strong thick square steel tube, high temperature tempering processing, machine body little deformation, great rigidity, strong strength.

2. Y axis adopt two motors, elaborately well selected matching, ensuring stable movement.

3. High precision rack and pinion transmission, high accuracy, quick processing speed, great power.

4. Imported linear square guide rail, high accuracy, great weight bearing, long service life.

5. Best and excellent mechanical and electrical design, good components and parts, minimize breakdown rate.





2.Parameter of cnc router stone engraving machine is used for tombstone processing :





Description	Specification
	1325	Option
Working Area (X*Y*Z)	1300*2500*200mm	Customized
Body structure	Steel tube welded
X, Y Structure	rack and pinion drive
Z structure	Ball screw
Max Moving Speed	20000mm/min
Spindle Speed	0-24000rpm
XYZ repositioning accuracy	0.05mm
Spindle power	3.0kw/4.5kw water cooling
voltage	220V/50Hz
Drive motor	Stepper/option servo motors
Command language	G code,HPGL
Control system	NC-Stuido/option DSP
Software Compatibility	Type3, Ucancam, Artcam Software





3.Advantage of cnc router stone engraving machine is used for tombstone processing :

It can engrave and carve for granite, marble, bluestone, crystal stone, microcrystalline stone, all

kinds of artificial stone, glass, fresco, village tablet, tombstone, milestone, decorative skirting line and so on.

cnc stone e







4.Application of cnc router stone engraving machine is used for tombstone processing :

1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade,

crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum,

titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.

2. Such as granite stone can be layered engraving to 3mm.

3. Marble, bluestone can be engraving to 3mm on time.

4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing,

flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.











Samples:



 FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
 Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
 Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
  Q4: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
 Q5: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
 Q6: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
 Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
