220 В 110 автоматическая регулируемая машина для
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Nanjing,Fante,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 413.51 $* | 421.99 $* |
| Jul-19-2025 | 335.75 $* | 342.36 $* |
| Jun-19-2025 | 406.60 $* | 414.58 $* |
| May-19-2025 | 403.4 $* | 411.9 $* |
| Apr-19-2025 | 322.72 $* | 328.57 $* |
| Mar-19-2025 | 397.82 $* | 405.93 $* |
| Feb-19-2025 | 393.48 $* | 401.90 $* |
| Jan-19-2025 | 390.63 $* | 398.88 $* |
Характеристики

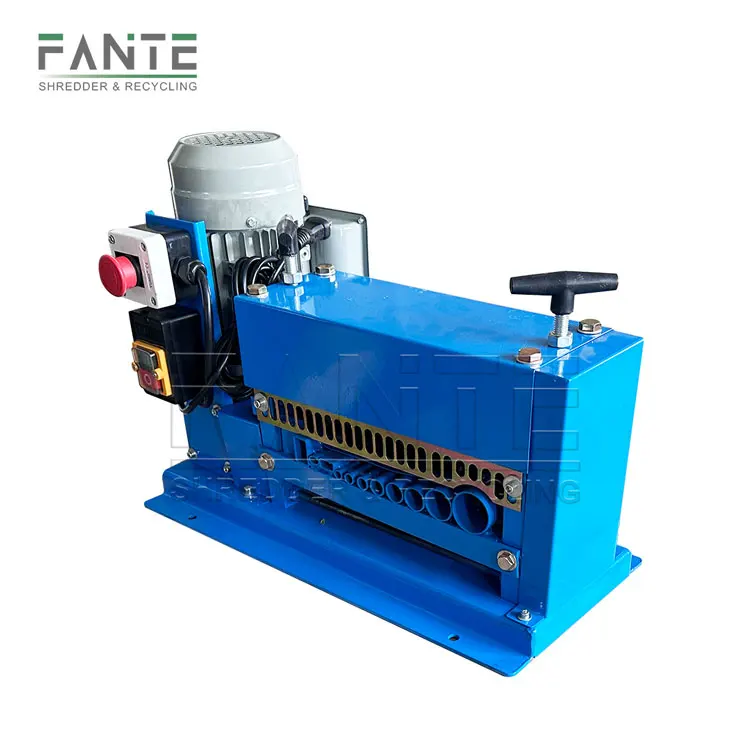

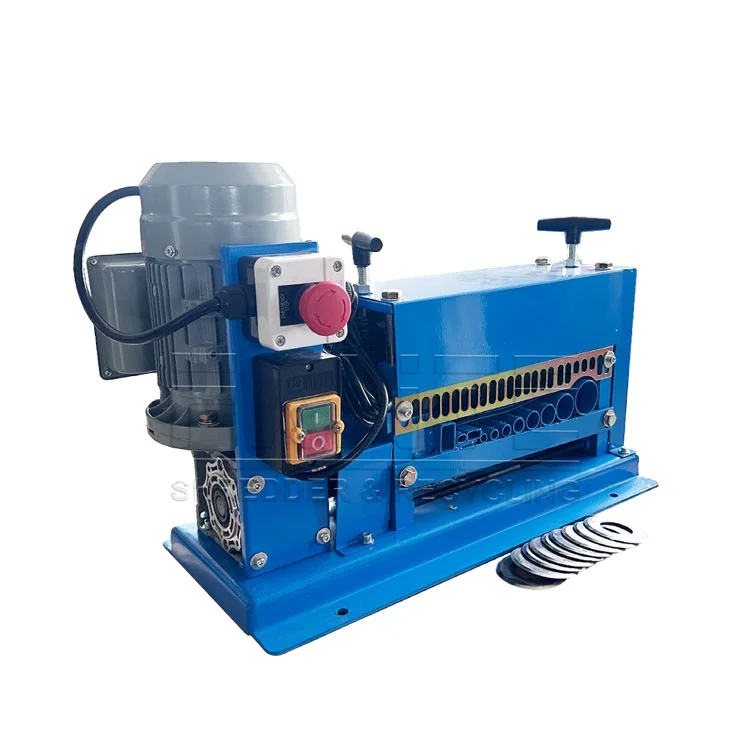

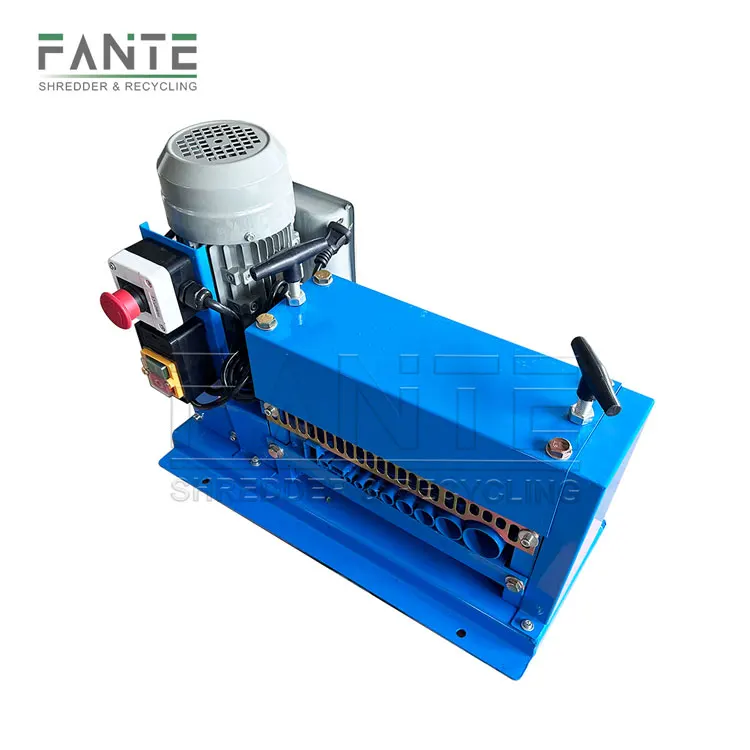

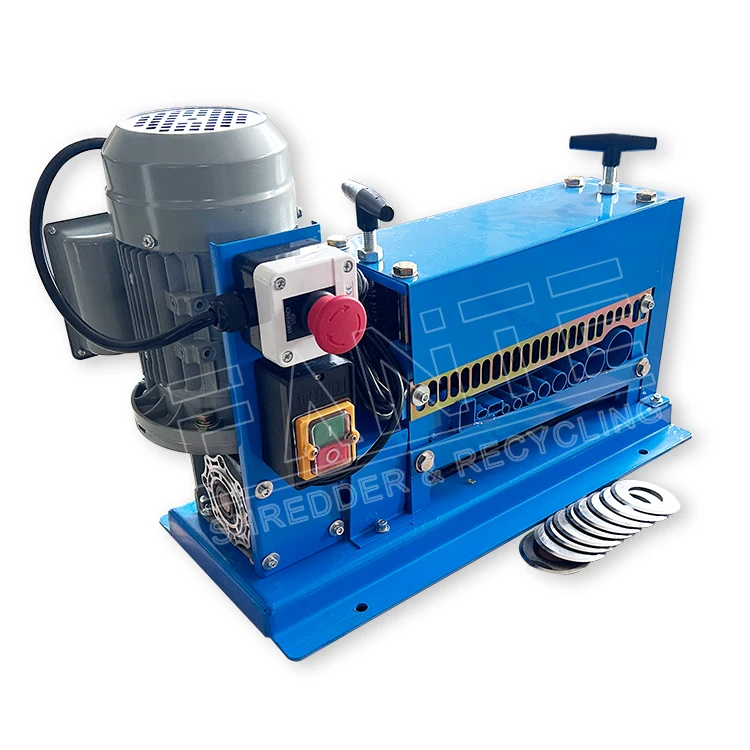

✭Our cable stripping machine adopts advanced stripping technology, which can quickly and accurately strip the insulation layer of cables. Equipped with various stripping modules, suitable for different types and specifications of cables. Whether it's circular cables, flat cables, or multi-core cables, they can easily handle it. The machine adopts precise stripping technology to ensure that the wires are not damaged during the stripping process. The carefully designed stripping tool and adjustment device make the stripping process more stable and reliable.
Model | FTDM-38 |
Power | 220V/0.37KW |
Blade composition | Single-tool |
Applicable scope | ⌀1-⌀38mm |
Weight | 35kg |
Application | Peeling of the plastic skin and metal core wrapped around wire and other materials |
Dimension(L*W*H) | 530*260*390 mm |
◼︎ According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.
◼︎ When stripping wire, the center of the blade must be collinear with the center of the groove corresponding to the stripping machine roller.
◼︎ When stripping the wire, adjust the distance between the blade and the V-groove (the groove formed between the two rolling teeth) according to the thickness of the wire, so that the wire skin can be peeled off without damaging the copper core.
◼︎ If the wire stripping machine cannot strip the wire during the stripping process, there may be several reasons:
①The diameter of the stripped thread is too small.
②The center of the blade is not in line with the center of the V-shaped groove formed by the two rolling teeth.
①The diameter of the stripped thread is too small.
②The center of the blade is not in line with the center of the V-shaped groove formed by the two rolling teeth.

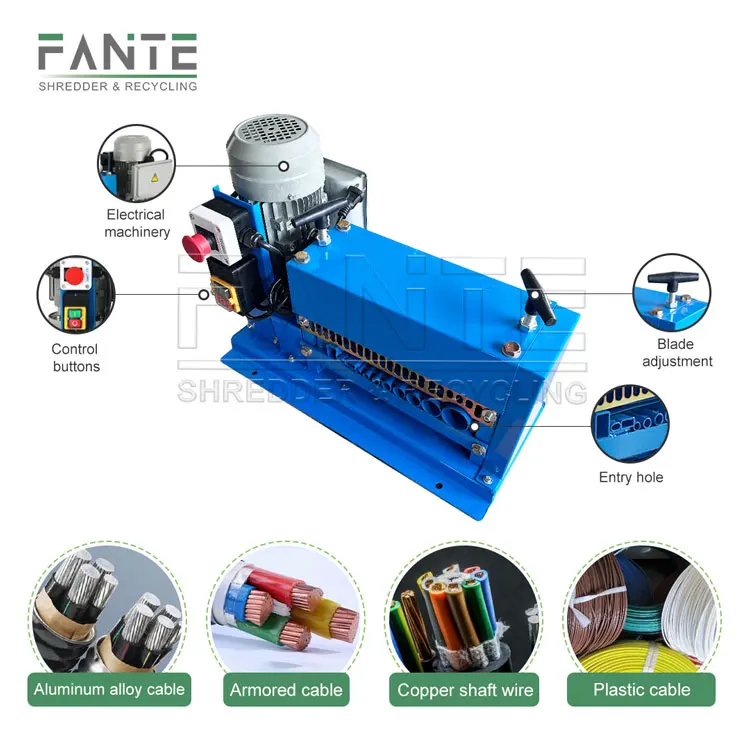

01.Blade adjustment
Adjust according to the thickness of the cable and automatically adjust the depth of the blade pressing down.
02.Control buttons
The control switch is sensitive in sensing, ensuring normal operation and convenient operation during use.
03.Alloy steel knife
High strength thickened manganese steel blade, high hardness, more wear-resistant, tough and sharp, easy to strip wire.
According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment. There are 11 holes to choose from, with a diameter range of 1-38mm.
