1325 станок с ЧПУ гравер сертификатом CE китайский производитель 4 х8 футов
- Категория: Woodworking Machinery >>>
- Поставщик: Jinan,GoodCut,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 6283.27 $* | 6597.75 $* |
| Aug-17-2025 | 6230.5 $* | 6542.51 $* |
| Jul-17-2025 | 5227.44 $* | 5488.63 $* |
| Jun-17-2025 | 6125.99 $* | 6431.37 $* |
| May-17-2025 | 5333.83 $* | 5600.94 $* |
| Apr-17-2025 | 6019.86 $* | 6320.90 $* |
| Mar-17-2025 | 5966.34 $* | 6264.14 $* |
| Feb-17-2025 | 5914.87 $* | 6210.77 $* |
| Jan-17-2025 | 5861.49 $* | 6154.37 $* |
Характеристики

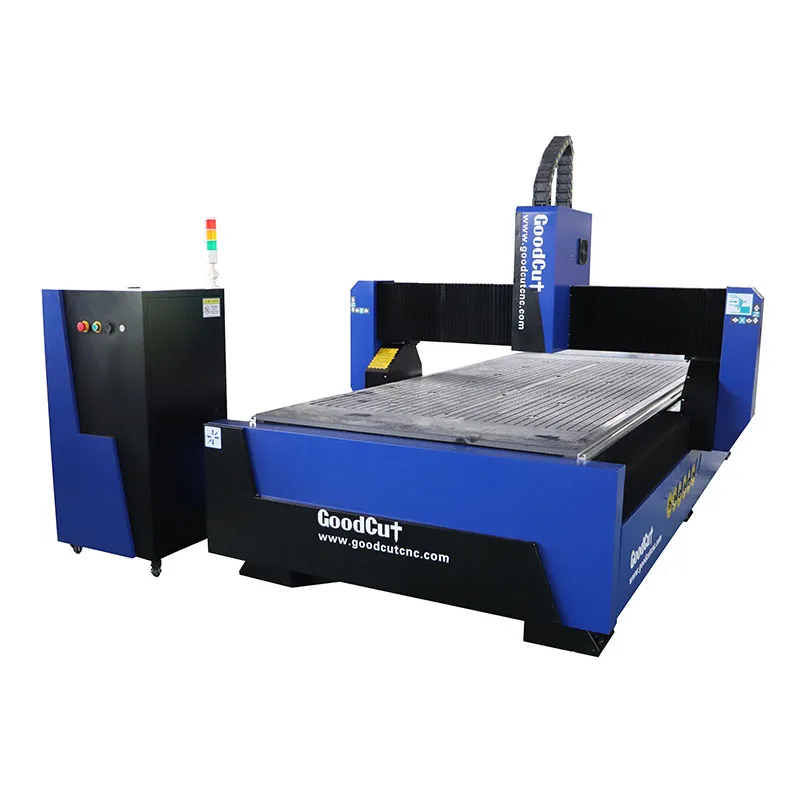

Hot sale 1325 High Level High Quality CNC Router Wood Carving Machine
Main Features 1.Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability2.High accuracy linear guide from Japan, high accuracy helical gear rack transmitting, more stability, high precision stability.3.Configured advanced DSP control system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance, Own more powerful application performance .4.Standard 8GB memory capacity, support transmitting files from USB flash disk directly, multiple files can be saved simultaneously,processing any files as you like .5.Has power off restoration,continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design .6.Standard configured 6KW air cooling spindle motor, high power, high efficiency.7.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc .8.Independent control cabinet,Stronger power and weak power separate, maintenance easily .9.Can optional the vaccum system and dust collector system . |
Parameters:
| Model No: | GC1325G High Level High Quality CNC Router | ||
| Warranty | 2 years warranty | ||
| X.Y working area | 1300*2500*200mm | ||
| Control system | DSP controller | ||
| Working table | Vacuum suck table with T-slot | ||
| Spindle | 6kw air cooling spindle | ||
| Inverter | Fuling inverter | ||
| Motor and driver | Leadshine hybrid servo motor driver | ||
| Optional | Dust collect , Rotary device etc |
Our advantage, other company without it:

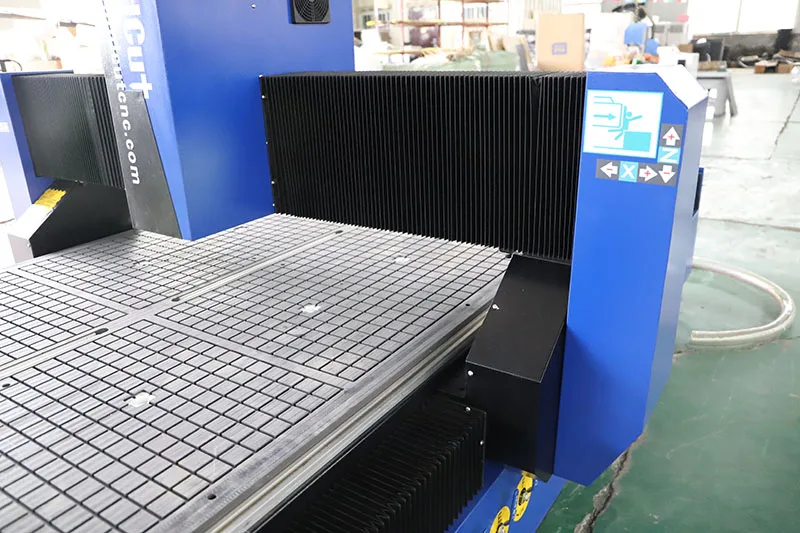

1. X axis gantry adopted dust cover, Y axis also adopted dust cover, protect guide rails and rack, long lifespan
2. adopted easy loading material wheels, operation is better
3. There are 6 pieces leg foot pad for adjust height

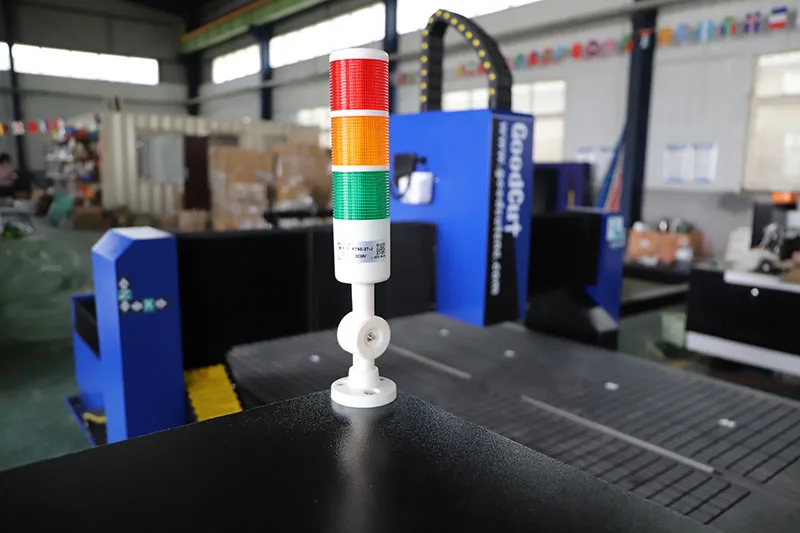

4. Automatic alarm lamp red green yellow for reminding machine working state
5. Best machine powder painting, you will like our machine
6. Heavy frame,more stable, high level, high quality cnc router
Leadshine servo motor and driver / Japan Yaskawa motor and driver
Special dust cover design for protecting helical rack and pinion, long lifespan.
WeiHong 280/ Taiwan Syntec / DSP RichAuto A1X A11 controller, easy operate
Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw
Application
1. Furniture Industry
Be used to engrave wooden doors,cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2. Decoration Industry
Be used to engrave various decorative patterns on the surface of decorative paintings,screens.
3. Musical Instrument Industry
Suitable to engrave decorative patterns on the head of musical instruments, or to process the semi-finished guitars. It also can make three dimensional curved surfaces.
4. Mold Industry
They can make wood molds, evaporated pattern casting molds, food molds, and other molds.
5. Craft Industry
Used to engrave decorative patterns on relief craft -works, pendants, automobile accessories and other craft-works.
6. Adertising industry
Applied to cut or engrave patterns on acrylic. It also can make acrylic adsorption molds,chest cards and various label plates.
Sample show
Applicable to antique furniture relief carving, carpentry carving, furniture manufacturing, furniture decoration, woodworking decoration, musical instrument production, thumb craft industry
Can be used for large plane flat engraving, wood furniture carving, solid wood mural carving, solid wood carving, density board paint door carving, window door carving
Quality control
1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
2. Every machine must be tested before delivery for 72 hours , all of them are absolutely qualified.
Machine has been adjusted before delivery
3. 12 months guarantee of the whole machine.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
Lifetime maintenance free of charge.
We will provide the consumable parts at an agency price when you need replacement.
welcome to contact
Max Zhang
Jinan GoodCut CNC Machinery Co.,Ltd.
Mobile/Whatsapp/wechat: 0086 183 9685 0306
E-mail: goodcut3 AT goodcutcnc.com
