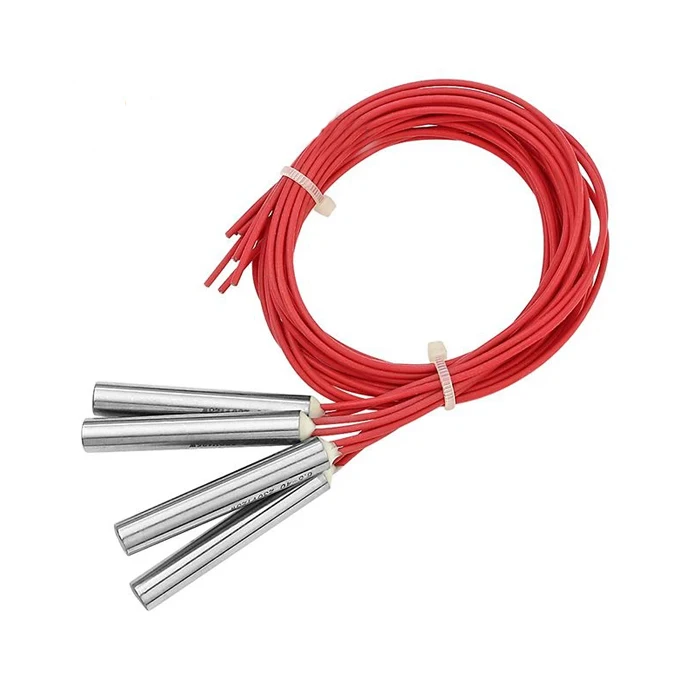

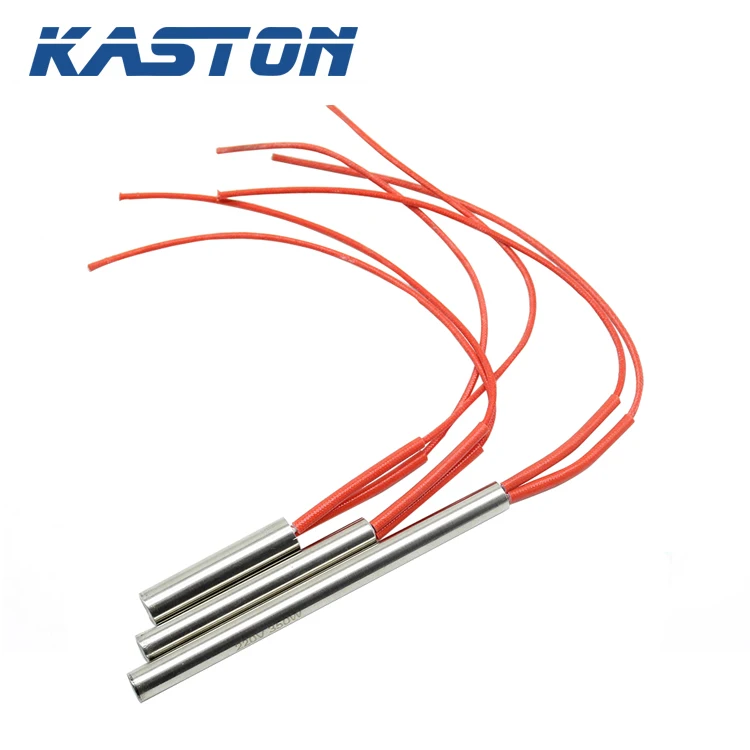

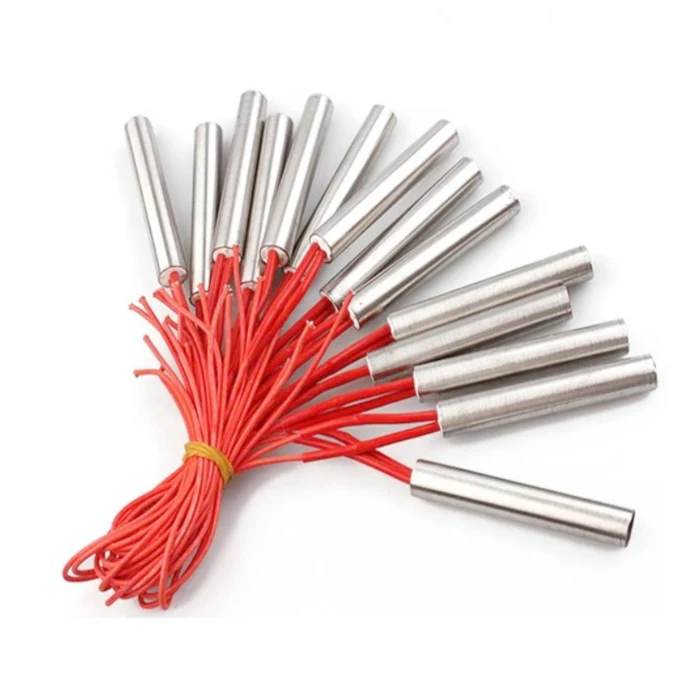

220 В 1000 Вт Электрический резистивный карандаш высокой температуры плотности картридж

Описание и отзывы

Трекер стоимости

Характеристики

Advantages

internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult

                        cable fracture.

external wiring: high temperature resistance, uniform heating and high thermal conductivity.

Date sheets

Resistance heating wire	NiCr 80/20 wire
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Length tolerance	±1 mm
Diameter tolerance	± 0.02mm
Standard Cold Zone	5-10mm
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Thermocouple Location	type J / K / Ground wire

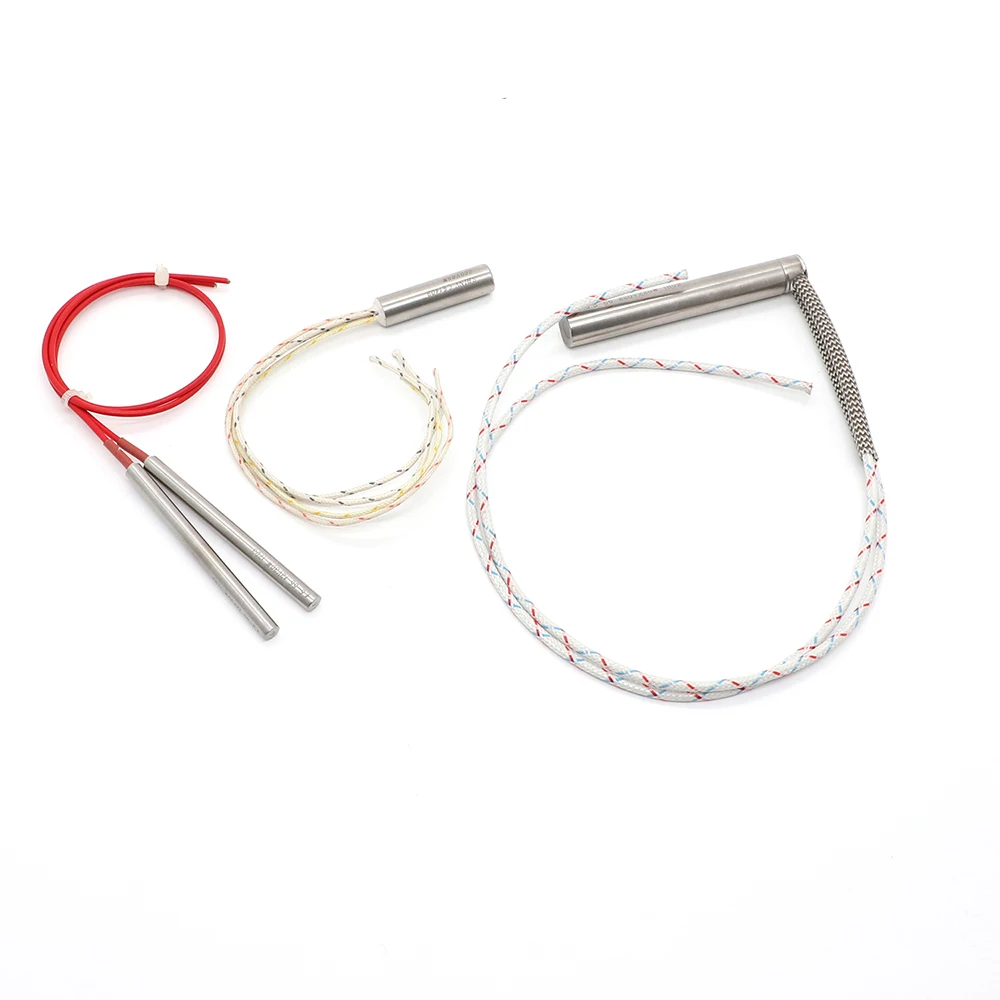

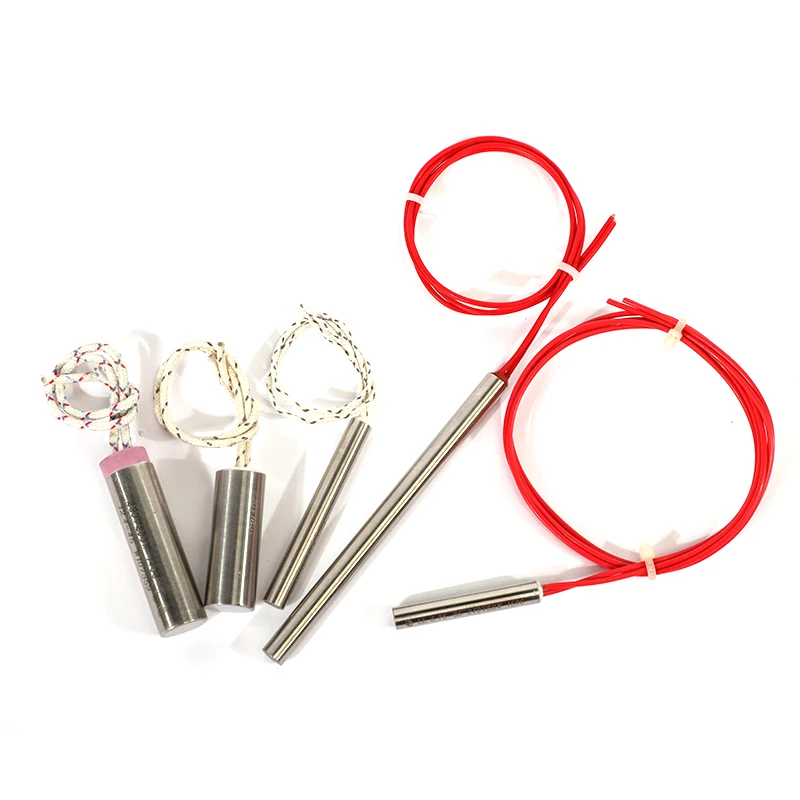

 Internal wiring port section of the heating tube does not adopt the terminal connection mode,

                    Making it havhigh temperature resistance and strong mechanical properties.

                  The port part of the heating tube adopts terminal connection mode Is resistant to

       high temperature and works in the heating medium which can not conduct wiring at both ends.



Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
