3000 мм двухсторонняя линейная машина для раскладывания клея
- Категория: Woodworking Machinery >>>
- Поставщик: Weihai,Hanvy,Plywood,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 10591.48 $* | 11121.17 $* |
| Aug-15-2025 | 10502.72 $* | 11027.8 $* |
| Jul-15-2025 | 8811.63 $* | 9252.90 $* |
| Jun-15-2025 | 10324.6 $* | 10840.44 $* |
| May-15-2025 | 8989.92 $* | 9438.44 $* |
| Apr-15-2025 | 10146.12 $* | 10653.77 $* |
| Mar-15-2025 | 10057.68 $* | 10560.69 $* |
| Feb-15-2025 | 9968.18 $* | 10466.38 $* |
| Jan-15-2025 | 9879.89 $* | 10373.91 $* |
Характеристики
Product Description
Product Application
3000mm Double Sided Lay-up Line Glue Spreader Machine for Plywood Veneer
Hanvy Machinery,is the original manufacturer for glue spreader machine for plywood.
The glue spreader is used to spray the adhesive on the veneer surface averagely.
The glue spreader rollers' layout is zigzag which can save glue,and the larger roller ensure good performance and to make high quality plywood.
And we could design a complete gluing line according to plant size.
Two types:
OLD type-Parallel rollers,with glue tray underneath;
NEW type-Cross rollers "Z" type,save glue.
3000mm Double Sided Lay-up Line Glue Spreader Machine for Plywood Veneer
Features:
1.Two rubber rollers and two polishing steel rollers,"Z" type layout\t \t \t
2.New designed structure,more steady performance,spray glue even and save glue\t \t \t
3.With automatic feeding out conveyor
8ft MDF Veneer Glue Spreader Machine for Plywood Production Line
3000mm Double Sided Lay-up Line Glue Spreader Machine for Plywood Veneer
Model | MH62 | MH61 |
Coating roller Diameter x Length | Φ430x2700 mm | Φ430x1500 mm |
Squeeze roller Diameter x Length | Φ292x2700 mm | Φ292x1500 mm |
Max. working thickness | 30 mm | 30 mm |
Coating roller speed | 30/ 45 m/min | 30/ 45 m/min |
Main drive motor | 4/5.5 kw | 4/5.5 kw |
Outlet conveyor motor | 0.75 kw | 0.75 kw |
Roller table size | 3050x1520 mm | 1450x1800 mm |
Main body size | 4110x3200x1600 mm | 2910x2978x1600 mm |
Weight | 4300 kg | 3290 kg |
Main Features
Veneer Glue Roller Spreader Machine
Double-side Plywood Glue Spreading Machine/Core Veneer Glue Spreader
The glue spreader is used to spray the adhesive on the veneer surface averagely.
1.Glue saving: roller all under professional precision treatment and balance revised . And it will make the spray more even.
2.Convenience: the special adjusting mechanism of rubber and doctor roller with pneumatic cylinder . When matching frequency controller glue density cam be adjusted and speed-changed efficiently under different operation demands.
3. Safety: due to up&down roller were allocated pneumatic cylinder. So it can leap vacant to reduced the damage to glue spray roller.
1.Glue saving: roller all under professional precision treatment and balance revised . And it will make the spray more even.
2.Convenience: the special adjusting mechanism of rubber and doctor roller with pneumatic cylinder . When matching frequency controller glue density cam be adjusted and speed-changed efficiently under different operation demands.
3. Safety: due to up&down roller were allocated pneumatic cylinder. So it can leap vacant to reduced the damage to glue spray roller.
3000mm Double Sided Lay-up Line Glue Spreader Machine for Plywood Veneer
Plywood Veneer Glue Spreader spreading machine

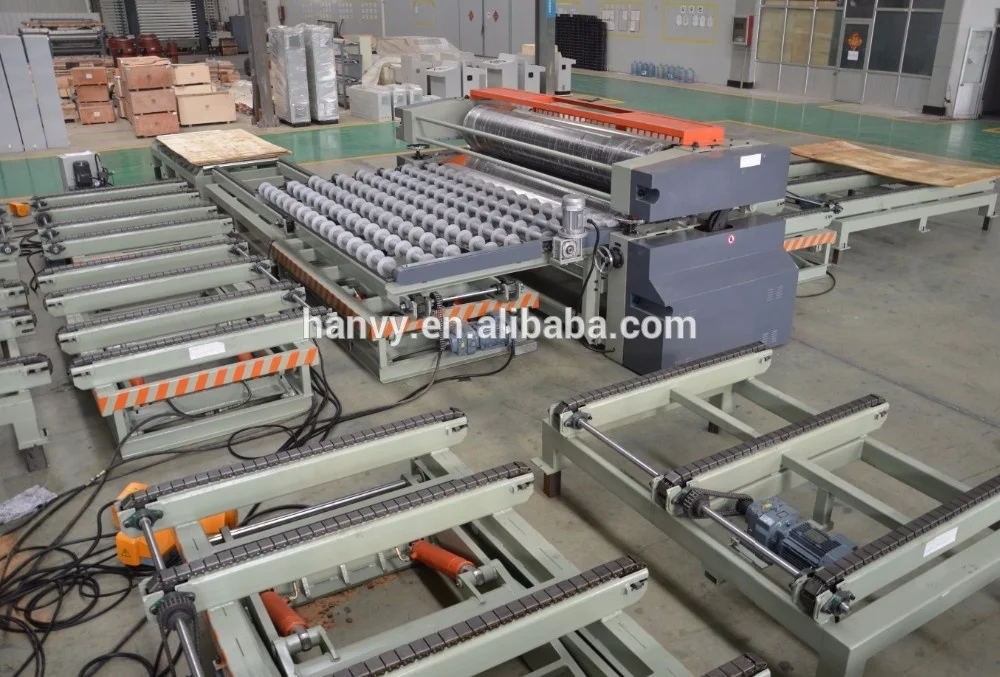

Usually ,our veneer glue spreader will match three hydraulic scissors,some ground roller and roller drive conveyor.4-5 workers are enough.
1) Iron steel machine body,so strong and relialble
2) High gluing speed to improve
3) Zigzag rollers' layout
4) Gluing roller is made of natural rubber.
5) Gear drive
Detailed Images
Veneer Glue Roller Spreader Machine

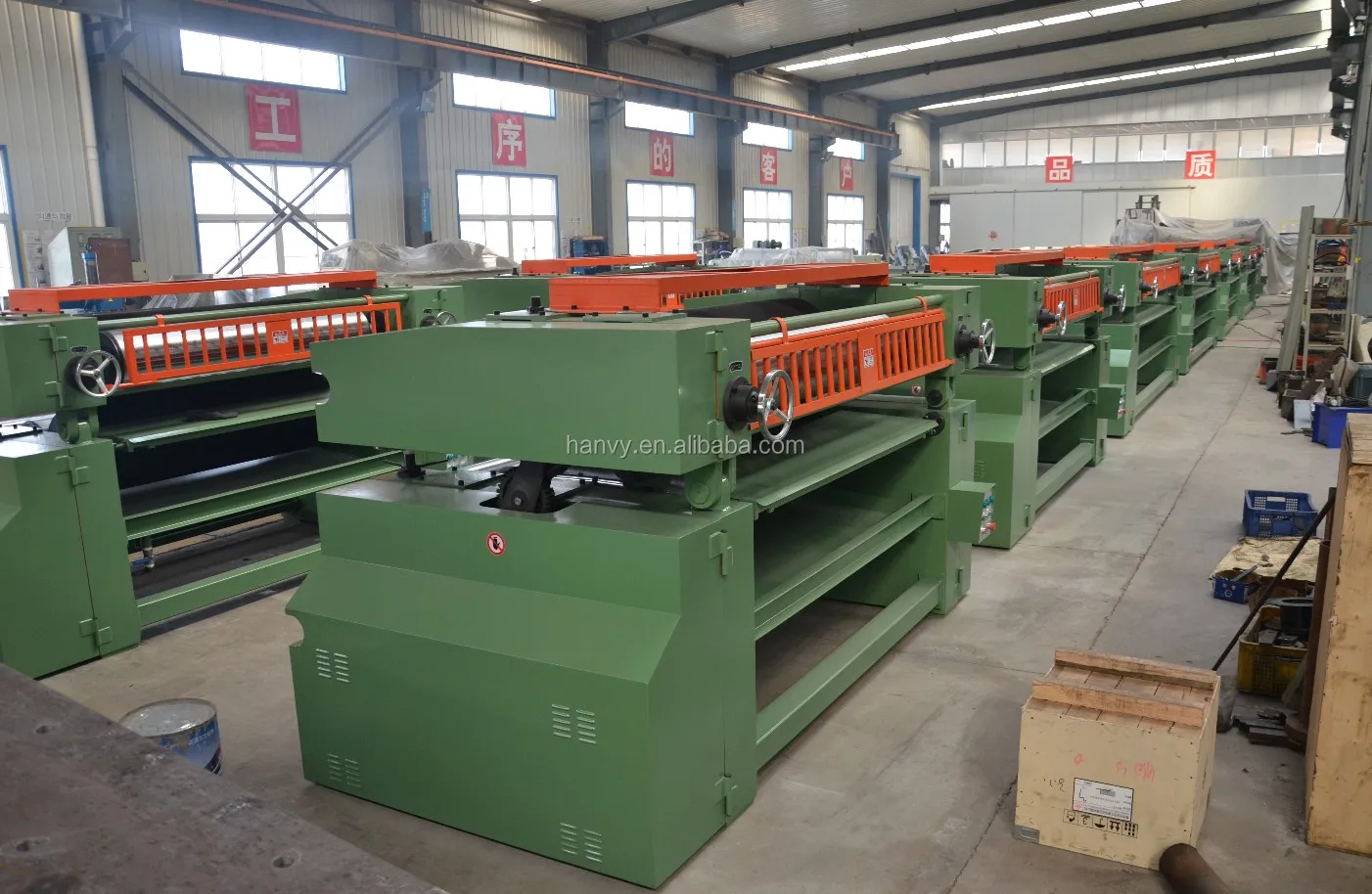

For old type of glue spreader machine for plywood,
total 5 hand wheel for locking and adjusting rubber roller opening.
For new Z type of glue spreader machine,two hand wheels at front and two at back side.
Plywood glue spreader

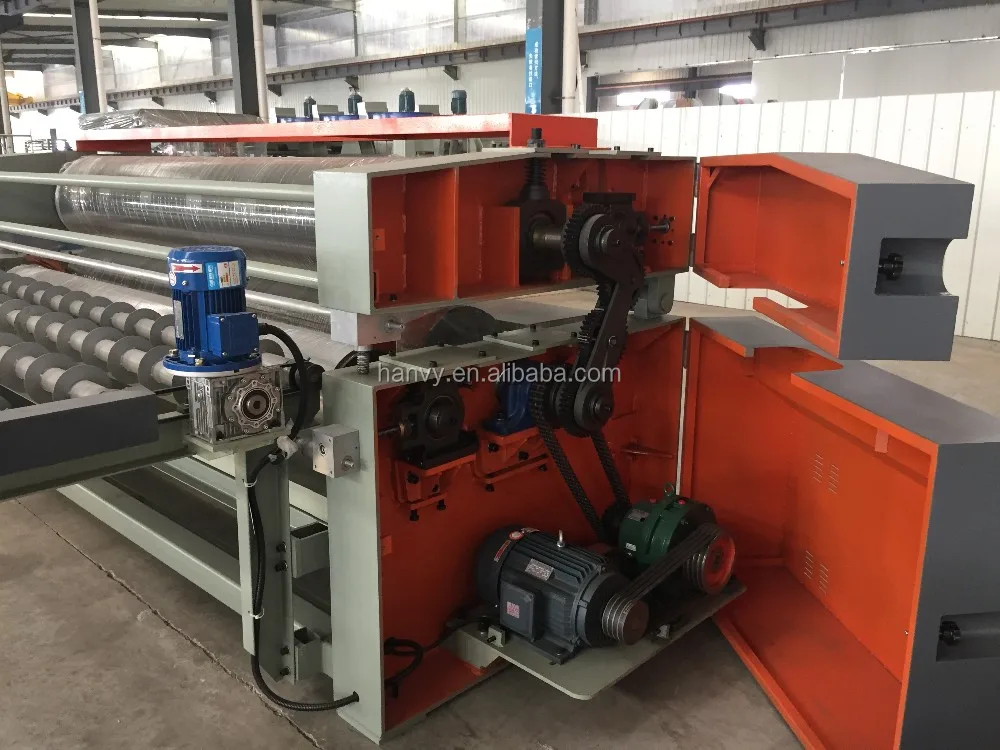

Equipped with output conveyor,high working efficiency.
one main drive motor,5.5kw
one outlet conveyor motor,0.75kw
and anther reducer
Veneer Roller Spreader Machine
Precise gear drive system,high quality and better working performance.
All gears and drive components are phosphorization treated,resistant to corrosion
NBR Roller for glue spreader
High quality rubber rollers,diameter 430mm;
steel roller diameter 292mm.
Made of natural rubber(NBR),full of slight grooves on rollers,so that make glue even on the veneer.

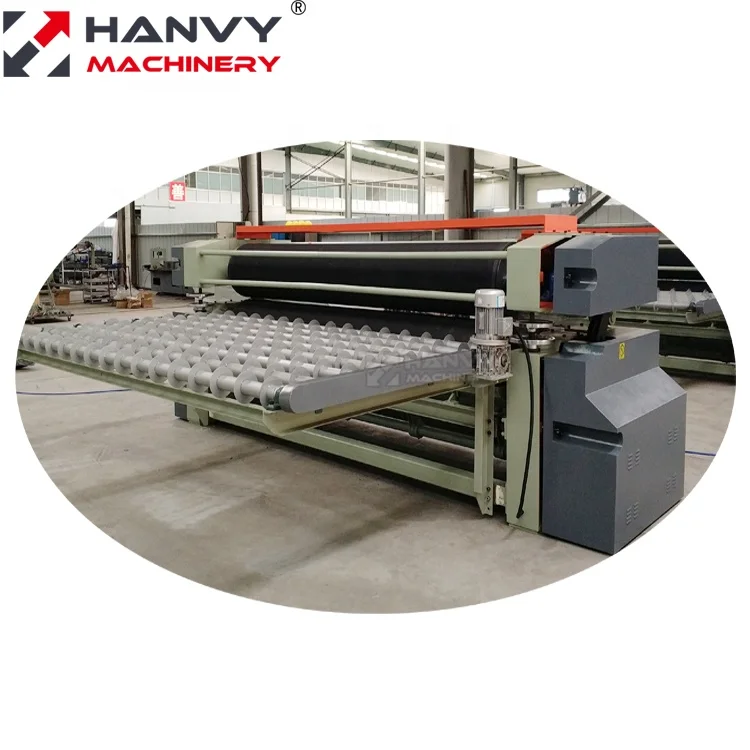

Plywood glue spreader machine with outfeed device

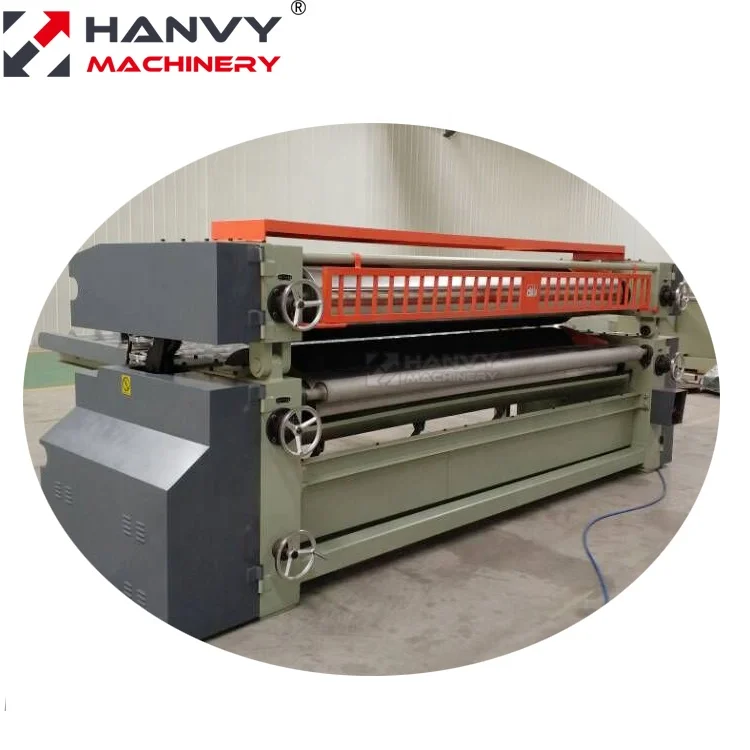

This is the old type of glue spreader machine for plywood,with 5 hand wheels for adjustment.
Factory Price Veneer Glue Roller Spreader Machine
Squeeze rollers
Φ292x2700 mm,two pcs
Made of SS304,zinc coating on the surface is available.
Glue guide slot on double ends.
Production Chart
HANVY VENEER PEELING LINE
Hanvy Machinery,is the original and professional manufacturer for plywood production machinery,we can supply you full wood veneer peeling line for plywood production.
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyo
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyo
HANVY PRESS LINE
The pressing line incudes 500Ton cold press machine with automatic infeed and outfeed device,SIEMENS PLC Control.600Ton or 800Ton hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
Certifications
About Us
HANVY MACHINERY
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.Our machines are widely sold to over 60
countries,such as Russia,Ukraine,Malaysia,Indonescia,Vietnam, Egypt, Ethiopia, Gahna, USA,Peru, Poland, PNG, Serbia,etc.
1 Year guarantee for all machines,site installtion and commissioning will be provided.
countries,such as Russia,Ukraine,Malaysia,Indonescia,Vietnam, Egypt, Ethiopia, Gahna, USA,Peru, Poland, PNG, Serbia,etc.
1 Year guarantee for all machines,site installtion and commissioning will be provided.
Packing & Delivery
Packaging | ||
Size | 20ft | |
Weight | 4300kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
