Nulite R32 R290 10 кВт 15 водонагреватель с охлаждением от воздуха до воды инвертором постоянного тока
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Nulite,New,Energy,(guangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2142.52 $* | 2249.48 $* |
| Aug-15-2025 | 2124.12 $* | 2230.94 $* |
| Jul-15-2025 | 1782.98 $* | 1871.72 $* |
| Jun-15-2025 | 2088.34 $* | 2192.11 $* |
| May-15-2025 | 1818.53 $* | 1909.7 $* |
| Apr-15-2025 | 2052.11 $* | 2155.50 $* |
| Mar-15-2025 | 2034.56 $* | 2136.24 $* |
| Feb-15-2025 | 2016.87 $* | 2117.98 $* |
| Jan-15-2025 | 1998.63 $* | 2098.53 $* |
Характеристики
Product Description
Product Name | Monoblock HEATING COOLING HOT WATER DC INVERTER AIR TO WATER HEAT PUMP |
Material | Metal |
Function | Hot Water/Heating/Cooling |
Package | Plywood box |
DC inverter heat pump advantages:
1.Function:heating + cooling + hot water
2.Voltage:220V/380V/50Hz/1/3 Phase;
3.Using r410a green refrigerant;
4.Super low noise;
5.Energy-saving 80%;
6.Anti-freezing work in -25 degrees low temperature;
7.Adopted twin-rotor Mitsubishu compressor;
8.Build-in 3kw electrical heater;
9.Side discharge design;
10.Welcome to OEM,ODM service;
2.Voltage:220V/380V/50Hz/1/3 Phase;
3.Using r410a green refrigerant;
4.Super low noise;
5.Energy-saving 80%;
6.Anti-freezing work in -25 degrees low temperature;
7.Adopted twin-rotor Mitsubishu compressor;
8.Build-in 3kw electrical heater;
9.Side discharge design;
10.Welcome to OEM,ODM service;
Product Parameter
Model Name | NL-FLM30-95II/R32 | NL-FLM40-150II/R32 | NL-FLM50-200II/R32 | |||||
Rated heating capicity (KW) | KW | 2.8～10 | 3.8~16 | 5.5～21 | ||||
Rated hot water capicity (KW) | KW | 2.5～9.5 | 3.5~15.5 | 4.5～20.5 | ||||
Rated cooling capicity (KW) | KW | 2.5～7.5 | 3.8~11 | 4.8～15 | ||||
Power Consumption | KW | 1～3.2 | 1.5~4.5 | 2~5.8 | ||||
Voltage (V) | V/Hz | 220V-Inverter | 220V/380V- Inverter | 220V/380V- Inverter | ||||
Rated Current | A | 10.5A | 18.5A/6.12A | 23.1A/7.3A | ||||
Rated output water temperature | °C | Hot water: 55C / heating:40～45C / cooling:12～8C | Hot water: 55C / heating:40～45C / cooling:12～8C | Hot water: 55C / heating:40～45C / cooling:12～8C | ||||
Rated water flow | m³/h | 1.6 | 2.1 | 2.8 | ||||
Refrigeration | R32 | R32 | R32 | |||||
Rated of waterproof | IPX4 | IPX4 | IPX4 | |||||
Control mode | Multi-language Microcomputer central processor (linear control) | Microcomputer central processor (linear control) | Microcomputer central processor (linear control) | |||||
Compressor brand | Mitsubishi | Mitsubishi | Mitsubishi | |||||
Compressor quantity | 1 | 1 | 1 | |||||
Outdoor unit net size | mm | 1050*499*970 | 1050*499*970 | 1050x499x1365 | ||||
Outdoor unit weight | Kg | 100 | 130 | 165 | ||||
Nosie level | dB(A) | ≤49 | ≤50 | ≤52 | ||||
Heat Exchanger | Sweden Alfa Laval / SWEP or Denmark Danfoss Plate heat exchanger | |||||||
Fan quantity | 1 | 1 | 2 | |||||
Auxiliary Element | KW | 3 | 3 | 3 | ||||
Expansion tank | √ | √ | √ | |||||
Water pump | Inverter Water Pump | Inverter Water Pump | Inverter Water Pump | |||||
Ambient temperature | °C | (-25C - 46C) | (-25C - 46C) | (-25C - 46C) | ||||
Inlet pipe diameter | DN25 | DN25 | DN25 | |||||
Outlet pipe diameter | DN25 | DN25 | DN25 | |||||
Model Name | NL-FLM60-220II/R32 | NL-FLM80-300II/R32 | NL-FLM100-400II/R32 | |||||
Rated heating capicity (KW) | KW | 5.6～23 | 7.2~31 | 9~40 | ||||
Rated hot water capicity (KW) | KW | 5.2~22 | 7.0~30.5 | 9~39 | ||||
Rated cooling capicity (KW) | KW | 5.6~16 | 7.0~23.5 | 9~30 | ||||
Power Consumption | KW | 2.5~6.9 | 3.2~8.4 | 4~10 | ||||
Voltage (V) | V/Hz | 220V/380V- Inverter | 380V- Inverter | |||||
Rated Current | A | 26.1A/10.1A | 12.8A | 15.2A | ||||
Rated output water temperature | °C | Hot water: 55C / heating:40～45C / cooling:12～8C | ||||||
Rated water flow | m³/h | 3.3 | 6 | 7 | ||||
Refrigeration | R32 | |||||||
Rated of waterproof | IPX4 | |||||||
Control mode | Multi-language Microcomputer central processor (linear control) | |||||||
Compressor brand | Mitsubishi | |||||||
Compressor quantity | 1 | 1 | 1 | |||||
Outdoor unit net size | mm | 1050x499x1365 | 1215*455*1558 | 1215*455*1558 | ||||
Outdoor unit weight | kg | 170 | 180 | 185 | ||||
Nosie level | dB(A) | ≤53 | ≤52 | ≤52 | ||||
Heat Exchanger | Sweden Alfa Laval / SWEP or Denmark Danfoss Plate heat exchanger | |||||||
Fan quantity | 2 | 2 | 2 | |||||
Auxiliary Element | KW | 3 | / | / | ||||
Expansion tank | √ | √ | √ | |||||
Water pump | Inverter Water Pump | / | / | |||||
Ambient temperature | °C | (-25C - 46C) | ||||||
Inlet pipe diameter | DN25 | DN40 | DN40 | |||||
Outlet pipe diameter | DN25 | DN40 | DN40 | |||||

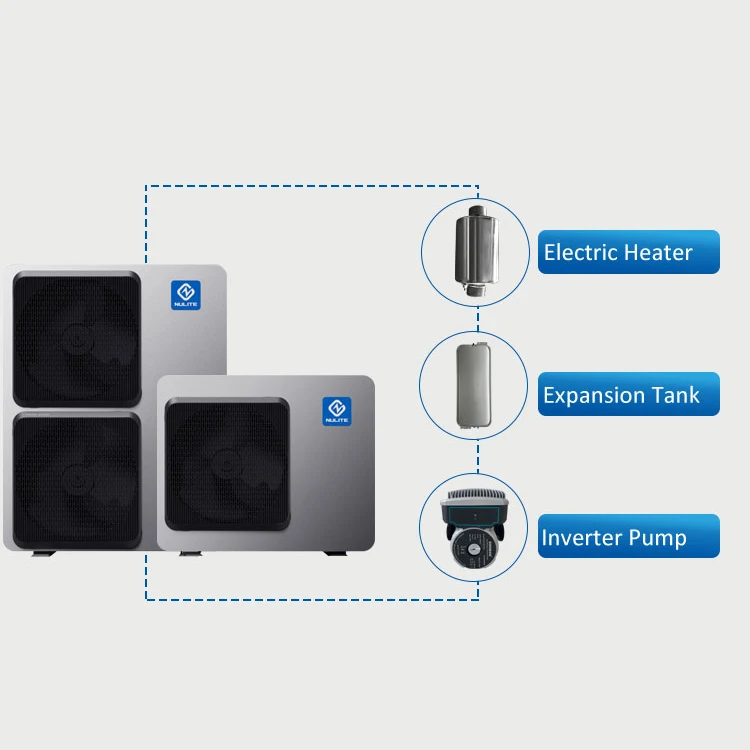

5L Expansion Tank | 3KW Electric Heater | Inverter Water Pump | ||||

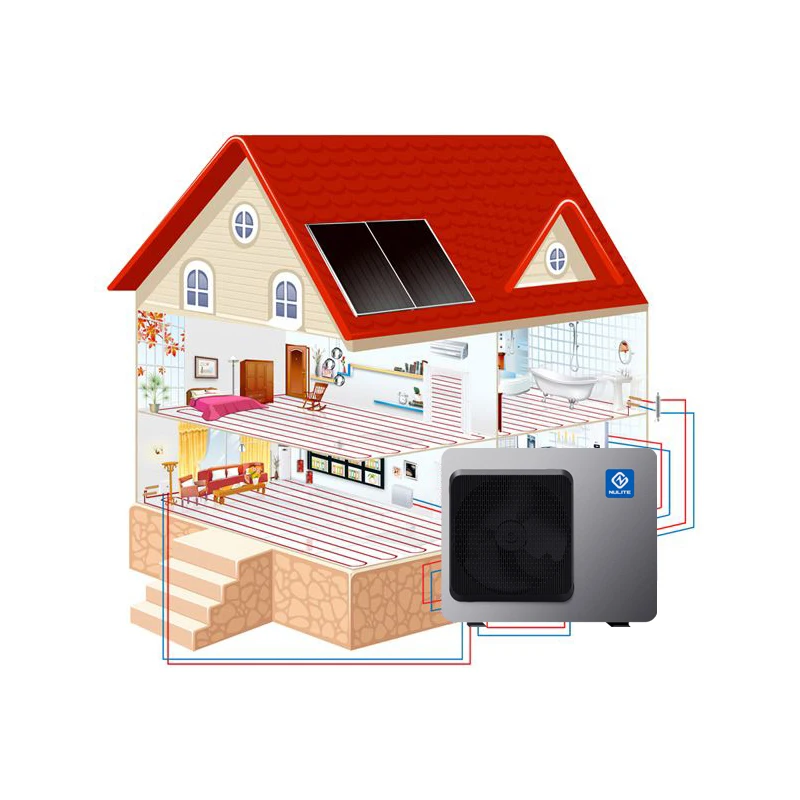

Customer installation example:
The following pictures are installation examples of some of our customers. The modified series can be installed with or without a buffer tank. However, we recommend that customers still properly bring water tanks, because such installation can improve the energy efficiency of the machine.
Product details
This series of products is a DC frequency conversion machine with internal pumps and expansion tanks. It uses a brushless DC variable frequency motor suitable for voltages of 50Hz / 60Hz frequency.
