28-дюймовый виниловый резак 720

Категория: Other Apparel Machines >>>
Поставщик: Shanghai,Wework,Machinery,Equipment,Co.,Ltd.

Цена:235,00 $ - 279,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	298.31 $*	304.2 $*
Jul-15-2025	242.1 $*	247.33 $*
Jun-15-2025	294.97 $*	300.94 $*
May-15-2025	291.5 $*	297.11 $*
Apr-15-2025	233.42 $*	238.56 $*
Mar-15-2025	287.8 $*	293.86 $*
Feb-15-2025	284.63 $*	290.77 $*
Jan-15-2025	282.43 $*	288.5 $*

Характеристики

Product Overview

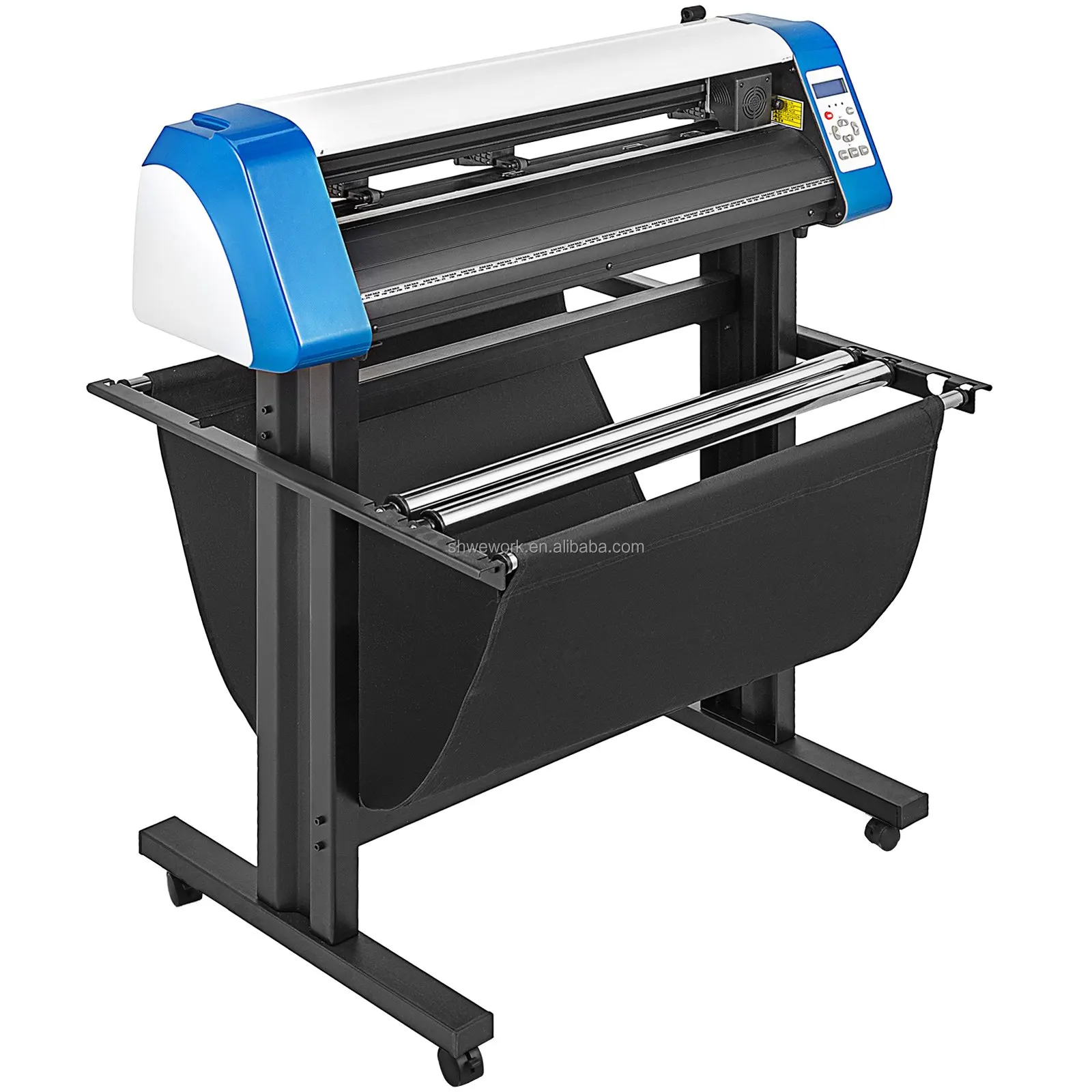

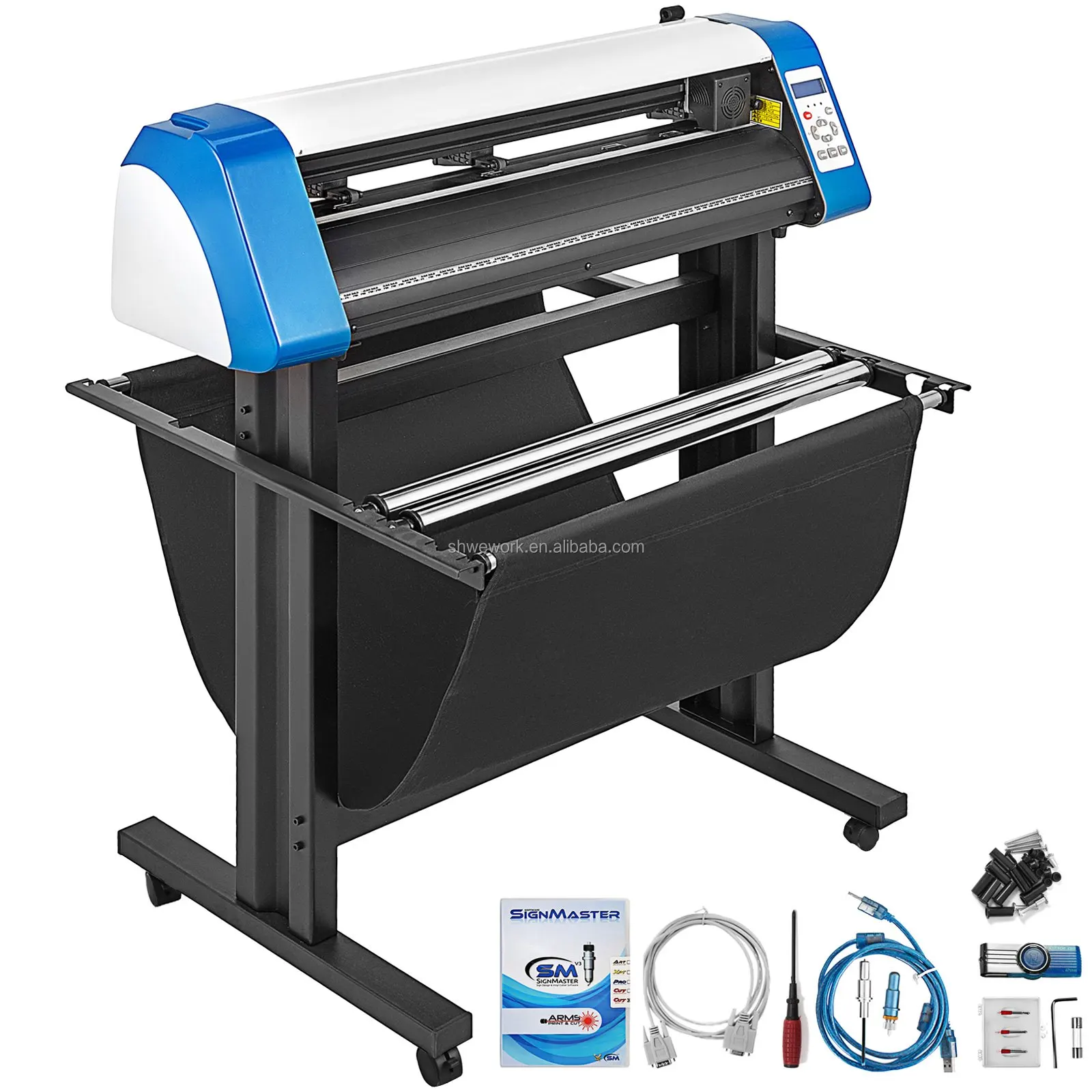

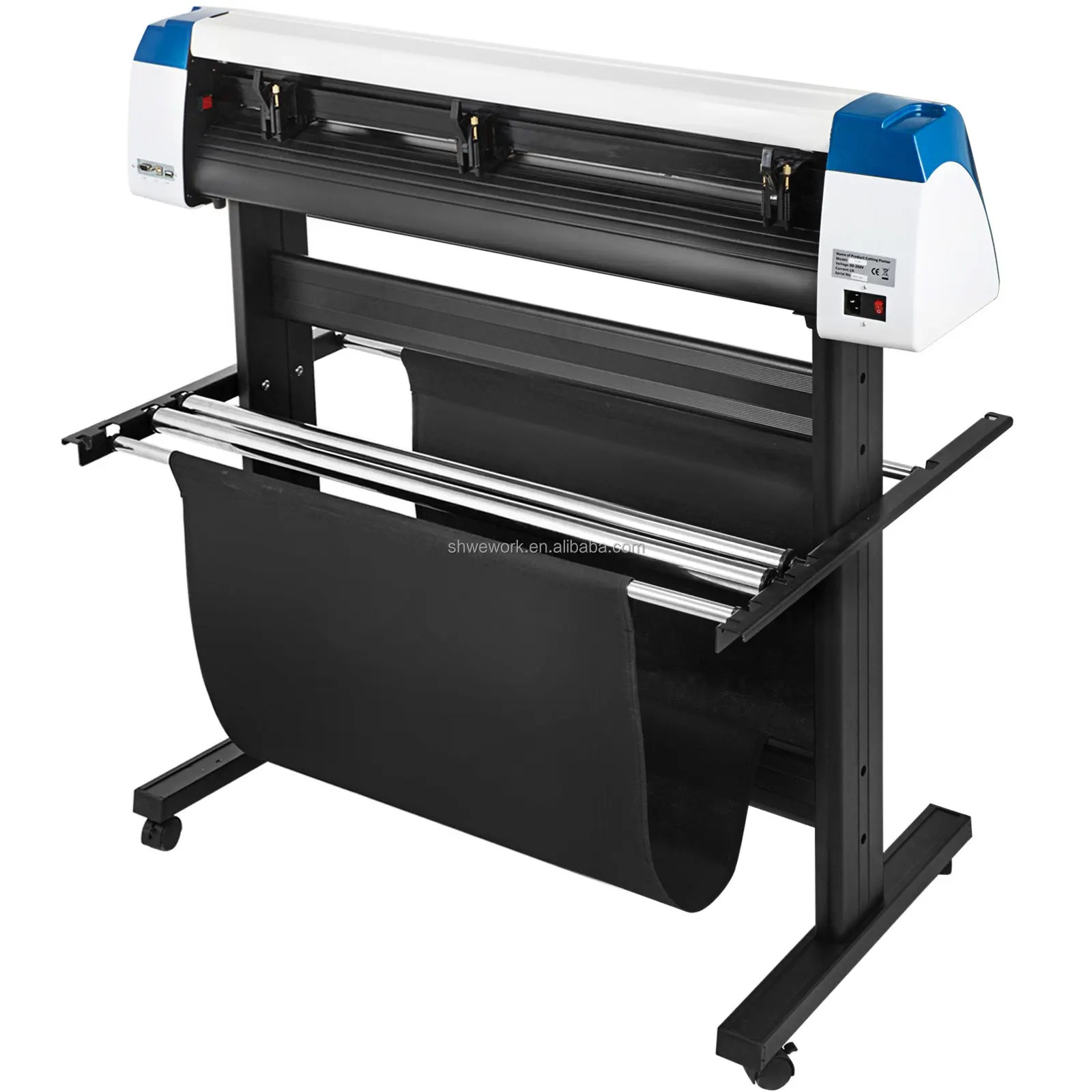

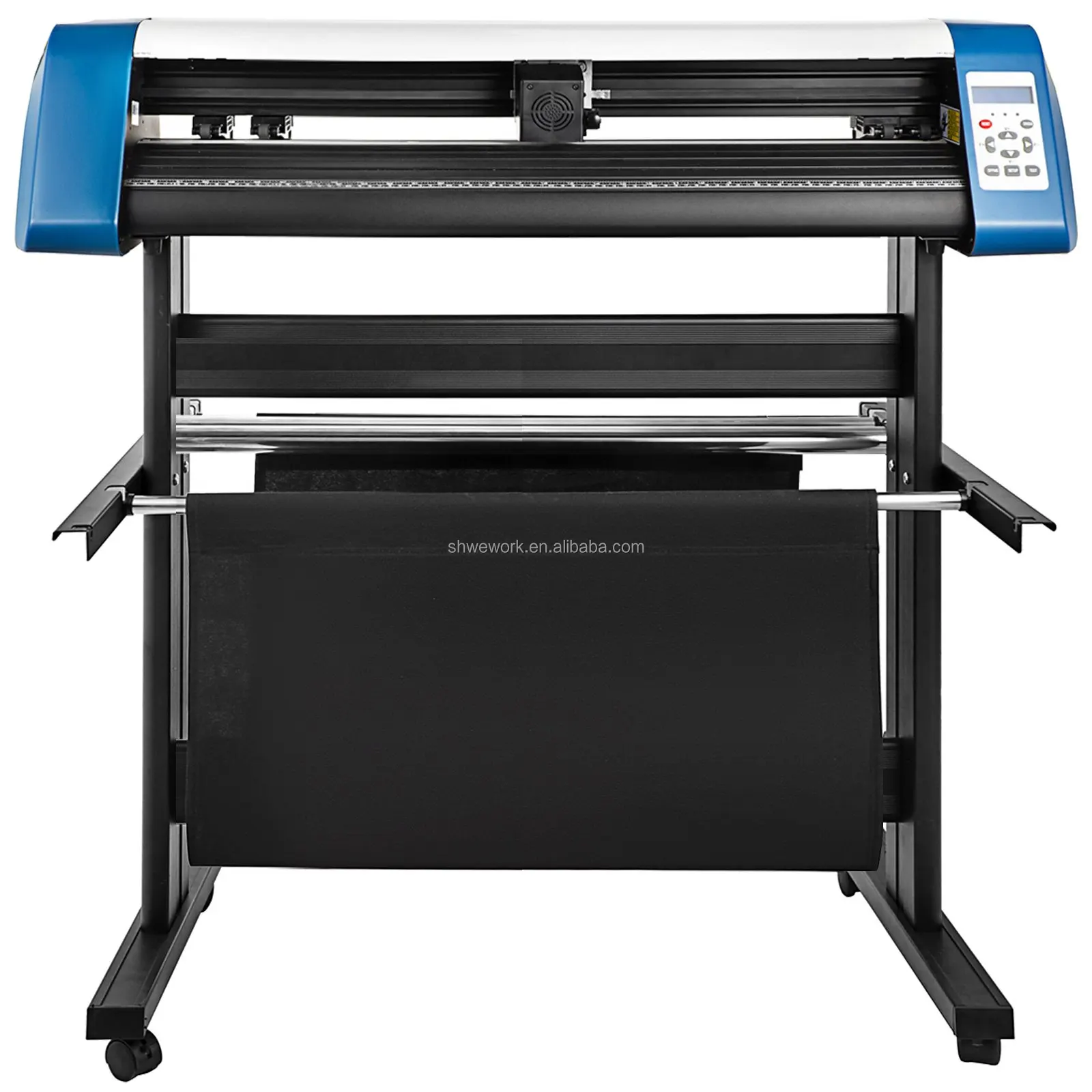

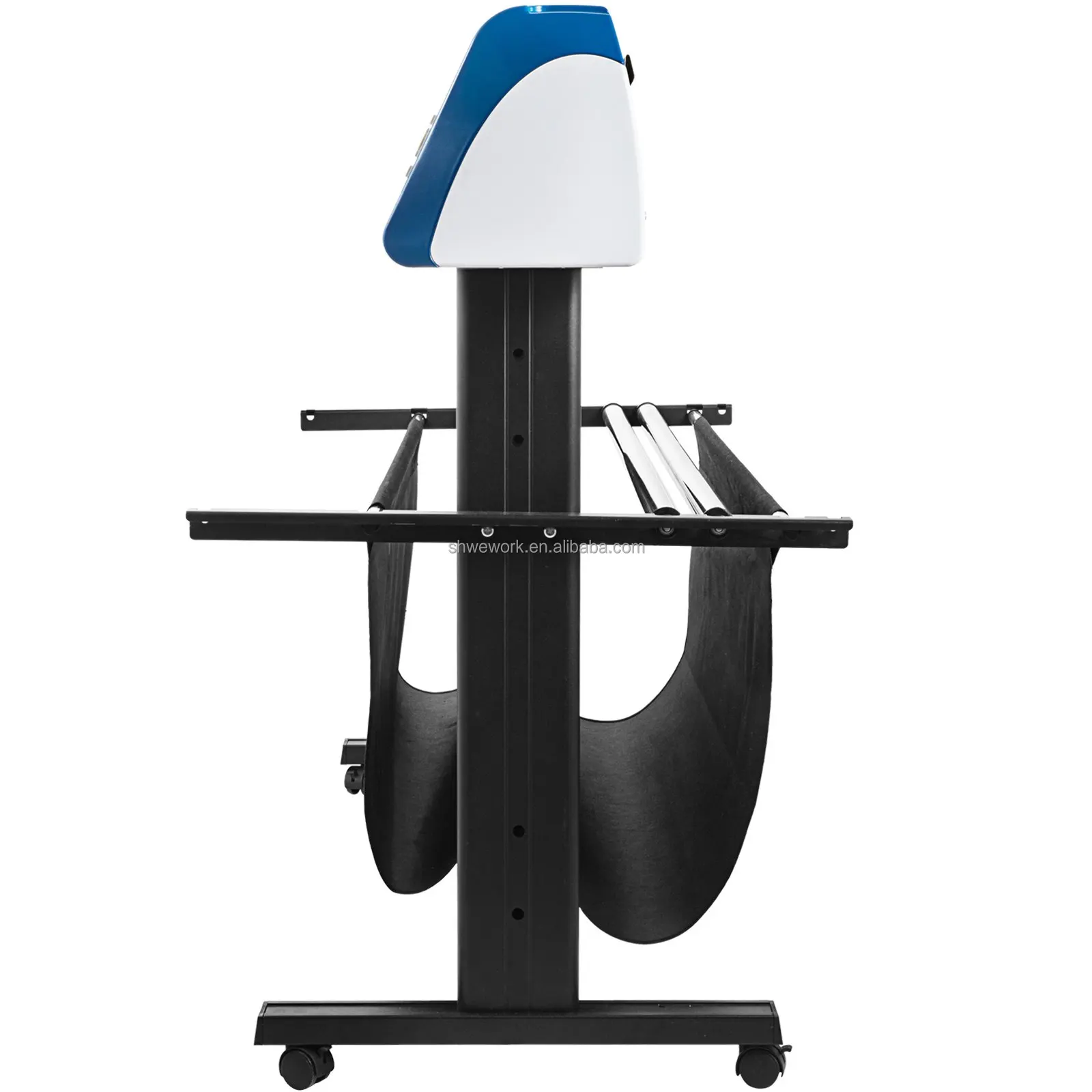

53-inch Automatic Vinyl Cutter Plotter

53-inch Automatic Vinyl Cutter Plotter

This handpicked vinyl plotter with floor is loaded with advanced features that will bring professional-looking projects. It delivers 1350 mm / 53.1" max paper feed with 1260 mm / 46.6" max cutting width. A built-in optical eye for accurate guiding will automatically and accurately scan all kinds of marks. It has a robust construction with a LED display helps you operate the machine clearly and easily. It can cut various intricate lettering and patterns, including paper, card stock, vinyl, and fabric.

* Built-In Optical Eye
* U-Disk Offline Operation
* Efficient LED Panel
* Precise Cutting
* Powerful Design for Multiple Uses

FEATURES AT A GLANCE

Automatic Guiding

An optical eye is able to automatically scan items, bringing a superior tracking capability and advanced contour cutting performance. Four adjustable double-spring pinch rollers and aluminum knurled rods ensure the vinyl plotter feeding paper steadily without paper jam.

Accurate Calibration

The ruler guide is integrated for easier measurements, and the 4 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included biro pen component to sketch out your design before cutting.

Flexible Floor Stand

This cutter is packaged with a heavy-duty sheet metal floor stand that can hold the paper steadily. Make it easy for users to carry without effort. The improved appearance is more in line with aesthetics.

LED Digital Panel

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a maximum cutting speed of 800 mm/s and 500 g cutting force.

Three Ports for You to Change

Connect the vinyl plotter through three available ports, COM, USB & U-Disk. Flexible input support offline processing with U-disk. Included SignMaster software is compatible with Windows XP / VISTA / 7 / 8 / 10. NOT compatible with the Mac system.

Extensive Use

The vinyl cutter is capable to flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

PRODUCT SPECIFICATIONS

53-inch Automatic Vinyl Cutter Plotter

Model: KZJ-1350ZDXB

Max Paper Feed: 53.1 in / 1350 mm
Max Cutter Width: 49.6 in / 1260 mm
Voltage: 110 / 220 V
Cutting Accuracy: +/- 0.0004 in / 0.01 mm
Temperature: 5 - 35℃
Relative Humidity: 30% - 50%
Driving Method: Stepper Motor
Positioning: Automatic
Carriage: Casting Pressure Carriage
Fill Light: LED Strip Light
Motherboard: ARM
Interface: Serial Port & USB & U-Disk
Language: DM/PL, HP/GL
System: Windows XP/Vista/7/8/10
Software: Signmaster
Cutter Pressure: 20 - 500 g
Cutting Speed: 20 - 800 mm/s
Number of Pinch Rollers: 4
Memory: 128 M
Product Size (L x W x H):

59.84 x 24.81 x 43.31 in / 152 x 63 x 110 cm
Net Weight: 44.09 lbs / 20 kg
