Пьезоэлектрический ультразвуковой преобразователь 60 Вт 40 кГц для
- Категория: Cleaning Equipment Parts >>>
- Поставщик: Baoding,Bill,Ultrasonic,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5.38 $* | 5.46 $* |
| Aug-15-2025 | 5.26 $* | 5.3 $* |
| Jul-15-2025 | 4.41 $* | 4.53 $* |
| Jun-15-2025 | 5.10 $* | 5.37 $* |
| May-15-2025 | 4.44 $* | 4.87 $* |
| Apr-15-2025 | 5.43 $* | 5.46 $* |
| Mar-15-2025 | 5.57 $* | 5.73 $* |
| Feb-15-2025 | 4.78 $* | 4.99 $* |
| Jan-15-2025 | 4.20 $* | 4.75 $* |
Характеристики
Products Description

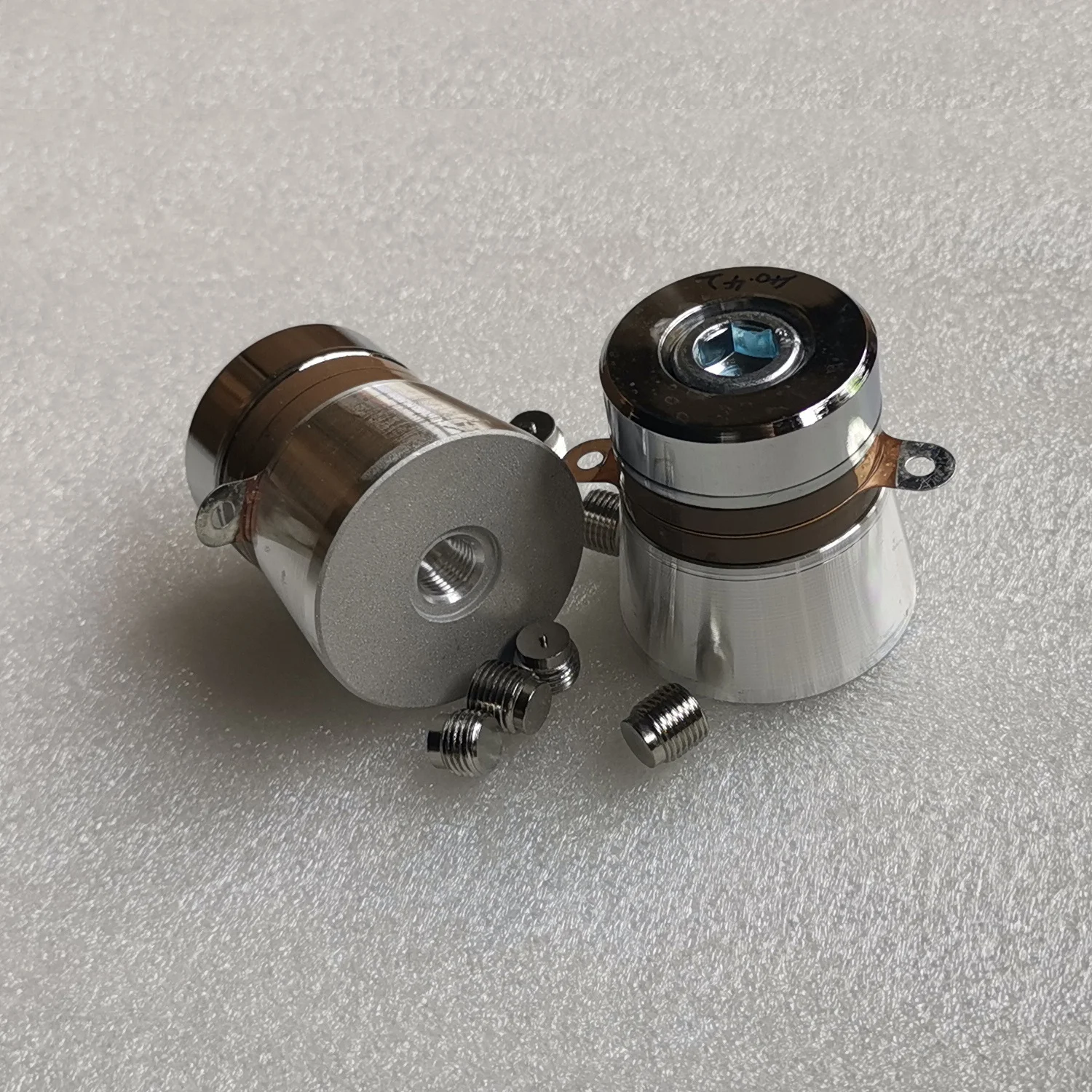

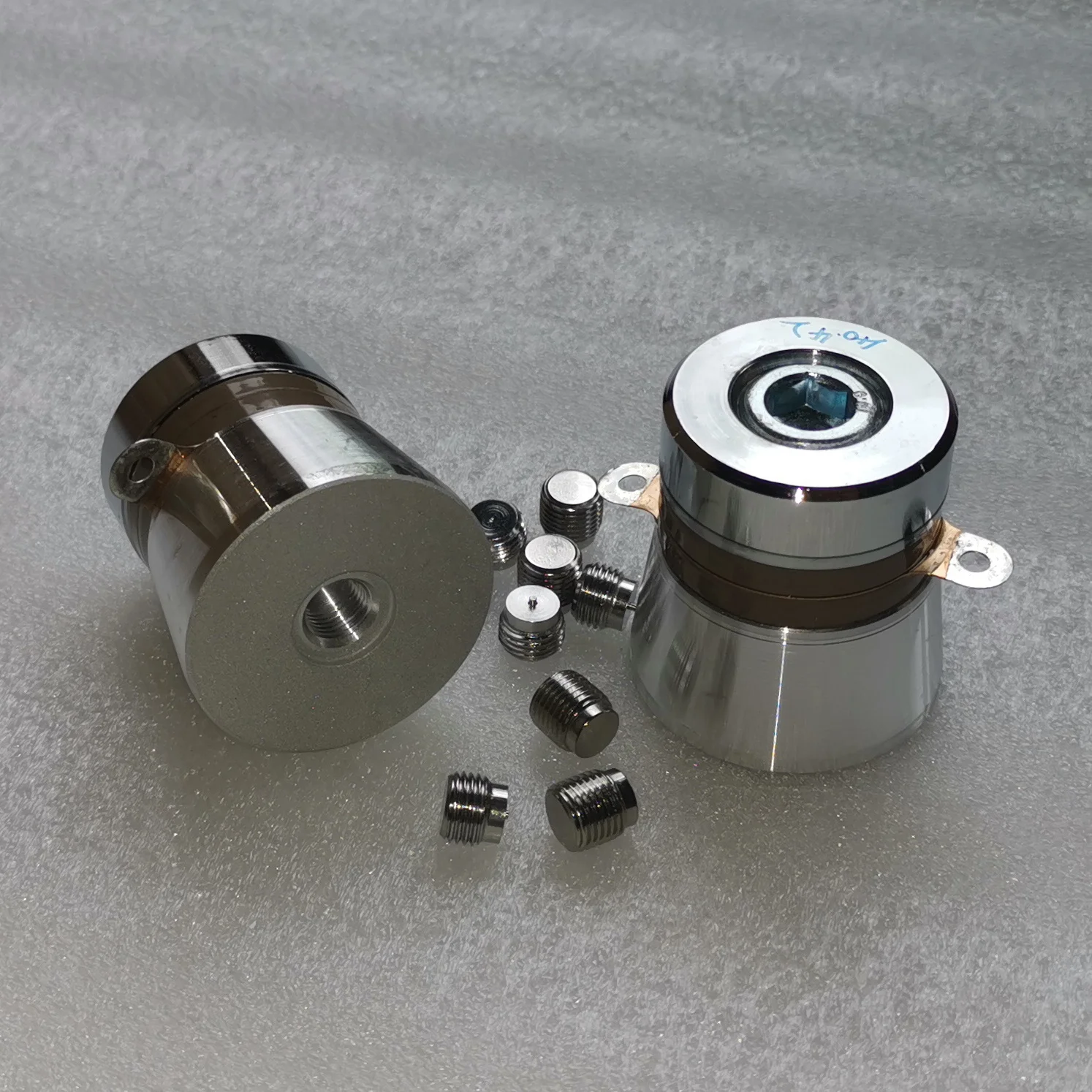

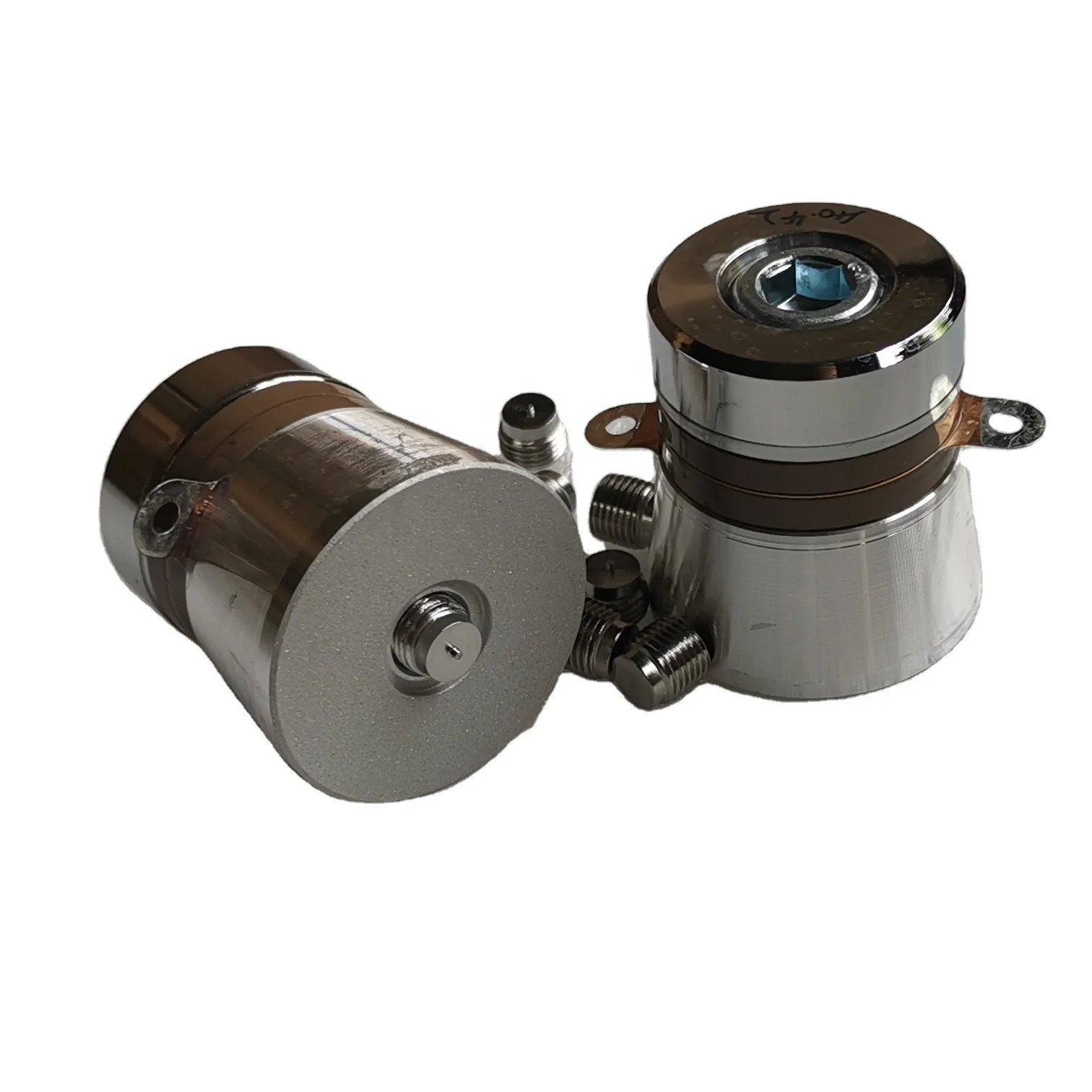

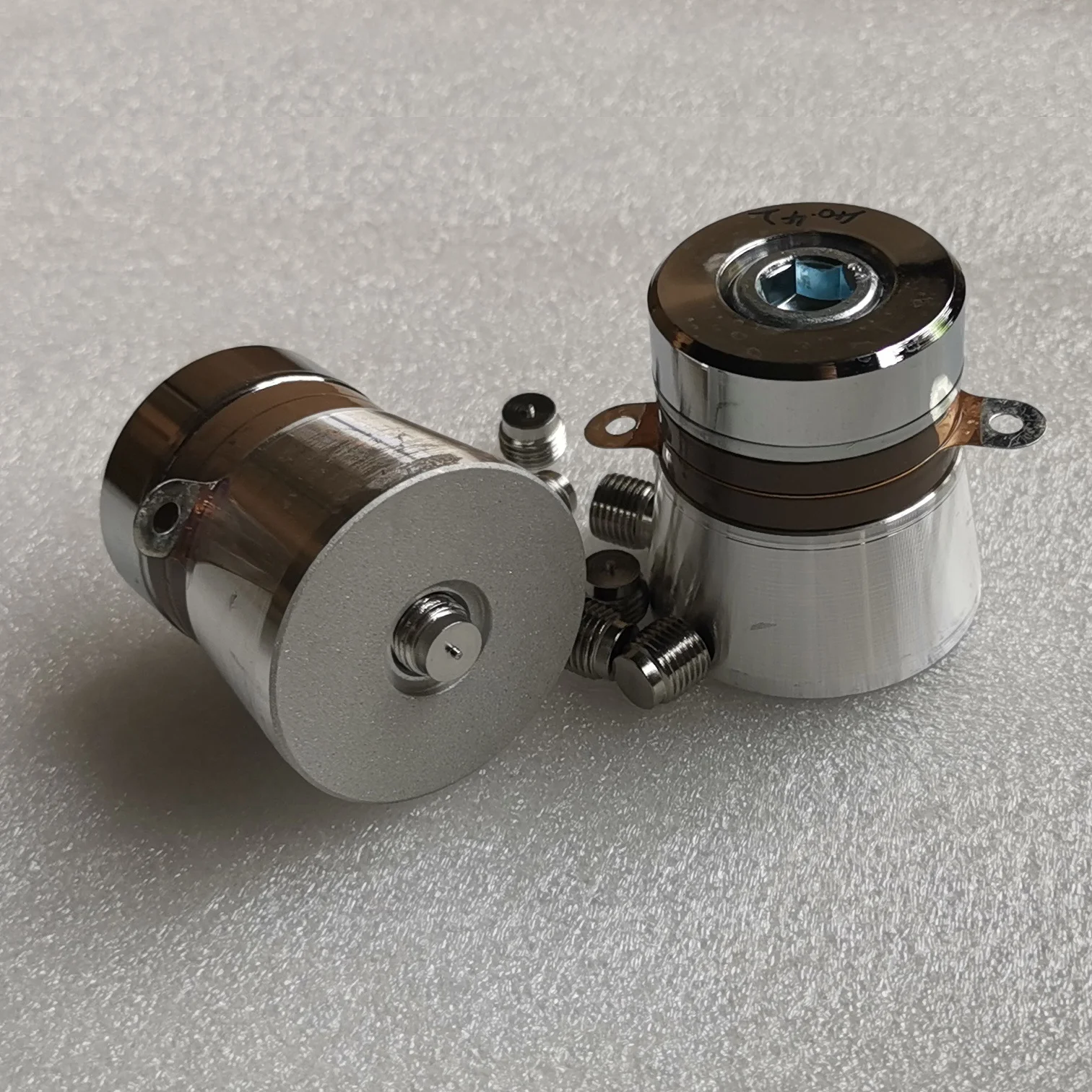

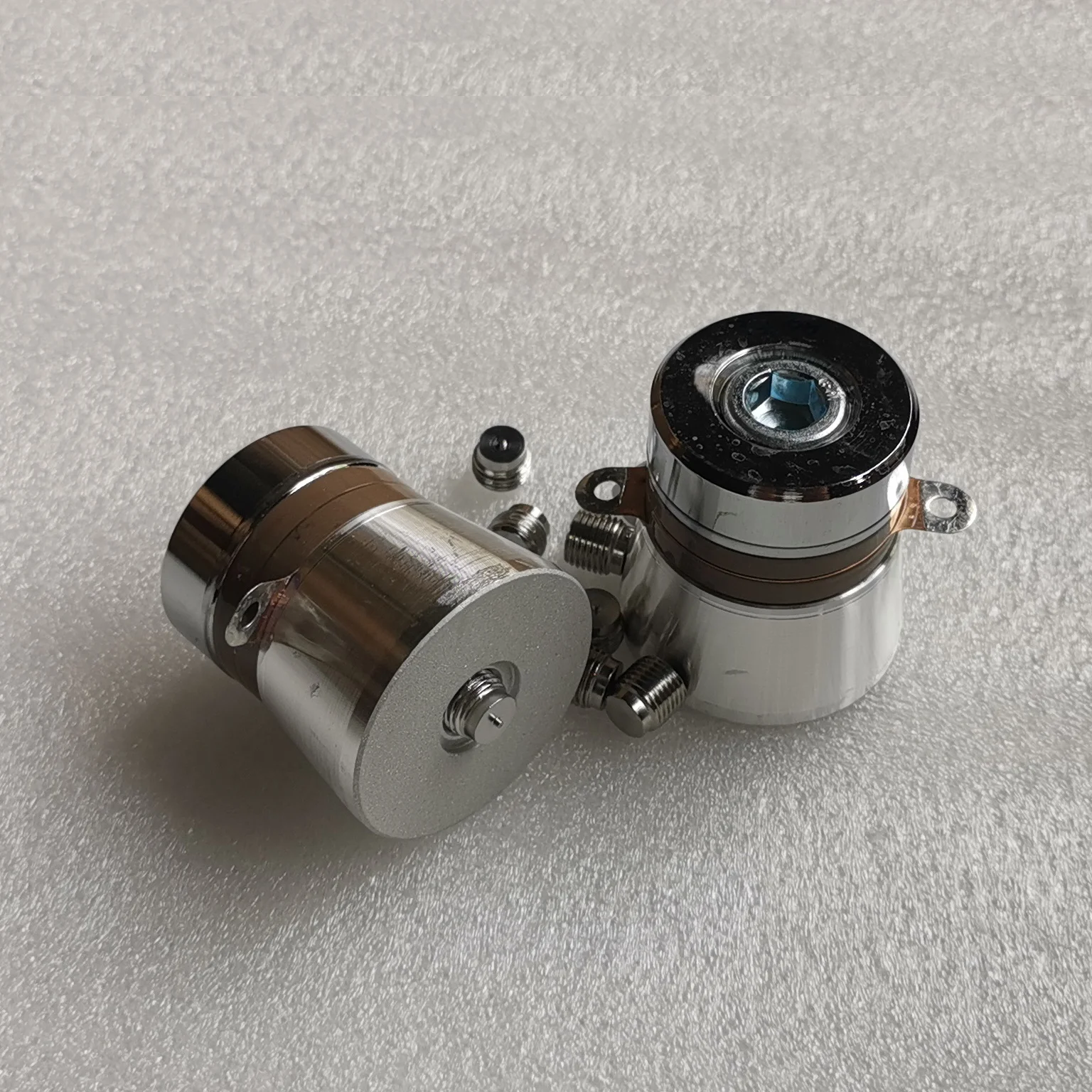

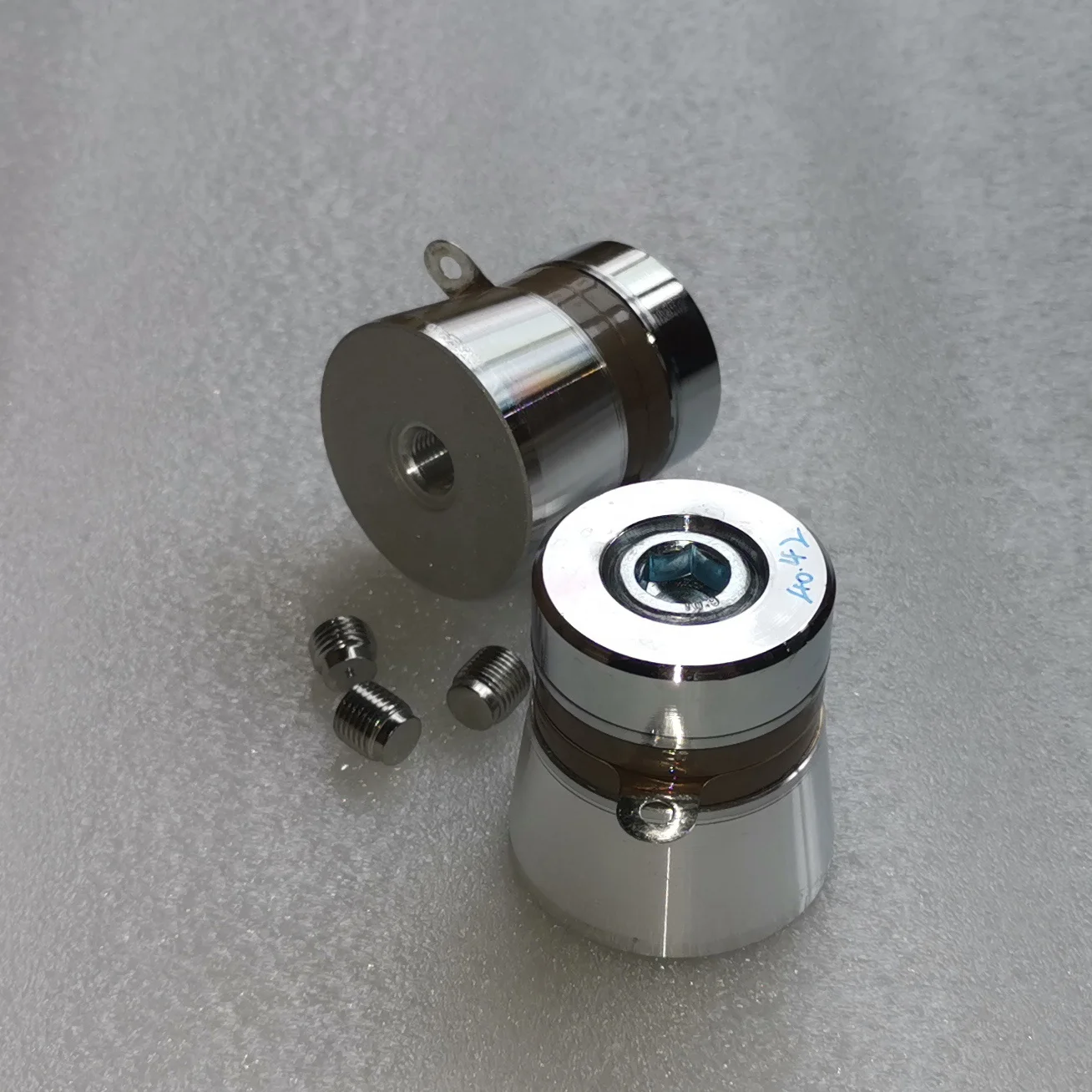

Specifications of Ultrasonic Cleaning Transducer 40khz 60w | ||
Name | Ultrasonic Cleaning Transducer | |
Application | Ultrasonic Cleaning | |
Item | 60w40kLBP8 | |
Ultrasonic Frequency | 40khz | |
Ultrasonic Power | 60w | |
Height | 49mm | |
Diameter of Radiation Head Bottom | 45mm | |
Diameter of Piezoelectric Ceramics | 38mm | |
Weight | 299g | |
Impedance | ≤20ohm | |
Static Capacity | 3900pf±10% | |
Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic. it is composed of Cap, Screw, Piezoelectric ceramic rings, Copper electrode sheets, Insulation tube. The characteristics of transducers depends on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.
Main Features:
High Efficiency: High mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
High Amplitude: Perfect piezoelectric ceramics and fix the transducers directly on plate, it amplitude is high.
Good Heat Resistance: A large range of working temperature, low resonance impendence and heat productivity.
Good Construction: Fastened by bolt, easy for assembling, high reliability.
Long Life: Nice parts and perfect production process, the transducer quantity is good, energy saving and longer working life.
Good Heat Resistance: A large range of working temperature, low resonance impendence and heat productivity.
Good Construction: Fastened by bolt, easy for assembling, high reliability.
Long Life: Nice parts and perfect production process, the transducer quantity is good, energy saving and longer working life.
Product packaging
Company Profile
Baoding Bill Ultrasonic Electronics Co., LTD., founded in 2009, is located in Baoding city, Hebei Province, China. It is a professional, large-scale high-power ultrasonic production enterprise integrating research, development, production, sales and after-sales service. It is a high-tech enterprise recognized by the state.
Factory has 12000 square meters, with large-scale production capacity and management experience, the company since its establishment keeps long-term cooperation with industry renowned experts to do technical adviser, enhance enterprise research and development and innovation, establishes close communication and cooperation many years with technology and colleges and universities, strive to keep in the industry leading technology advantage, and to carry out exchanges and cooperation with overseas enterprises, closely tracking the latest development of products, production of ultrasonic cleaning, ultrasonic welding, ultrasonic vibrating screen, ultrasonic vibration rods and testing equipment (such as sound intensity detector) product performance, stable quality, favored by customers, At present, the products have been sold throughout the country and exported to 12 overseas countries and regions, with a perfect after-sales service network.
Companies adhering to the "innovation, development, cooperation, win-win" principle, make globalization, internationalization, professionalization of corporate image, "" one hundred enterprise, create world brand" as the goal, scientific and technological innovation, continuous improvement, scaling new heights, providing customers with high quality products, high quality service, let customers buy the rest assured that with satisfaction.
Choose Bill ultrasound to promote win-win development.
Factory has 12000 square meters, with large-scale production capacity and management experience, the company since its establishment keeps long-term cooperation with industry renowned experts to do technical adviser, enhance enterprise research and development and innovation, establishes close communication and cooperation many years with technology and colleges and universities, strive to keep in the industry leading technology advantage, and to carry out exchanges and cooperation with overseas enterprises, closely tracking the latest development of products, production of ultrasonic cleaning, ultrasonic welding, ultrasonic vibrating screen, ultrasonic vibration rods and testing equipment (such as sound intensity detector) product performance, stable quality, favored by customers, At present, the products have been sold throughout the country and exported to 12 overseas countries and regions, with a perfect after-sales service network.
Companies adhering to the "innovation, development, cooperation, win-win" principle, make globalization, internationalization, professionalization of corporate image, "" one hundred enterprise, create world brand" as the goal, scientific and technological innovation, continuous improvement, scaling new heights, providing customers with high quality products, high quality service, let customers buy the rest assured that with satisfaction.
Choose Bill ultrasound to promote win-win development.
