Products Description

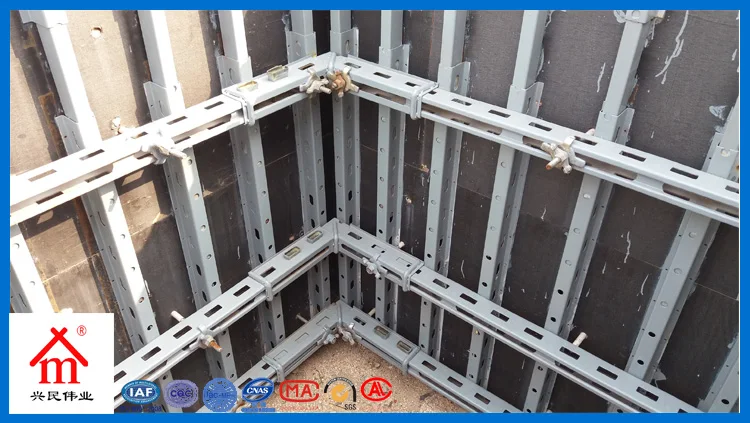

Concrete Wall Formwork Support System
All the products are made of cold rolled steel plate, light weight, large elasticity, strong without deformation.
The cross beam adopts single pipe perforated design, not only flexible connection, but also light weight.
The vertical beam design, increase the contact area, so that the material is not easy to deformation.
Accessories are closely connected, simple and beautiful installation.
Instead of the use of wood, the theoretical turnover times can be up to 400 times more, high reuse rate.
The cross beam adopts single pipe perforated design, not only flexible connection, but also light weight.
The vertical beam design, increase the contact area, so that the material is not easy to deformation.
Accessories are closely connected, simple and beautiful installation.
Instead of the use of wood, the theoretical turnover times can be up to 400 times more, high reuse rate.
Details Images
The vertical beam has Galvanized Vertical Beam and ”几” Shape Vertical Beam.
Specification
Standard | Weight (kg) | ||||
m | C65 Type | C85 Type | U Type | ||
"几" Shape Vertical Beam 3.0 | 10.05 | / | 10.05 | ||
"几" Shape Vertical Beam 2.7 | 9.05 | / | 9.05 | ||
Cross Beam 3.0 | 14.0 | 18.6 | 12.0 | ||
Cross Beam 2.7 | 12.0 | 17.0 | 11.3 | ||
Cross Beam 2.4 | 10.7 | 15.0 | 10.0 | ||
Cross Beam 2.1 | 9.5 | 13.2 | 8.8 | ||
Cross Beam 1.8 | 8.2 | 11.5 | 7.6 | ||
Cross Beam 1.5 | 7.0 | 9.9 | 6.4 | ||
Cross Beam 1.2 | 5.5 | 7.7 | 5.0 | ||
Cross Beam 0.9 | 4.2 | 6.0 | 3.9 | ||
Cross Beam 0.6 | 2.9 | 4.0 | 2.4 | ||
Cross Beam Connector 1.2 | / | 8.3 | / | ||
Cross Beam Connector 0.9 | 4.7 | / | 3.8 | ||
Inner Corner 0.3*0.6 | 5.1 | 5.6 | 3.0 | ||
Inner Corner 0.3*0.3 | 3.4 | 7.5 | 4.0 | ||
Outer Corner | 2.2 | 2.5 | 1.8 | ||
Beam Fastener | 0.4 | 0.4 | 0.4 | ||
Tie Rod & Nut 0.7 | 0.8 | 1.5 | 0.8 | ||
Tie Rod & Nut 0.4 | 0.5 | 0.9 | 0.5 | ||
Hook & Nut | 0.5 | 0.7 | 0.5 | ||
Cross Shape Spacer | 0.3 | 0.3 | 0.3 | ||
Unite weight is based on spot checks.
