Лидер продаж Hi-Target V200 Ihand55 контроллер новейшая база
- Категория: Other Test Instrument >>>
- Поставщик: Shanghai,Jice,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3392.78 $* | 3562.67 $* |
| Aug-15-2025 | 3363.93 $* | 3531.60 $* |
| Jul-15-2025 | 2822.97 $* | 2963.13 $* |
| Jun-15-2025 | 3306.88 $* | 3471.32 $* |
| May-15-2025 | 2879.22 $* | 3023.69 $* |
| Apr-15-2025 | 3249.73 $* | 3411.14 $* |
| Mar-15-2025 | 3221.76 $* | 3382.72 $* |
| Feb-15-2025 | 3192.84 $* | 3352.72 $* |
| Jan-15-2025 | 3164.74 $* | 3322.19 $* |
Характеристики
Hi-Target V200 Ihand55 Controller Latest Hi Survey Software Base And Rover Set

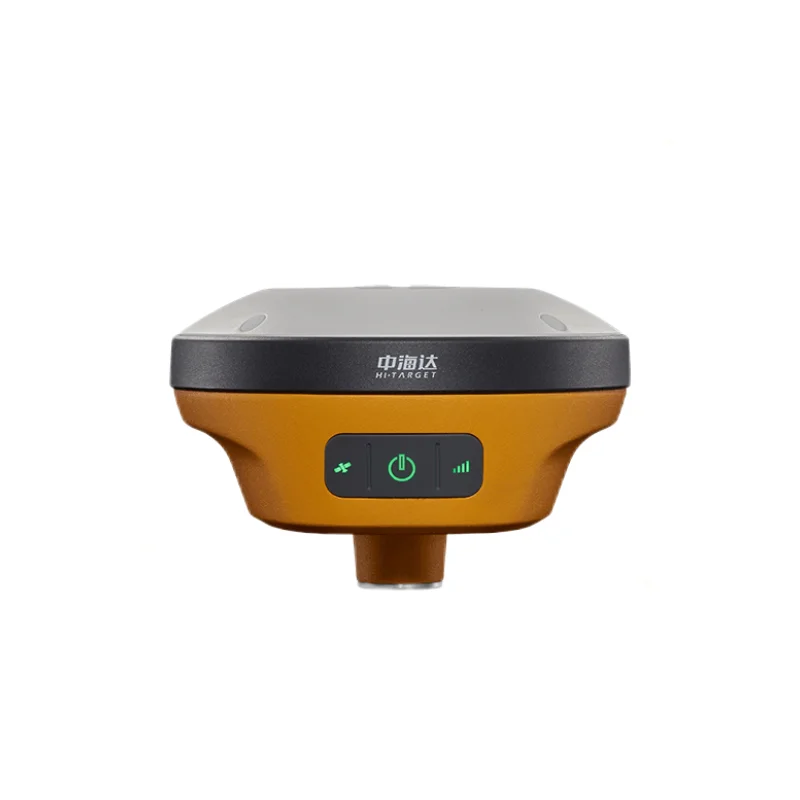

V200 is a mini high-end GNSS receiver under the HI-TARGET brand, which supports satellite station differential, built-in 4G full network communication, and multi-protocol radio. Adopting a brand new design and magnesium alloy structure, it is an ultimate, intelligent, and lightweight measurement GNSS receiver.
Linux 3.2.0 operating system with built-in high-definition OLED display screen and capacitive touch screen.
Linux 3.2.0 operating system with built-in high-definition OLED display screen and capacitive touch screen.
PRODUCT SPECIFICATIONS
Hi-Target V200 | ||||||
channels: 1408 | ||||||
BDS: B1, B2, B3 | ||||||
GPS: L1, L2, L5 | ||||||
GLONASS: L1, L2 | ||||||
GALILIEO: E1, E5a, E5b | ||||||
SBAS: Support | ||||||
QZSS: Support | ||||||
Output format | ASCII: NMEA-0183, binary code | |||||
Positioning output frequency | 1Hz~20Hz | |||||
Static data format | GNS, Rinex dual format static data | |||||
Difference format | CMR, RTCM2.X, RTCM3.0, RTCM3.2 | |||||
Network mode | VRS, FKP, MAC; support NTRIP protocol | |||||
operating system | Linux operating system | |||||
Start Time | 3 seconds | |||||
data storage | Built-in 8GB ROM, supports automatic storage of static data | |||||
Accuracy and reliability | RTK positioning accuracy | Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) | ||||
Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points) | ||||||
Static positioning accuracy | Plane: ±(2.5+0.5×10-6D) mm (D is the distance between the measured points) | |||||
Elevation: ±(5+0.5×10-6D) mm (D is the distance between the measured points) | ||||||
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm; elevation accuracy: ±0.50m+1ppm | |||||
SBAS positioning accuracy | 0.5m | |||||
Initialization time | <10 seconds | |||||
Initialization reliability | >99.99% | |||||
I/O port | USB Type-C interface, SMA interface | |||||
Built-in 4G network communication | Built-in eSIM4 card, including 3 years Internet access fee, you can connect to the Internet after power on | |||||
WiFi communication | 802.11 a/b/g/n access point and client mode, can provide WiFi hotspot service | |||||
blue tooth communication | blue tooth® 4.2/2.1+EDR, 2.4GHz | |||||
Built-in radio | Built-in transceiver station: | |||||
Power: 0.5W/1W/2W adjustable | ||||||
Frequency band: 410MHz~470MHz | ||||||
Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKⅢ, TRANSEOT | ||||||
Number of channels: 116 (16 of which can be configured) | ||||||
sensor | Electronic bubble | Realize smart alignment | ||||
Tilt measurement | Built-in high-precision inertial navigation, automatic attitude compensation, 8mm+0.7mm/°tilt (accuracy within 30°<2.5cm) | |||||
User Interface | button | A power button | ||||
LED indicator light | Satellite lights, signal lights, power lights | |||||
WEB UI | Built-in WEB page to realize receiver setting and status check | |||||
Function application | Advanced Features | OTG function, NFC IGRS, WebUI interaction, U disk firmware upgrade | ||||
Smart application | Smart base station, smart voice, function self-check, smart CORS | |||||
Remote Service | News push, online upgrade, remote control | |||||
cloud service | Equipment management, location services, collaborative operations, data analysis | |||||
Physical characteristics | Host battery | Built-in high-capacity lithium battery 6800mAh/7.4V, network mobile station working time is more than 10 hours[2] | ||||
External power supply | Support USB port charging and external power supply | |||||
size | Φ132mmx67mm | |||||
weight | ≤0.82kg | |||||
Power consumption | 4.2W | |||||
material | The shell is made of magnesium alloy material | |||||
Environmental characteristics | Dustproof and waterproof | IP68 | ||||
Anti-fall | Resistance to natural drop of 2m high measuring rod | |||||
Relative humidity | 100% non-condensing | |||||
Operating temperature | -30℃~+70℃ | |||||
storage temperature | -40℃~+80℃ | |||||
