Автоматическая машина для намотки
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Henan,Grande,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 571.58 $* | 600.91 $* |
| Aug-18-2025 | 566.39 $* | 594.0 $* |
| Jul-18-2025 | 475.96 $* | 499.33 $* |
| Jun-18-2025 | 557.0 $* | 585.23 $* |
| May-18-2025 | 485.77 $* | 509.30 $* |
| Apr-18-2025 | 547.71 $* | 574.61 $* |
| Mar-18-2025 | 542.59 $* | 569.42 $* |
| Feb-18-2025 | 538.90 $* | 565.47 $* |
| Jan-18-2025 | 533.76 $* | 560.34 $* |
Характеристики
GRANDE New Smart Design Automatic Wire Winding And Stringing Machine Banding Bundling Tying Electrical Copper Wire Cable Coiling Machine for Sale
Product Description

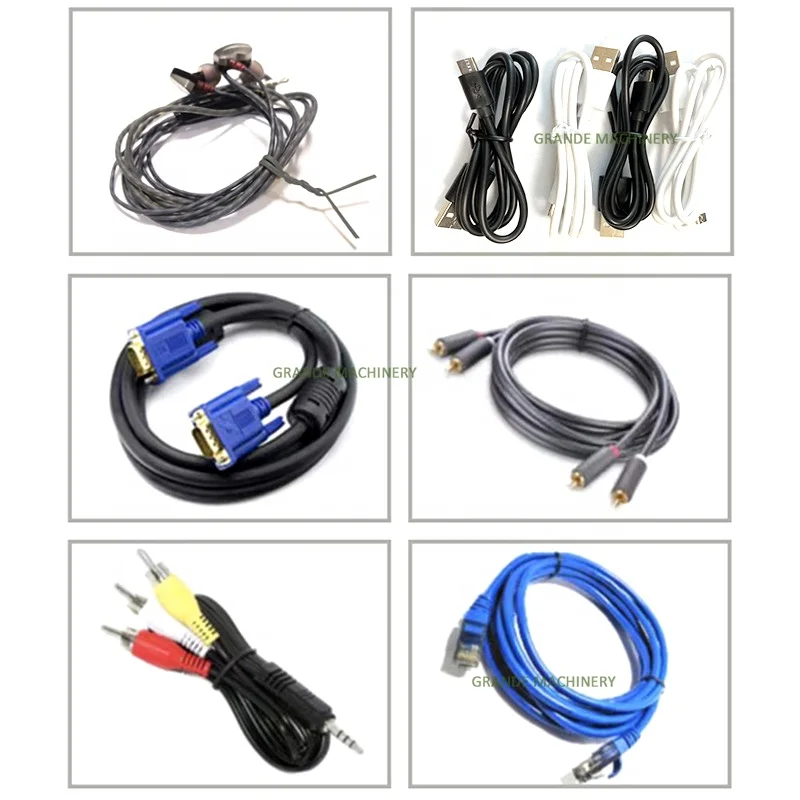

This is a new designed tabletop wire winding and tying machine. It can wind the products on left side and tying the products on the right side. It is widely used for bundling A C D power cables, DC power cables, USB cables, or other various transmission lines, twisted bundle with rubber-coated iron core.
This machine has several models to suitable for different materials.
We also have other machines, like wire tying machine, wire winding machine, etc, to meet your different requirements.
Technical Parameters
Commodity | Wire Winding Tying Machine | ||||||
Model | 3-28 | 15-40 | 20-60 | 40-90 | |||
Tie Length | 65-125mm | 120-190mm | 130-240mm | 190-300mm | |||
Bundle Diameter | 3mm-30mm | 15mm-40mm | 20mm-60mm | 40mm-90mm | |||
Dimension | 450*390*580mm | 550*601*400mm | |||||
Weight | 25kg | 62kg | |||||
Number of twisted turns | 2-8turns(can be adjusted) | ||||||
Winding speed | 2-10 turns/second(can be adjusted) | ||||||
Tying Speed | 1 second/time 60-75times per minute | ||||||
Power | 400w | ||||||
Bending Length | The spacing of the winding rod is 55-190mm arbitrary positioning | ||||||
Wire Feeding Length | 70-140mm arbitrary positioning | ||||||
Driving Method | Adopt stepping motor action to complete | ||||||
Safety Protection | When not normal work, in order to prevent mechanical injuries to the hands and specially installed | ||||||
Remarks | We can customize the machine according to your demands. | ||||||

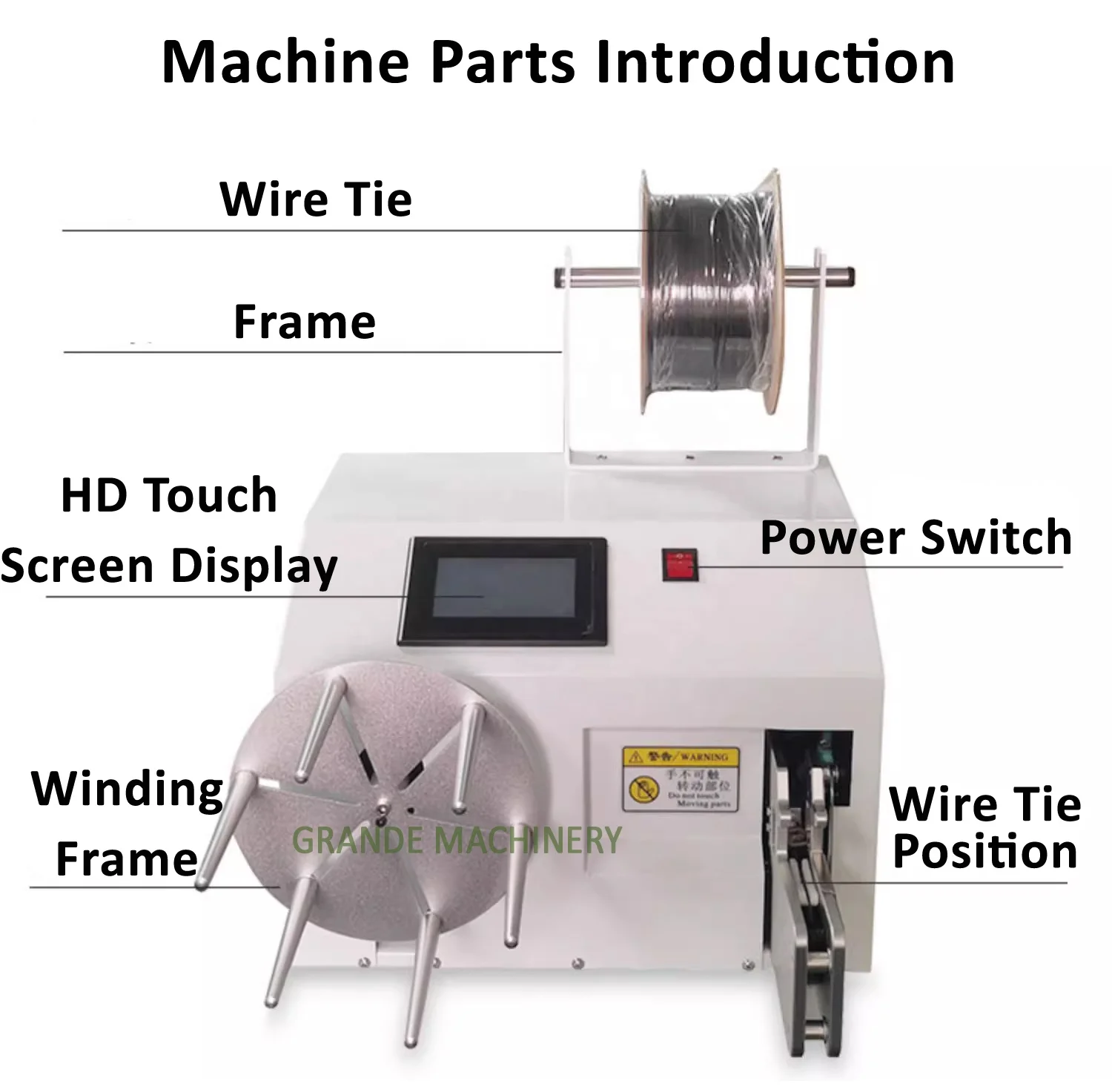

Machine Details

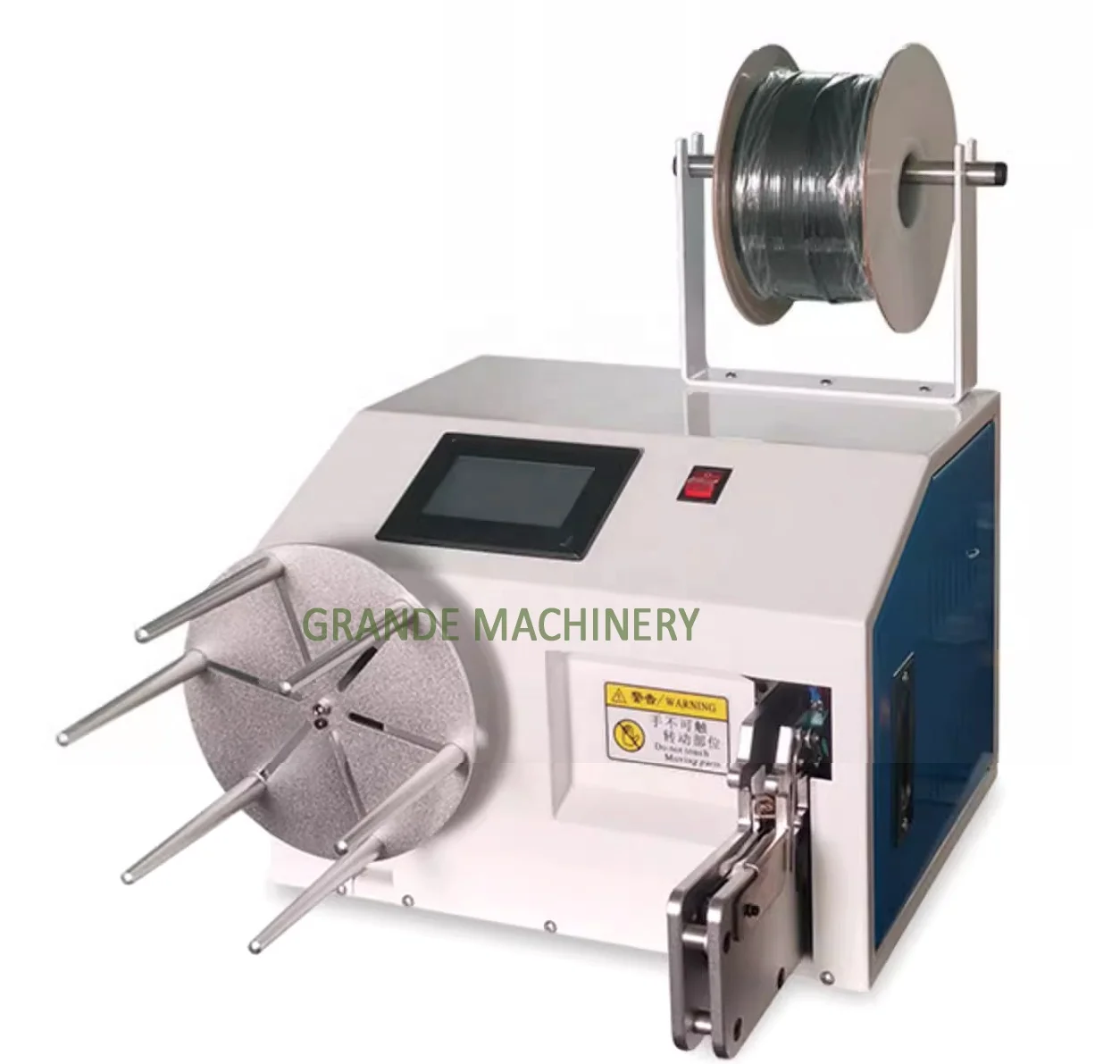

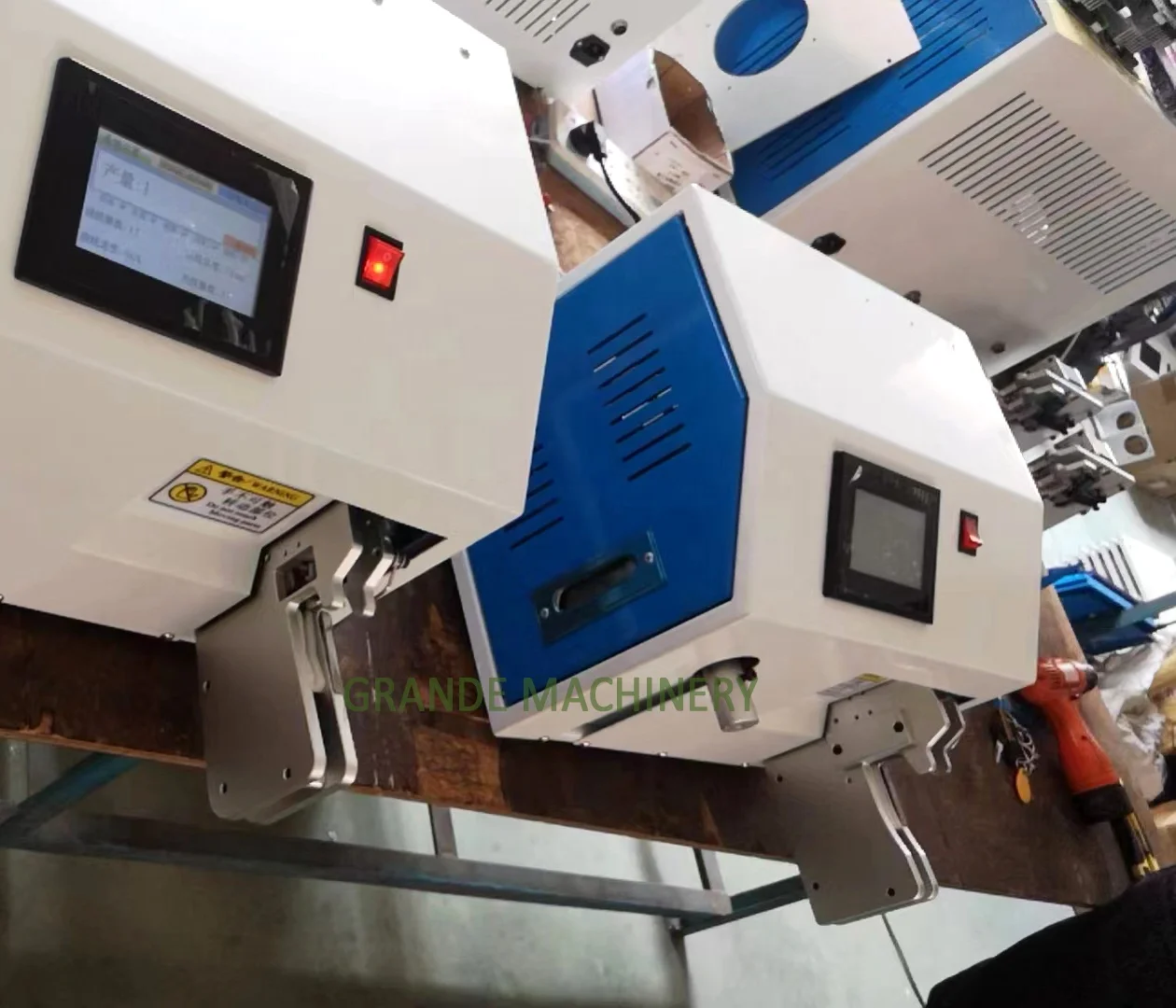

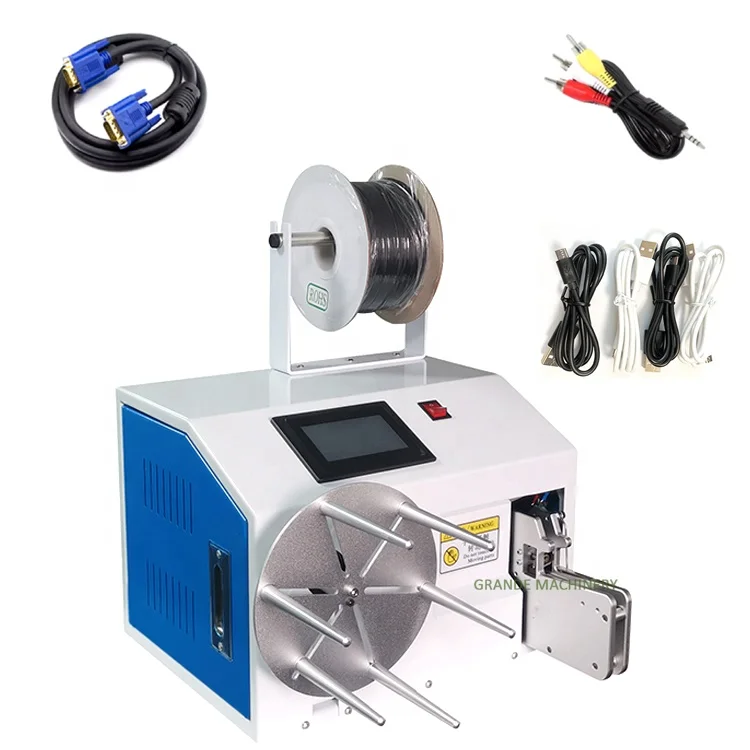

Machine Display
Re: Any questions about the automatic wire winding tying machine, please just contact us.
We can offer customization service and can recommend u the most suitable machine according to your needs.
Related Top-rated Products
Company Profile
Henan Grande Machinery Co., Ltd. has many years mechanical exporting experience.
We are mainly engaged in the designing and manufacturing of food processing, packaging machine and so on.
We are mainly engaged in the designing and manufacturing of food processing, packaging machine and so on.
We have our own excellent quality control personnel and well-trained skilled workers. And besides production machines, we also provide the solutions including customized design and modification.
Our machines have been exported to more than 100 countries, have get through the CE certification and many technology patents.
Our machines have been exported to more than 100 countries, have get through the CE certification and many technology patents.
