Яркие промышленные 380 В 6 кВт электрические Антикоррозийные Погружные Нагреватели Ptfe для кислотного нагрева с
- Категория: Heating Equipment >>>
- Поставщик: Jiangsu,Bright,Electric,Heating,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 19.1 $* | 19.48 $* |
| Jul-16-2025 | 15.5 $* | 15.19 $* |
| Jun-16-2025 | 19.68 $* | 19.81 $* |
| May-16-2025 | 19.7 $* | 19.95 $* |
| Apr-16-2025 | 15.59 $* | 15.94 $* |
| Mar-16-2025 | 18.34 $* | 18.68 $* |
| Feb-16-2025 | 18.56 $* | 18.38 $* |
| Jan-16-2025 | 18.19 $* | 18.58 $* |
Характеристики
Product Paramenters
Product Name | PTFE coated stainless element | |
Heat intensity | Not exceeding 30w/cm2 (advisable) | |
Exhaust extreme (when cold) | <=0.1mA to 242 v. | |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum | |
Dielectric strength | 1500v. 1/sec | |
Working temperature | 100 Deg C max. | |
Length tolerance | +/-1.5% | |
Diameter tolerance | -0.02 to -0.06 mm | |
Cut off connection tolerance | +/-15 mm | |
Power tolerance (w) | -0.05 | |
Wattage Tolerance | +5%, -10% | |
Resistance tolerance | +10%, -5% | |
Tube diameter | Φ8.5mm-Φ22mm | |
Tube Material | Spray fluoroplastics, fluoroplastics sleeve, titanium | |
Voltage and power | customized | |
Warranty | one year | |
All specifications can be customized as your request! | ||
Why Choose Us
Our Advantage
☆Factory direct sales, specifications and sizes can be customized according to drawings.
△We produce heating elements of various materials(PTFE coated Stainless steel 304/316L/310S,etc), according to customers' requirements.
△Multiple sizes and shapes , and the Watt & Voltage can be customized.
△We also produce Titanium heater, maybe you also like them.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
△Multiple sizes and shapes , and the Watt & Voltage can be customized.
△We also produce Titanium heater, maybe you also like them.
☆Products use high-quality raw materials to ensure product quality.
☆Product factory professional inspection.
☆Support professional after-sales service to solve customers' worries.
Products Description
About this item
* Voltages:120v, 208v, 240v, 480v and so on.
* Maximum sheath temprature steel: 750 F (400 C) ST.ST/Incoloy: 900 F (480 C).
* Shapes:Straight type,U type,W type,Round type,and so on.
* Maximum sheath temprature steel: 750 F (400 C) ST.ST/Incoloy: 900 F (480 C).
* Shapes:Straight type,U type,W type,Round type,and so on.
Features
1. Select high-quality stainless steel (SUS316 or SUS304) electric heating tube inner core and outer PTFE tube (PTFE) to make,with strong corrosion resistance, suitable for heating various corrosive liquids.
2. Attention shall be paid to the installation position of the electric heater to prevent the solid in the solution from depositing on the surface of the electric heater, or if the liquid is too thick and the liquid level is too low, the PTFE tube (PTFE) will be burned due to the poor heat dissipation on the surface.

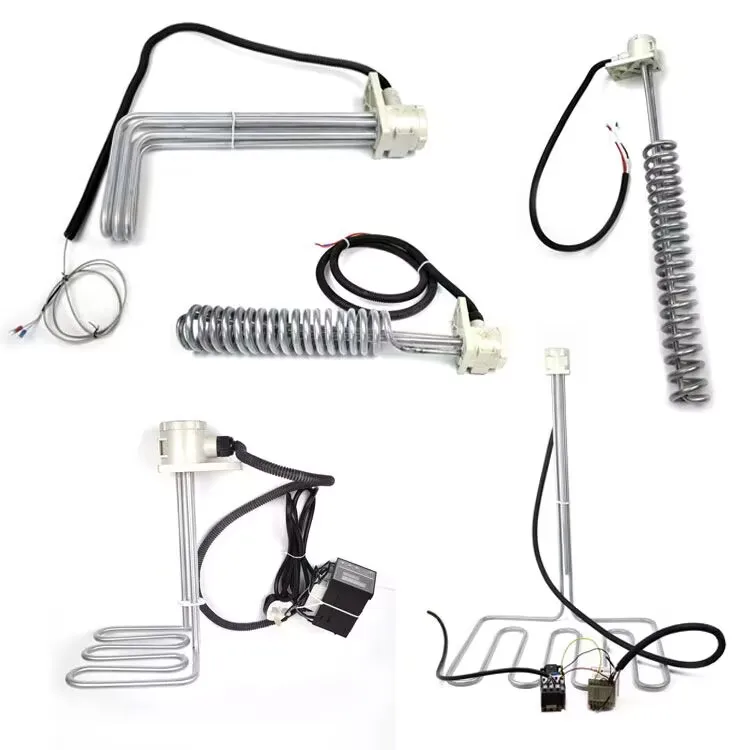

3. The shape is divided into vertical and bottom heated "L", "1", "circle", "m" and so on.
3. The shape is divided into vertical and bottom heated "L", "1", "circle", "m" and so on.

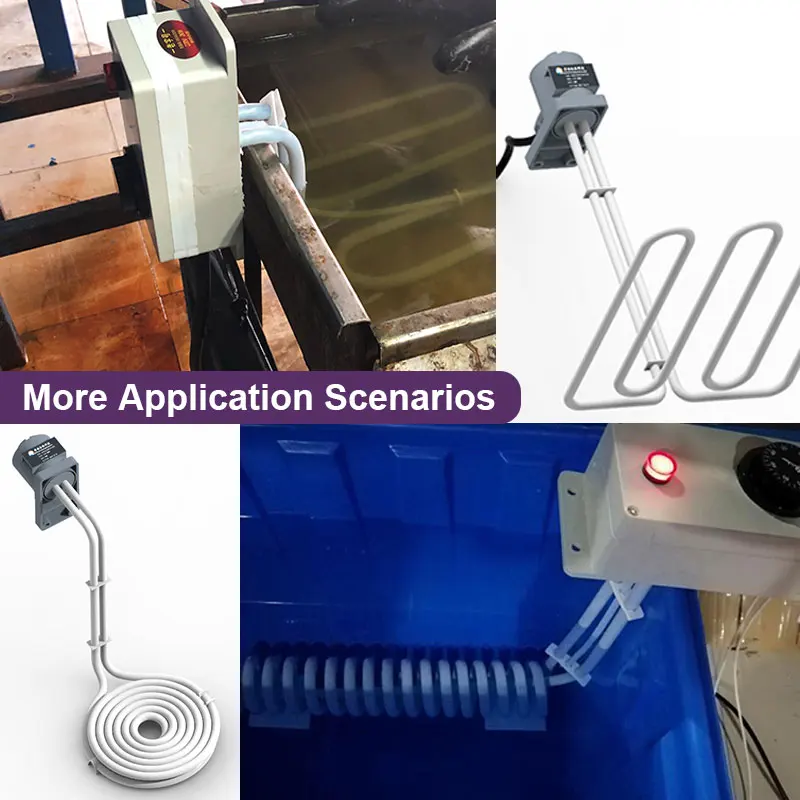

Applications
PTFE heater is the best choice for heating, condensing, evaporating and condensing corrosive liquid such as electroplating,electrolysis, degreasing, pickling, electroless nickel plating, phosphorus plating, hydrofluoric acid, anodized aluminum,smelting, chemical industry,food, etc.

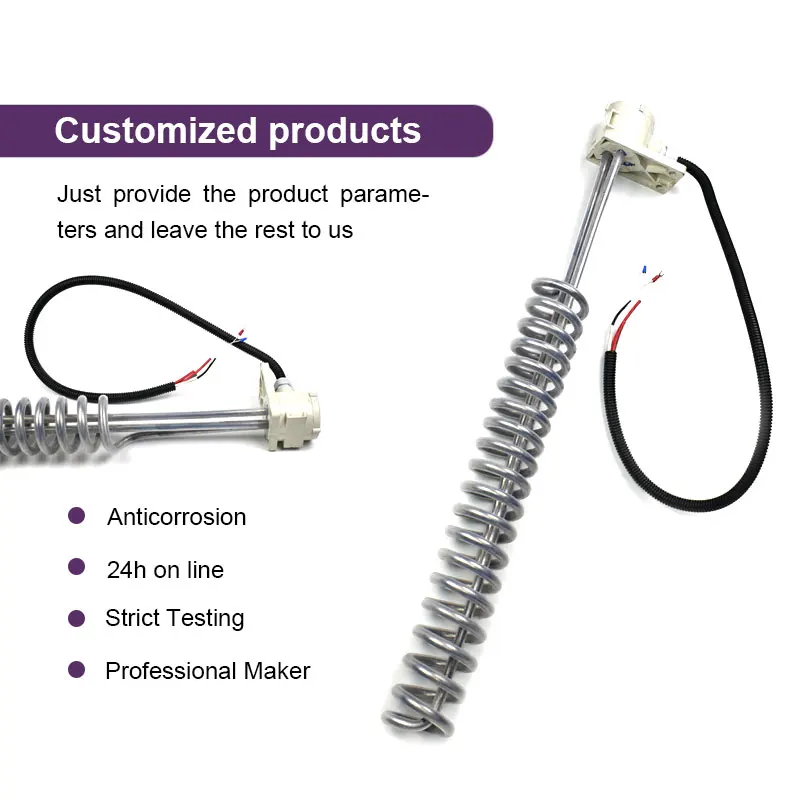

Custom
1.Pipe diameter, support 8-25mm pipe diameter, others can be customized.
2.Voltage 36v-1140v, customizable.
3.Power: 50w-10000w,customizable.
4.Shape and length of heating tube can be customized.
5.Please let us know your use environment and required working temperature.
6.Welcome to customize.
3.Power: 50w-10000w,customizable.
4.Shape and length of heating tube can be customized.
5.Please let us know your use environment and required working temperature.
6.Welcome to customize.
Packaging and Delivery
Packaging
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
About Bright
Company Profile
Jiangsu Bright Electric Heating Technology Co., Ltd. was founded in 1985, Which is a research, design,
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
Buyer Feedback
Order Notification
1. Pipe diameter, support 8-25mm pipe diameter, others can be customized.
2. Voltage 36v-1140v, customizable
3. Power: 50w-10000w, customizable
4. Shape and length of heating tube can be customized.
5. Please let us know your use environment and required working temperature.
6. Welcome to customize.
3. Power: 50w-10000w, customizable
4. Shape and length of heating tube can be customized.
5. Please let us know your use environment and required working temperature.
6. Welcome to customize.
FAQ
Q: How long is your shipping time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
