Новое поколение 5310 Гибридный флэш-центр хранения


Поделиться:


Цена:188 450,00 $ - 189 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 224256.18 $* 235469.14 $*
Aug-15-2025 222371.9 $* 233490.72 $*
Jul-15-2025 186566.93 $* 195894.42 $*
Jun-15-2025 218602.43 $* 229532.24 $*
May-15-2025 190335.69 $* 199852.59 $*
Apr-15-2025 214833.56 $* 225575.99 $*
Mar-15-2025 212949.81 $* 223596.21 $*
Feb-15-2025 211064.53 $* 221617.57 $*
Jan-15-2025 209180.2 $* 219639.53 $*

Характеристики

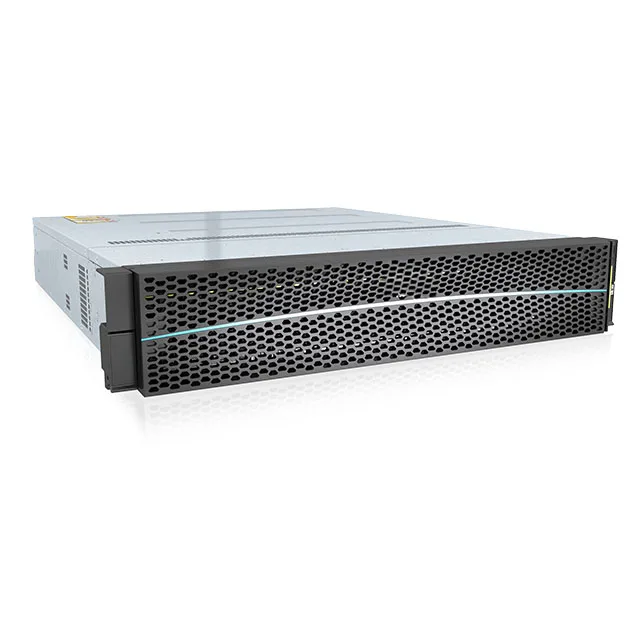

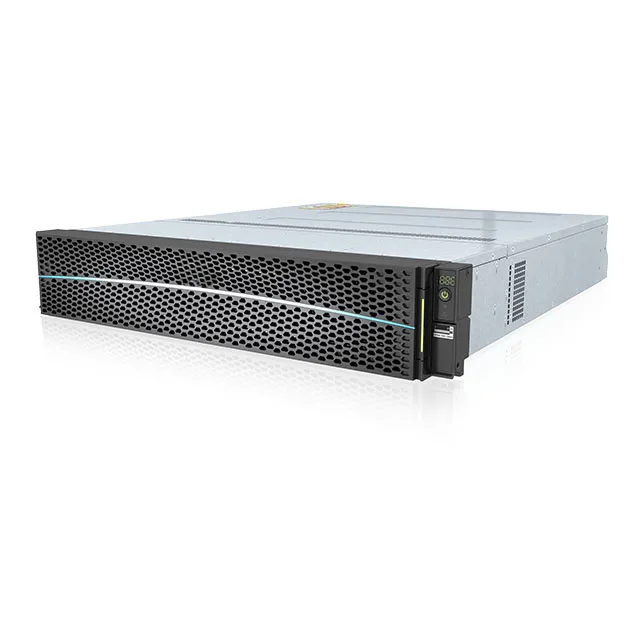

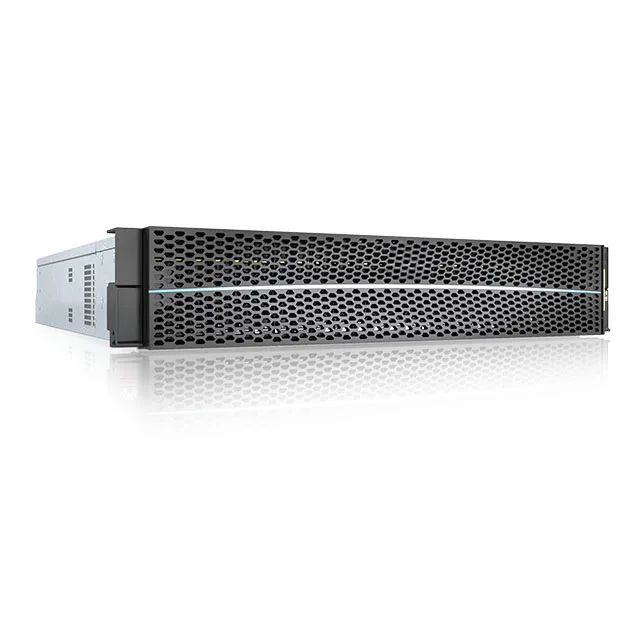

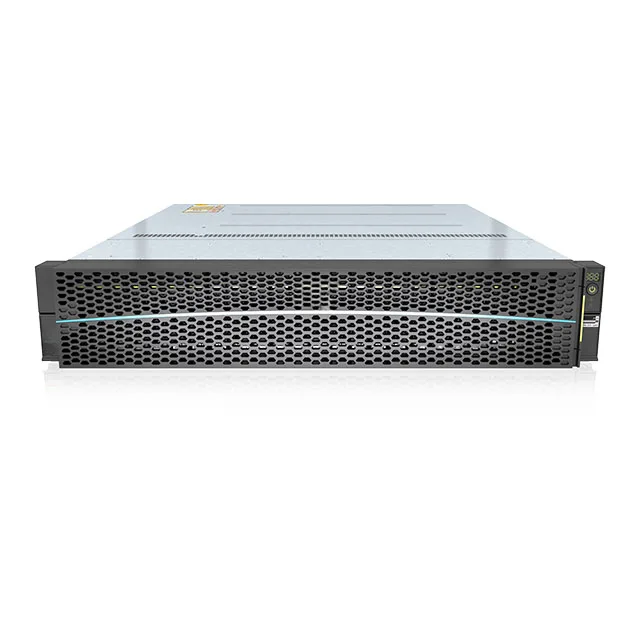

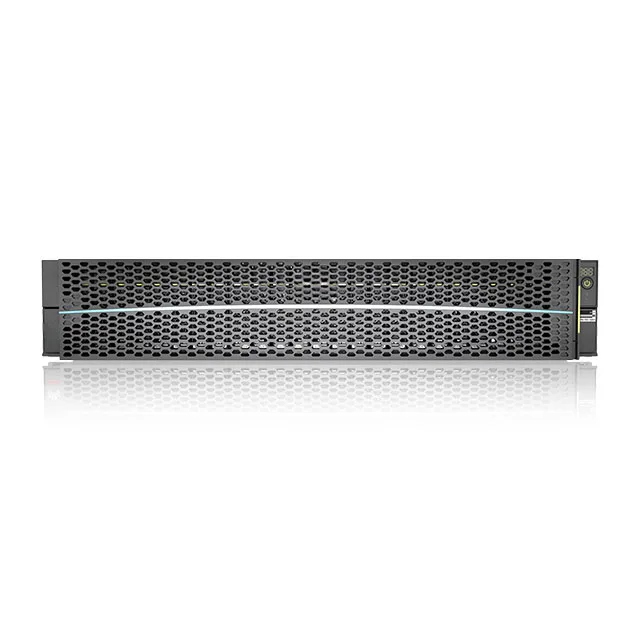

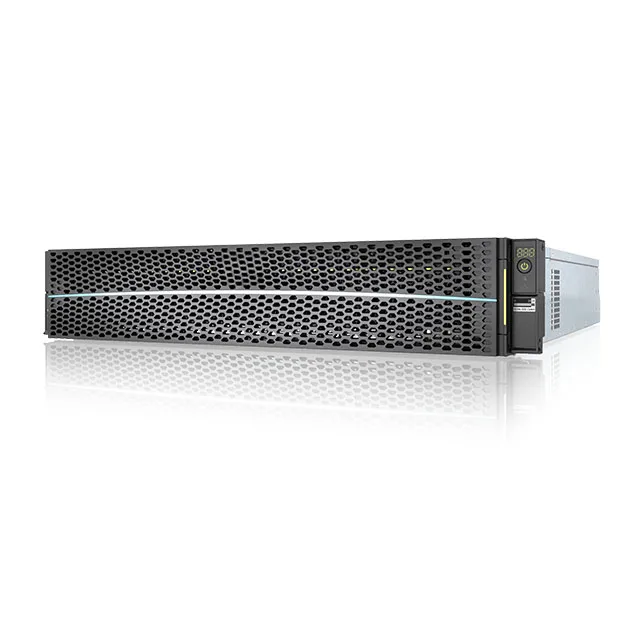

New-Gen OceanStor 5310 Hybrid Flash data center Storage



Product Description


 HW's new generation of mid-range hybrid flash storage systems is designed to future-proof data centers.

New-Gen OceanStor 5310/5510/5610 adopt HW proprietary algorithms to efficiently deploy data across different media, using Solid-State Disks (SSDs) to accelerate mission-critical data. Comprehensive convergence and value-added features also deliver system efficiency and reliability, while built-in insight modules provide intelligent prediction capabilities.

Such features provide diversified storage services to users, making the systems purpose-built for finance, government, manufacturing, education, healthcare, energy, and media entertainment sectors.





Characteris


 Endless Evolution
• A single storage system meets the diverse needs of multiple services — including block, files, container, virtualization, and more — yielding higher storage utilization and lower Total Cost of Ownership (TCO).
• Gateway-free active-active deployment for Storage Area Network (SAN) and Network-Attached Storage (NAS) supports smooth upgrade to geo-redundant Three-Data-Center (3DC)/Four-Data-Center (4DC) Disaster Recovery (DR) solutions.
• The ransomware protection solution features Air Gap, secure snapshots, and End to End (E2E) encryption technologies to effectively defend against ransomware attacks*.





Flash-Like Performance
• Innovative SmartAcceleration technology uses the dynamic adaptive data layout algorithm to accelerate hot data, resulting in two times higher performance than the preceding generation.
• The system supports high-density snapshots while meeting high performance and reliability service requirements.
• E2E Non-Volative Memory express (NVMe) architecture slashes latency to just 0.05 ms for a premium, all-flash experience.





Cost Effectiveness
• Data streams flow across generations — entry-level, mid-range, and high-end storage systems — requiring no extra costs.
• The system supports up to 16 controllers, creating a linear increase in system performance to support service growth.
• The Data Management Engine (DME) interconnects with Ansible and mainstream Information Technology (IT) service management platforms like ServiceNow, reducing Operations and Maintenance (O&M) costs.





Sepefication


































































ParametersOceanStor 5310OceanStor 5510OceanStor 5610
Hardware Specifications
Maximum Number of Controllers161616
Maximum Cache (dual controllers, grows with the expansion of controllers)128 GB to 2 TB384 GB to 4 TB768 GB to 8 TB
Supported Storage ProtocolsFC,iSCSI,NFS,CIFS,FC-NVMe,NVMe over RoCE,NDMPFC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP and S3*
Front-End Channel Port Types8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, and 25 Gbps NVMe over RoCE
Back-End Channel Port Types100 Gbps RDMA/SAS 3.0
Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure612
Maximum Number of Front-End Host Ports per Controller Enclosure4048
Hard Disk TypesNVMe SSD, SAS SSD, SAS, NL-SAS
Software Specifications
RAID LevelsRAID 5, RAID 6, RAID10, and RAID-TP (tolerating the simultaneous failure of three disks)
Value-added softwareSmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression, and SmartMobility*
HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperEncryption, HyperDetect*, HyperLink and CloudBackup*
