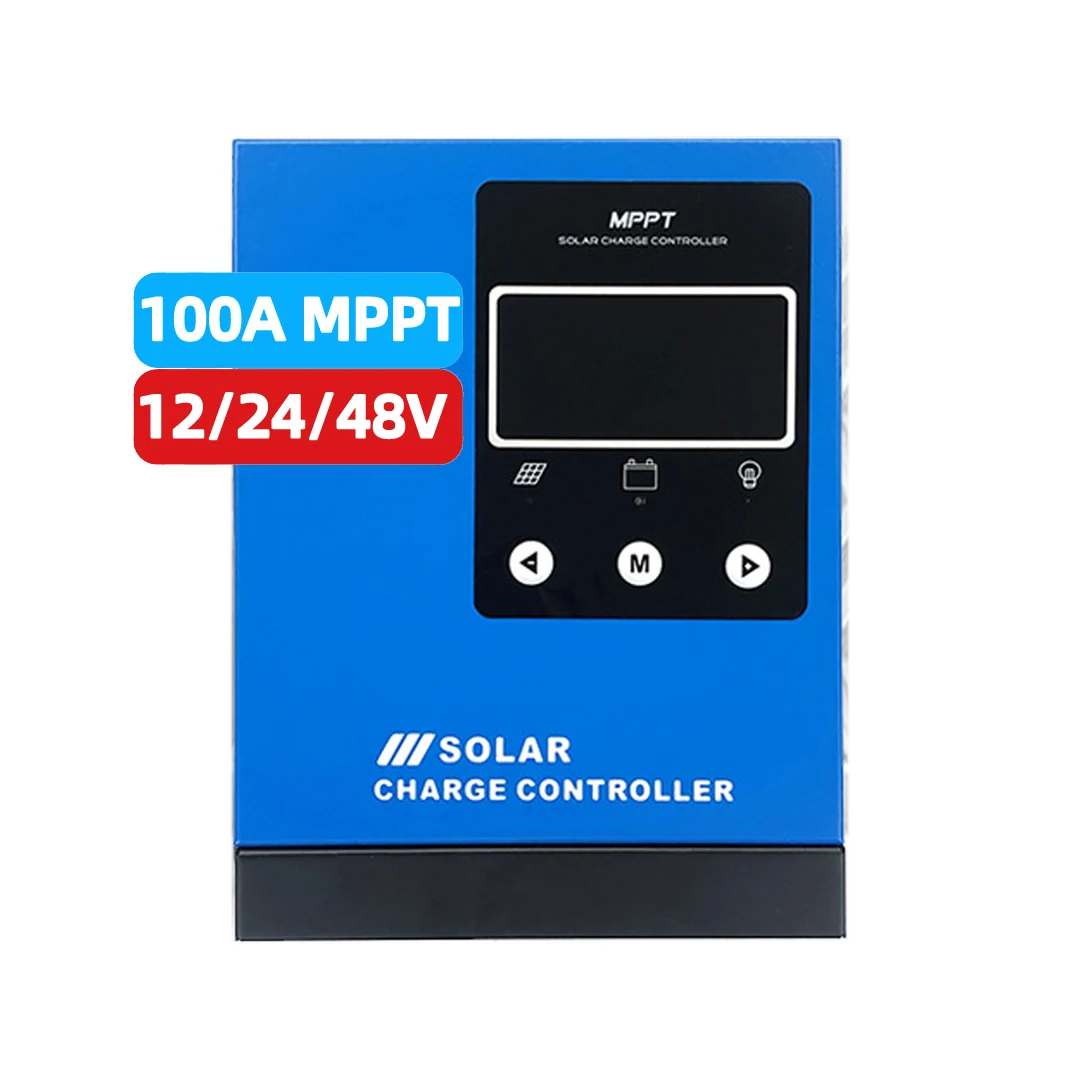

Контроллер солнечной батареи зарядное устройство 100amp
- Категория: Solar Energy Products >>>
- Поставщик: Dongguan,Hisun,Pvtech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 133.61 $* | 136.53 $* |
| Jul-19-2025 | 108.59 $* | 110.88 $* |
| Jun-19-2025 | 131.53 $* | 134.27 $* |
| May-19-2025 | 130.67 $* | 133.68 $* |
| Apr-19-2025 | 104.59 $* | 106.33 $* |
| Mar-19-2025 | 128.39 $* | 131.12 $* |
| Feb-19-2025 | 127.34 $* | 130.17 $* |
| Jan-19-2025 | 126.18 $* | 129.4 $* |
Характеристики
Details Images
Products Description
Model | MPK40 | MPK60 | MPK80 | MPK100 | ||||||||||
Input | ||||||||||||||
Maximum PV open circuit voltage | 150V(at the lowest temperature) 138V(at a standard temperature of 25°) | |||||||||||||
Minimum PV voltage | 20V/40V/60V/80V | |||||||||||||
Rated Charge Current | 30A | 40A | 50A | 60A | 80A | 100A | ||||||||
Maximum input power | 12V | 390W | 520W | 650W | 780W | 1040W | 1300W | |||||||
24V | 780W | 1040W | 1300W | 1560W | 2080W | 2600W | ||||||||
36V | 1170W | 1560W | 1950W | 2340W | 3120W | 3900W | ||||||||
48V | 1560W | 2080W | 2600W | 3120W | 4160W | 5200W | ||||||||
Output | ||||||||||||||
System voltage | 12V/24V/36V/48V Auto | |||||||||||||
Rated Discharge Current | 15A | 20A | 25A | 30A | 40A | 50A | ||||||||
Self-consum | ≤35mA(48V) | |||||||||||||
MPPT highest accuracy | 99% | |||||||||||||
Maximum charging efficiency | 97% | |||||||||||||
Charging control mode | Multi-stage(MPPT, Absorption, Float,Equalization,CV) | |||||||||||||
Float charge | 13.8V/27.6V/41.4V/55.2V | |||||||||||||
Boost charge | 14.4V/28.8V/43.2V/57.6V | |||||||||||||
Equalization charge | 14.6V/29.2V/43.8V/58.4V | |||||||||||||
Low voltage disconnect voltage | 10.8V/21.6V/32.4V/43.2V | |||||||||||||
Low voltage recovery voltage | 12.6V/25.2V/37.8V/50.4V | |||||||||||||
Load control mode | Normal, light control, light and timing control, timing control, reverse light control | |||||||||||||
Light control point voltage | 5V/10V/15V/20V | |||||||||||||
Battery Type | GEL, SLD,FLD and USR(default),Lithium batteries customization 3series 3.7V,4 series 3.7V,4series 3.2V,5series 3.2V | |||||||||||||
Other | ||||||||||||||

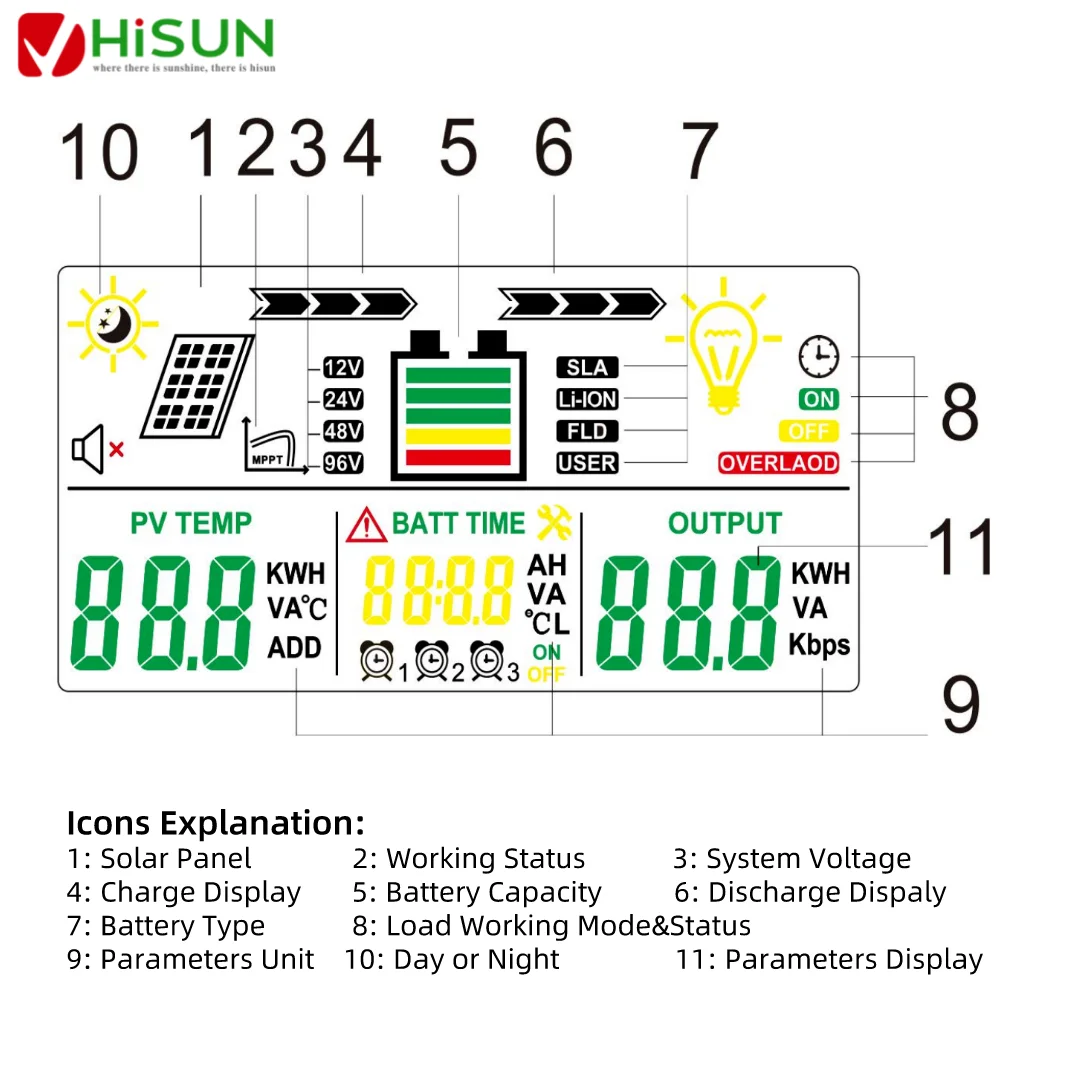

Human interface | Color LCD with backlight, 3 buttons | |||||||||||||

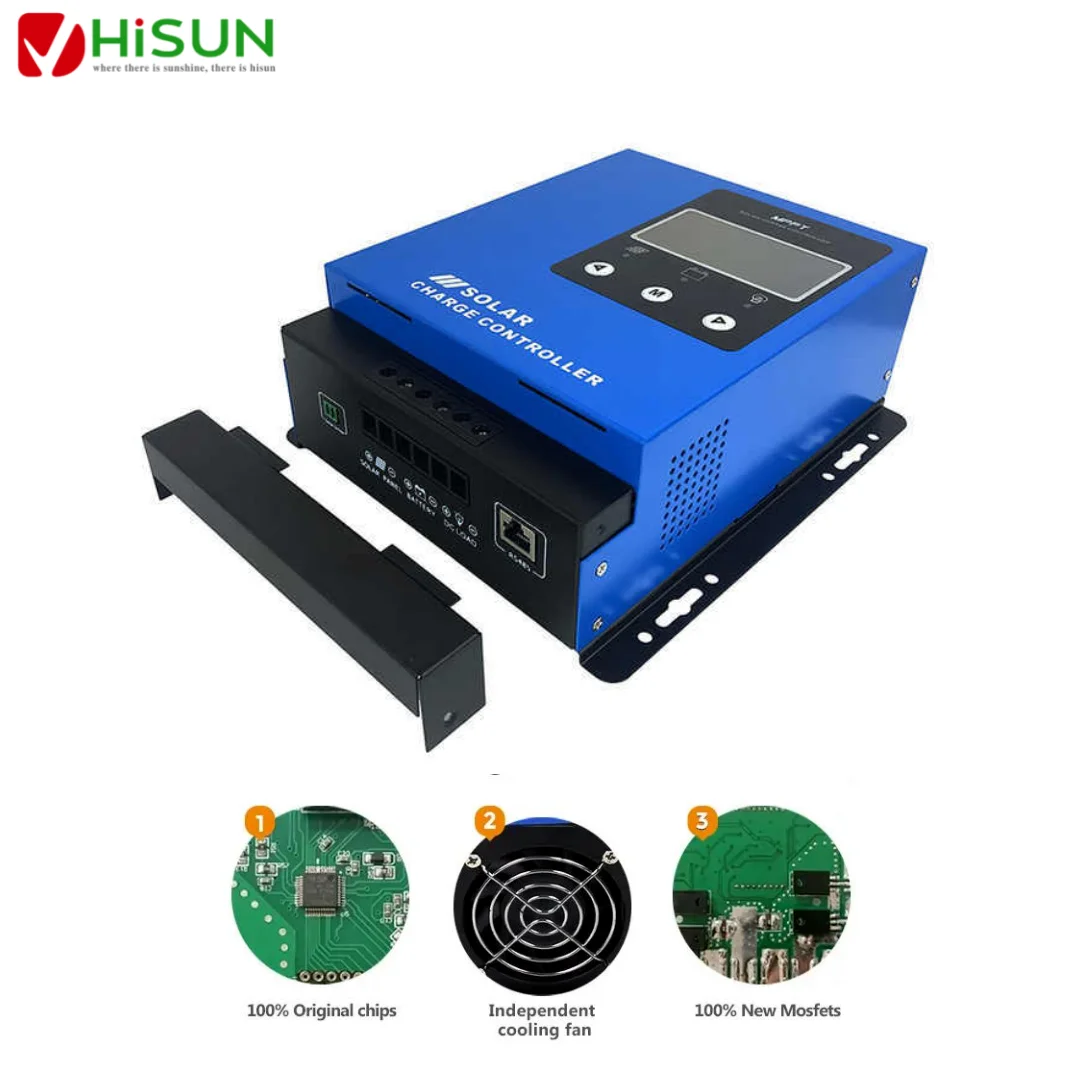

Cooling mode | lron case heat sink and cooling fan | |||||||||||||
Wiring | High current copper terminal≤25 mm²(3AWG) | |||||||||||||
Temperature probe | 10K, line length 3 meters | |||||||||||||

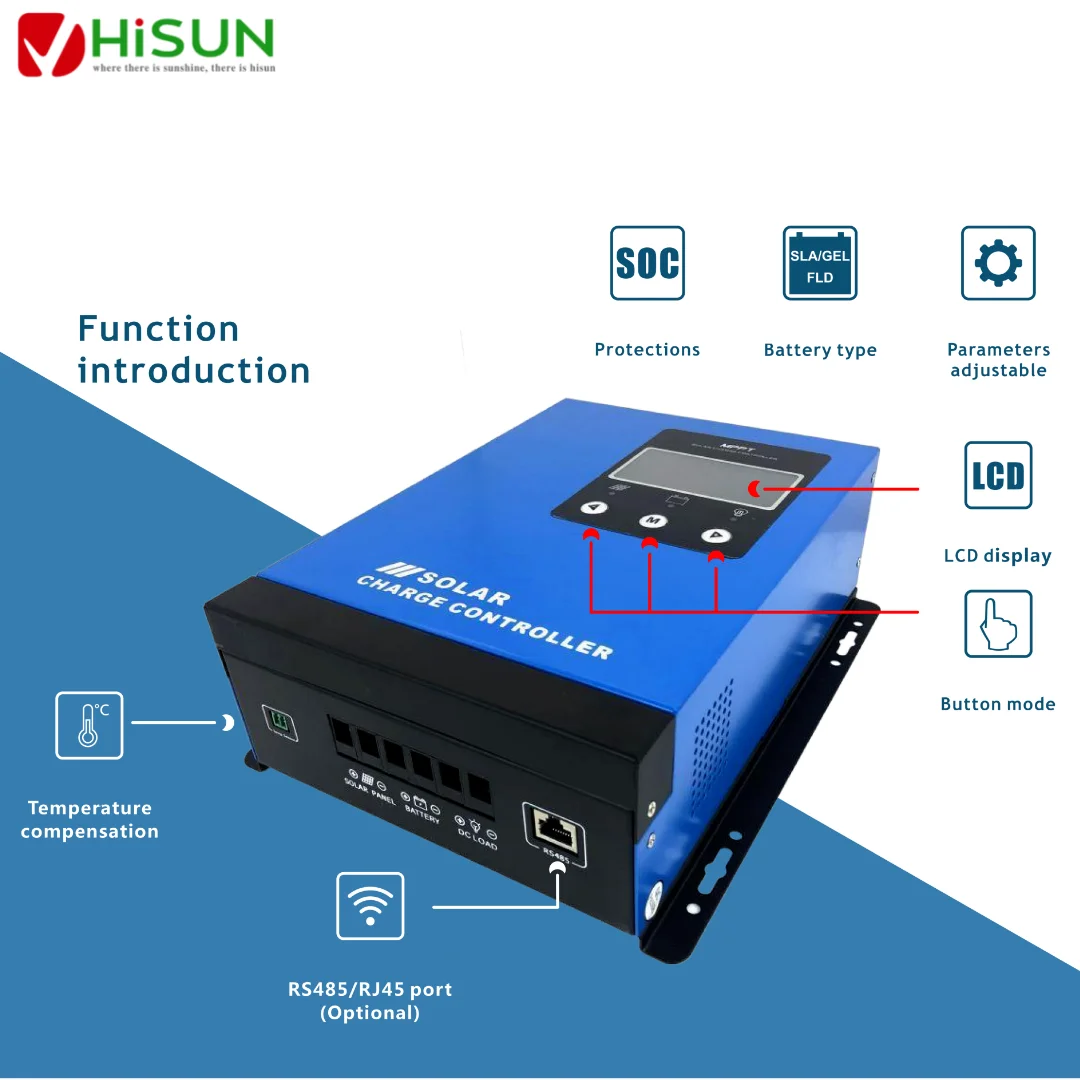

Communication mode | RS485,RJ45 port | |||||||||||||
Working temperature range | -20~+55°C | |||||||||||||
Storage temperature range | -30~+80°C | |||||||||||||
Humidity | 10%~90% No condensation | |||||||||||||
Size | 220mm*200mm*83mm | 265mm*220mm*88mm | 340mm*240mm*108mm | |||||||||||
Weight | 2.2KG | 3.3KG | 4.5KG | |||||||||||
Note: Please operate at the ambient temperature allowed by the controller. If the ambient temperature exceeds the allowable range of the controller, please derate it | ||||||||||||||
