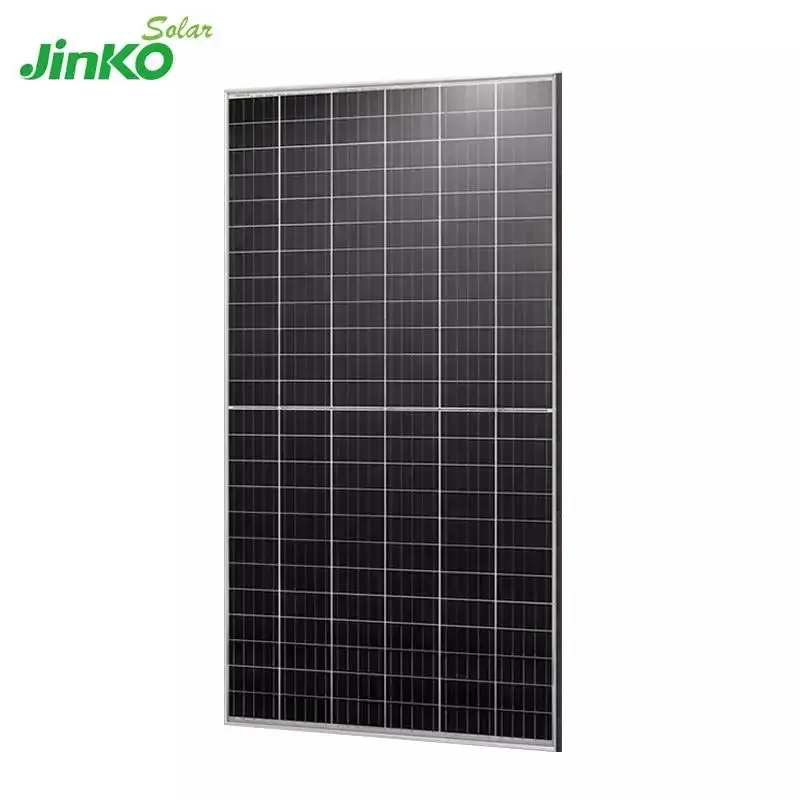

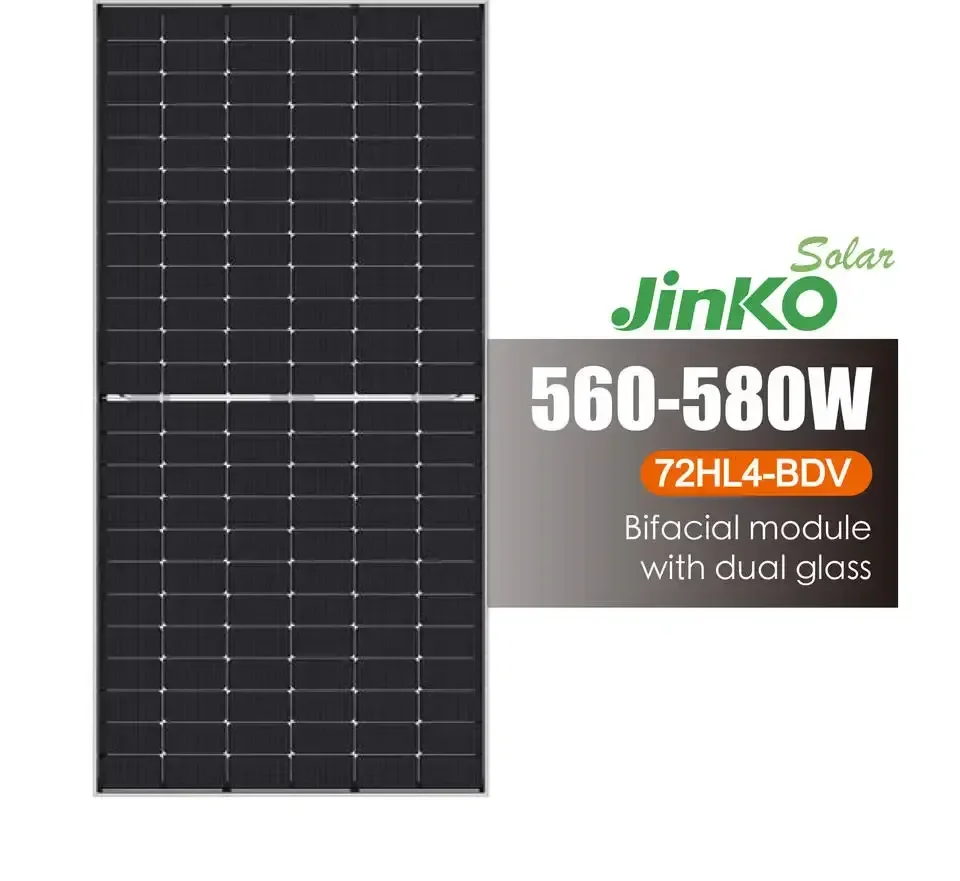

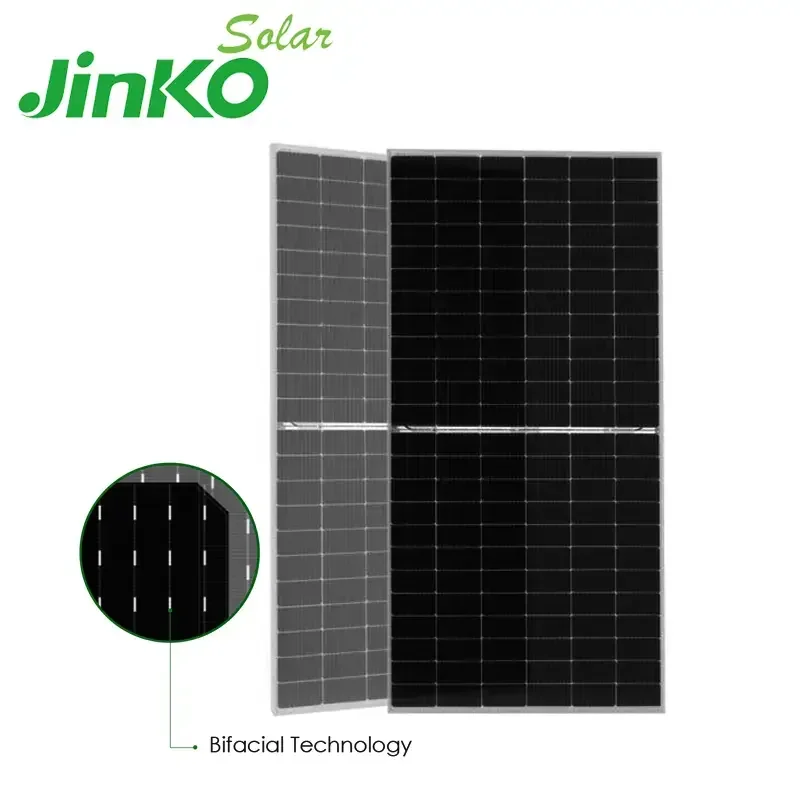

Высокопроизводительная промышленная солнечная система Jinko Tiger Neo N-Type JKM570n-72hl4-Bdv 570 Вт 575 панель в
- Категория: Solar Energy Products >>>
- Поставщик: Sunpro,Energy,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.57 $* |
| Aug-16-2025 | 0.58 $* | 0.73 $* |
| Jul-16-2025 | 0.16 $* | 0.55 $* |
| Jun-16-2025 | 0.94 $* | 0.74 $* |
| May-16-2025 | 0.99 $* | 0.50 $* |
| Apr-16-2025 | 0.1 $* | 0.27 $* |
| Mar-16-2025 | 0.66 $* | 0.10 $* |
| Feb-16-2025 | 0.10 $* | 0.29 $* |
| Jan-16-2025 | 0.86 $* | 0.15 $* |
Характеристики
PRODUCT PARAMETERS
SPECIFICATIONS | ||||||||
Module Type | JKM565N-72HL4-BDV | JKM570N-72HL4-BDV | JKM575N-72HL4-BDV | JKM580N-72HL4-BDV | ||||
Maximum Power (Pmax) | 565Wp | 570Wp | 575Wp | 580Wp | ||||
Maximum Power Voltage (Vmp) | 42.14V | 42.29V | 42.44V | 42.59V | ||||
Maximum Power Current (Imp) | 13.41A | 13.48A | 13.55A | 13.62A | ||||
Open-circuit Voltage (Voc) | 50.87V | 51.07V | 51.27V | 51.47V | ||||
Short-circuit Current (Isc) | 14.19A | 14.25A | 14.31A | 14.37A | ||||
Module Efficiency STC (%) | 21.87% | 22.07% | 22.26% | 22.45% | ||||
Operating Temperature(℃) | -40℃~+85℃ | |||||||
Maximum system voltage | 1500VDC (IEC) | |||||||
Maximum series fuse rating | 30A | |||||||
Power tolerance | 0~+3% | |||||||
Temperature coefficients of Pmax | -0.29%/℃ | |||||||
Temperature coefficients of Voc | -0.25%/℃ | |||||||
Temperature coefficients of Isc | 0.045%/℃ | |||||||
Mechanical Characteristics | ||||||||
Cell Type | N type Mono-crystalline | |||||||
No. of cells | 144 (2×72) | |||||||
Dimensions | 2278×1134×30mm | |||||||
Weight | 32 kg (70.55 lbs) | |||||||
Front Glass | 2.0mm, Anti-Reflection Coating | |||||||
Frame | Anodized Aluminium Alloy | |||||||
Junction Box | IP68 Rated | |||||||
Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length | |||||||
Packaging Configuration | ||||||||
36pcs/pallets, 72pcs/stack, 720pcs/ 40'HQ Container | ||||||||
PRODUCT PRESENTATION
PRODUCT CATEGORY
COMPANY PROFILE
FAQ
1. What is your pricing strategy?
For overseas markets, we will offer competitive prices to support a strong distributor in every area, and graduallyestablishoverseas service agency, as a good opportunity, some long-term cooperation partners wil cooperate with us to sign theannual cooperation agreement (including execution price).
2. How about Quality Control?
OS9002 could help us to realize the factory management control and our ERP system can help us to control the cost ofprocurement links efectively, so we can provide competitive price. New test system could do uninterrupted fatiguetesting to ensure its using life. Pre-shipment inspection and third-party supervision are available and welcome
3. How to deliver?
We can make delivery by air or by sea, you are suggest to choose delivery by sea to reduce cost for order over 10 sets
For overseas markets, we will offer competitive prices to support a strong distributor in every area, and graduallyestablishoverseas service agency, as a good opportunity, some long-term cooperation partners wil cooperate with us to sign theannual cooperation agreement (including execution price).
2. How about Quality Control?
OS9002 could help us to realize the factory management control and our ERP system can help us to control the cost ofprocurement links efectively, so we can provide competitive price. New test system could do uninterrupted fatiguetesting to ensure its using life. Pre-shipment inspection and third-party supervision are available and welcome
3. How to deliver?
We can make delivery by air or by sea, you are suggest to choose delivery by sea to reduce cost for order over 10 sets
