PXIe, 5-Slot (3 Hybrid Slots, 2 PXI Express Slots), Up to 250 MB/s PXI Chassis , The PXIe 1073 is designed for a wide range of test and measurement applications and provides an integrated MXI Express controller. The chassis features compact, rugged packaging as well as acoustically quiet operation, which makes it ideal for both portable and desktop systems.

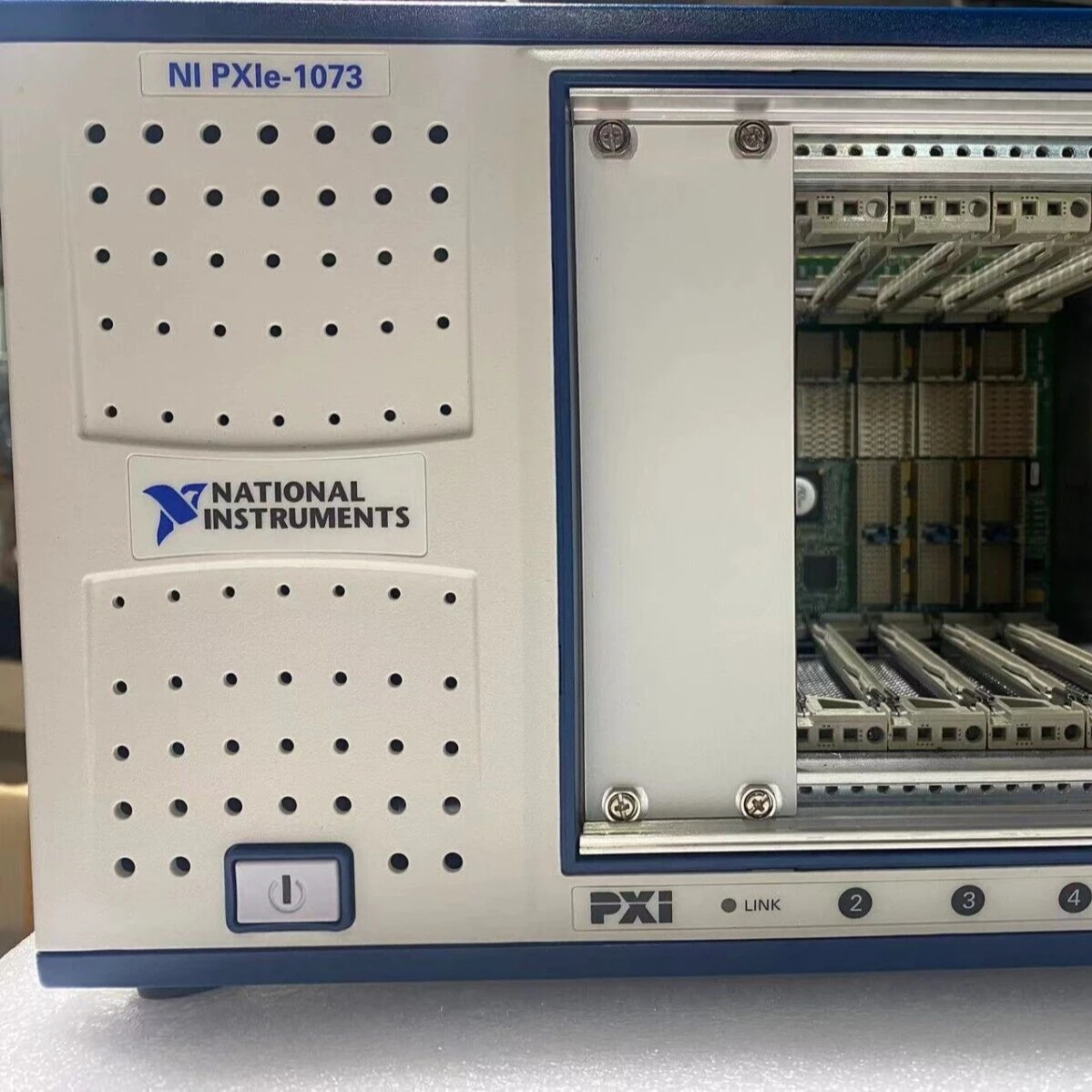

The PXIe-1073 (Part Numbers: 781161-01, 781163-01, and 196695B-01) is an AC PXI Chassis, featuring an integrated controller for remote control applications. This model has a compact and durable design and features five peripheral slots for I/O modules. There are two PXIe slots and three hybrid slots. The NI PXIe-1073 Chassis sustains quiet operation, making it suitable for portable, desktop, and industrial control applications.

This PXI Chassis comes with an x1 MXI-Express interface which can be accessed via the MXI-Express chassis controller connector on the rear of the chassis. The MXIe interface can be cabled to deliver control of the chassis. There is not a slot number 1 on the NI PXIe-1073. Instead, there is the MXIe interface back connector.
The PXIe-1073 NI can help users create the highest-value PXI Express systems on the market today. The NI PXIe-1073 features an integrated MXI-Express controller, providing a transparent, remote link with up to 208 MB/s sustained throughput to the host computer. The front panel has an On/Standby momentary power switch for convenience for the user.
The PXIe 1073 backplane is fully compliant with PCI timing and synchronization standards for PXI modules. The Chassis includes a 10 MHz reference clock with an accuracy of ±25 parts per million (ppm), less than 5 ps jitter, and a maximum slot-to-slot skew of 250 ps. This Chassis does not offer a system timing slot, which provides the ability to import/export the 10 MHz clock and PXI triggers.
