GookiiTech автоматический точечный сварочный электродный наконечник комод с резаками
- Категория: Other Welding Equipment >>>
- Поставщик: Sino,Gookii,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 1369.64 $* | 1437.72 $* |
| Aug-17-2025 | 1357.36 $* | 1425.71 $* |
| Jul-17-2025 | 1139.84 $* | 1196.58 $* |
| Jun-17-2025 | 1334.25 $* | 1401.84 $* |
| May-17-2025 | 1162.32 $* | 1220.21 $* |
| Apr-17-2025 | 1311.89 $* | 1377.13 $* |
| Mar-17-2025 | 1300.71 $* | 1365.0 $* |
| Feb-17-2025 | 1288.14 $* | 1352.34 $* |
| Jan-17-2025 | 1277.49 $* | 1341.42 $* |
Характеристики
Products Description
Electrode Tip Dresser Standard Parameters | ||||||
GT | GTB | GTC | ||||
Transmission Mode | Gear Drive | Gear Drive | Gear Drive | |||
Power | Three phase AC 380V | Three phase AC 380V | Three phase AC 380V | |||
Frequency | 50Hz | 50Hz | 50Hz | |||
No-load Speed | 228rpm | 245rpm | 459rpm | |||
Rated Output Torque | 46N.m | 50.5N.m | 27N.m | |||
Rated Output Power | 1.1KW | 1.3KW (rated for 10 minutes) | 1.3KW (rated for 10 minutes) | |||
Floating Adjustment Range | ±15mm | ±15mm | ±15mm | |||
Control Power Supply | DC 24V | DC 24V | DC 24V | |||
Motor Overload Protection | Standard configuration | Standard configuration | Standard configuration | |||
Circuit Overload Protection | Standard configuration | Standard configuration | Standard configuration | |||
Abnormal Output (circuit breaker trip, OFF detection) | Standard configuration | Standard configuration | Standard configuration | |||
Rotary Induction | Optional | Optional | ||||
Closed Copper Scrap Collector | Optional | Optional | Optional | |||

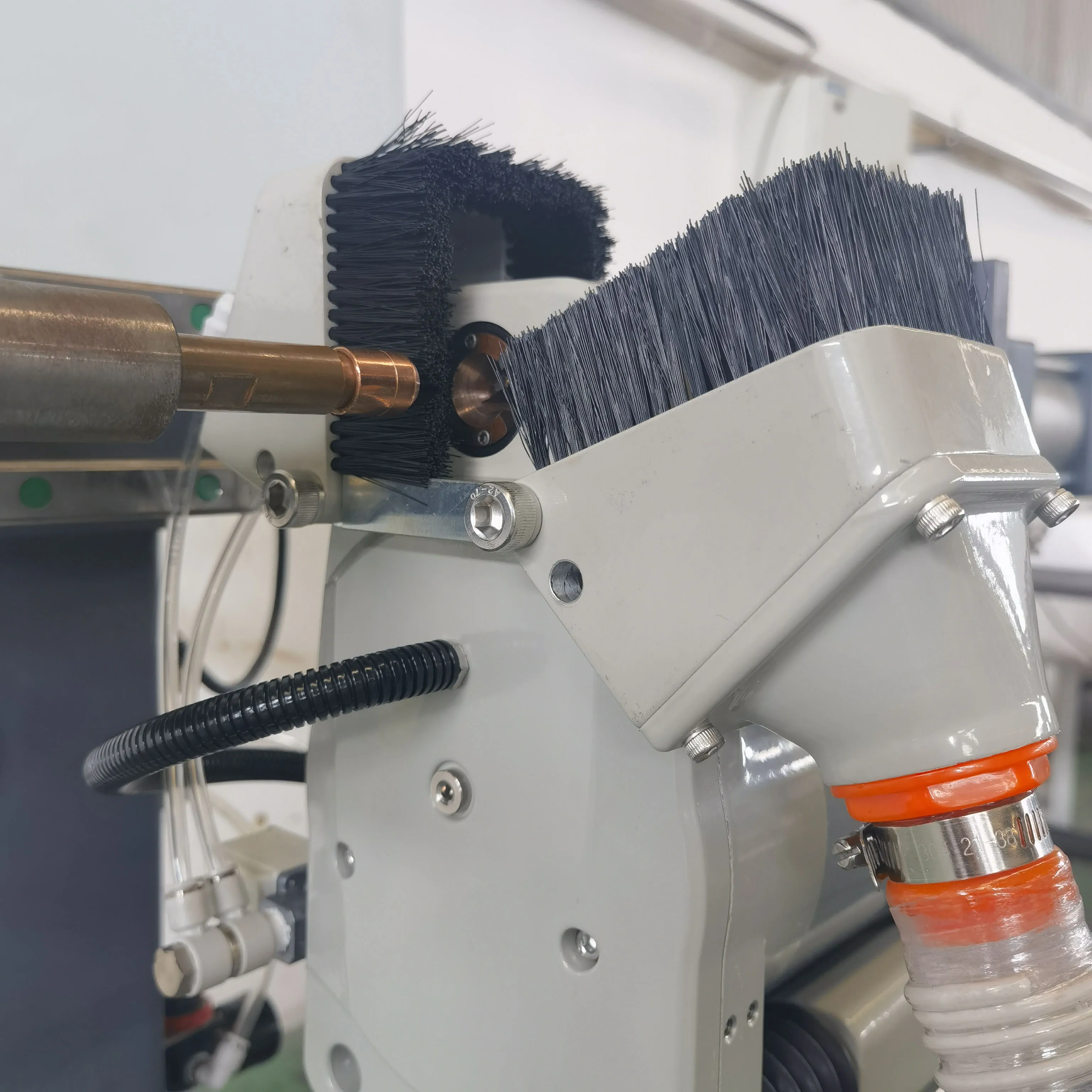

We can customize the electrode tip dresser machines for other power sources such as 220V, 400V, 480V according to customer requirements, and the installation height and method can also be customized. Long service life, flexible and effective. The dressing tool is driven by the electric unit and dresses the electrode surface. During dress the electrode is cut to its desired shape. Where coated steel sheets are welded, there is the need to dress flank and working surfaces to remove any materials which have conducted the electrode material. The copper swarf will collect in the collector. | ||||||

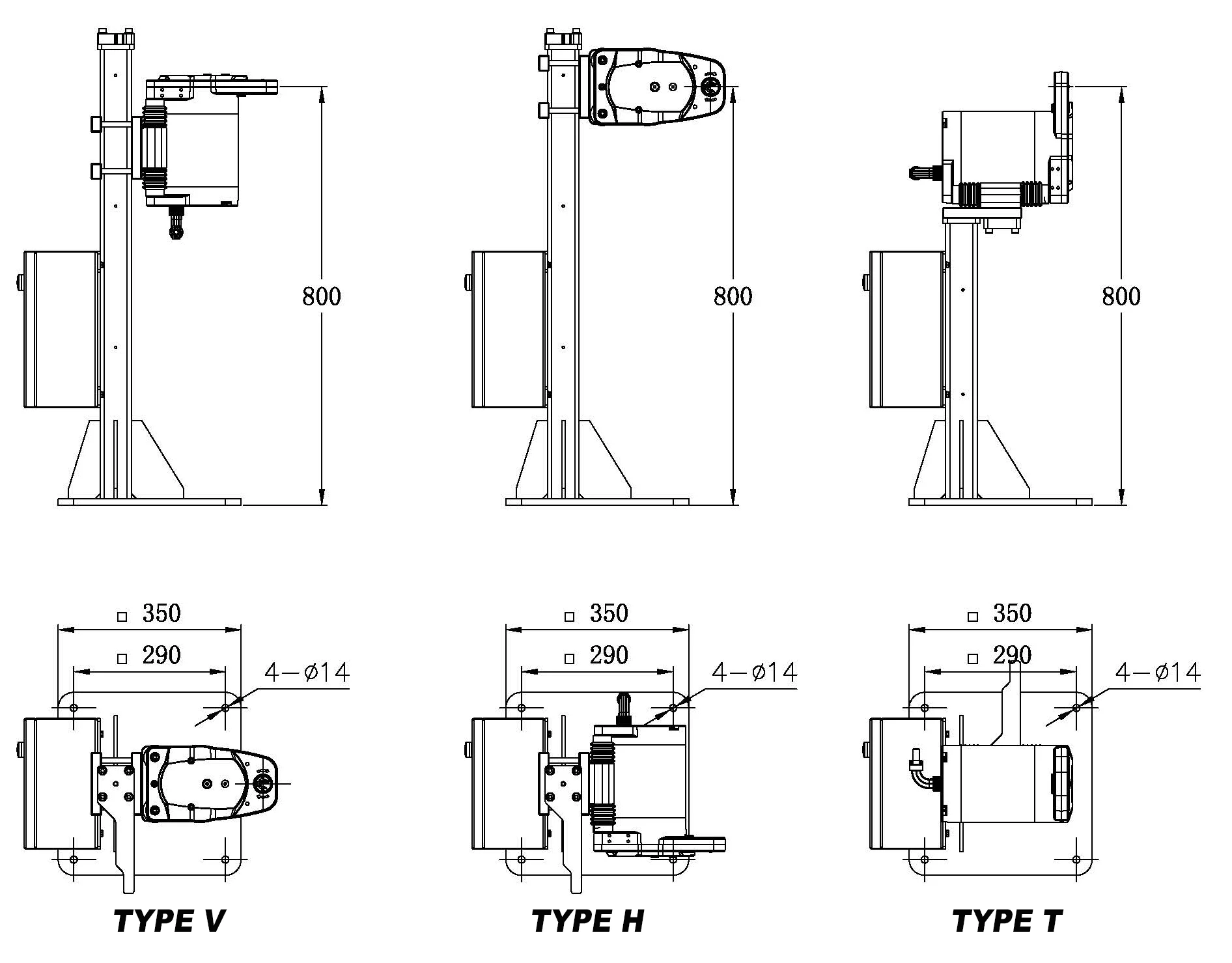

GTB/C-V, GTB/C-H & GTB/C-T
GTB/C-V style: The electrode of the welding clamp is polished perpendicular to the ground;
GTB/C-H style: The electrode of the welding clamp is horizontal on the ground, and the welding clamp is moved horizontally on the ground for grinding;
GTB/C-T style: The electrode of the welding clamp is horizontal to the ground and moves the welding clamp perpendicular to the ground for grinding;
The installation form of the grinder can be adjusted or designed according to the customer's requirements. The height of the center of the grinding blade from the installation ground is 800mm. If there is no special requirement when ordering, the grinder will be delivered as 800mm;
Please indicate the required style when ordering. If there are no special specifications, the delivery will be based on the GTB/C-V style.
GTB/C-H style: The electrode of the welding clamp is horizontal on the ground, and the welding clamp is moved horizontally on the ground for grinding;
GTB/C-T style: The electrode of the welding clamp is horizontal to the ground and moves the welding clamp perpendicular to the ground for grinding;
The installation form of the grinder can be adjusted or designed according to the customer's requirements. The height of the center of the grinding blade from the installation ground is 800mm. If there is no special requirement when ordering, the grinder will be delivered as 800mm;
Please indicate the required style when ordering. If there are no special specifications, the delivery will be based on the GTB/C-V style.
Electrode Tip Dresser Optional items | ||||||
No. | Item Name | Details | Remark | |||
1 | Body Frame | Fixed Type | The installation height and direction of the grinder host are fixed and cannot be adjusted. | |||
Adjustable Type | The installation height and direction of the grinder host can be adjusted. | |||||
2 | Copper Scrap Collector | Tray Type | When repairing the welding pliers, the cutting angle is relatively free, and copper shavings may be blown to the surrounding area. | |||
Closed Suction Type | The cutting angle during welding pliers grinding is relatively limited, and copper shavings are collected in a collection bucket. | |||||
3 | Rotary Induction | Without Rotary Induction | Open loop control of the grinding machine at the robot end. | |||
With Rotary Induction | Can detect the rotation of the grinding gear, provide feedback signals to the robot end, and form a closed loop. | |||||
4 | Electrical Components | Siemens | The contactor and circuit breaker adopt Siemens, equipped with surge suppressors and spark arresters. | |||
Chint | The contactor and circuit breaker are made of Chint and are not equipped with surge suppressors or spark arresters. | |||||
5 | Solenoid Valve | SMC | The blowing solenoid valve is SMC brand. | |||
AIRTAC | The blowing solenoid valve is AIRTAC brand. | |||||
6 | Blade | High Wear Resistance | High wear resistance, long grinding life, suitable for servo welding tongs with accurate pressure and low impact. | |||
High Toughness | High toughness, low risk of fragmentation, suitable for pneumatic welding tongs with difficult pressure adjustment and high impact. | |||||
Recommend Products
Company Profile
Sino Gookii Tech Co.,Ltd.
Sino Gookii Tech is committed to providing customers with one-stop machinery customization, processing and services. We focus on surface treatment, welding and smart factory related materials and equipments. With 12 years of industry experience, we have provided full range of equipment and technical support to large international companies.

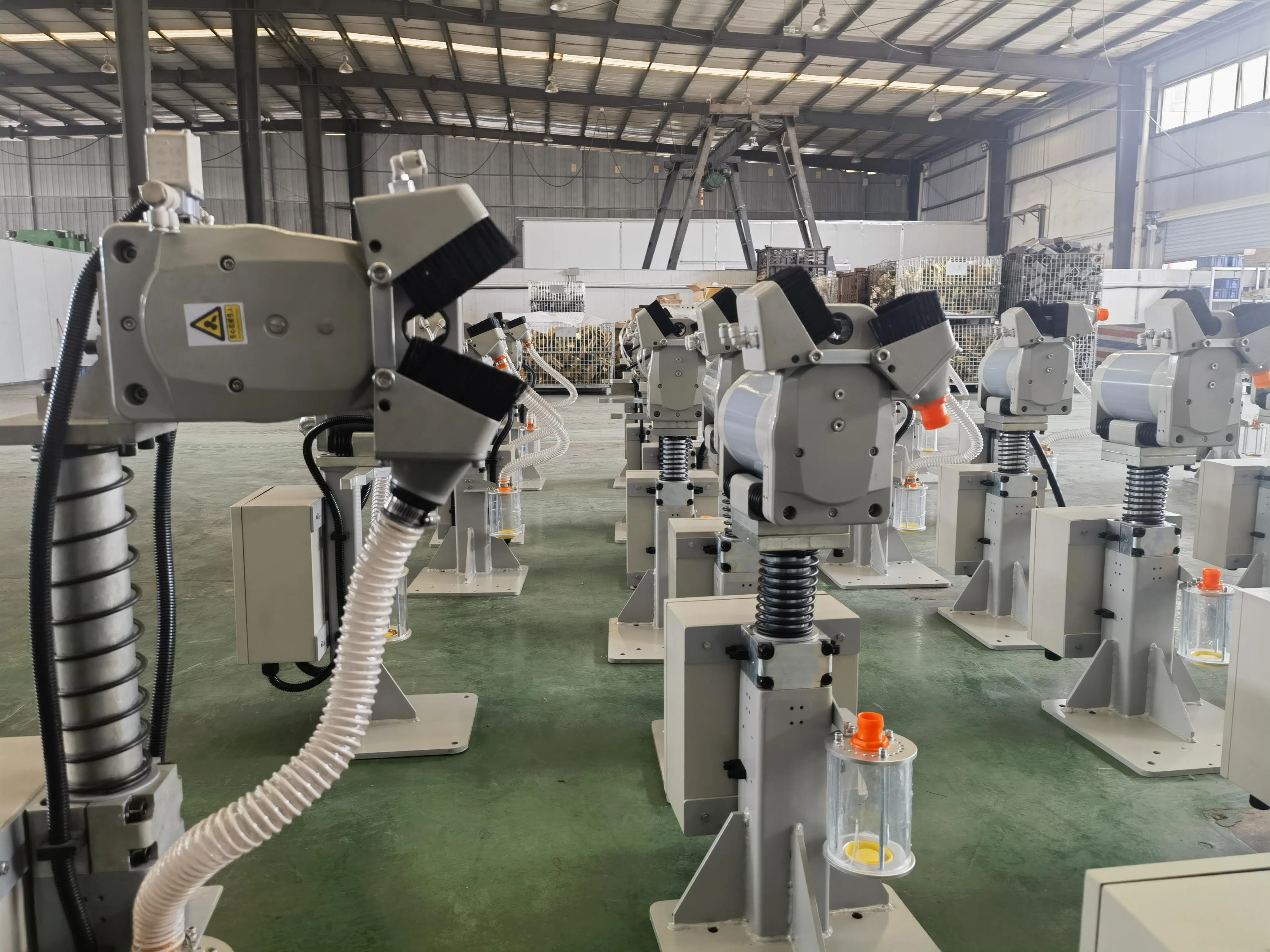

Sino Gookii Tech has 2 self-operated factories to ensure that each equipment and each material are fully developed, tested, and produced before being delivered to customers.
Customer Reviews
FAQ
Q1. Do you have all these machines available in your factory?
- A1: We have most of the machines in stock, we can finish packing in 3 to 5 days once you confirmed the order.
Q2. Can I have my own logo or customization on this machine?
- A2: Yes, we accept customization.
Q3. How to place the order?
- A3: Please choose the type you like, and send us your address and contact information, we will check the shipping price and quote everything to you immediately. If you agree the terms, then you can start paying, you can pay by T/T, visa credit card, western union, paypal etc. We will start the production and then arrange the shipping.
Q4. How many days I can receive my products?
- A4: If machine shipped by sea boat, to America, Europe and Africa, about one month you can receive. If Korea and Japan, about one week. Other Asia countries, about 2 weeks.
Q5. Do you have any quality guarantee for machine products?
- A5: Absolutely. We have a five-year warranty on the machine and provide installation and maintenance guidance through-out.
